LAS 400.1 – modular laser fume extractor
Product details
Application fields
Laser engraving, laser marking, laser welding, laser cleaning
Laser welding, laser ablation, laser cutting, laser melting, etc.
Features/equipment
Replaceable filter system for minimal contamination: Features "Save Change Technology" to minimize mess during filter changes.

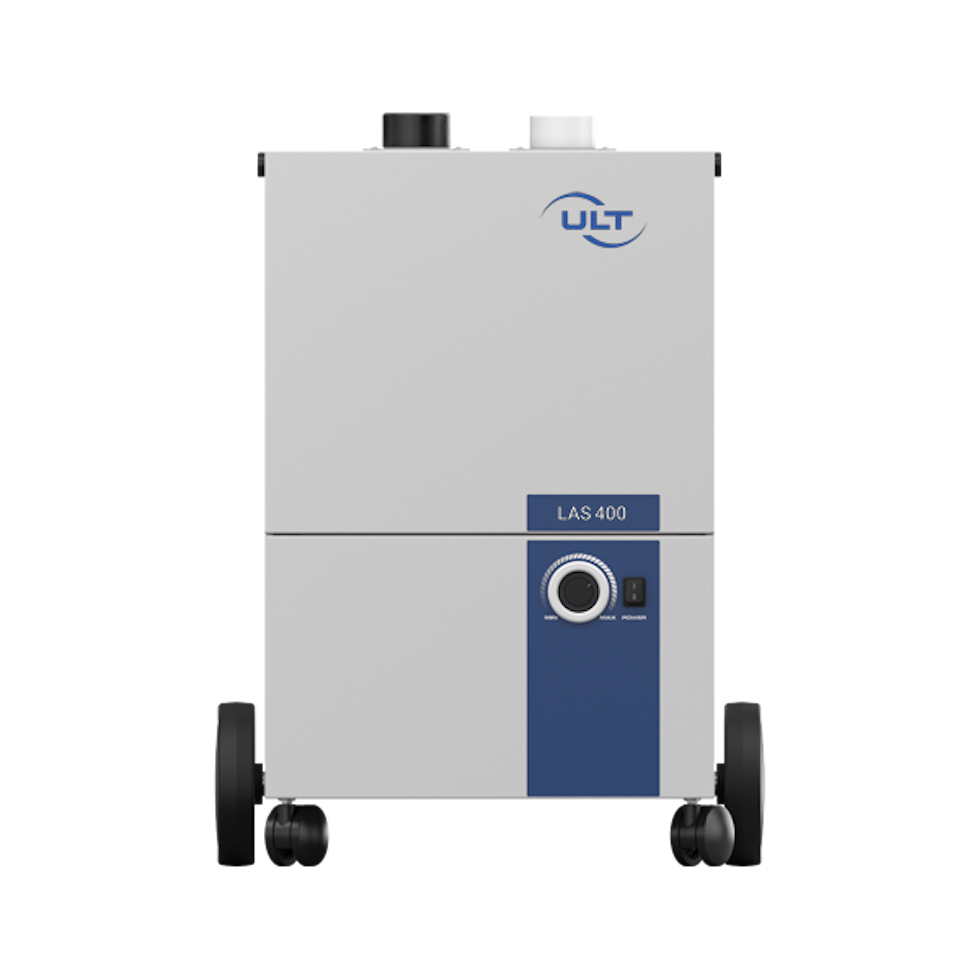

Front-mounted input and output: Easily accessible intake and exhaust ports.

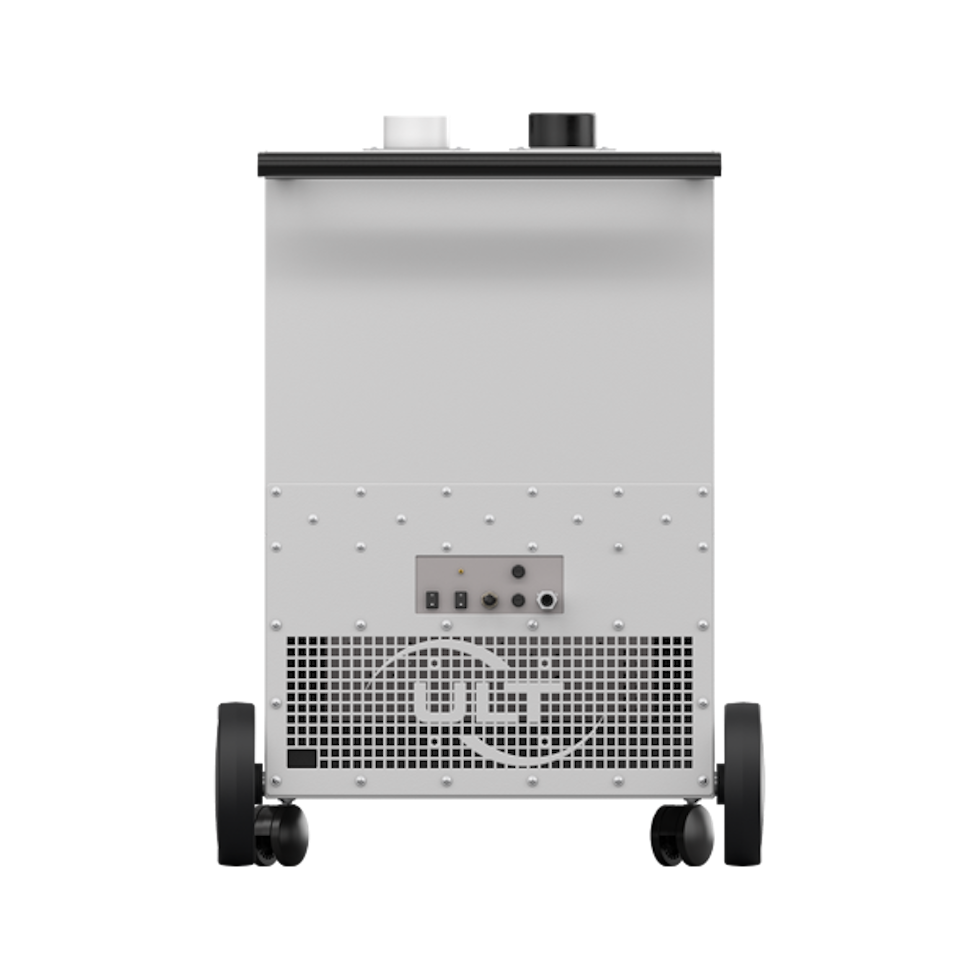

Rear-panel interfaces: Equipped with interfaces (e.g., M12) for connectivity options.
Durable steel housing: Built with a rugged steel casing and protective powder coating for long-lasting use.
Dual extraction arm capability: Accommodates two DN 80 extraction arms, with the option for additional DN connections.
Two-stage filtration: Includes a particle pre-filter and an adsorption filter for efficient dust and contaminant capture.
Adjustable suction power: Offers continuous control over suction strength.
Filter status indicator: Provides a visual indication of filter saturation.
Diffuser for even filter loading: Ensures even distribution of dust across the filter surface for efficient operation.
Particularities
Low replacement filter costs thanks to a multi-stage filter system.
Versatile: Designed for a wide range of applications.
Energy-efficient: Low energy consumption (less than 20%) using "Energy Saving Technology".
Quiet operation: Achieved through "Silent Technology".
Global compatibility: Works worldwide with 110-240V power supply.
Safety certified: All electrical components meet UL and EC standards.
Wide range of attachments: Offers a variety of additional equipment.
Technical specifications
| Device version | LAS 400.1 MD.17 | LAS 400.1 MD.21 |
|---|---|---|
| Max. flow rate in m³/h | 1000 | 600 |
| Max. flow rate in cfm | 588 | 353 |
| Max. vacuum in Pa | 2600 | 9800 |
| Max. vacuum in inch wc | 10.5 | 40 |
| Nominal capacity in m³/h@Pa | 300 @ 2500 | 450 @ 2500 |
| Nominal capacity in cfm@inch wc | 177 @ 10 | 265 @ 10 |

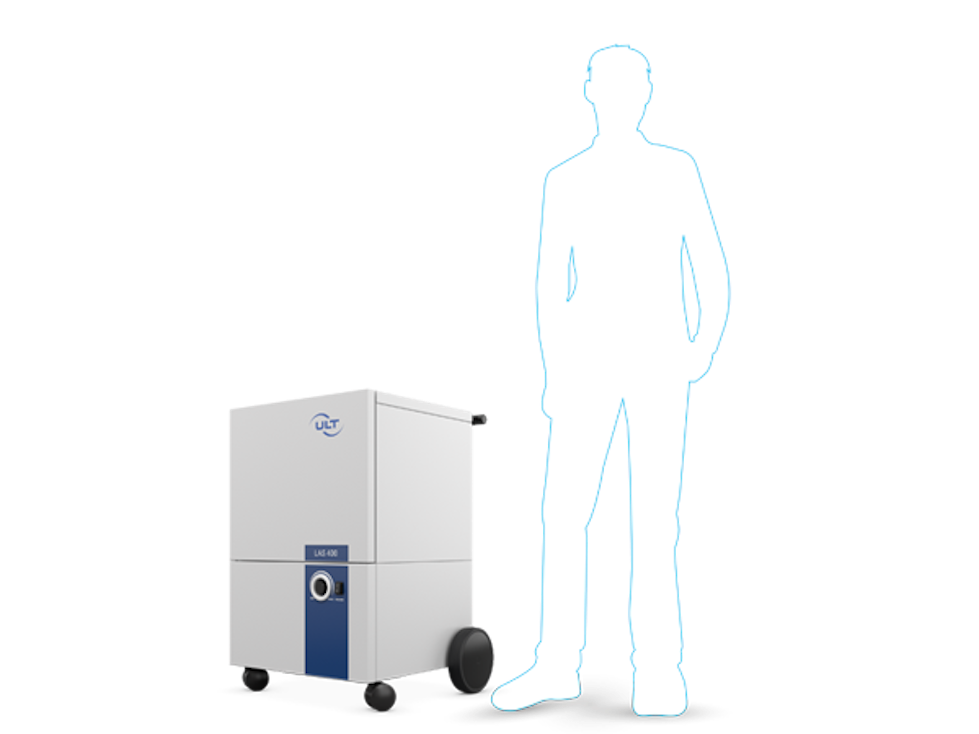

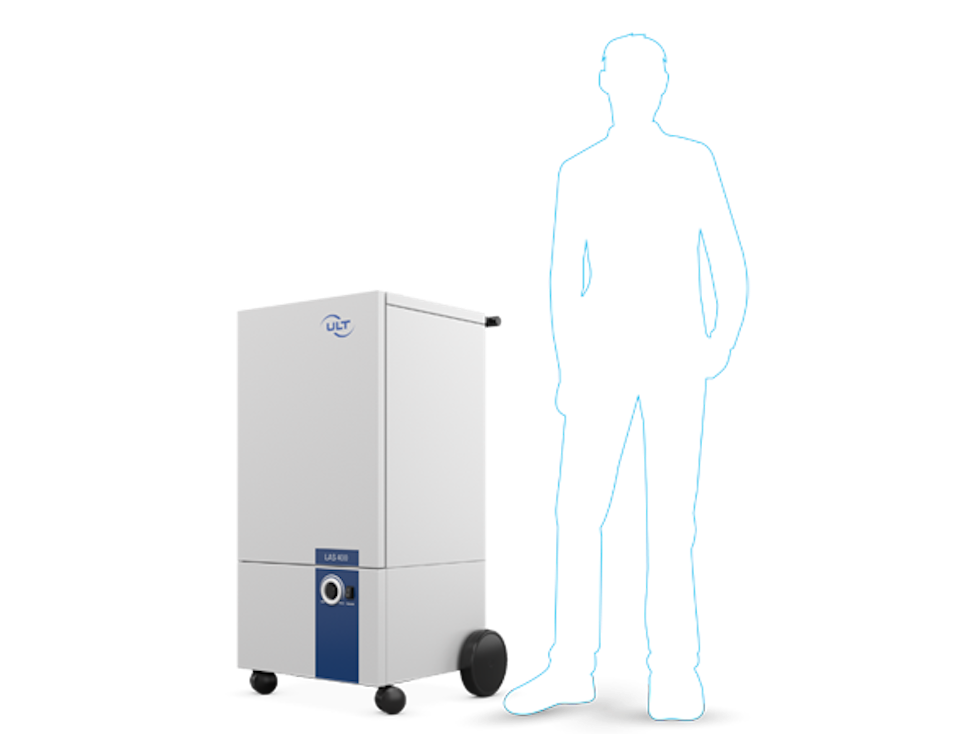

| Dimensions in mm (WxDxH) | 652x600x1140 | 652x600x867 |
| Dimensions in inch (WxDxH) | 25.7x23.6x45 | 25.7x23.6x34.1 |
| Weight in kg | 100 | 100 |
| Weight in lbs | 220 | 220 |
| Connection variants – diameter in mm | 2 X 80 connector / additional Ø possible | 2 X 80 connector / additional Ø possible |
| Connection variants – diameter in inch | 2 X Ø 3.1 connector / additional Ø possible | 2 X Ø 3.1 collar / additional Ø possible |
User benefits
Easy servicing
ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.
High filter service life
The high priority of filter elements in ULT systems reduces medium and long-term costs for maintenance and materials. In addition, the periods of downtime for necessary filter changes or system cleaning are significantly reduced.
High flexibility
Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.
Quiet operation
ULT’s extraction and filtration systems are especially quiet. This is appreciated by numerous clients worldwide. This means your employees won’t be bothered by unnecessary noise.
Individual extraction solutions
Your extraction systems are adapted to your needs. Starting from the contaminant situation, via your internal processes, to the best possible collection solution, ULT advises and supports you in the selection and installation of your optimal extraction and filtration solution.
Individual extraction solution
Your systems will be adapted to your needs. Starting with the pollutant situation and your internal processes to the best possible collection solution - we advise and support you in the selection and installation of your ideal extraction and filtration solution.
Contamination-low filter replacement
Our innovative "Save Change Technology" significantly reduces filter contamination during changes, safeguarding both operators and employees.

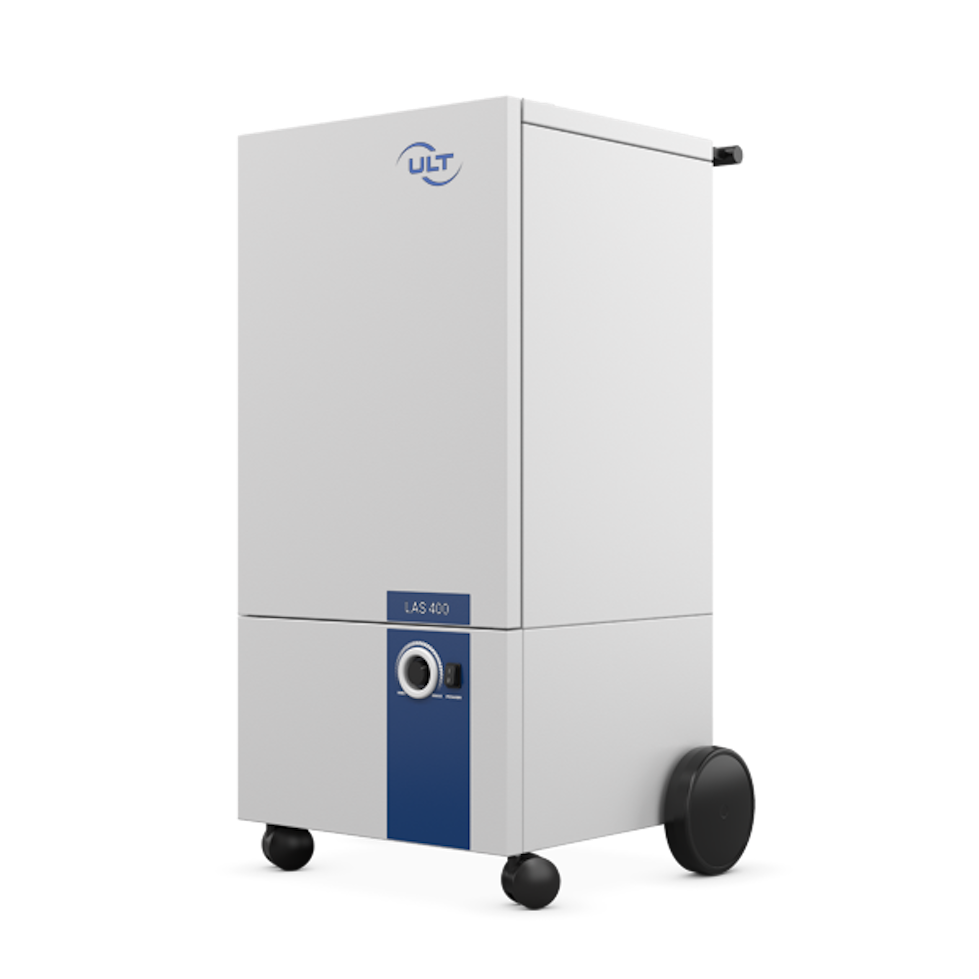

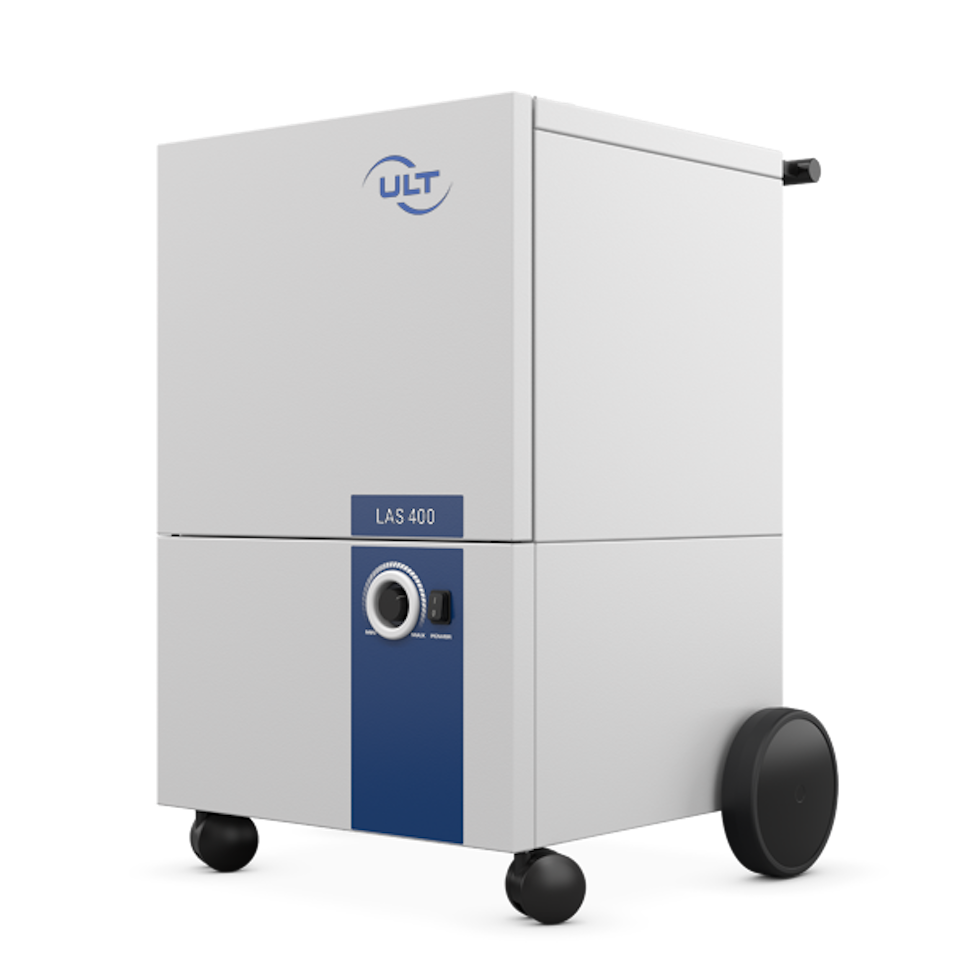

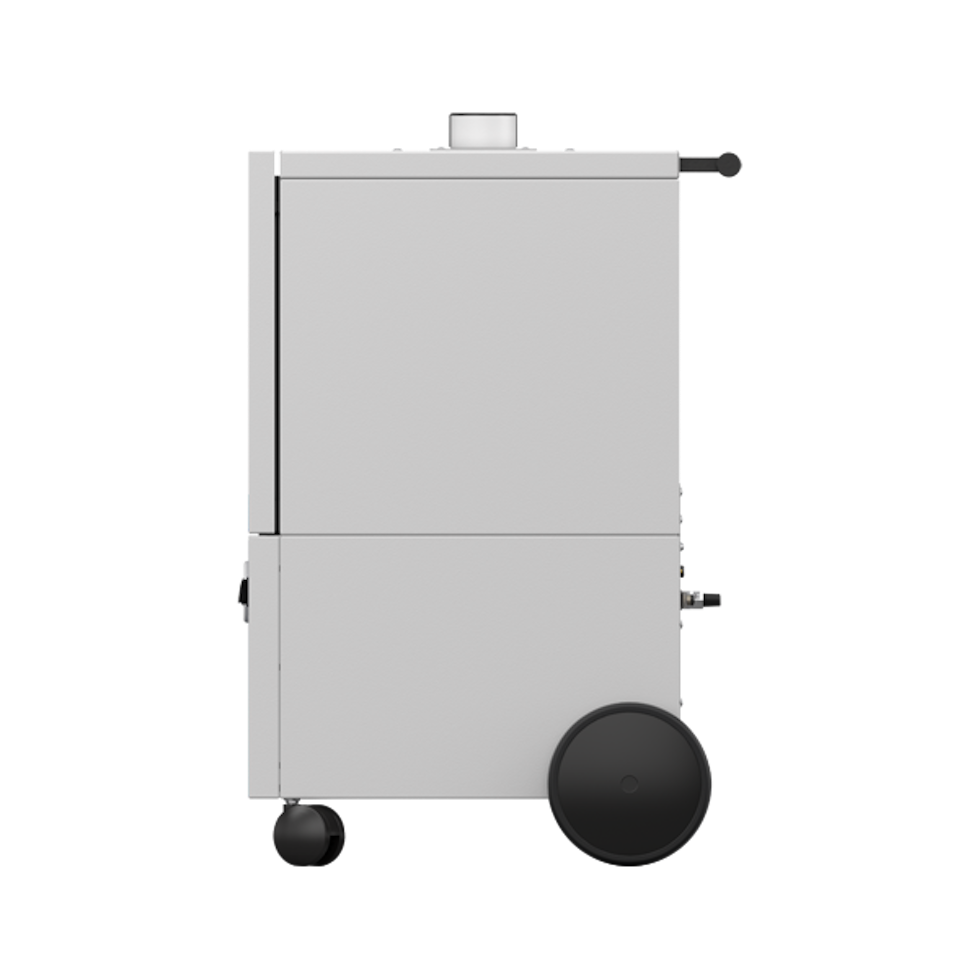

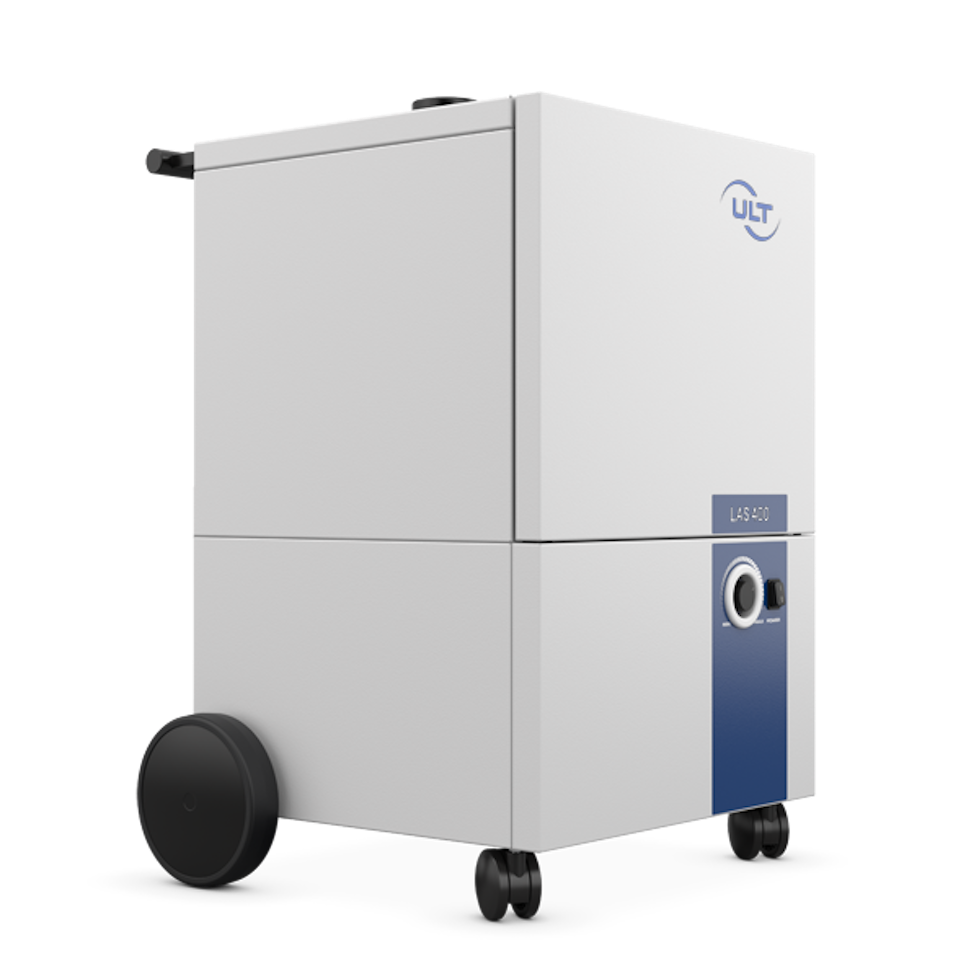

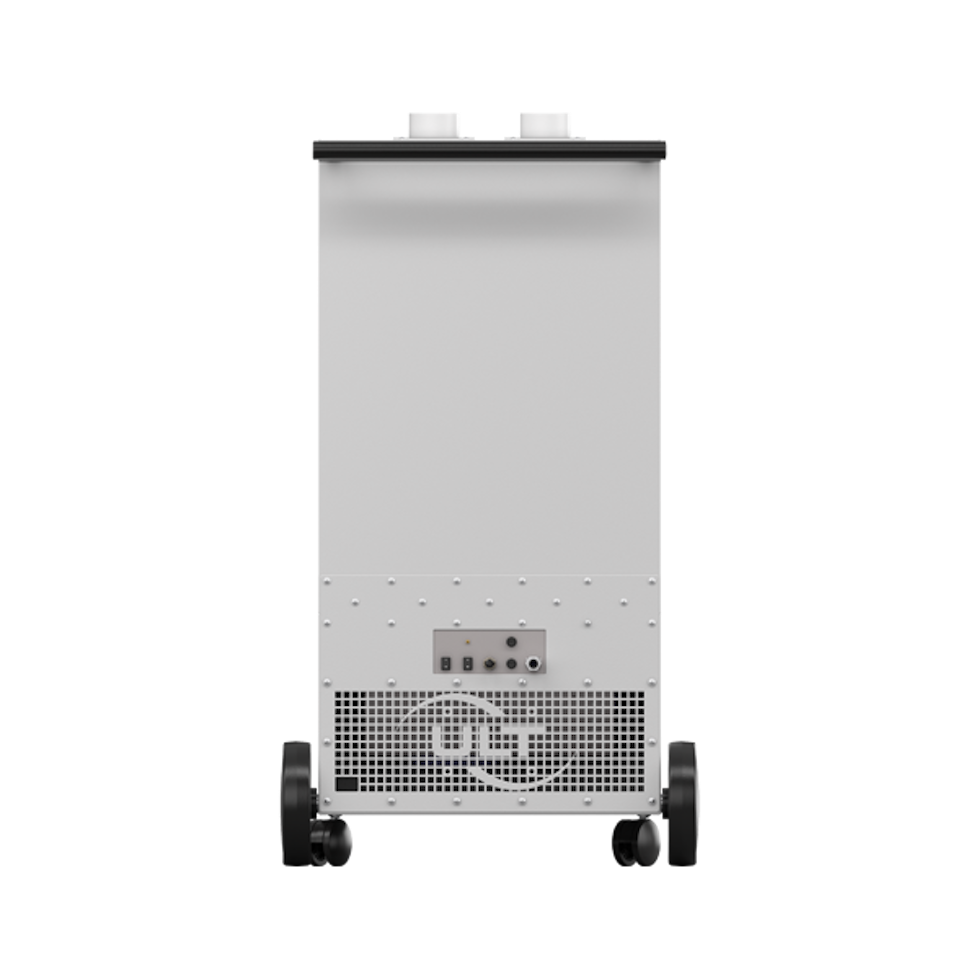

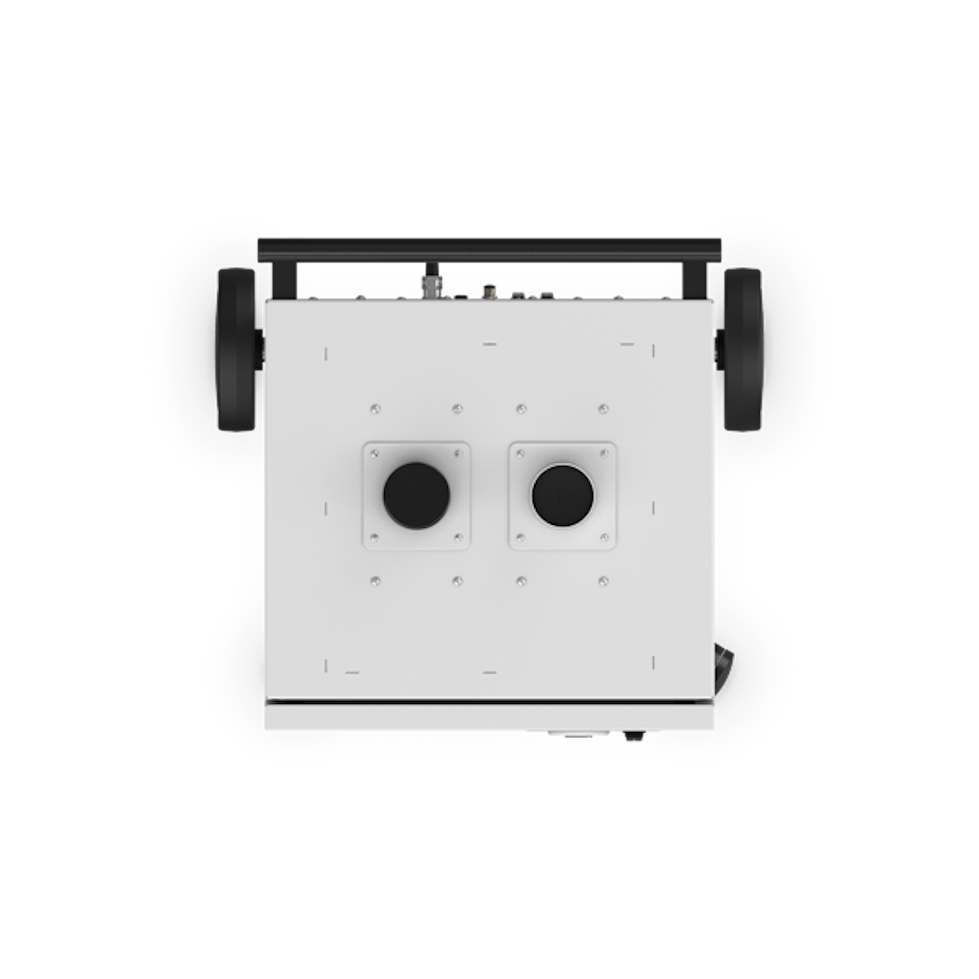

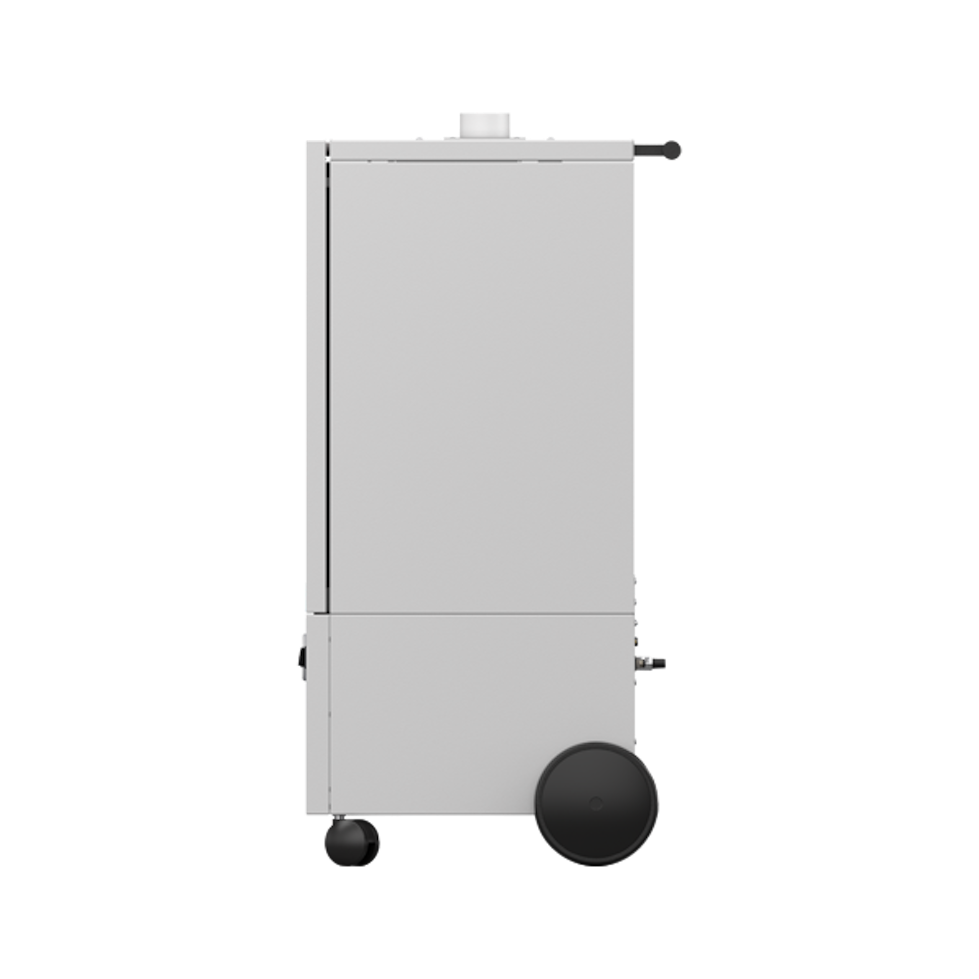

Images LAS 400.1 system
