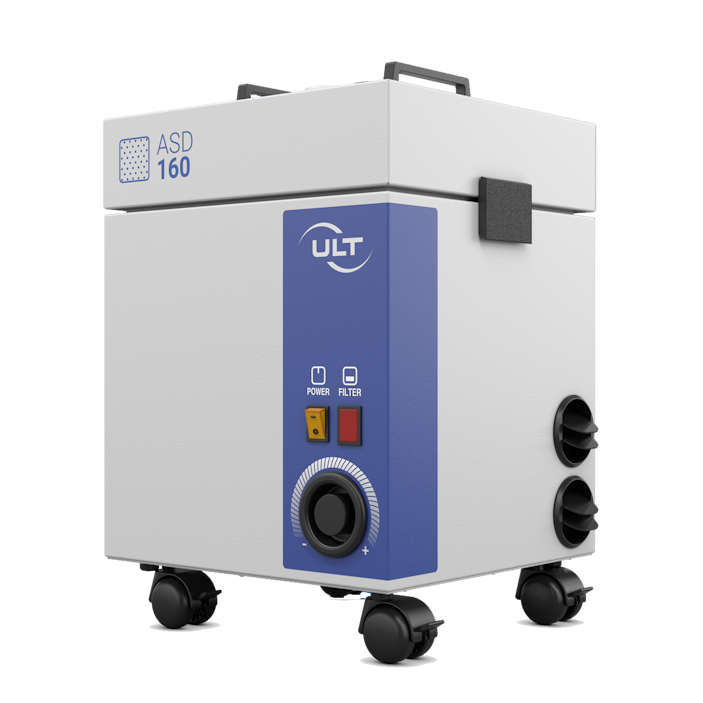

ASD 160.1 – mobile dust removal unit

Gray system with a blue sticker on the front

Product details

Application fields

  • Mobile dust removal

  • Grinding, engraving, burnishing, cleaning, abrading, decanting, mixing, etc.

  • Flexible extraction for shifting workplaces and small to moderate dust discharge,

Features

  • Either mobile device with wheels or stationary device with vibration dampeners

  • Removable filter device – individual changeable filter

  • Extremely quiet operation

  • Easy filter handling, access via suction plate

  • Rugged steel housing

  • One or two fittings for extraction arms

  • Stepless volumetric flow control

  • Particle filter configuration: optic signaling

Option

  • SUB D9 Interface: Remote I/O, Operations report, Filter 100%

Technical specifications

Device versionASD 160.1 MD.11
Max. flow rate in m³/h190
Max. flow rate in cfm112
Max. vacuum in Pa3200
Max. vacuum in inch wc12.9
Nominal capacity in m³/h@Pa80 @ 1900
Nominal capacity in cfm@inch wc47 @ 7.6
Dimensions in mm (WxDxH)405x355x545
Dimensions in inch (WxDxH)16x14x21.5
Weight in kg36
Weight in lbs79
Noise level in dB49
Connection variants – diameter in mmStandard: 2 X 50 / Option: 1 X console with Alsident S50 flange
Connection variants – diameter in inchStandard: 2 X 1.97 / option: 1 X console with Alsident S50 flange (1.97'')

System benefits

  1. Low energy requirements

    ULT’s extraction systems reduce the operation and maintenance costs based on your optimal filtration plan. In addition, the system is designed so that the required energy consumption is kept very low.

  2. Easy servicing

    ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.

  3. Quiet operation

    ULT’s extraction and filtration systems are especially quiet. This is appreciated by numerous clients worldwide. This means your employees won’t be bothered by unnecessary noise.

  4. High flexibility

    Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.

  5. Individual extraction solutions

    Your extraction systems are adapted to your needs. Starting from the contaminant situation, via your internal processes, to the best possible collection solution, ULT advises and supports you in the selection and installation of your optimal extraction and filtration solution.

  6. Optimal filter technology

    Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.

Downloads

  1. Technical documentation ULT 160.1
Images

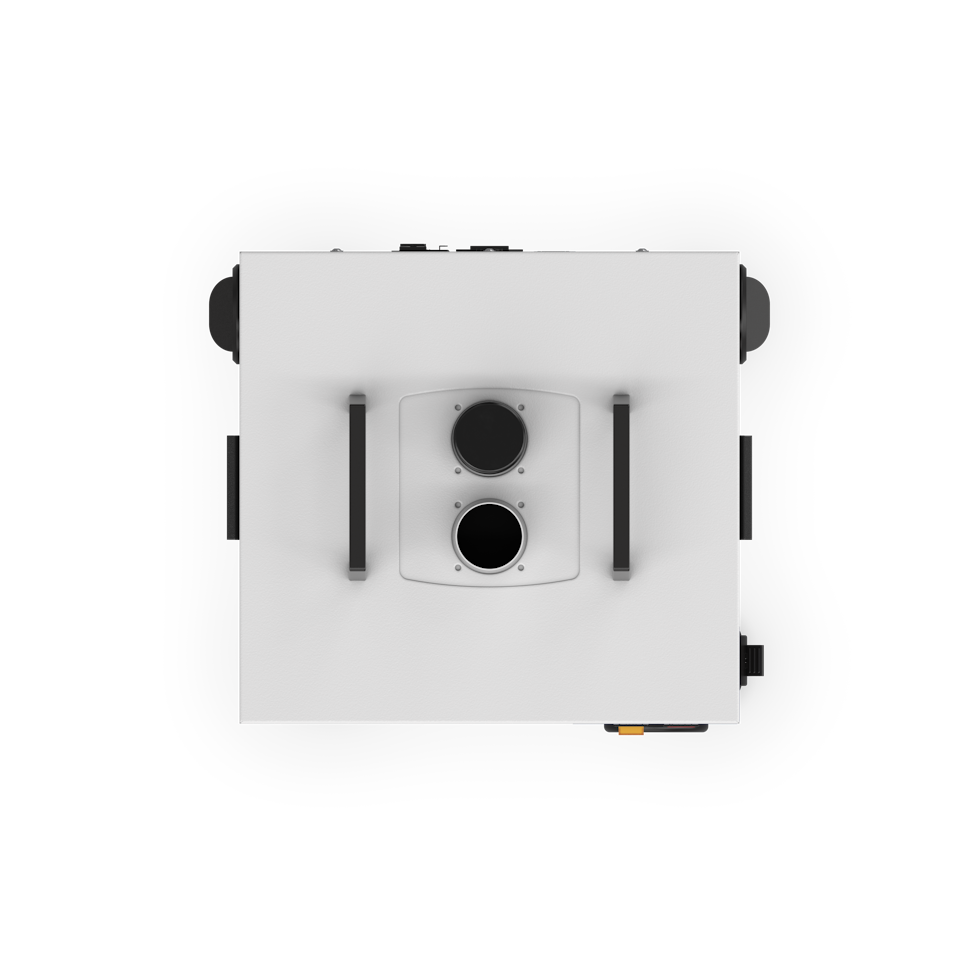

Dust collection system ASD 160.1
Connections for suction arms or hoses on the top side

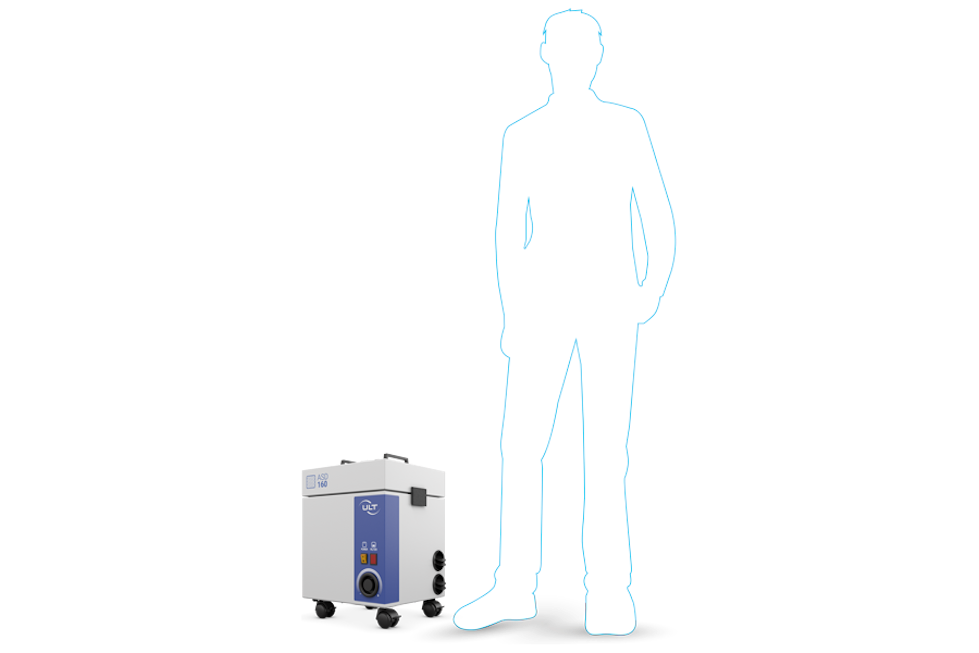

Mobile dust collector compared to human size
Size ration human-device

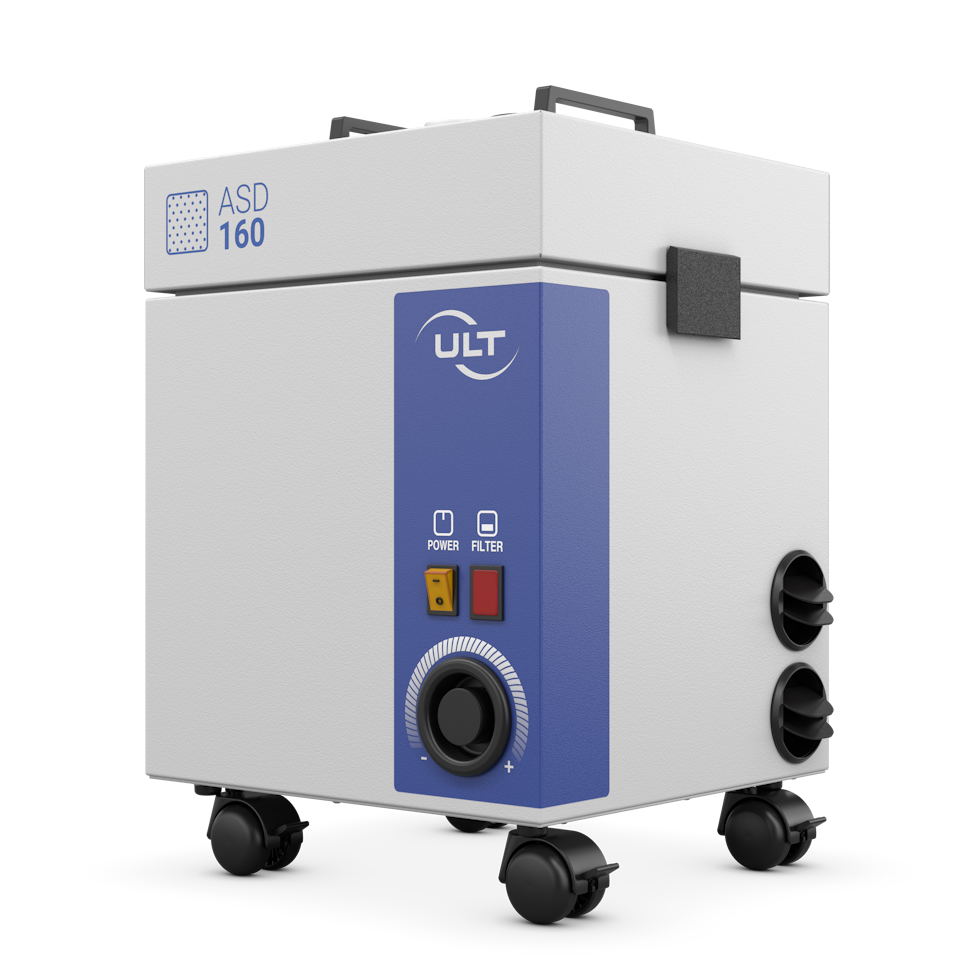

Mobile dust collector ASD 160.1
Mobile dust collector ASD 160.1

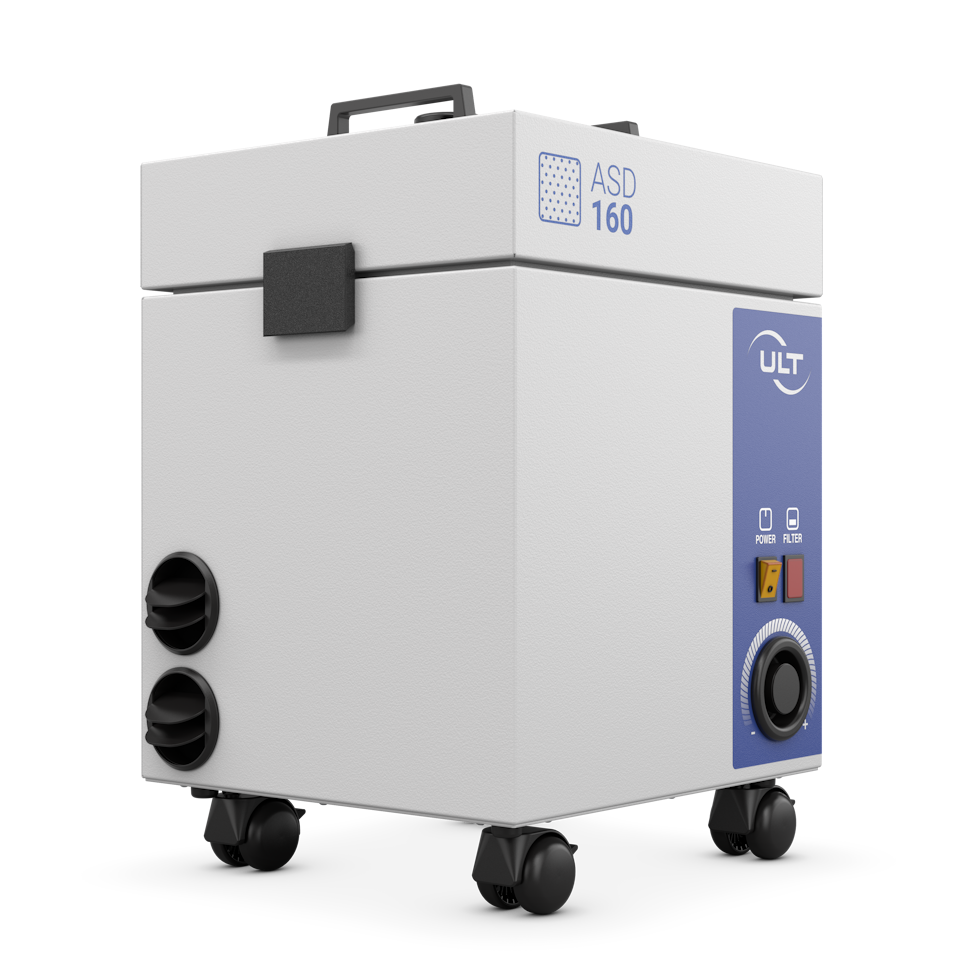

Mobile dust and smoke extraction
Operating elements and status displays on the front of the device

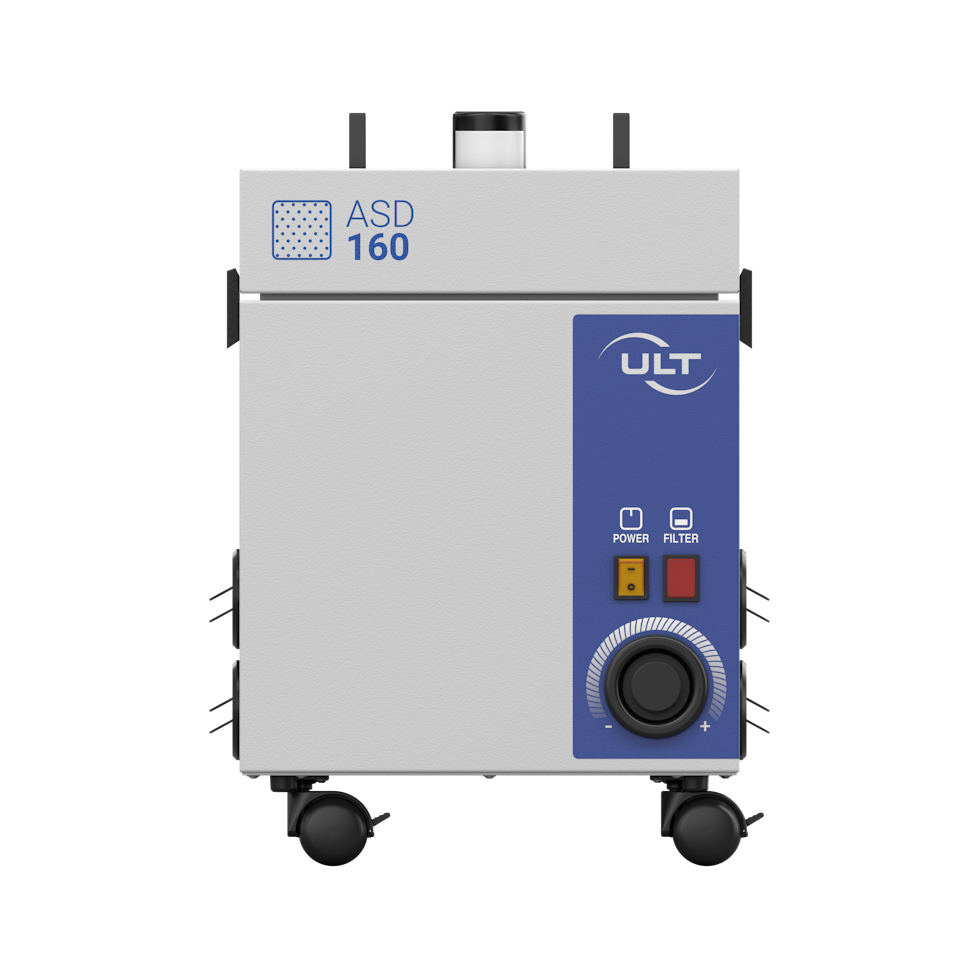

Dust collection unit
ASD 160.1 front view

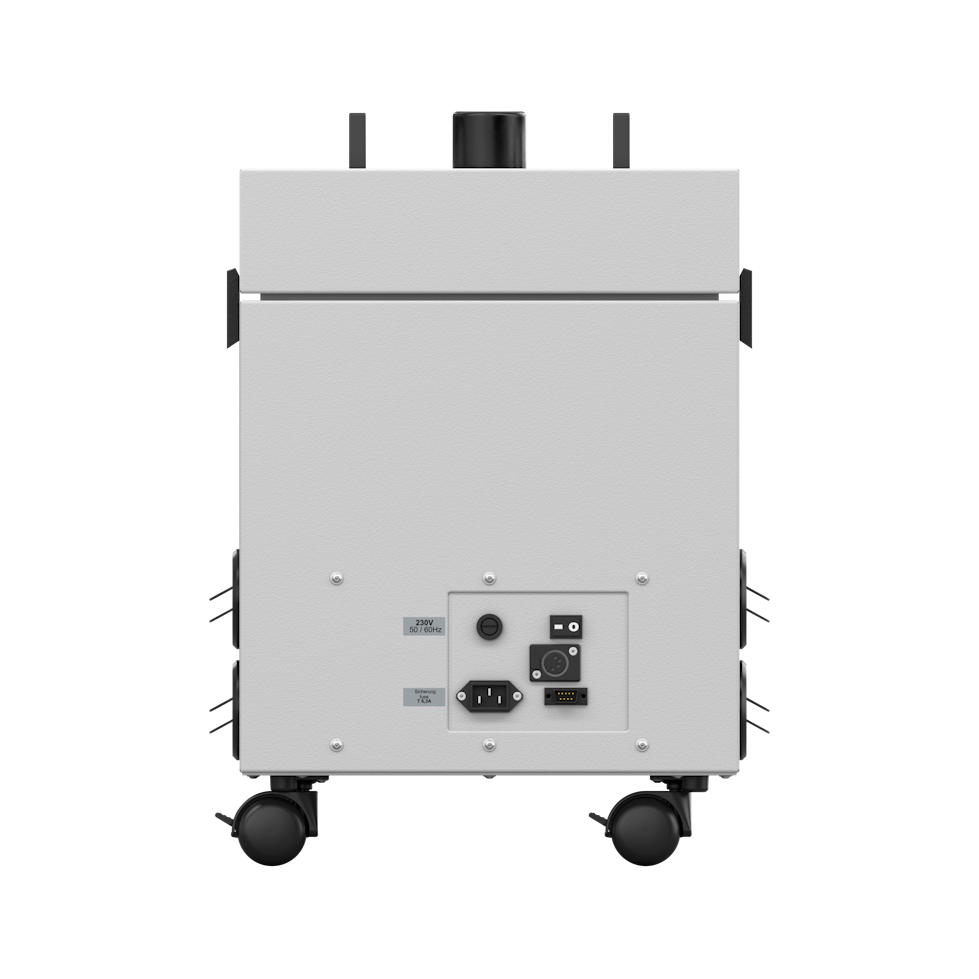

Mobile dust collection with ASD 160.1
Interfaces for external system communication on the rear

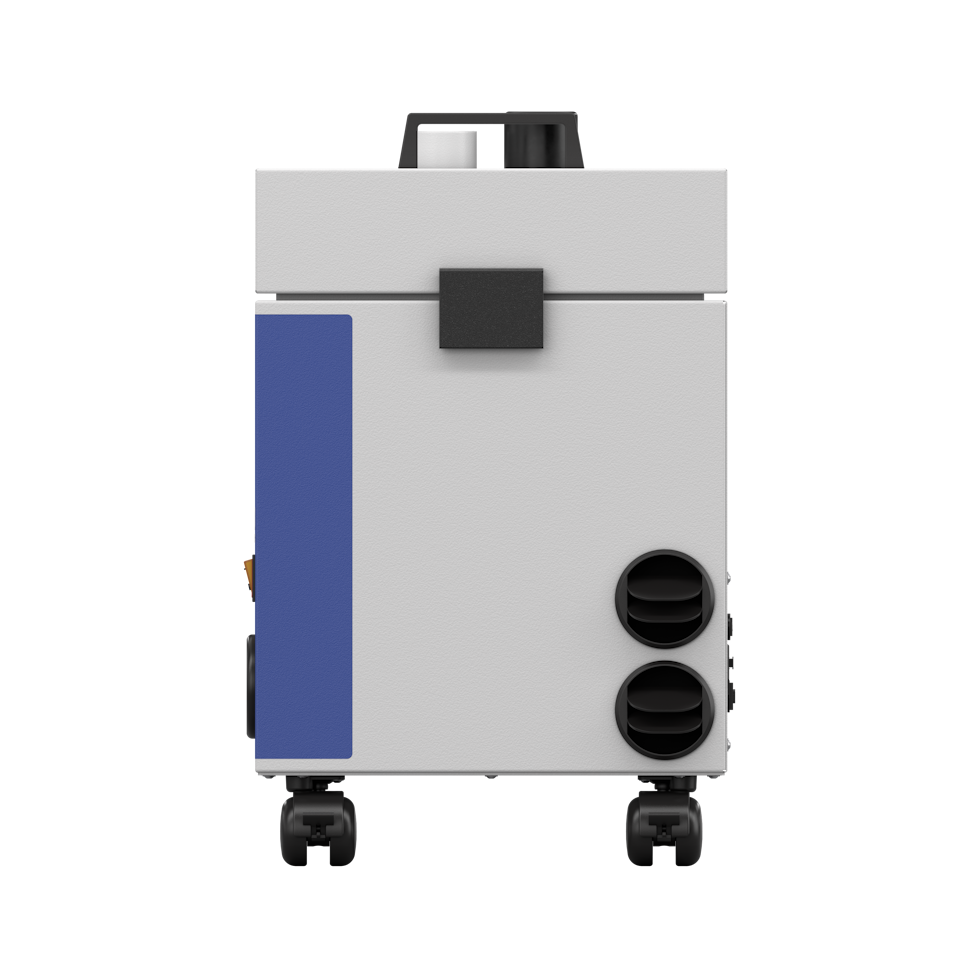

Mobile dust extraction and air purification
ASD 160.1 left view

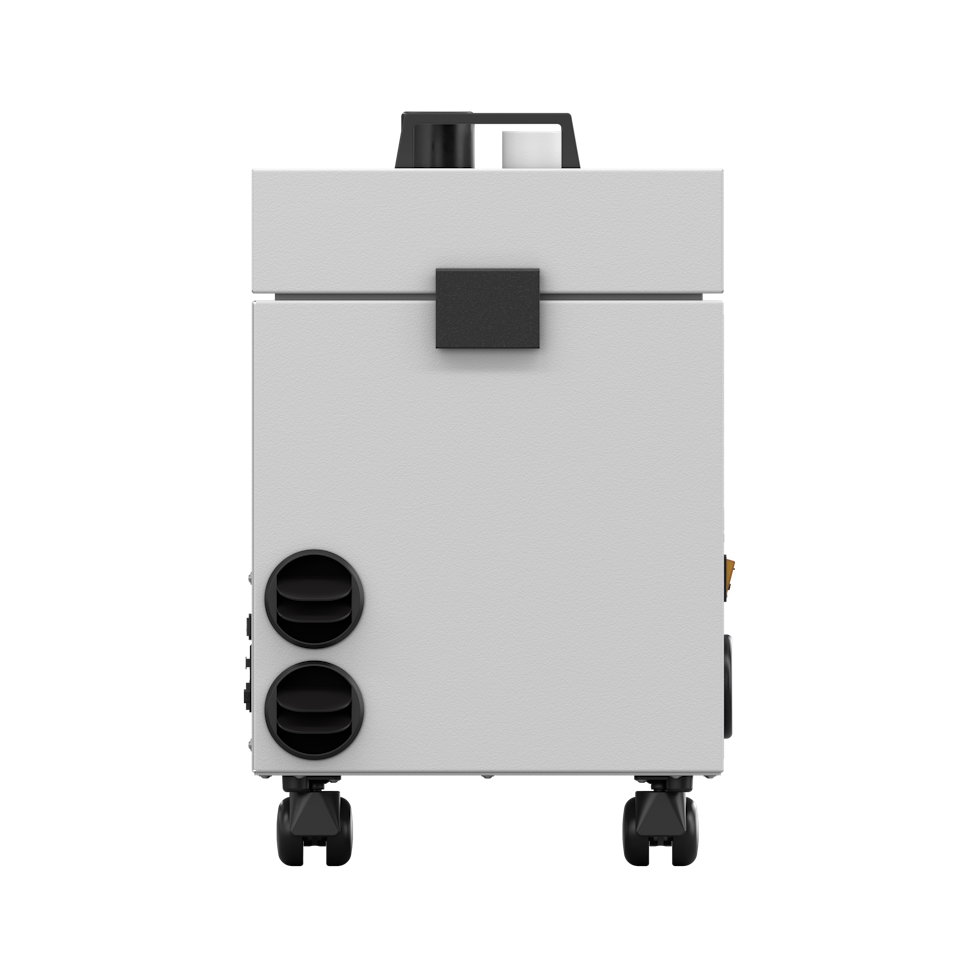

Mobile extraction of dust and smoke
Outlet ports and quick-lock closures
Dust collection system ASD 160.1
Connections for suction arms or hoses on the top side
Mobile dust collector compared to human size
Size ration human-device
Mobile dust collector ASD 160.1
Mobile dust collector ASD 160.1
Mobile dust and smoke extraction
Operating elements and status displays on the front of the device
