ASD 300 - cartridge filter device for dust removal

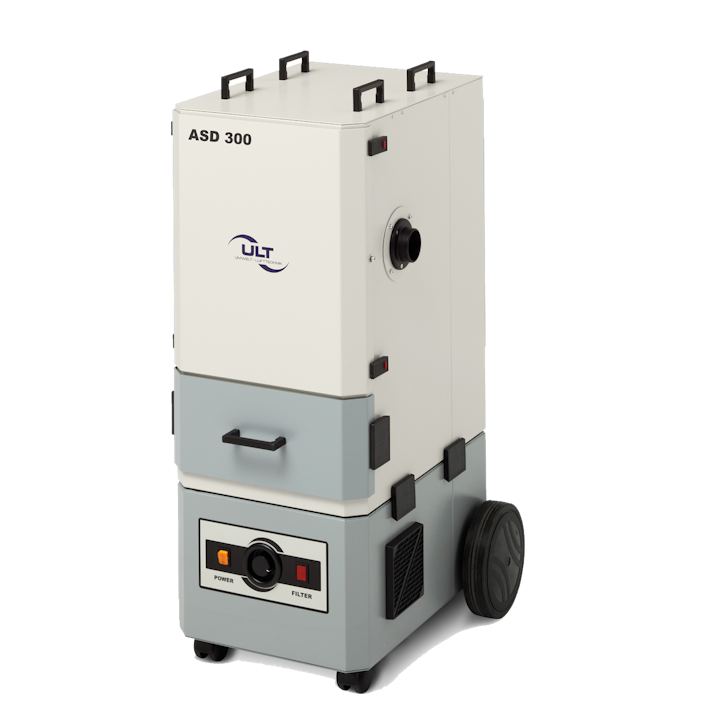

Light gray system with dust discharge drawer and device wheels

Product details

Application fields

  • Grinding, engraving, burnishing, dosing

  • Cleaning, abrading, decanting, mixing, etc.

Features

  • Mobile extraction unit for dry, non-combustible dusts

  • Cartridge filtration system with cleanable filter elements

  • Powder coated, robust steel housing

  • Volumetric flow control: stepless adjustment of extraction performance

  • Particle filter configuration: optic signaling

  • Fittings for extraction arms (Ø 50/75)

Options

  • High-performance fan with maintenance-free EC drive

  • SUB D9 Interface: Remote I/O, operations report, filter 100%

Technical specifications

Device versionASD 300 MD.16ASD 300 HD.13
Max. flow rate in m³/h900400
Max. flow rate in cfm530235
Max. vacuum in Pa365012000
Max. vacuum in inch wc14.748.2
Nominal capacity in m³/h@Pa250 @ 3500200 @ 7500
Nominal capacity in cfm@inch wc147 @ 14.118 @ 30.1
Dimensions in mm (WxDxH)475x625x1010475x625x1010
Dimensions in inch (WxDxH)18.7x24.6x39.818.7x24.6x39.8
Weight in kg6060
Weight in lbs132132
Noise level in dB6560
Connection variants – diameter in mm1 x 75 / option: additional Ø, max. 21 x 75 / option: additional Ø, max. 2
Connection variants – diameter in inch1 x 2.95 / option: additional Ø, max. 21 x 2.95 / option: additional Ø, max. 2

System benefits

  1. Low energy requirements

    ULT’s extraction systems reduce the operation and maintenance costs based on your optimal filtration plan. In addition, the system is designed so that the required energy consumption is kept very low.

  2. Easy servicing

    ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.

  3. Quiet operation

    ULT’s extraction and filtration systems are especially quiet. This is appreciated by numerous clients worldwide. This means your employees won’t be bothered by unnecessary noise.

  4. High flexibility

    Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.

  5. Optimal filter technology

    Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.

  6. Individual extraction solution

    Your systems will be adapted to your needs. Starting with the pollutant situation and your internal processes to the best possible collection solution - we advise and support you in the selection and installation of your ideal extraction and filtration solution.

Downloads

  1. Technical documentation ASD 300 (cleanable filter)
  2. Accessory set for ULT 300

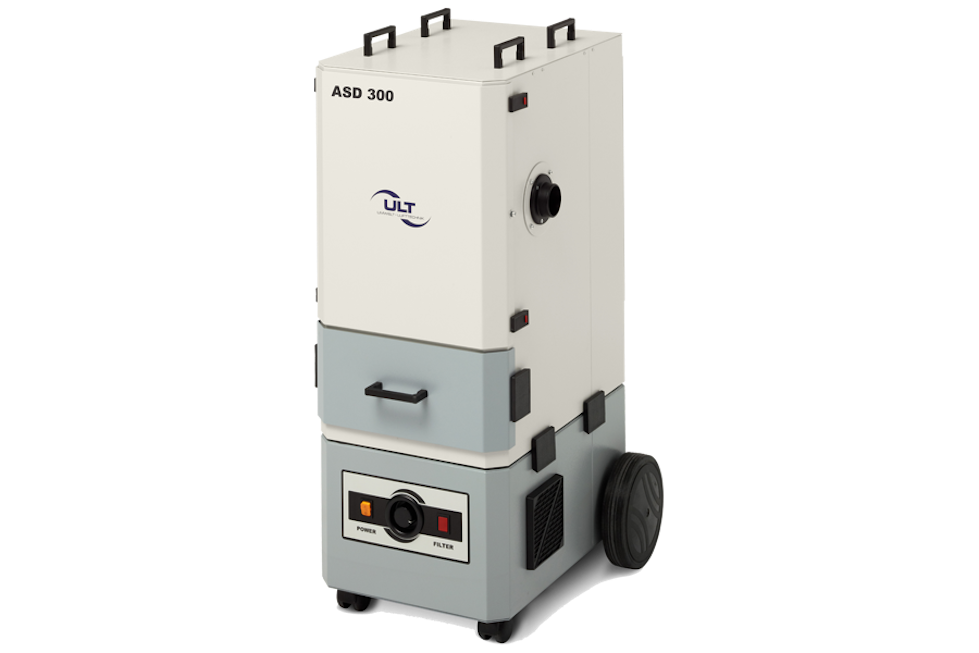

Extraction system with automatic filter cleaning for dust removal
Cartridge filter system ASD 300 for dust extraction
Extraction system with automatic filter cleaning for dust removal
Cartridge filter system ASD 300 for dust extraction
Extraction system with automatic filter cleaning for dust removal
Cartridge filter system ASD 300 for dust extraction
