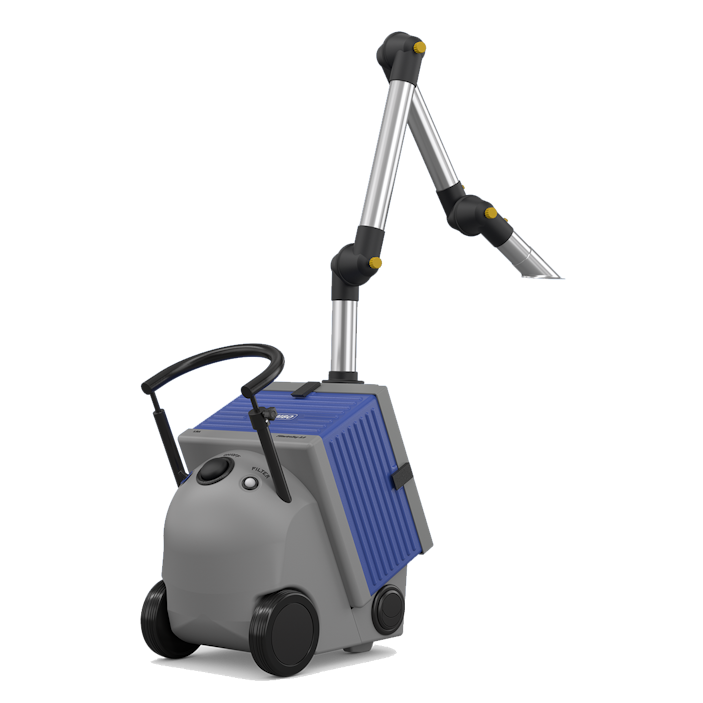

Mobile fume extractor JUMBO Filtertrolley

Well-shaped system with wheels, telescopic handle and suction arm

Product details

Device benefits

  1. Quiet operation

    ULT’s extraction and filtration systems are especially quiet. This is appreciated by numerous clients worldwide. This means your employees won’t be bothered by unnecessary noise.

  2. High flexibility

    Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.

  3. Optimal filter technology

    Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.

  4. Easy servicing

    ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.

  5. Low energy requirements

    ULT’s extraction systems reduce the operation and maintenance costs based on your optimal filtration plan. In addition, the system is designed so that the required energy consumption is kept very low.

  6. Functional design

    You can use this unit either standing upright or lying. It, however, easily fits under or aside to a working table.

Technical specifications

Device versionJUMBO Filtertrolley 2.0
Max. flow rate in m³/h190
Max. flow rate in cfm112
Max. vacuum in Pa3200
Max. vacuum in inch wc12.9
Nominal capacity in m³/h@Pa80 @ 1900
Nominal capacity in cfm@inch wc47 @ 7.6
Dimensions in mm (WxDxH)450x340x530
Dimensions in inch (WxDxH)17.7x13.3x20.8
Weight in kg36
Weight in lbs79
Noise level in dB49
Connection variants – diameter in mm1 X 50 / Option: 1 X 75
Connection variants – diameter in inch1 X 1.97 / option: 1 X 2.95

Downloads

  1. Technical documentation JUMBO Filtertrolley
  2. Accessory set for the JUMBO Filtertrolley
  3. Brochure "Mobile fume extractor JUMBO Filtertrolley"
Images

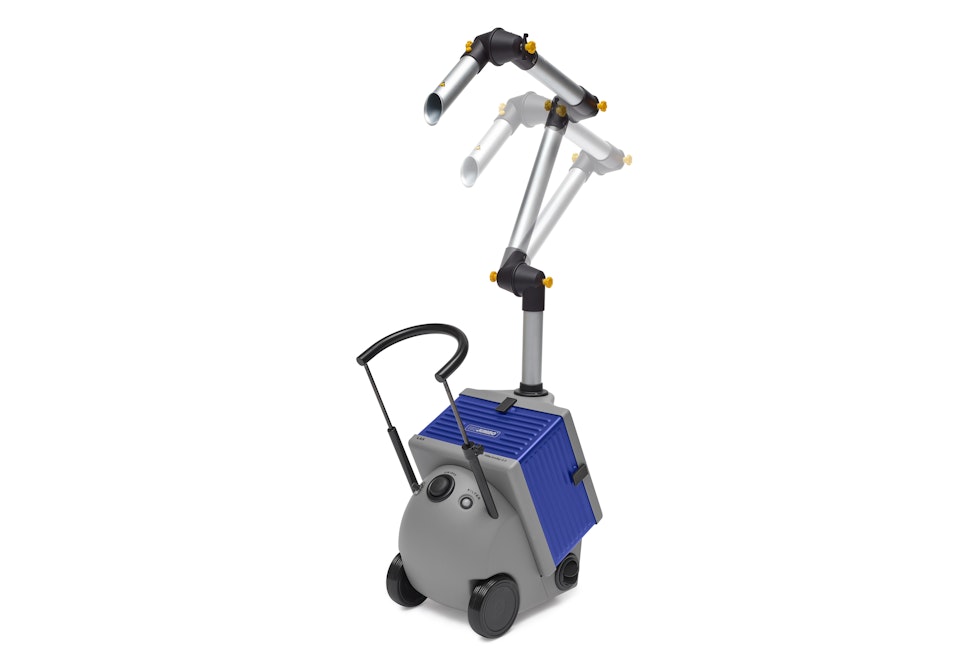

Front view of the mobile fume extractor
Movable extraction arms enhance the device's flexibility

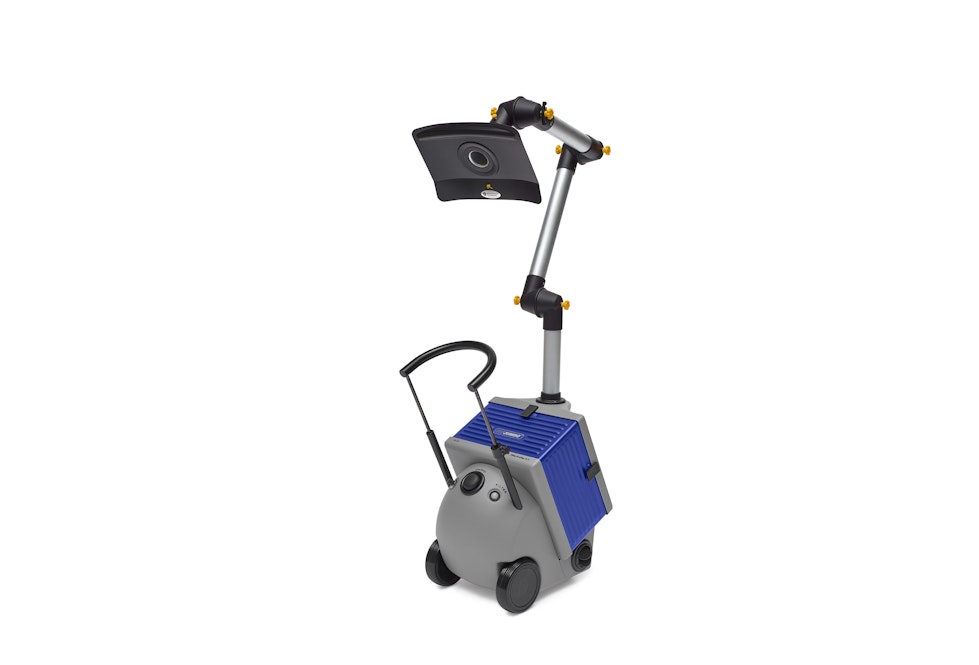

Black flat hood on an extraction arm
JUMBO with mounted extraction arms with flat hood

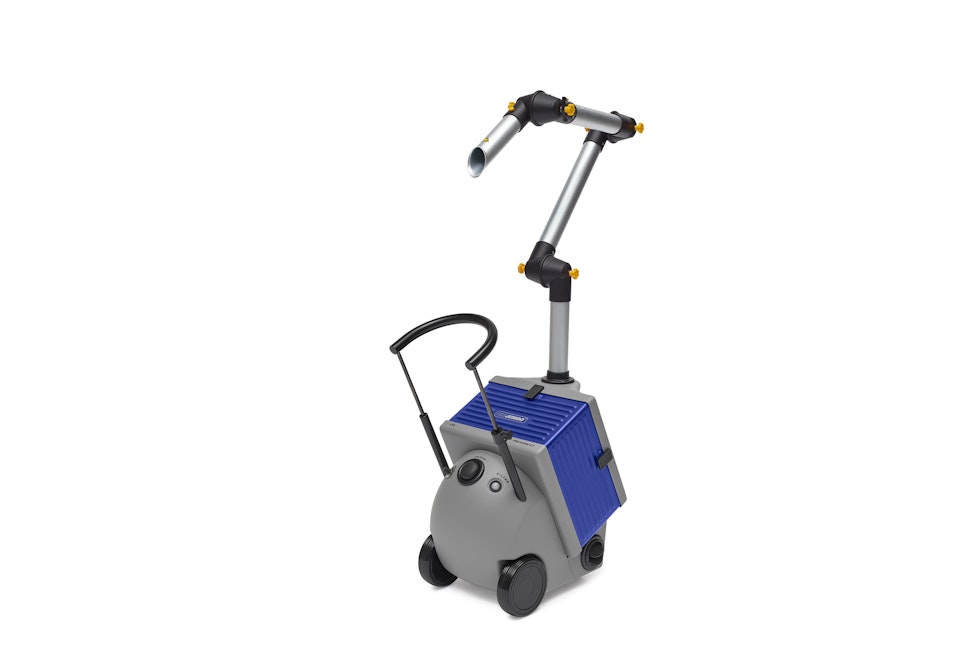

Blue and grey system with wheels
JUMBO Filtertrolley in blue design
JUMBO version for odors and vapors
JUMBO Filtertrolley in white design
Front view of the mobile fume extractor
Movable extraction arms enhance the device's flexibility
Black flat hood on an extraction arm
JUMBO with mounted extraction arms with flat hood
Blue and grey system with wheels
JUMBO Filtertrolley in blue design
JUMBO version for odors and vapors
JUMBO Filtertrolley in white design
