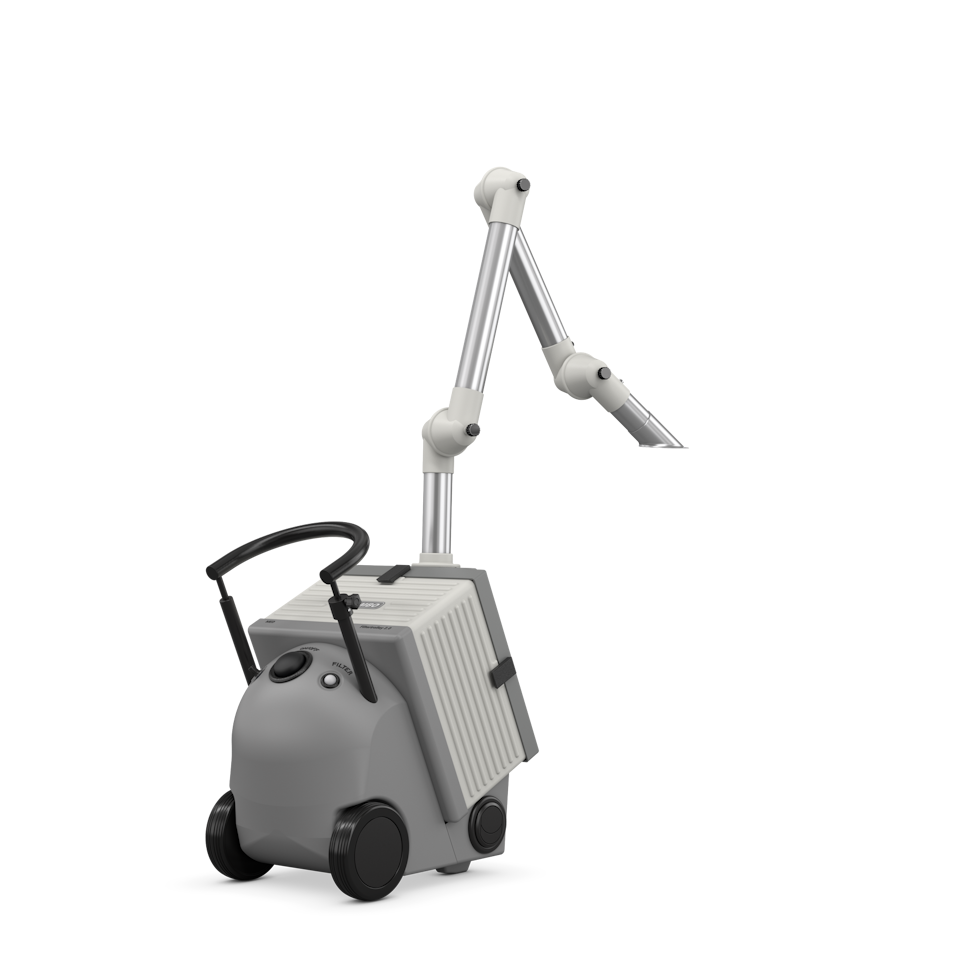

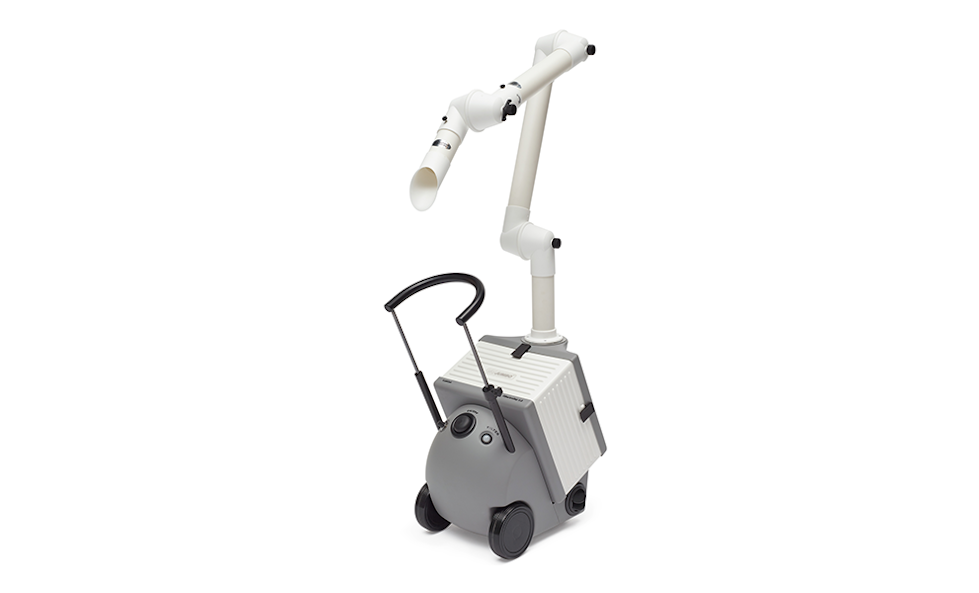

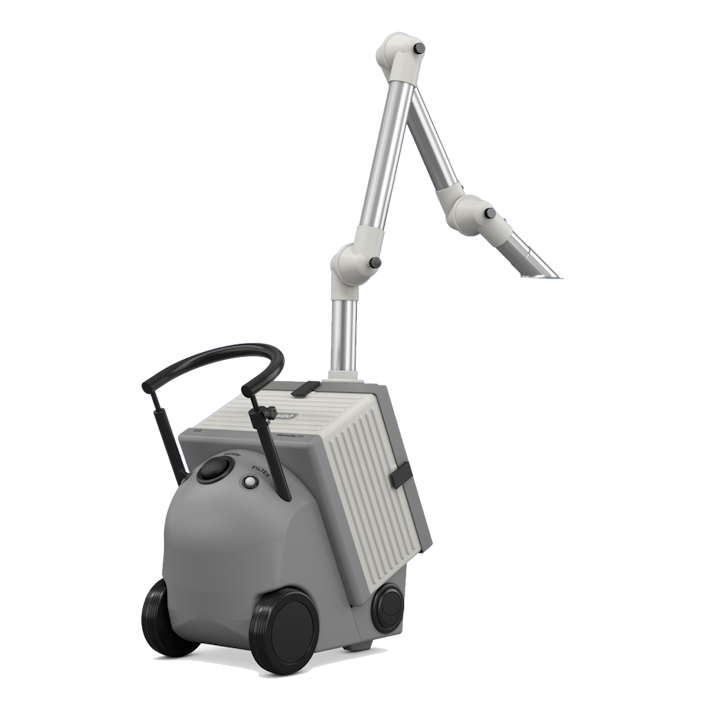

JUMBO MED – Medical Laser Smoke Evacuator
Product Details
Application Fields
Laser processing in medical technology
Electrosurgery, ophthalmology, dermatology, dentistry, anesthesia, veterinary medicine, etc.
For low quantities of laser fumes and laser dust
Features
Uniquely designed mobile extraction unit

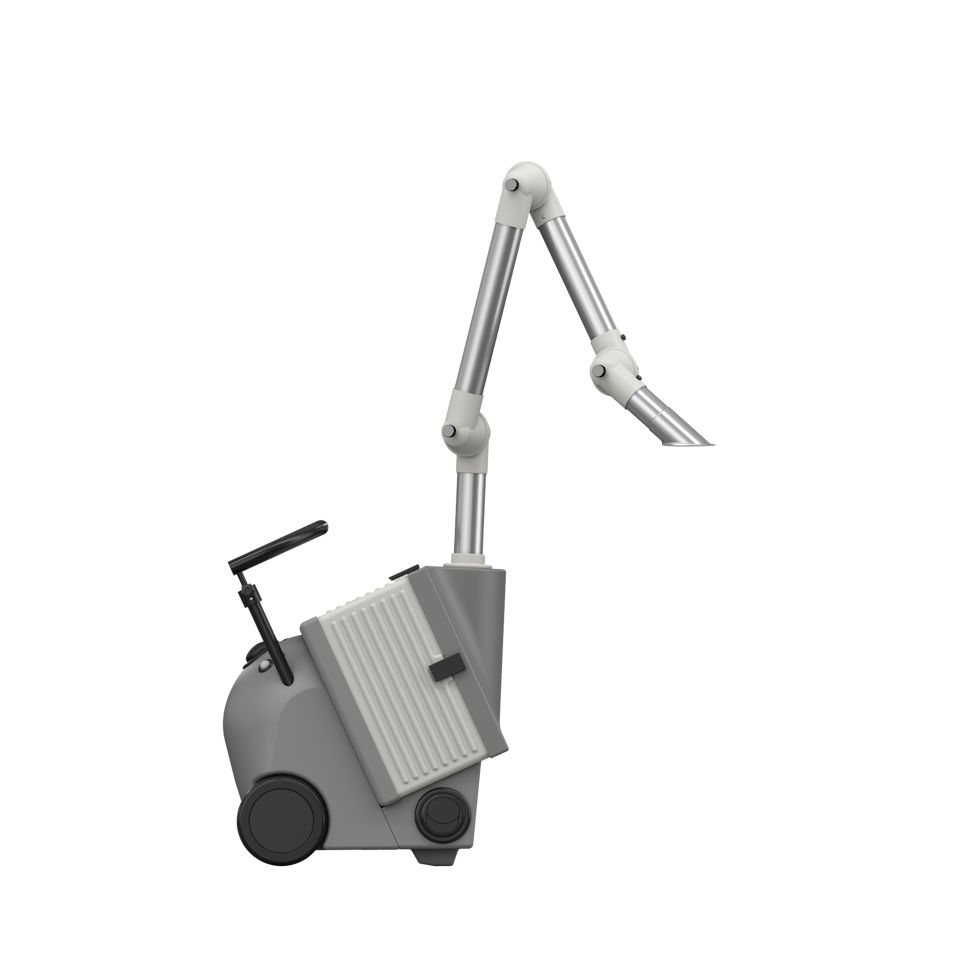

Mobile evacuator for medical laser fume
Flexible utilization for various applications

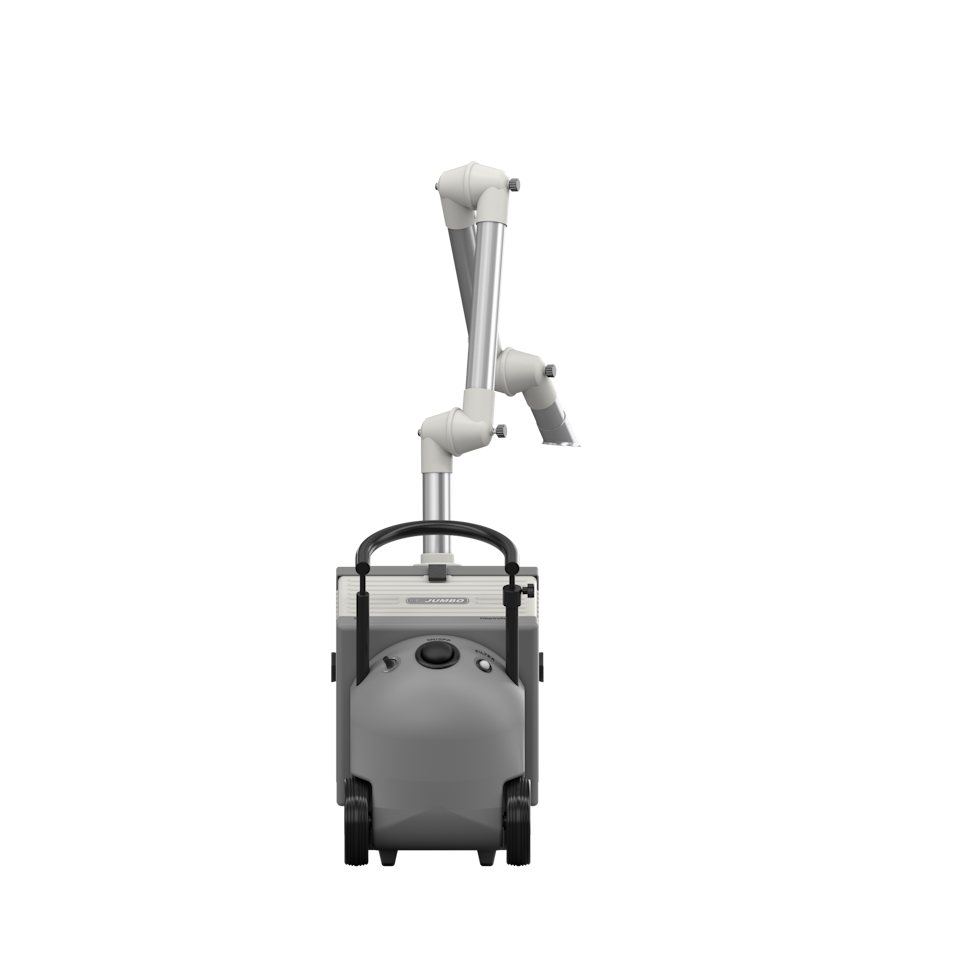

High extraction performance, stepless adjustment
Extremely quiet operation
Easy filter handling, access via suction plate
ABS Material (impact-resistant, chemical-resistant, corrosion-resistant)
Fittings for extraction arms (Ø 50, 63, 75) and application-specific collecting elements
Technical specifications
| Device version | JUMBO Filtertrolley 2.0 MED |
|---|---|
| Max. flow rate in m³/h | 190 |
| Max. flow rate in cfm | 112 |
| Max. vacuum in Pa | 3200 |
| Max. vacuum in inch wc | 12.9 |
| Nominal capacity in m³/h @ Pa | 80 @ 1900 |
| Nominal capacity in cfm@inch wc | 47 @ 7.6 |
| Dimensions in mm (WxDxH) | 450x340x530 |
| Dimensions in inch (WxDxH) | 17.8x13.4x20.8 |
| Weight in kg | 36 |
| Weight in lbs | 79 |
| Noise level in dB | 49 |
| Connection variants – diameter in mm | 1 X 50 / option: 1 X 75 |
| Connection variants – diameter in inch | 1 X 1.97 / option: 1 X 2.95 |
System benefits
Quiet operation
ULT’s extraction and filtration systems are especially quiet. This is appreciated by numerous clients worldwide. This means your employees won’t be bothered by unnecessary noise.
High flexibility
Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.
Low energy requirements
ULT’s extraction systems reduce the operation and maintenance costs based on your optimal filtration plan. In addition, the system is designed so that the required energy consumption is kept very low.
Easy servicing
ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.
Optimal filter technology
Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.
R&D basis
Research and Development (R&D) has a very high priority at ULT. Several projects with prestigious partners and institutes have produced new approaches to ventilation systems that often become series products or are adapted quickly and easily to customer-specific projects.
Download operating instructions
You are welcome to download the operating instructions and documentations of your medical laser smoke evacuator JUMBO MED by entering the serial number in the special download area. The documents contain information on the installation, operation and maintenance of your products.
