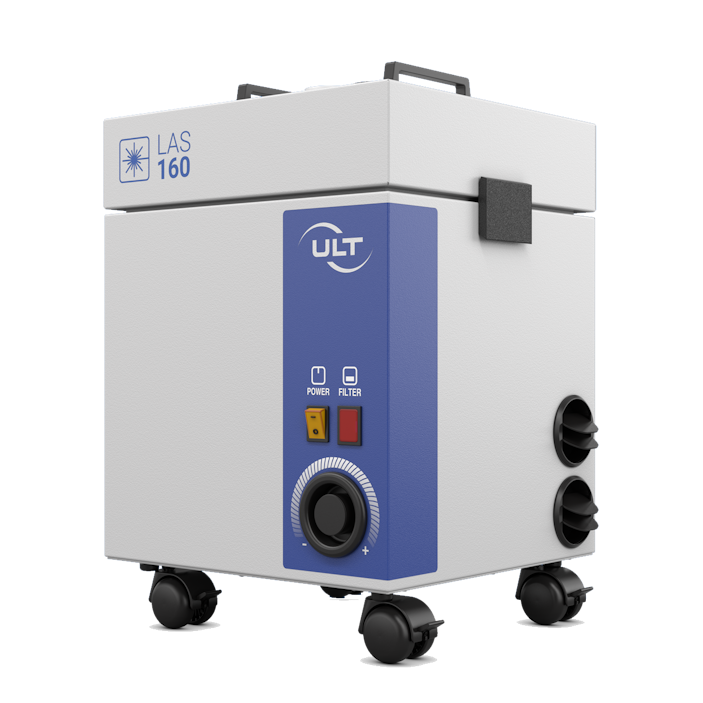

LAS 160.1 – mobile laser fume extractor

Small unit with wheels

Product details

Application fields

  • Laser engraving, laser marking, laser welding, laser cleaning

  • Laser structuring, laser melting, laser cutting, laser cladding, etc.

Features

  • Either mobile device with wheels or stationary device with vibration dampeners

  • Removable filter device – individual changeable filter

  • Extremely quiet operation

  • Easy filter handling, access via suction plate

  • Stepless volumetric flow control

  • Particle filter configuration: optic signaling

  • Robust steel housing

  • One or two fittings for extraction arms

Options

  • SUB D9 Interface: Remote I/O, Operations report, Filter 100%

  • Expanded metal prefilter (metal mesh, condensation filter, spark protection)

Technical specifications

Device versionLAS 160.1 MD.11
Max. flow rate in m³/h190
Max. flow rate in cfm112
Max. vacuum in Pa3200
Max. vacuum in inch wc12.9
Nominal capacity in m³/h@Pa80 @ 1900
Nominal capacity in cfm@inch wc47 @ 7.6
Dimensions in mm (WxDxH)405x355x545
Dimensions in inch (WxDxH)16x14x21.5
Weight in kg36
Weight in lbs79
Noise level in dB49
Connection variants – diameter in mmStandard: 2 X 50 / Option: 1 X console with Alsident S50 flange
Connection variants – diameter in inchStandard: 2 X 1.97 / option: 1 X console with Alsident S50 flange (1.97'')

System benefits

  1. Quiet operation

    ULT’s extraction and filtration systems are especially quiet. This is appreciated by numerous clients worldwide. This means your employees won’t be bothered by unnecessary noise.

  2. High flexibility

    Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.

  3. Low energy requirements

    ULT’s extraction systems reduce the operation and maintenance costs based on your optimal filtration plan. In addition, the system is designed so that the required energy consumption is kept very low.

  4. Easy servicing

    ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.

  5. Optimal filter technology

    Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.

  6. Individual extraction solution

    Your systems will be adapted to your needs. Starting with the pollutant situation and your internal processes to the best possible collection solution - we advise and support you in the selection and installation of your ideal extraction and filtration solution.

Downloads
  1. Technical documentation ULT 160.1
Images

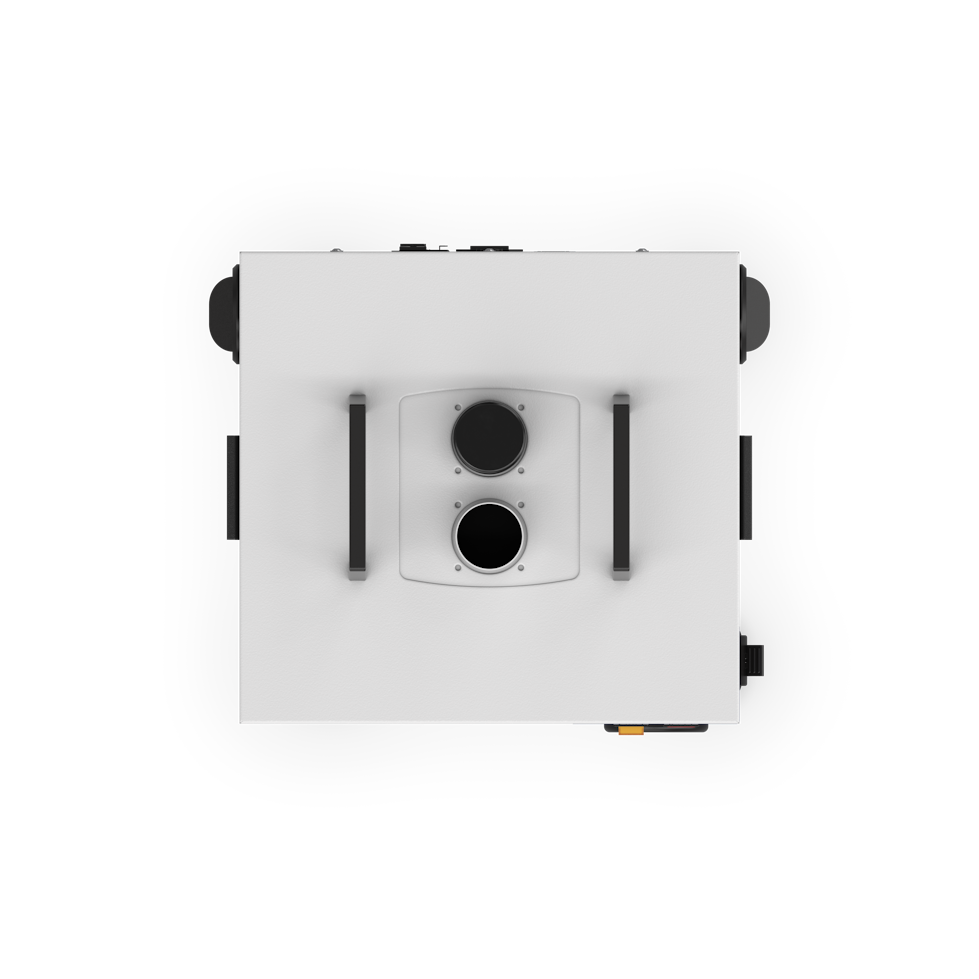

Extraction and filtration device for laser fume
Two extraction arms or hoses can be mounted on the top

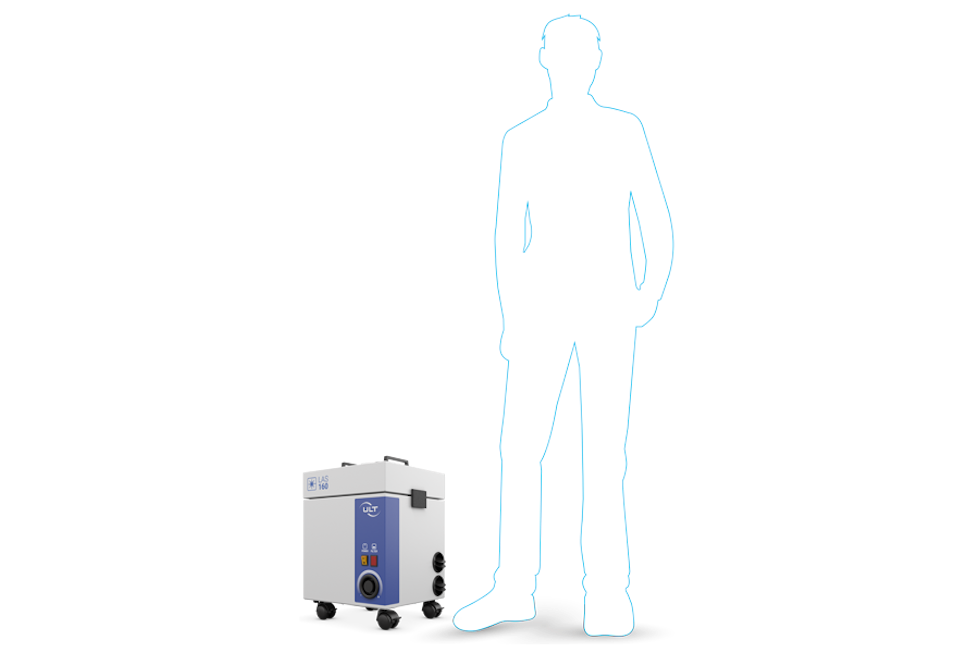

Dimensions of the extraction system compared to a human
Human-device size ratio

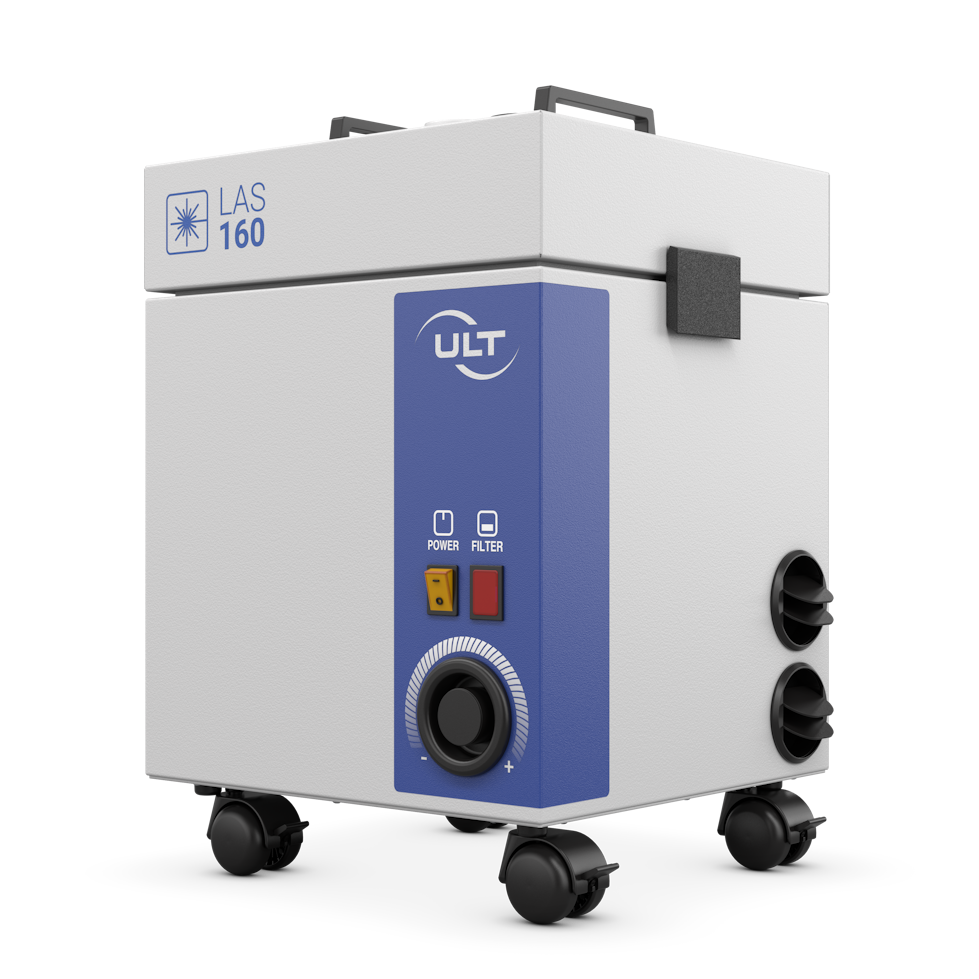

Mobile laser fume extractor
LAS 160.1

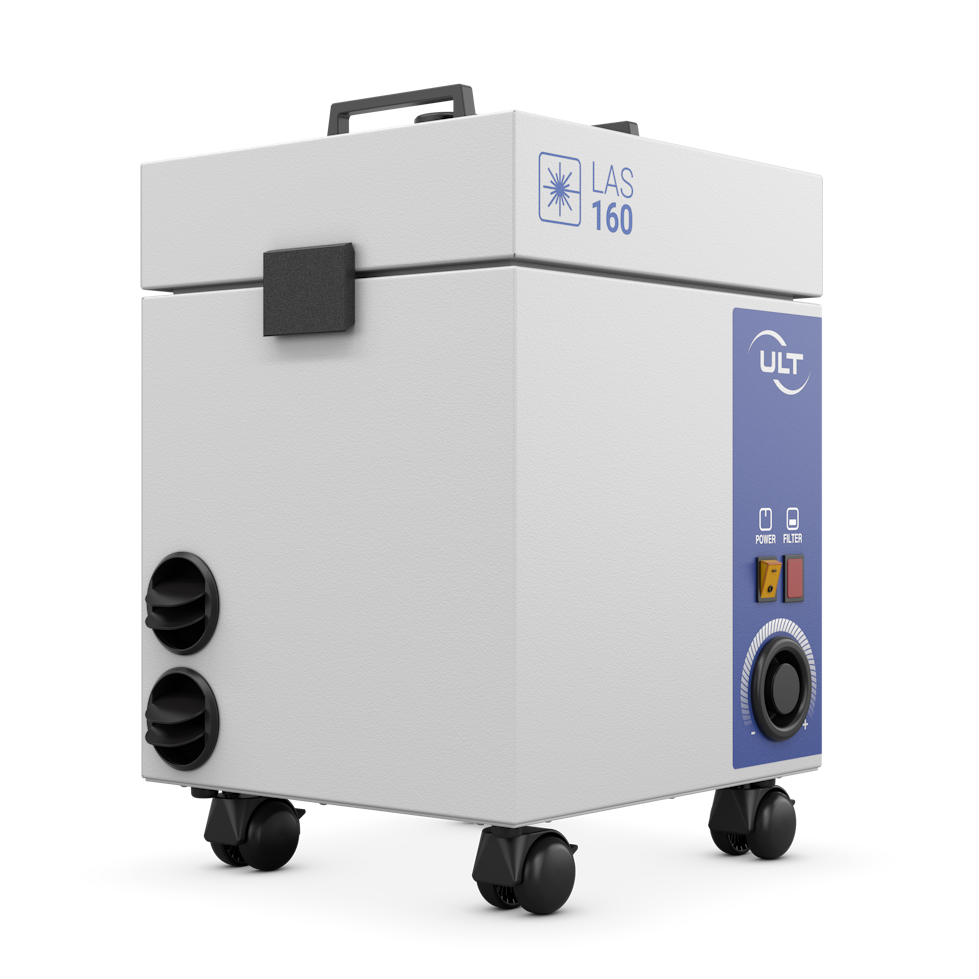

Side view of the system with rollers
Rollers enable for a flexible and mobile utilization

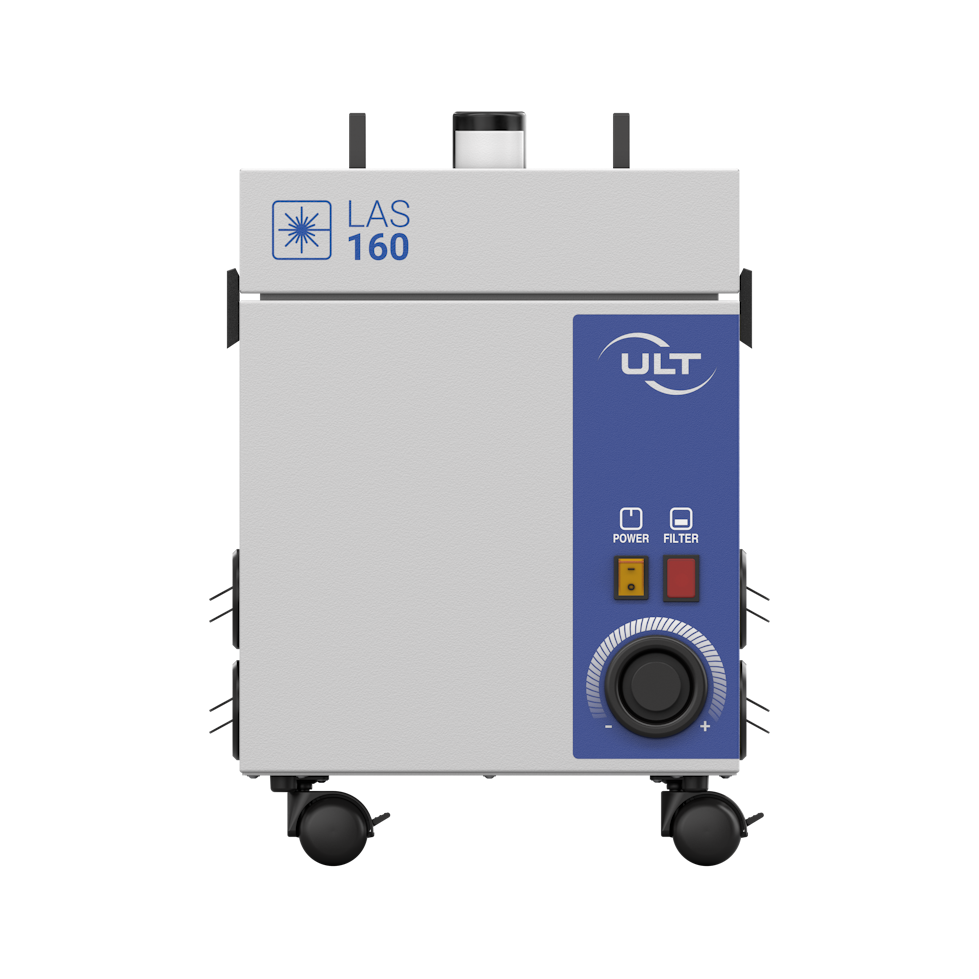

Mobile laser fume extraction with LAS 160.1
Operating and status elements easily accessible on the front side

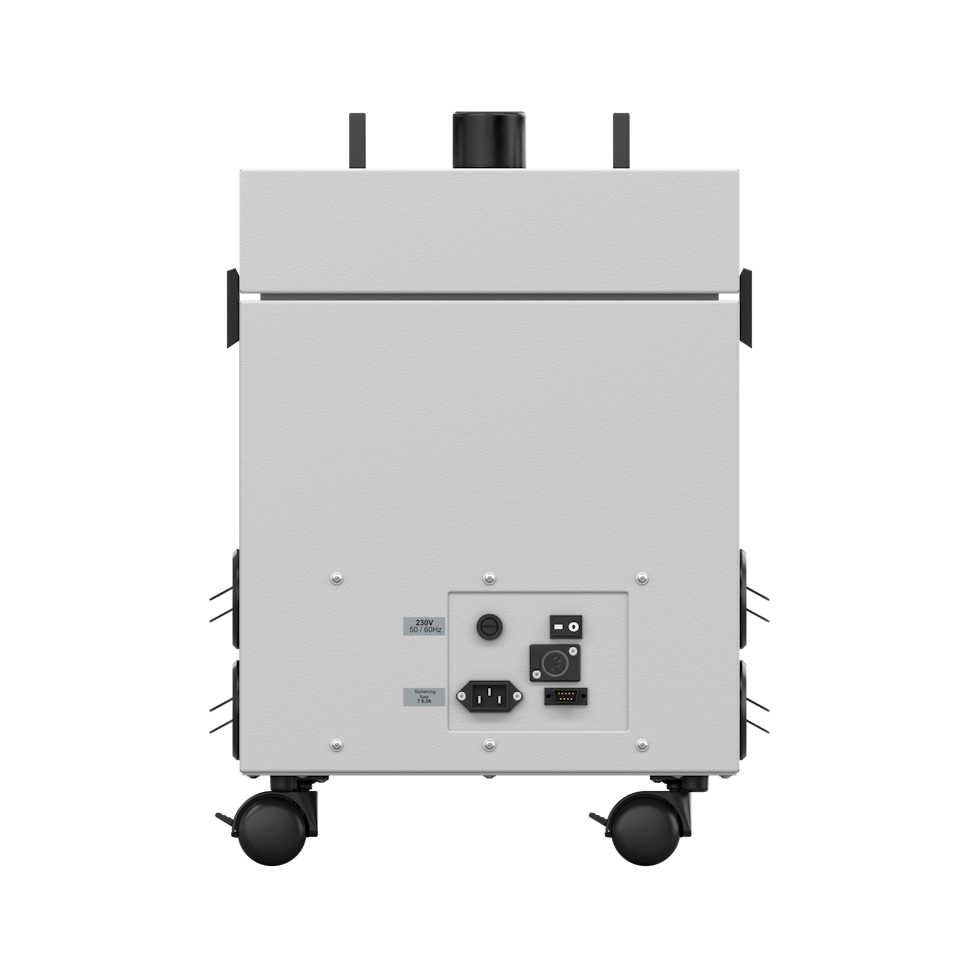

Extraction of laser fume and laser dust
Interface and control fittings on the system's rear side

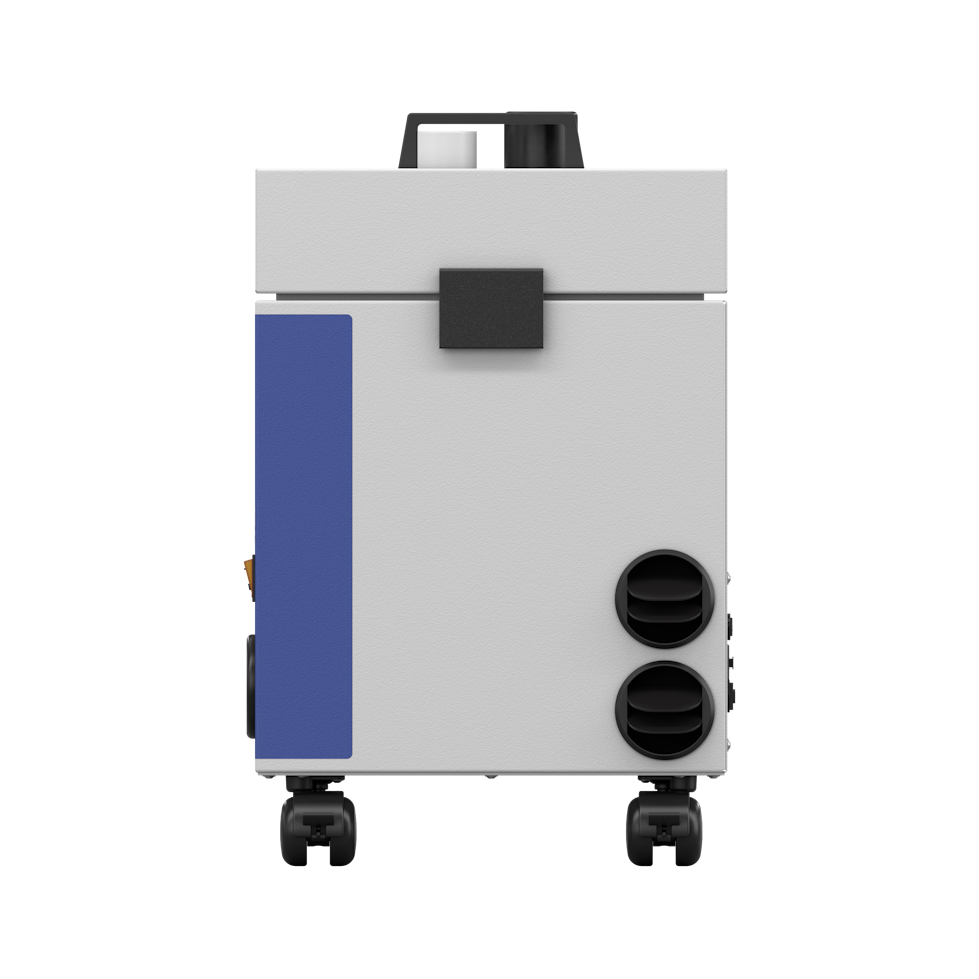

Flexible laser fume extraction
LAS 160.1 left view

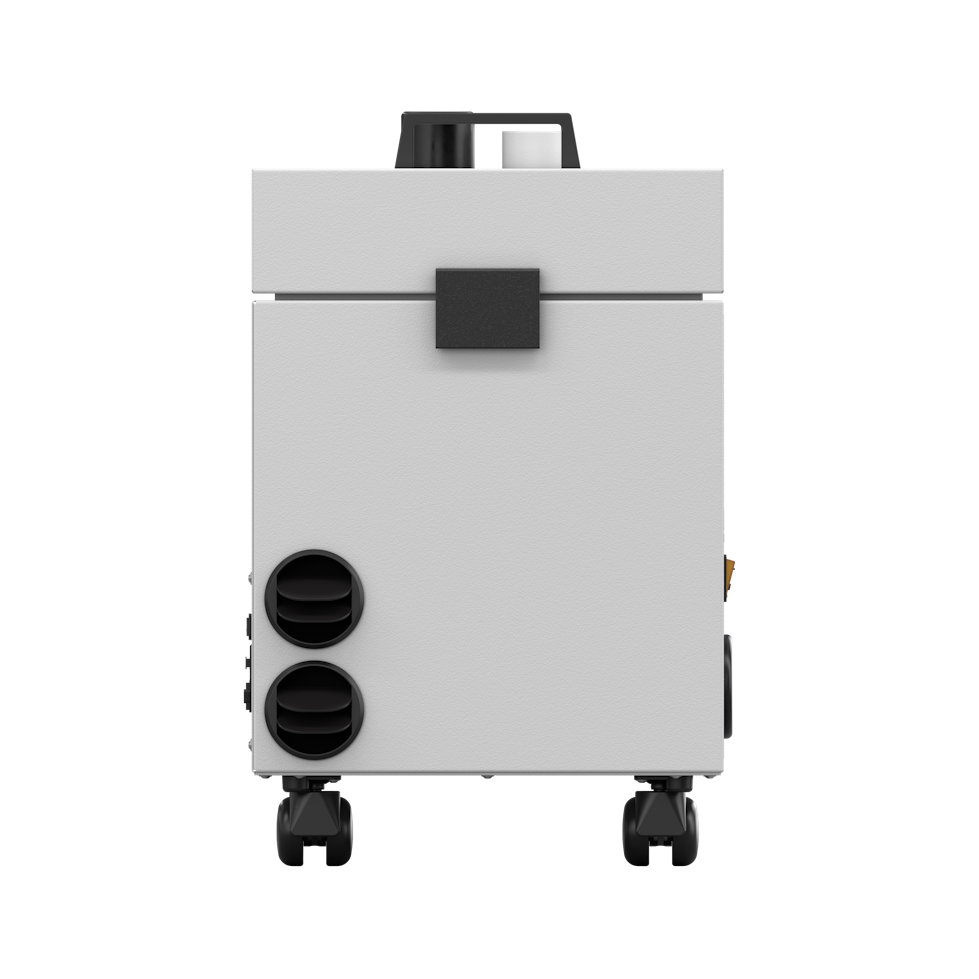

Mobile laser fume and dust extraction
LAS 160.1 right view
Extraction and filtration device for laser fume
Two extraction arms or hoses can be mounted on the top
Dimensions of the extraction system compared to a human
Human-device size ratio
Mobile laser fume extractor
LAS 160.1
Side view of the system with rollers
Rollers enable for a flexible and mobile utilization
