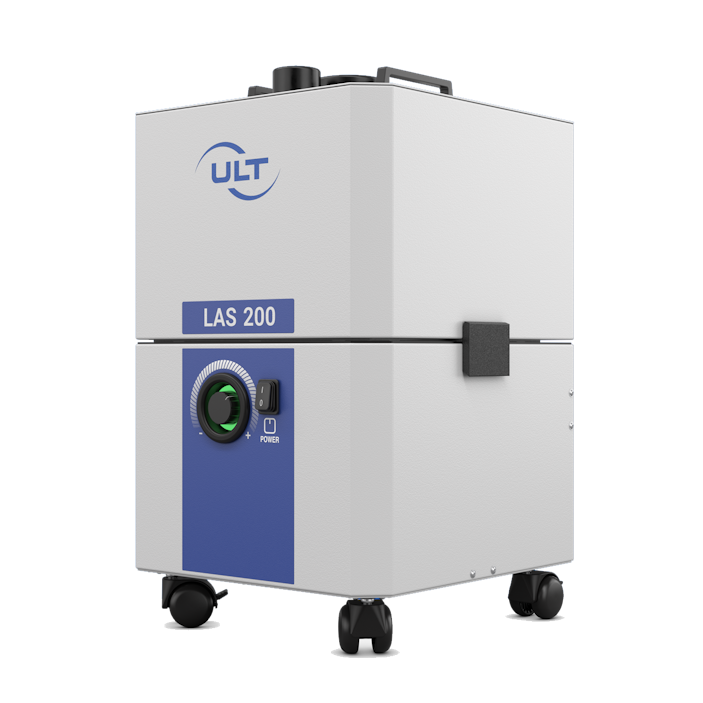

LAS 200.1 – sophisticated laser fume extractor
Product details
Application fields
Laser engraving, laser marking, laser welding, laser cleaning
Laser structuring, laser melting, laser cutting, laser cladding, etc.
Mobile laser fume extraction
Features
Stationary and mobile unit with either four castors or adjustable feet

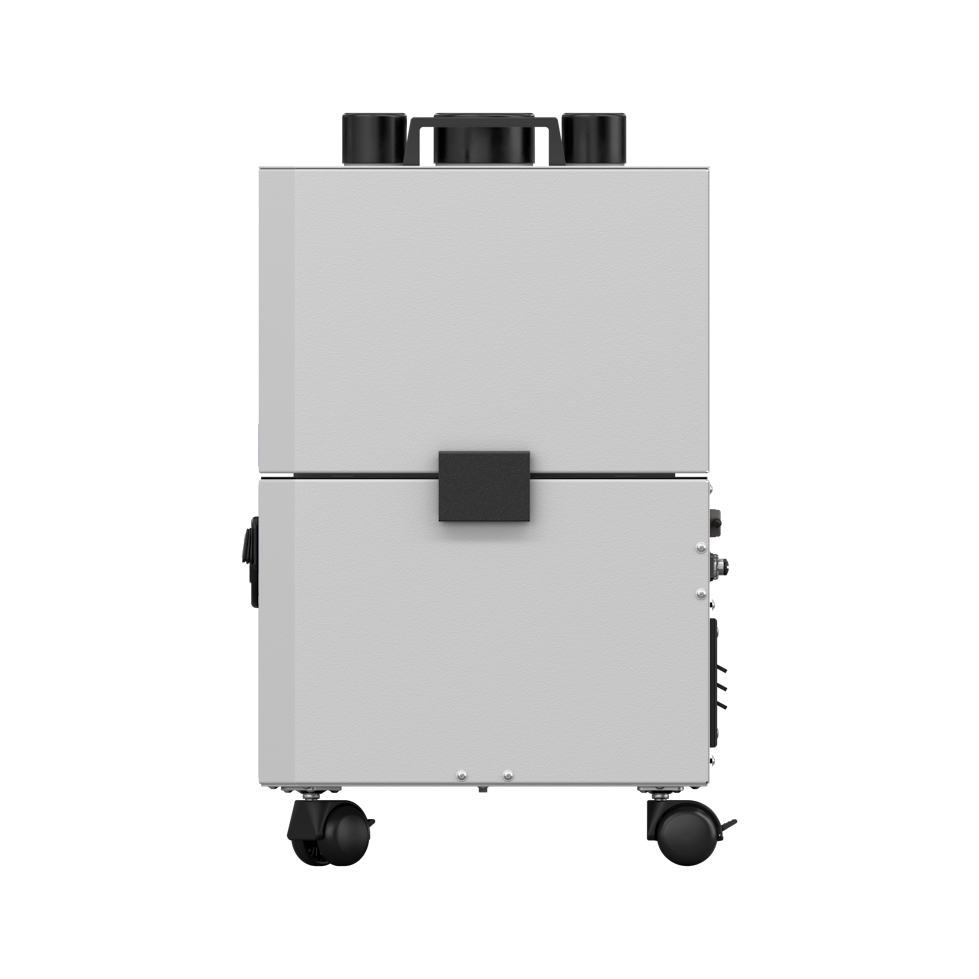

Easy filter handling
Modular design

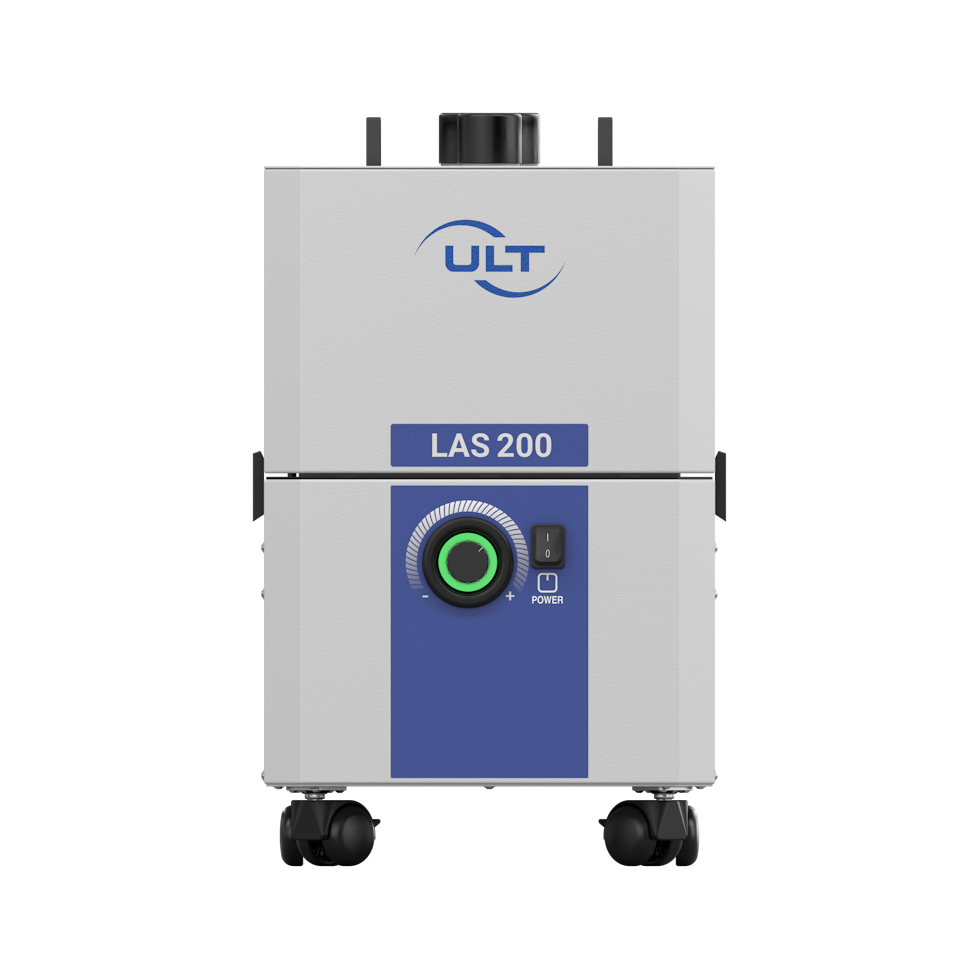

Operation elements on front side
Powder-coated, robust housing
Volumetric flow control: stepless adjustment of extraction performance
Constant negative-pressure maintained even with several suction points
Particle filter configuration: optic signaling at 80% and 100%
Interface M12: standard configuration, remote I/O

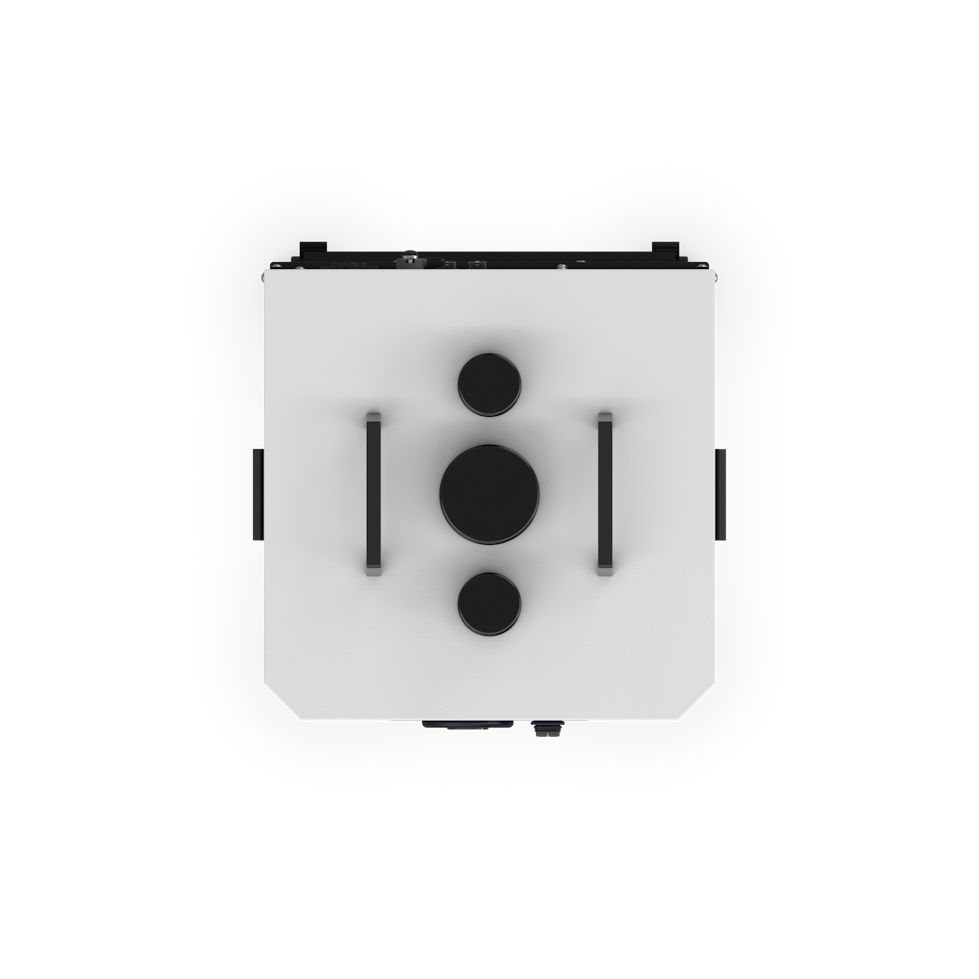

Installation of extraction arms (Ø 50, 75, 80) for one to four individual workplaces
Comprehensive accessory set (see downloads), including floor switch, hoses, extraction arm console, etc.
Technical specifications
| Device version | LAS 200.1 MD.20 |
|---|---|
| Max. flow rate in m³/h | 320 |
| Max. flow rate in cfm | 188 |
| Max. vacuum in Pa | 9000 |
| Max. vacuum in inch wc | 36.2 |
| Nominal capacity in m³/h@Pa | 130 @ 5.000 (high pressure application) / 230 @ 1.000 (medium pressure application) |
| Nominal capacity in cfm@inch wc | 76.5 @ 20 (high pressure application) / 135 @ 4.1 (medium pressure application) |
| Dimensions in mm (WxDxH) | 390x400x620 |
| Dimensions in inch (WxDxH) | 15.4x15.7x24.4 |
| Weight in kg | 36 |
| Weight in lbs | 79 |
| Noise level in dB | 47 |
| Connection variants – diameter in mm | Standard: 2 X 50 or 1 X 80 / option: hose or arm mount with console |
| Connection variants – diameter in inch | Standard: 2 X 1.97 or 1 X 3.15 / option: hose or arm mount with console |
System benefits
Quiet operation
ULT’s extraction and filtration systems are especially quiet. This is appreciated by numerous clients worldwide. This means your employees won’t be bothered by unnecessary noise.
High flexibility
Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.
Easy servicing
ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.
Low energy requirements
ULT’s extraction systems reduce the operation and maintenance costs based on your optimal filtration plan. In addition, the system is designed so that the required energy consumption is kept very low.
Optimal filter technology
Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.
Individual extraction solutions
Your extraction systems are adapted to your needs. Starting from the contaminant situation, via your internal processes, to the best possible collection solution, ULT advises and supports you in the selection and installation of your optimal extraction and filtration solution.
What makes the unit ULT 200.1 special?
