JUMBO Filtertrolley LabCat – mobile fume extractor for laboratories

Mobile fume extractor in white design
  1. Home
  2. Industrial extraction systems
  3. JUMBO Filtertrolley LabCat

JUMBO Filtertrolley LabCat – mobile fume extractor for laboratories

Product details

Application fields

  • Removal of dusts, hases, and vapors

  • Research tasks in medical technology, pharmaceutics, and chemistry

  • For small amounts of air pollutans and particles

  • For changing workplaces and conditions

Features

  • Uniquely designed mobile extraction and filtration unit

  • Flexible utilization for various applications

  • High suction power, steplessly adjustable

  • Extremely quiet operation

  • Simple filter handling, access via suction plate

  • Impact resistant ABS, chemical resistant, corrosion resistant

  • Installation of extraction arms (Ø 50, 63, 75) and application-specific capturing elements

Technical specifications

Device versionJUMBO Filtertrolley 2.0 LabCat
Max. flow rate in m³/h190
Max. flow rate in cfm112
Max. vacuum in Pa3200
Max. vacuum in inch wc12.9
Nominal capacity in m³/h@Pa80 @ 1900
Nominal capacity in cfm@inch wc47 @ 7.6
Dimensions in mm (WxDxH)450x340x530
Dimensions in inch (WxDxH)17.8x13.4x20.8
Weight in kg36
Weight in lbs79
Noise level in dB49
Connection variants – diameter in mm1 X 50 / option: 1 X 75
Connection variants – diameter in inch1 X 1.97 / option: 1 X 2.95

System benefits

  1. Quiet operation

    ULT’s extraction and filtration systems are especially quiet. This is appreciated by numerous clients worldwide. This means your employees won’t be bothered by unnecessary noise.

  2. High flexibility

    Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.

  3. Low energy requirements

    ULT’s extraction systems reduce the operation and maintenance costs based on your optimal filtration plan. In addition, the system is designed so that the required energy consumption is kept very low.

  4. Easy servicing

    ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.

  5. Optimal filter technology

    Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible..

  6. R&D basis

    Research and Development (R&D) has a very high priority at ULT. Several projects with prestigious partners and institutes have produced new approaches to ventilation systems that often become series products or are adapted quickly and easily to customer-specific projects.

Downloads

  1. Technical documentation JUMBO Filtertrolley
  2. Accessory set for the JUMBO Filtertrolley
  3. Brochure JUMBO Filtertrolley LabCat
Images
Top view of the mobile fume removal unit
Extraction arms can be mounted on top of the device
Mobile extraction and filtration device JUMBO Filtertrolley white
Device-human size ratio

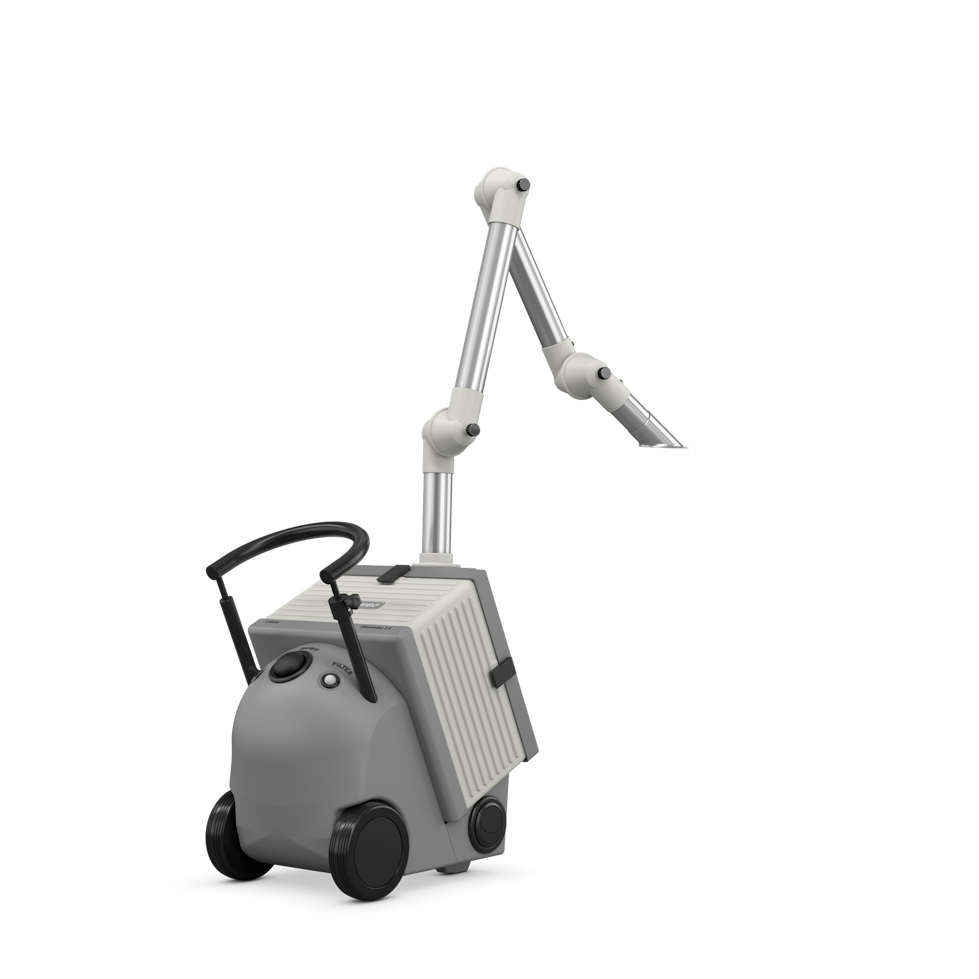

Grey system for utilization in laboratories
JUMBO Filtertrolley LabCat

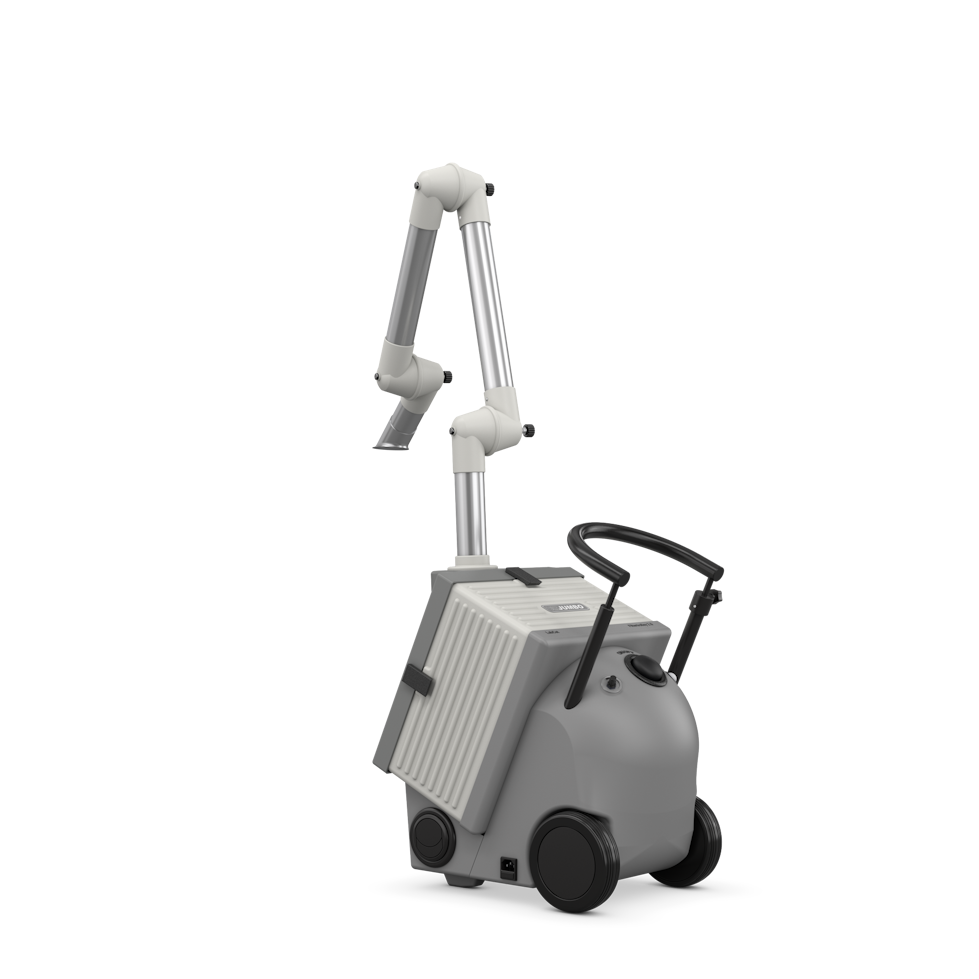

The JUMBO LabCat
Dsigned for mobile utilization

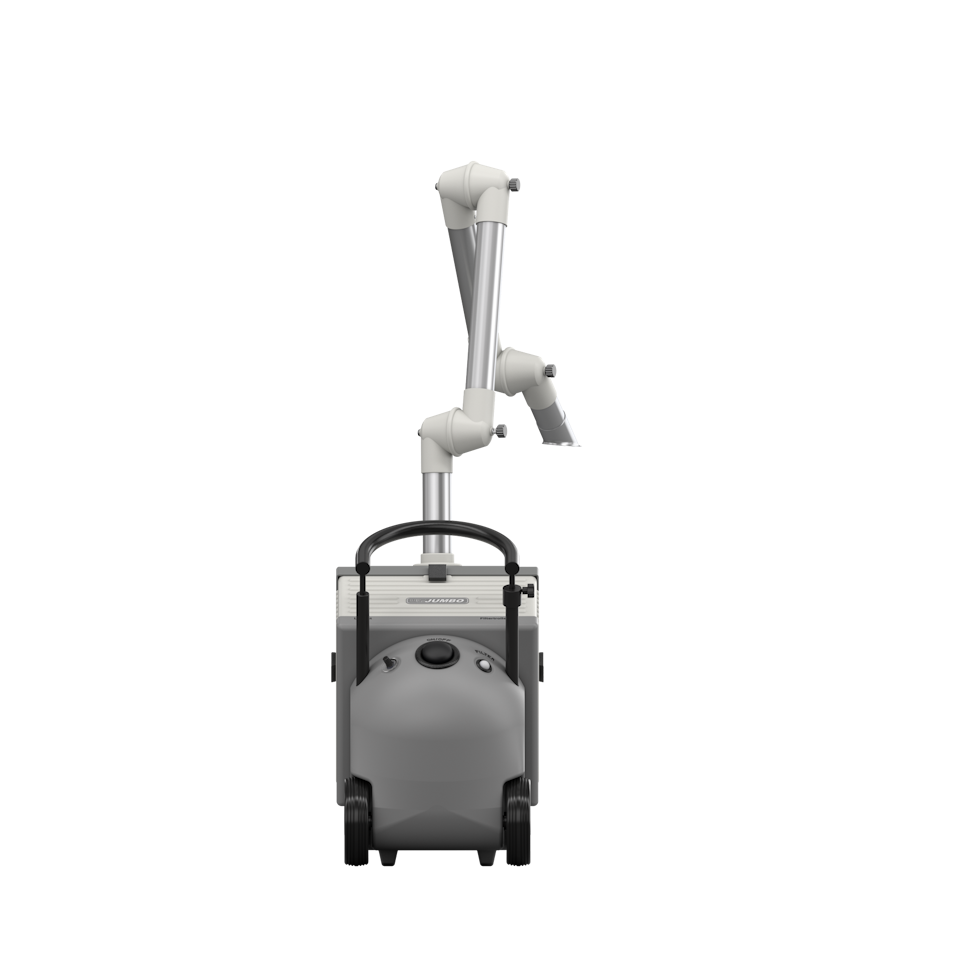

Grey system from the back
Operating elements and state indicators easy accessible
Side view of the fume extractor
Quick-Lock fclosures for easy filter replacement
Top view of the mobile fume removal unit
Extraction arms can be mounted on top of the device
Mobile extraction and filtration device JUMBO Filtertrolley white
Device-human size ratio
Grey system for utilization in laboratories
JUMBO Filtertrolley LabCat
The JUMBO LabCat
Dsigned for mobile utilization
