ASD 200.1 – flexible dust extraction unit

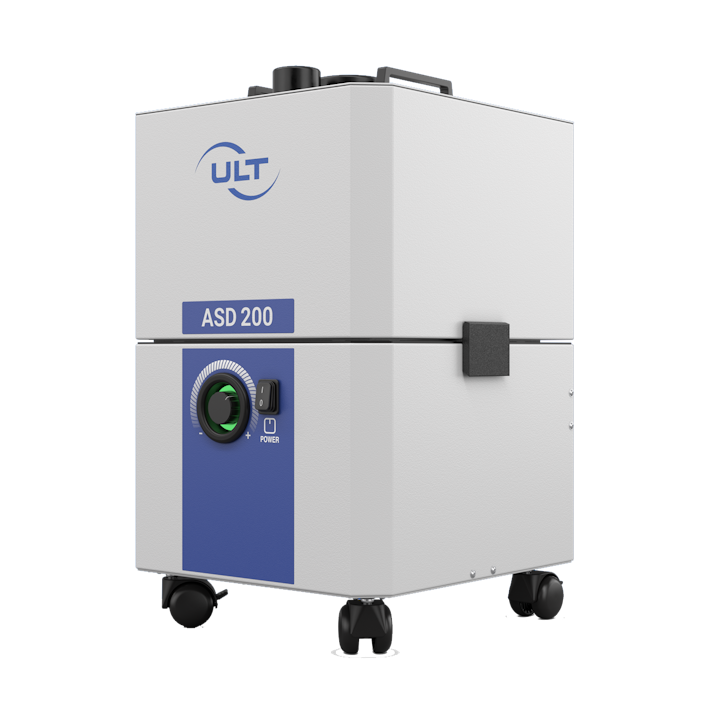

Small system in gray and blue

Product details

Application fields

  • Grinding, engraving, burnishing

  • Mixing, cleaning, decanting, etc.

  • Dust removal

Features

  • Stationary and mobile unit with either four castors or adjustable feet

  • Removable filter device – individual changeable filter

  • Extremely quiet operation

  • Easy filter handling, access via suction plate

  • Robust steel housing

Equipment

  • Multistage filter for high filtration performance

  • Easy handling, modular design

  • Volumetric flow control: stepless adjustment of extraction performance

  • Constant negative-pressure maintained even with several suction points

  • Particle filter configuration: optic signaling at 80% and 100%

  • Interface: M12 as standard furnishing

  • Remote I/O

  • Installation of extraction arms (Ø 50, 75, 80) for one to four individual workplaces

  • Utilization of fine particle filters (H, U)

  • Comprehensive accessory set, including floor switch, hoses, extraction arm console, etc.

Technical specifications

Device versionASD 200.1 MD.20
Max. flow rate in m³/h320
Max. flow rate in cfm188
Max. vacuum in Pa9000
Max. vacuum in inch wc36.2
Nominal capacity in m³/h@Pa130 @ 5.000 (high pressure application) / 230 @ 1.000 (medium pressure application)
Nominal capacity in cfm@inch wc76.5 @ 20 (high pressure application) / 135 @ 4.1 (medium pressure application)
Dimensions in mm (WxDxH)390x400x620
Dimensions in inch (WxDxH)15.4x15.7x24.4
Weight in kg36
Weight in lbs79
Noise level in dB47
Connection variants – diameter in mmStandard: 2 X 50 or 1 X 80 / option: hose or arm mount with console
Connection variants – diameter in inchStandard: 2 X 1.97 or 1 X 3.15 / option: hose or arm mount with console

System benefits

  1. Quiet operation

    ULT’s extraction and filtration systems are especially quiet. This is appreciated by numerous clients worldwide. This means your employees won’t be bothered by unnecessary noise.

  2. High flexibility

    Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.

  3. Optimal filter technology

    Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.

  4. Low energy requirements

    ULT’s extraction systems reduce the operation and maintenance costs based on your optimal filtration plan. In addition, the system is designed so that the required energy consumption is kept very low.

  5. Easy servicing

    ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.

  6. R&D basis

    Research and Development (R&D) has a very high priority at ULT. Several projects with prestigious partners and institutes have produced new approaches to ventilation systems that often become series products or are adapted quickly and easily to customer-specific projects.

ULT 2001. benefits and features

Downloads

  1. Technical documentation ULT 200.1
  2. Video on ULT 200.1 - system concept and user benefits
Images

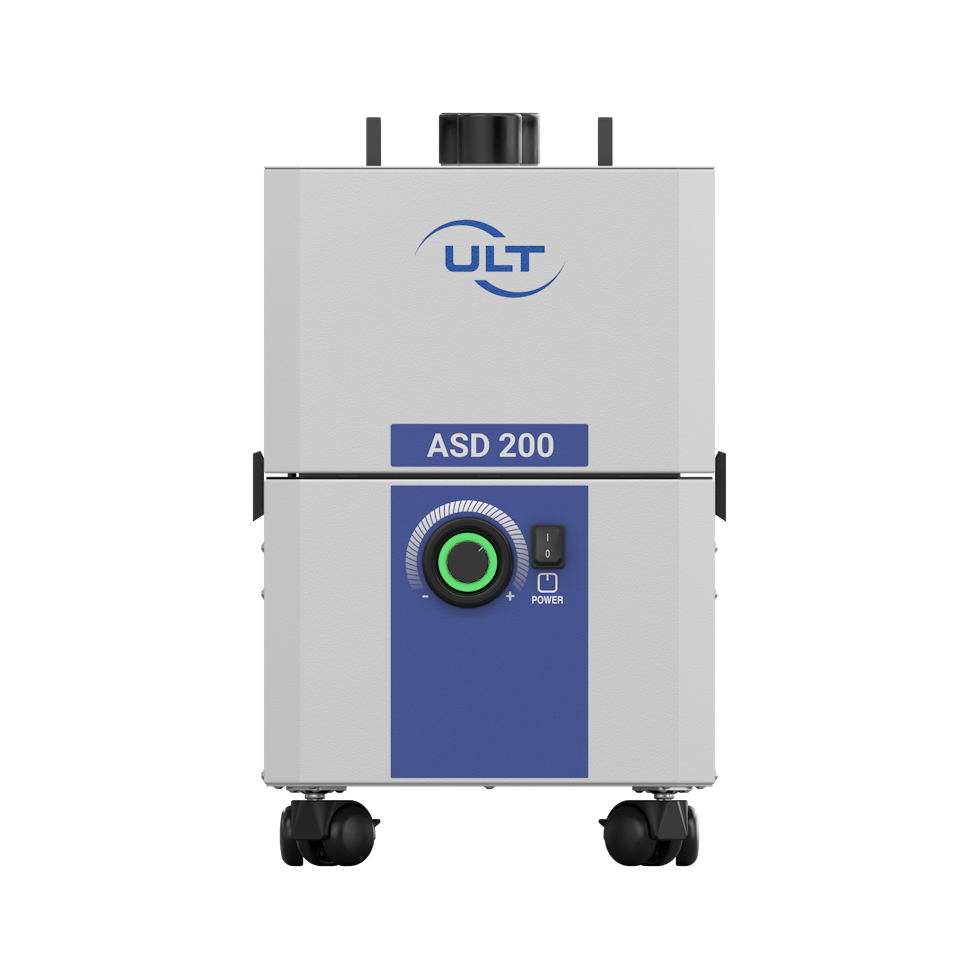

Stepless volume flow control and filter status display
Front view with operating elements

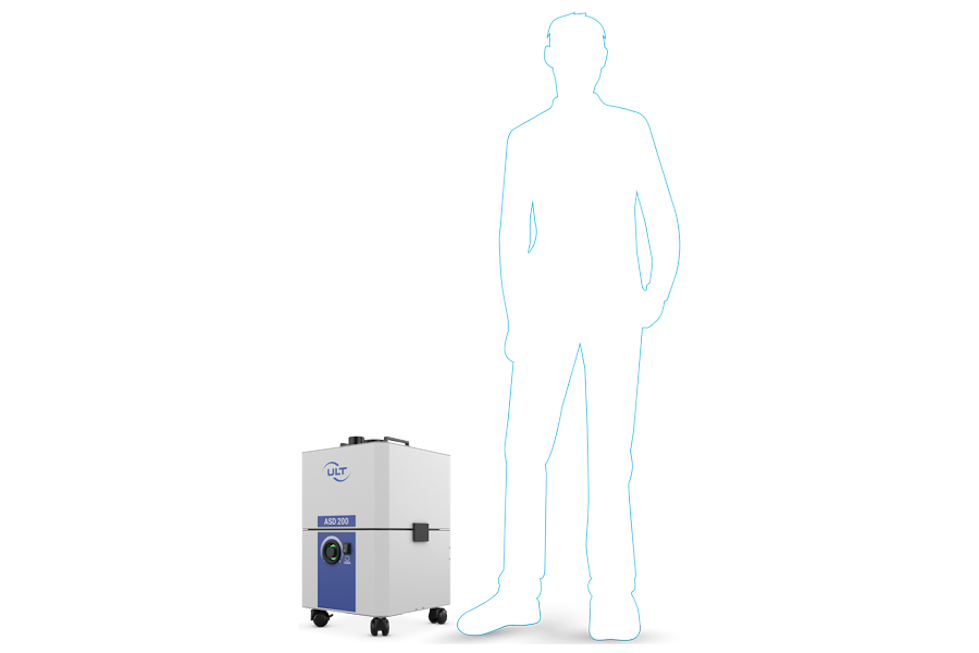

Dimension of the mobile dust extractor compared to a person
Human-system size ratio
Flexible dust and smoke extraction
ASD 200.1 – mobile dust collection for many applications

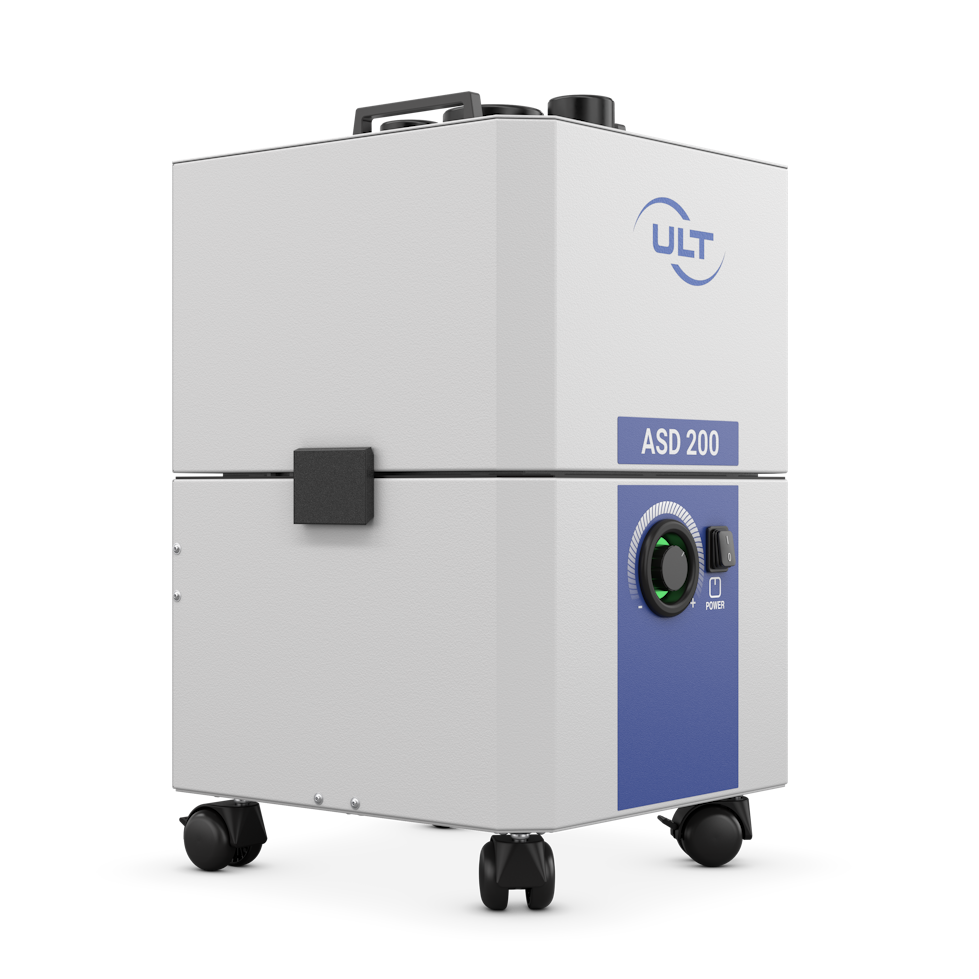

Occupational health and safety
Mobile and flexible dust collection with ASD 200.1
ASD 200.1 for mobile dust collection

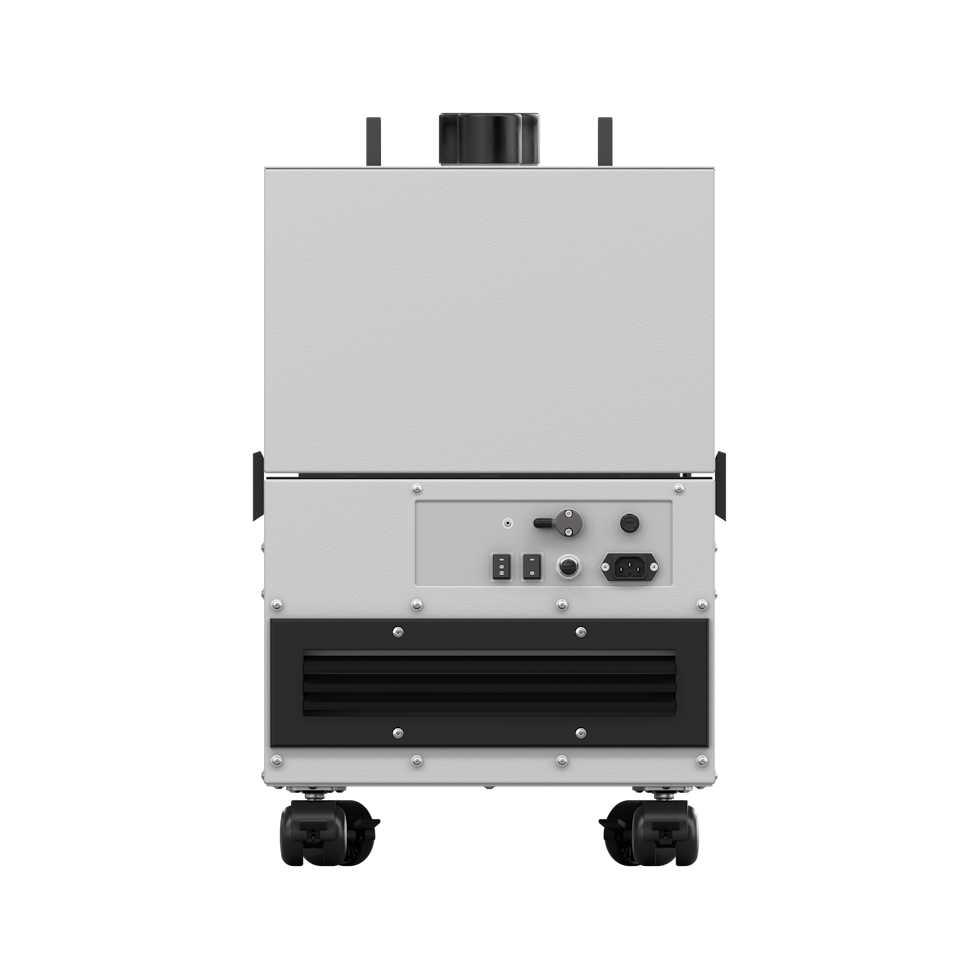

Rear view with exhaust duct, switches and interfaces
Flexible dust collector

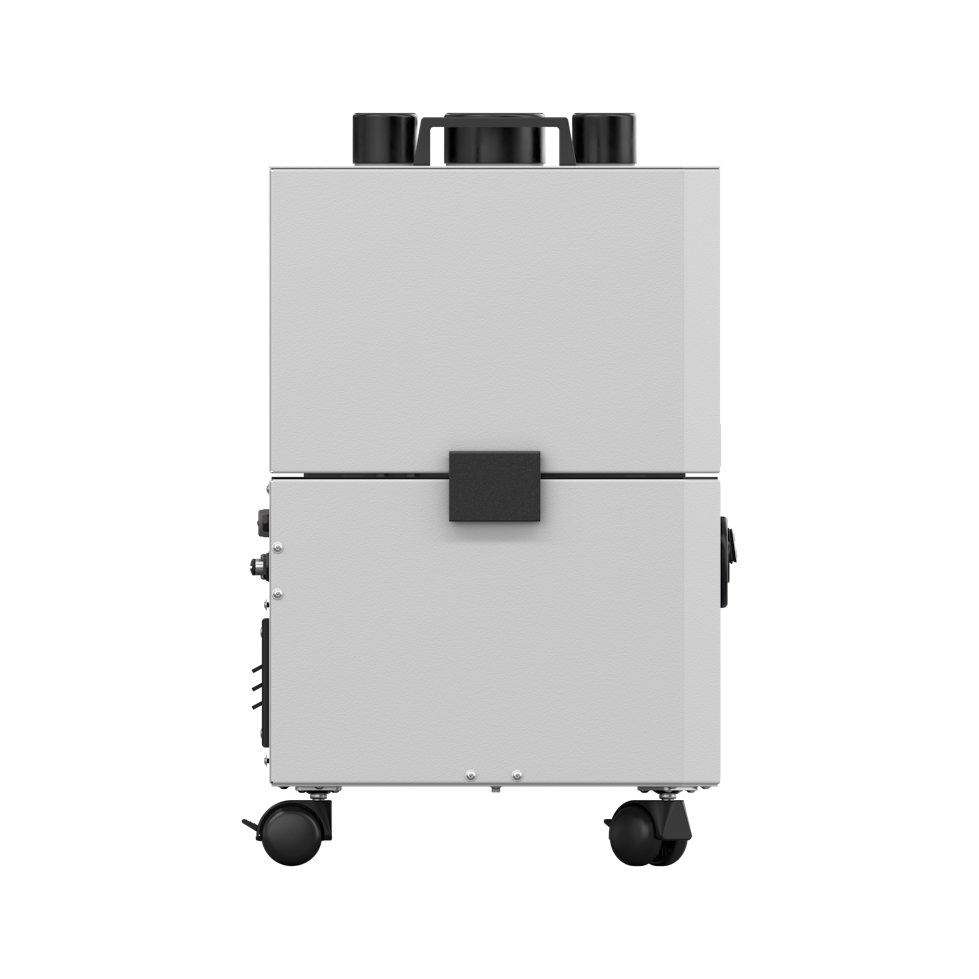

Side view of the device with Quick-Lock fasteners

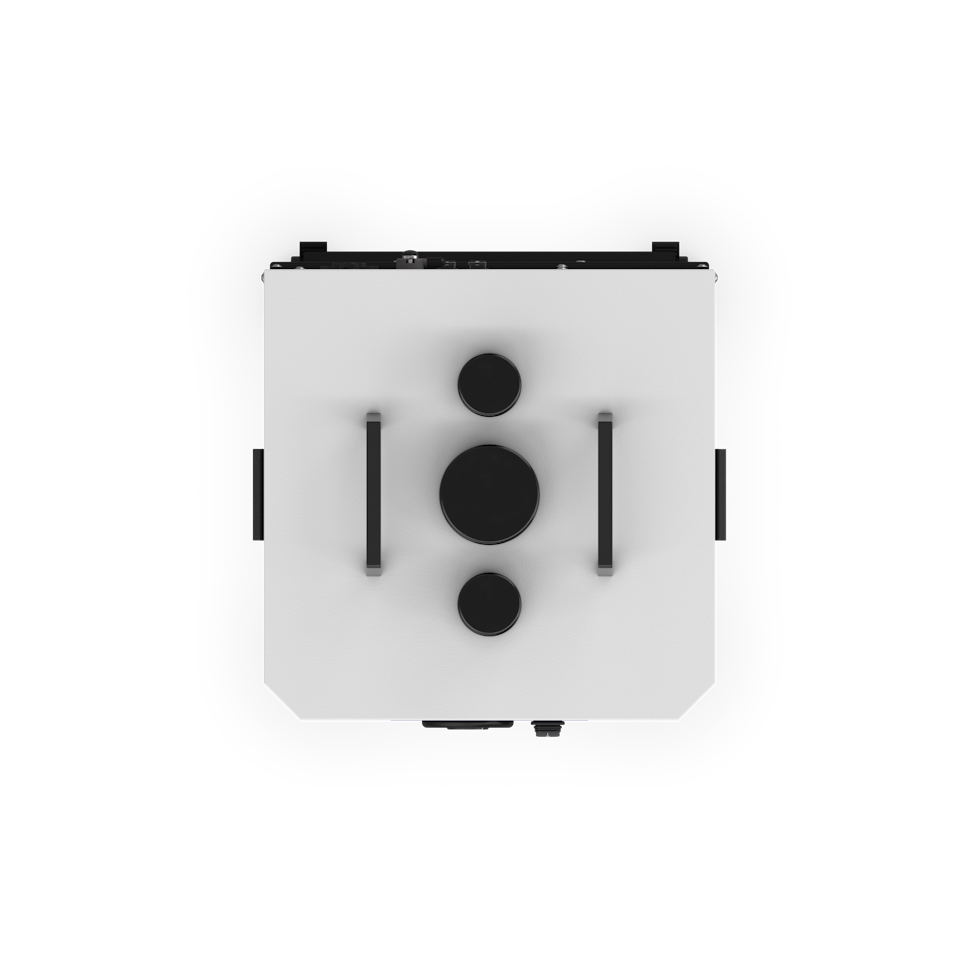

Connection variants for optimal suction performance
Device top with connections for extraction arms and hoses
Stepless volume flow control and filter status display
Front view with operating elements
Dimension of the mobile dust extractor compared to a person
Human-system size ratio
Flexible dust and smoke extraction
ASD 200.1 – mobile dust collection for many applications
Occupational health and safety
Mobile and flexible dust collection with ASD 200.1
