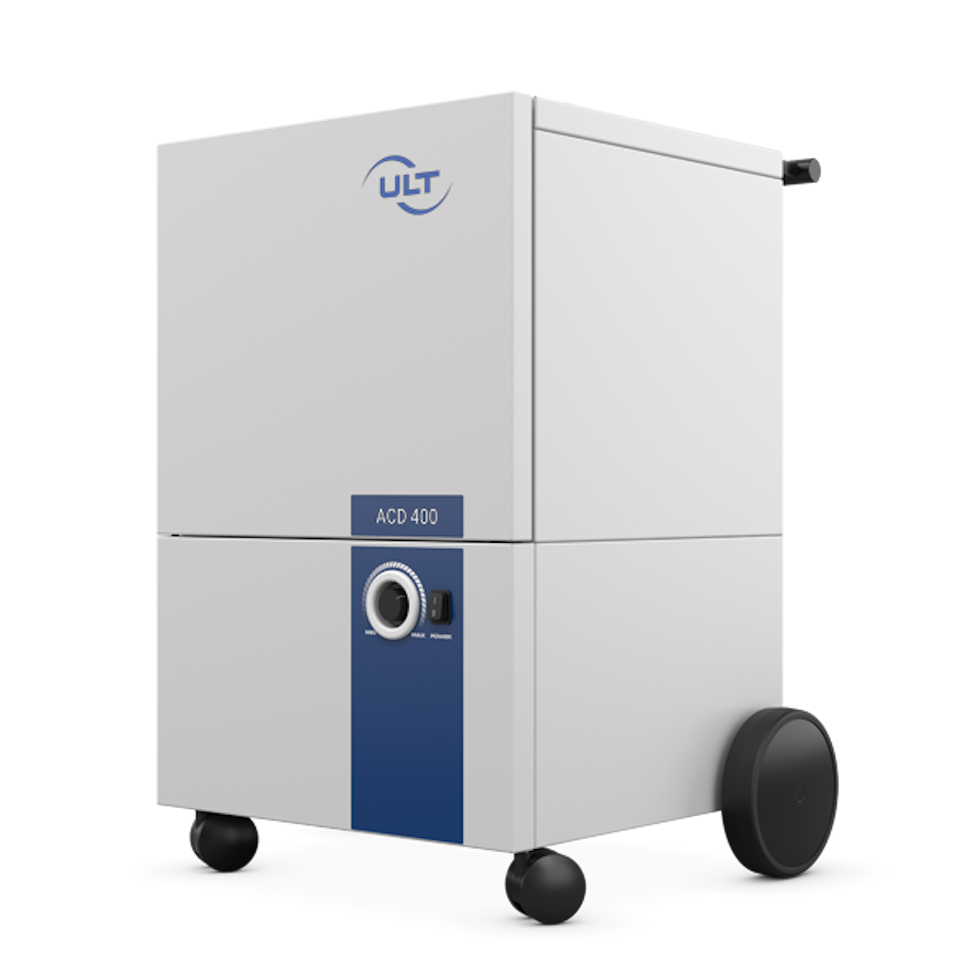

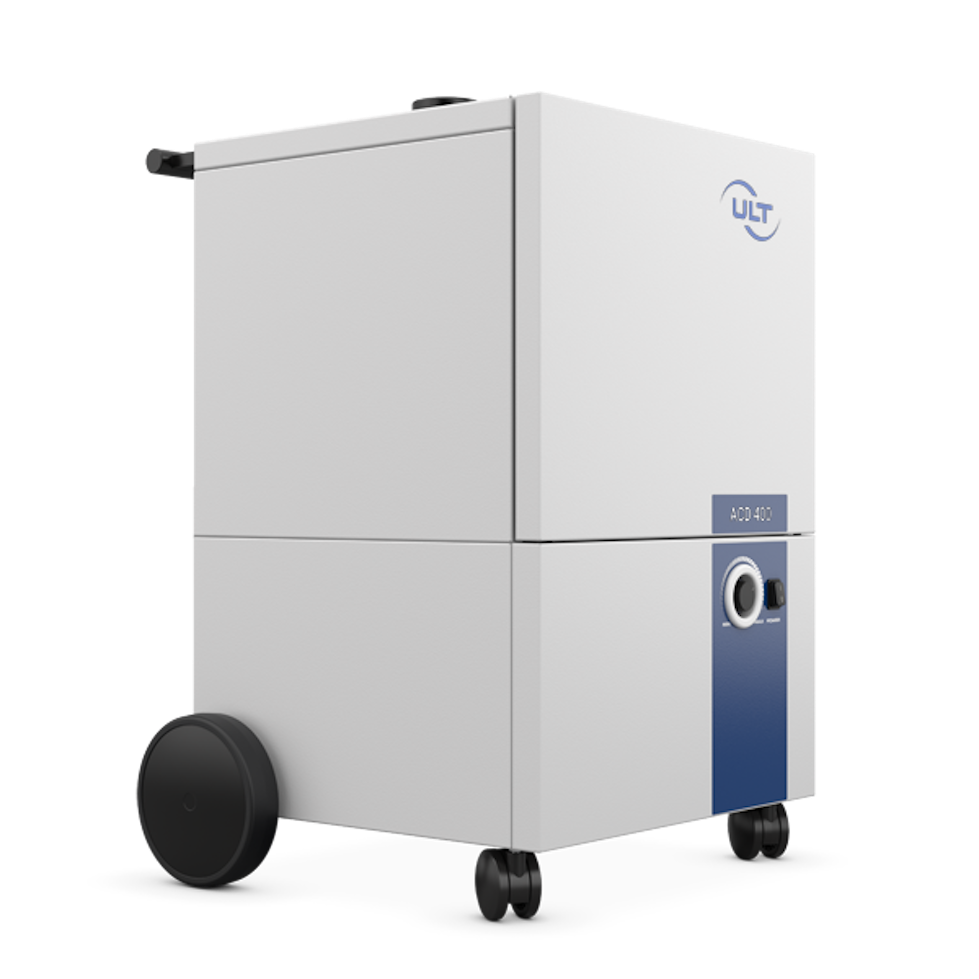

ACD 400.1 – modular extraction system for odors, gases, vapors
Product details
Application fields
Bonding, laminating, lacquering
Pretreating, cleaning
Casting, printing, and many more
Features/equipment
Replaceable filter system for minimal contamination: Features "Save Change Technology" to minimize mess during filter changes.

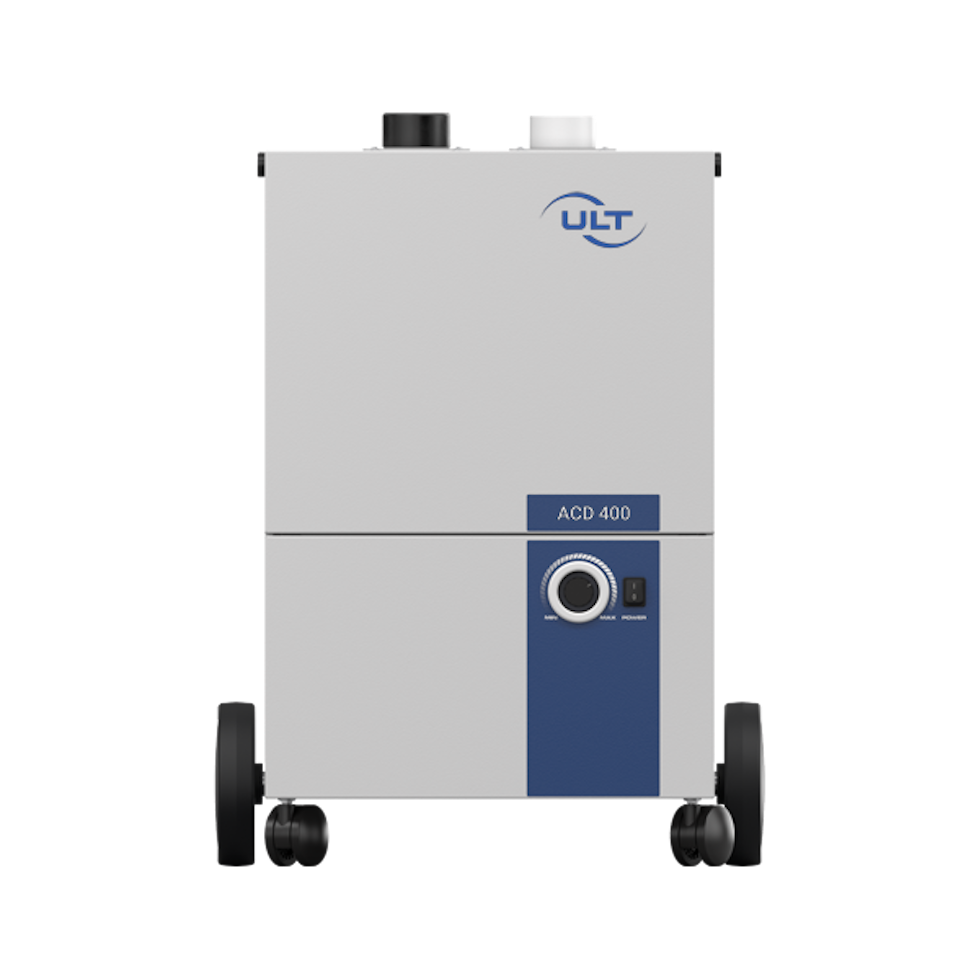

Front-mounted input and output: Easily accessible intake and exhaust ports.

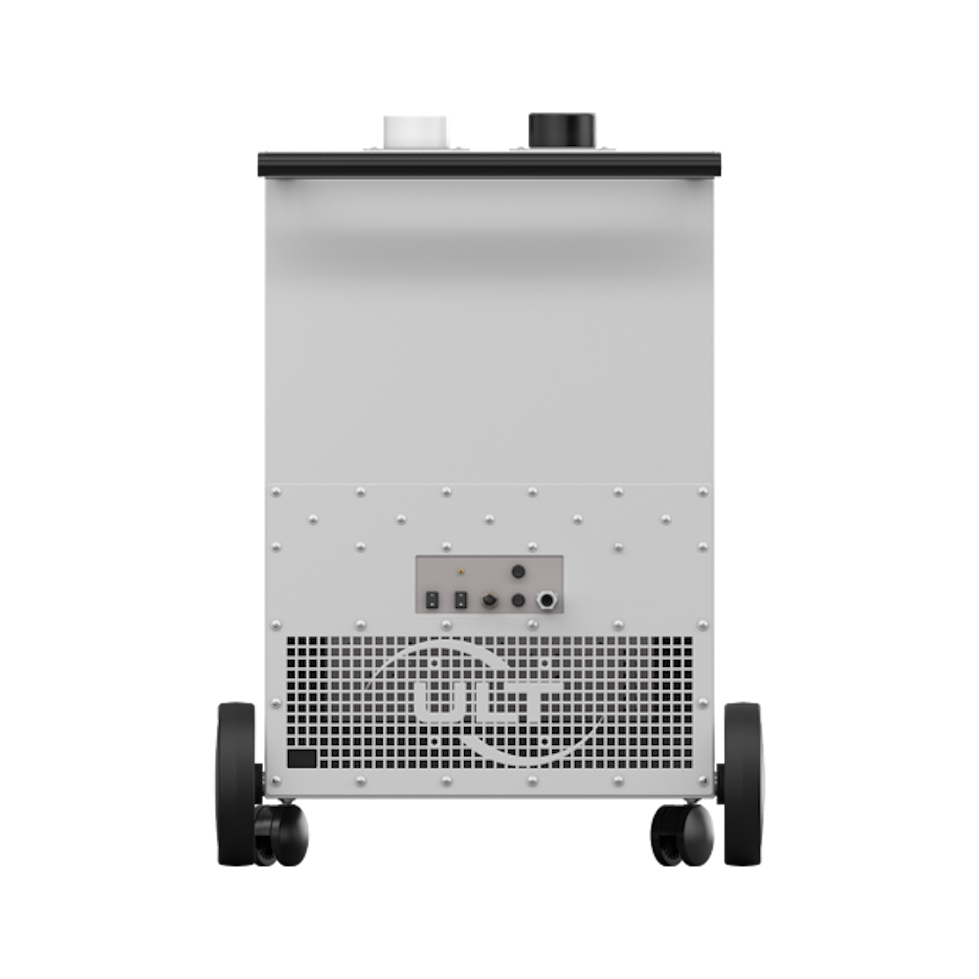

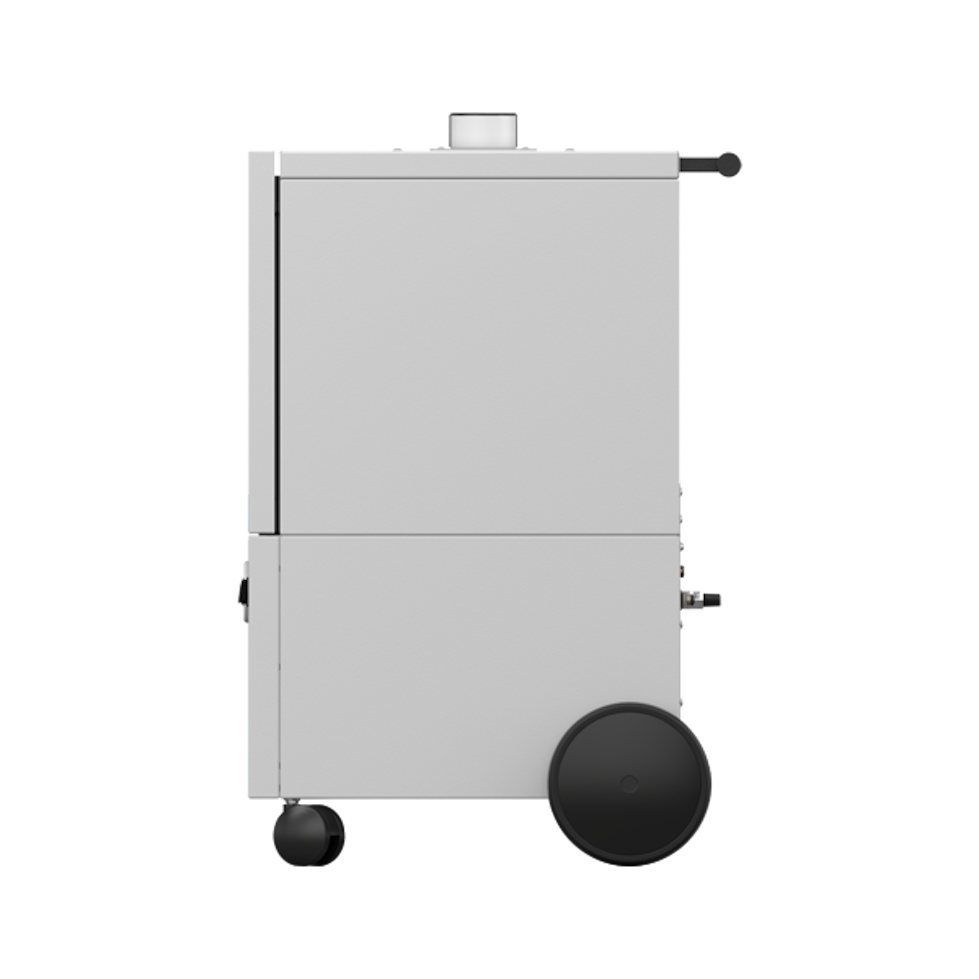

Rear-panel interfaces: Equipped with interfaces (e.g., M12) for connectivity options.
Durable steel housing: Built with a rugged steel casing and protective powder coating for long-lasting use.

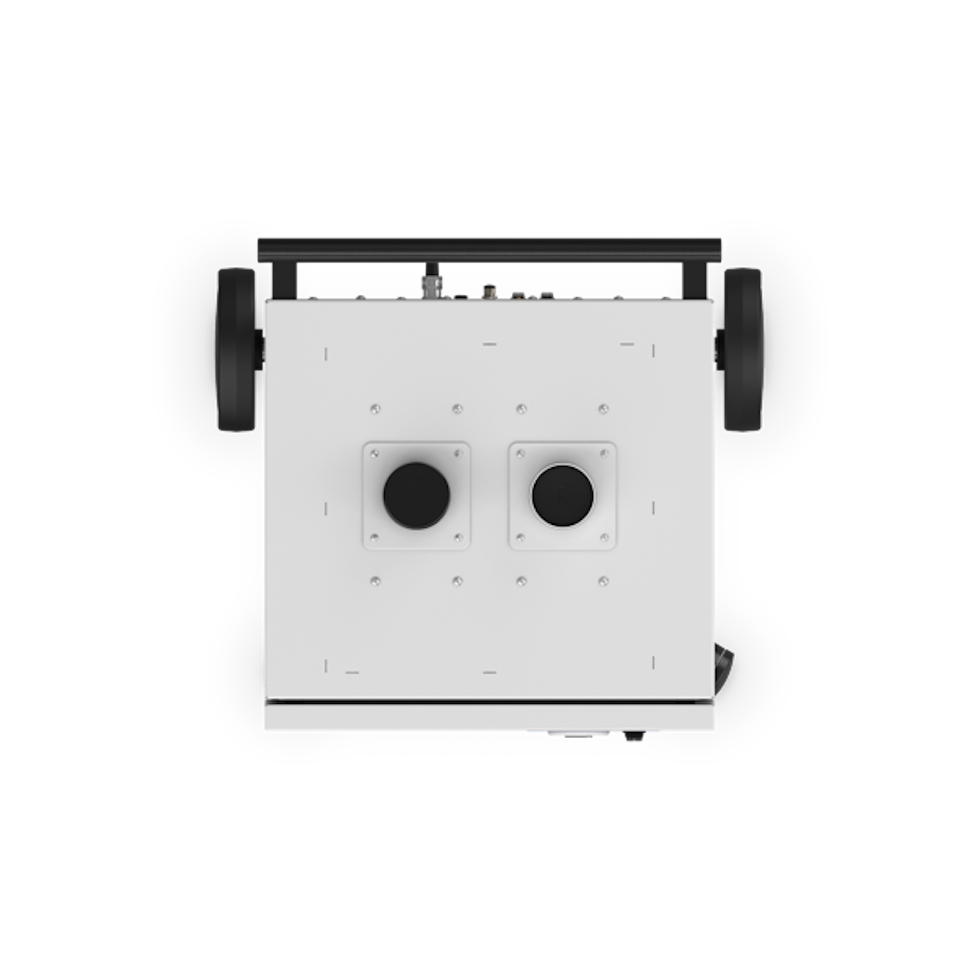

Dual extraction arm capability: Accommodates two DN 80 extraction arms, with the option for additional DN connections.
Two-stage filtration: Includes a particle pre-filter and an adsorption filter for efficient dust and contaminant capture.
Adjustable suction power: Offers continuous control over suction strength.
Filter status indicator: Provides a visual indication of filter saturation.
Diffuser for even filter loading: Ensures even distribution of dust across the filter surface for efficient operation.
Particularities
Low replacement filter costs thanks to a multi-stage filter system.
Versatile: Designed for a wide range of applications.
Energy-efficient: Low energy consumption (less than 20%) using "Energy Saving Technology".
Quiet operation: Achieved through "Silent Technology".
Global compatibility: Works worldwide with 110-240V power supply.
Safety certified: All electrical components meet UL and EC standards.
Wide range of attachments: Offers a variety of additional equipment.
Technical specifications

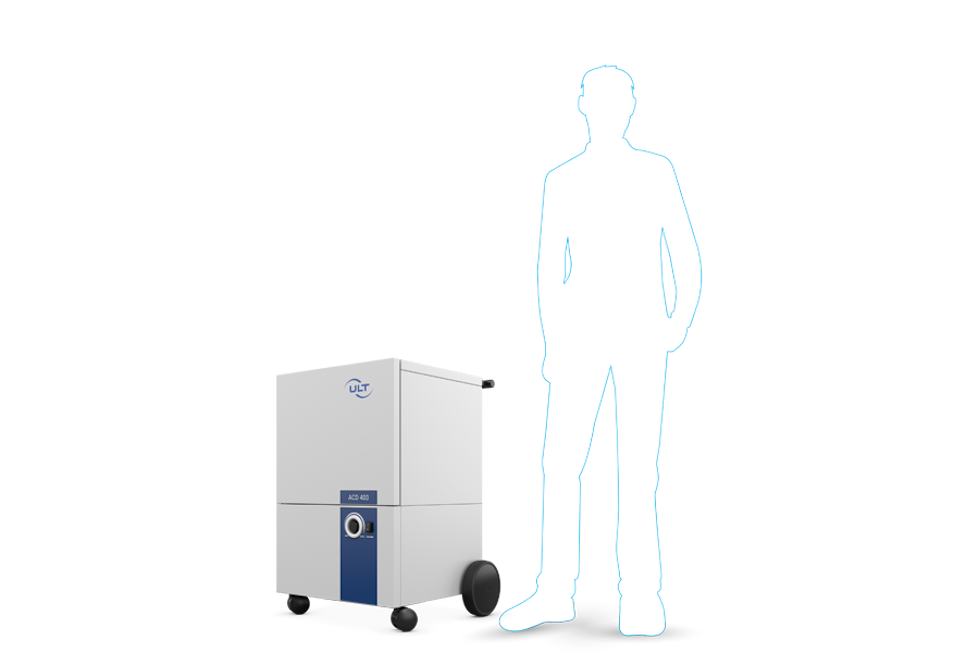

| Device version | ACD 400.1 MD.17 | ACD 400.1 MD.21 |
|---|---|---|
| Max. flow rate in m³/h | 1000 | 600 |
| Max. flow rate in cfm | 588 | 353 |
| Max. vacuum in Pa | 2600 | 9800 |
| Max. vacuum in inch wc | 10.5 | 40 |
| Nominal capacity in m³/h@Pa | 300 @ 2500 | 450 @ 2500 |
| Nominal capacity in cfm@inch wc | 177 @ 10 | 265 @ 10 |
| Dimensions in mm (WxDxH) | 652x600x1140 | 652x600x867 |
| Dimensions in inch (WxDxH) | 25.7x23.6x45 | 25.7x23.6x34.1 |
| Weight in kg | 100 | 100 |
| Weight in lbs | 220 | 220 |
| Connection variants – diameter in mm | 2 X 80 connector / additional Ø possible | 2 X 80 connector / additional Ø possible |
| Connection variants – diameter in inch | 2 X Ø 3.1 connector / additional Ø possible | 2 X Ø 3.1 collar / additional Ø possible |
