JUMBO Filtertrolley LRA – mobile solder fume removal

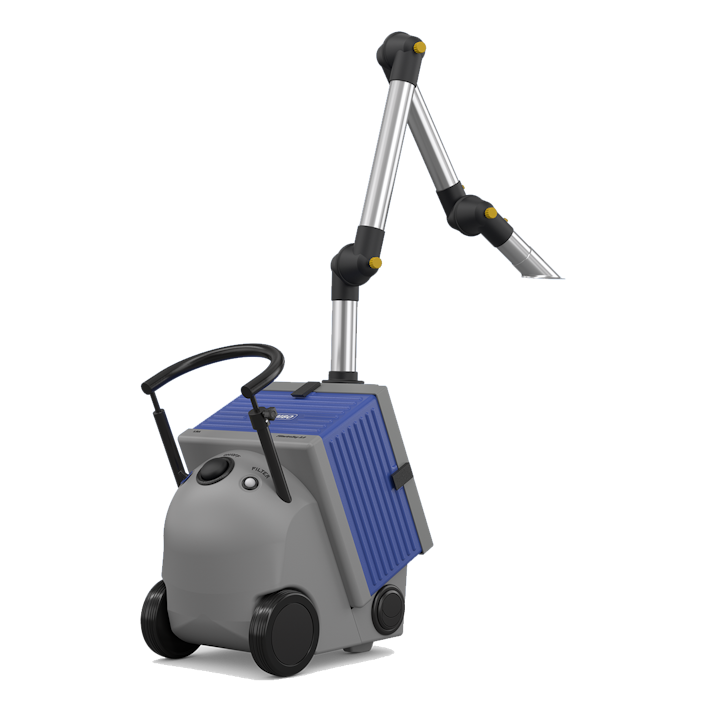

Mobile device in extraordinary design with mounted extraction arm
  1. Home
  2. Industrial extraction systems
  3. Soldering fume extraction
  4. JUMBO Filtertrolley LRA

JUMBO Filtertrolley LRA – mobile solder fume removal

Product details

Application fields

  • Manual soldering

  • Soldering units in special work settings

Features

  • Mobile extraction device for variable and flexible operating conditions

  • High extraction performance, stepless adjustment

  • Extremely quiet operation

  • Easy filter handling, access via suction plate

  • Material ABS (impact tough, chemical resistant, corrosion resistant)

  • Installation of extraction arms (Ø 50, 63, 75) and application-specific capturing elements

Technical specifications

Device versionJUMBO Filtertrolley 2.0 LRA
Max. flow rate in m³/h190
Max. flow rate in cfm112
Max. vacuum in Pa3200
Max. vacuum in inch wc12.9
Nominal capacity in m³/h@Pa80 @ 1900
Nominal capacity in cfm@inch wc47 @ 7.6
Dimensions in mm (WxDxH)450x340x530
Dimensions in inch (WxDxH)17.8x13.4x20.8
Weight in kg36
Weight in lbs79
Noise level in dB49
Connection variants – diameter in mm1 X 50 / option: 1 X 75
Connection variants – diameter in inch1 X 1.97 / option: 1 X 2.95

System benefits

  1. Quiet operation

    ULT’s extraction and filtration systems are especially quiet. This is appreciated by numerous clients worldwide. This means your employees won’t be bothered by unnecessary noise.

  2. High flexibility

    Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.

  3. Easy servicing

    ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.

  4. Low energy requirements

    ULT’s extraction systems reduce the operation and maintenance costs based on your optimal filtration plan. In addition, the system is designed so that the required energy consumption is kept very low.

  5. R&D basis

    Research and Development (R&D) has a very high priority at ULT. Several projects with prestigious partners and institutes have produced new approaches to ventilation systems that often become series products or are adapted quickly and easily to customer-specific projects.

  6. Optimal filter technology

    Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible..

Downloads

  1. Technical documentation JUMBO Filtertrolley
  2. Accessory set for the JUMBO Filtertrolley
  3. Brochure "Mobile fume extractor JUMBO Filtertrolley"
Images

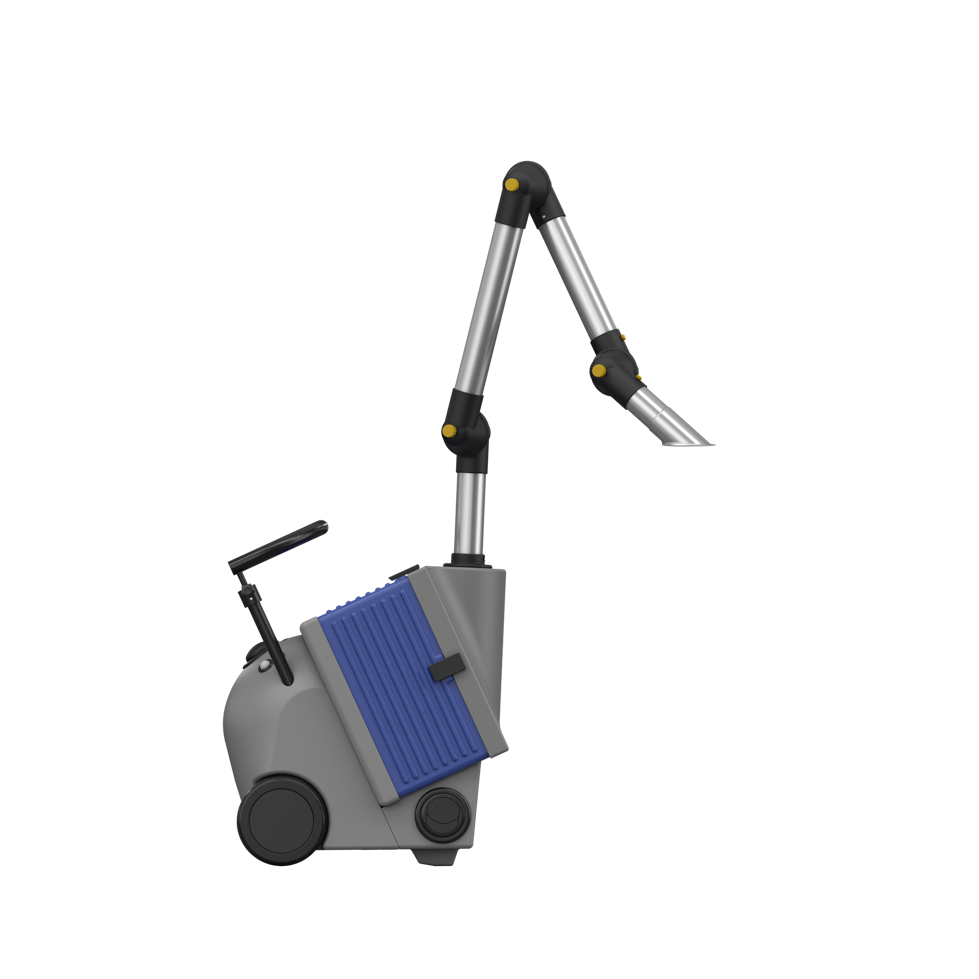

JUMBO LRA for soldering vapors and fumes
Portable fume extraction – ideal for changing workplaces
Dimensions of the mobile solder fume extractor
Human-system size ratio

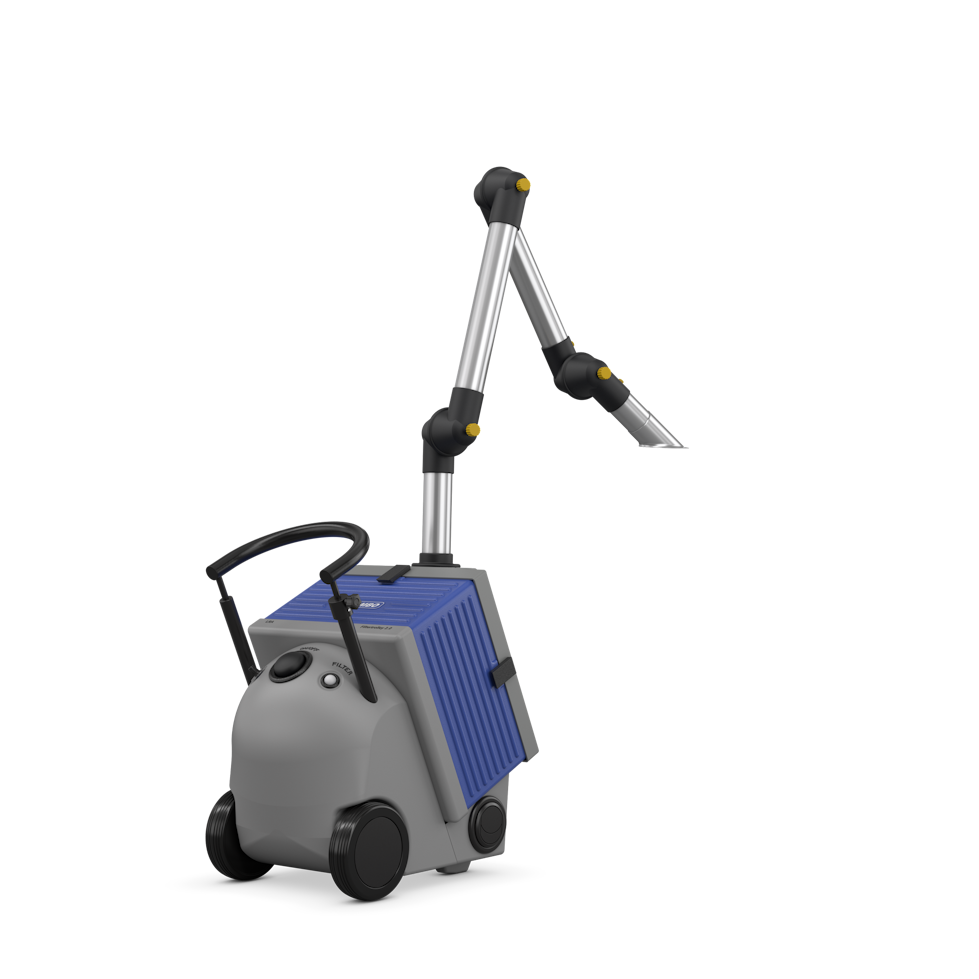

Mobile extraction system for solder fume and vapors
JUMBO Filtertrolley LRA for soldering fume extraction

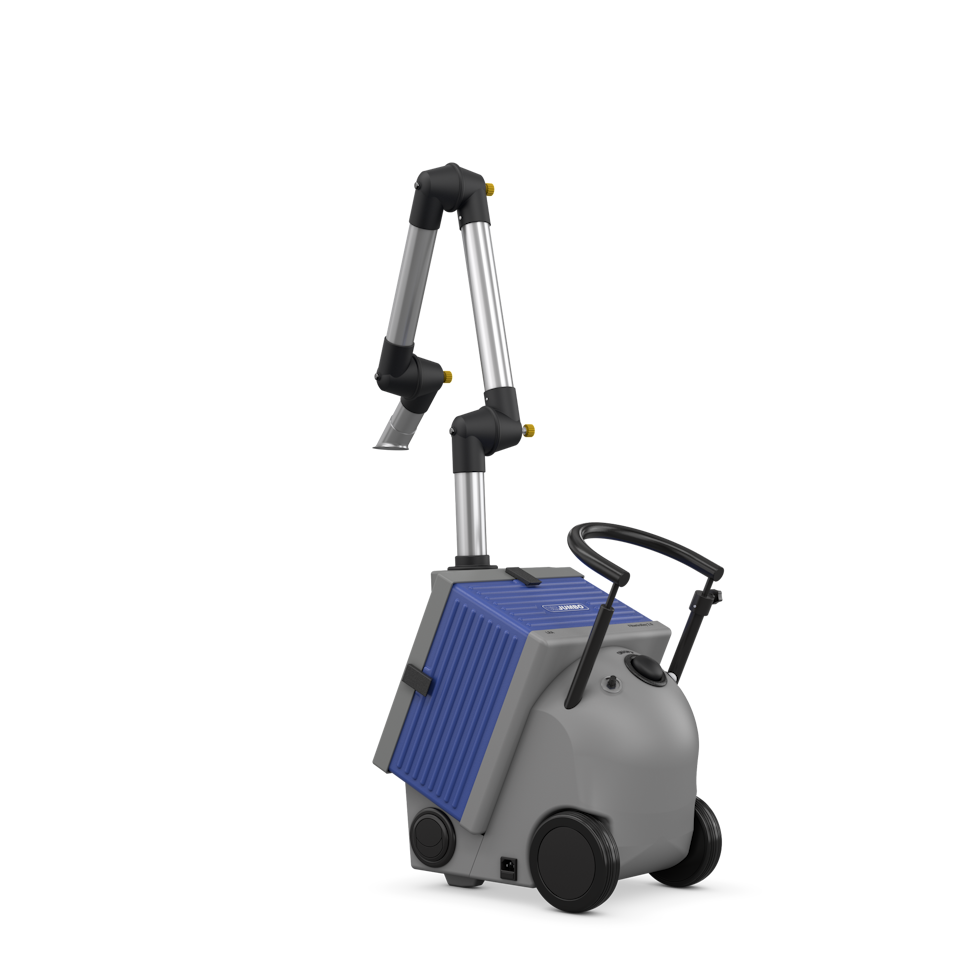

Flexible soldering fume extraction with the JUMBO LRA
Easy handling and control - flexible utilization

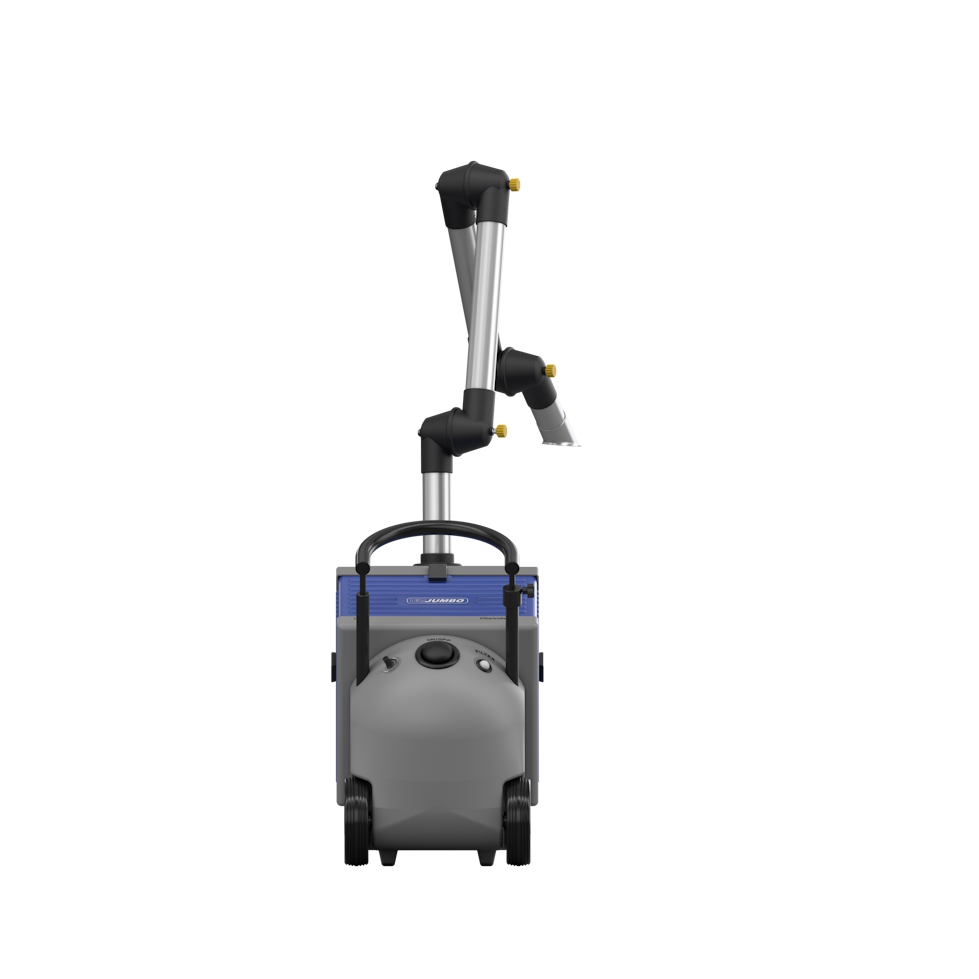

Mobile soldering fume extraction with the JUMBO LRA
Easy to use and extremely quiet operation

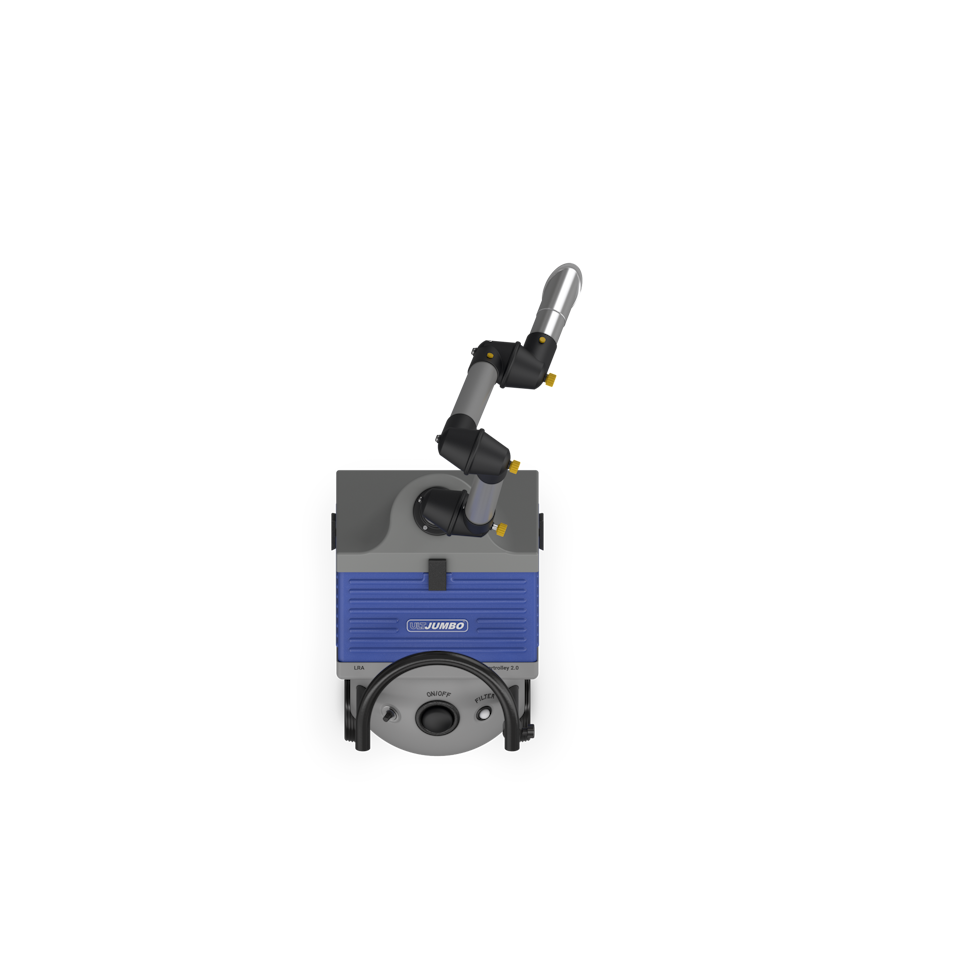

Mobile and flexible air purification in electronics production
Extraction arm mounted on the device
JUMBO LRA for soldering vapors and fumes
Portable fume extraction – ideal for changing workplaces
Dimensions of the mobile solder fume extractor
Human-system size ratio
Mobile extraction system for solder fume and vapors
JUMBO Filtertrolley LRA for soldering fume extraction
Flexible soldering fume extraction with the JUMBO LRA
Easy handling and control - flexible utilization
