LRA 1200 – powerful solder fume extractor
Product details
Application fields
Manual soldering
Robot soldering
Automated soldering
Features

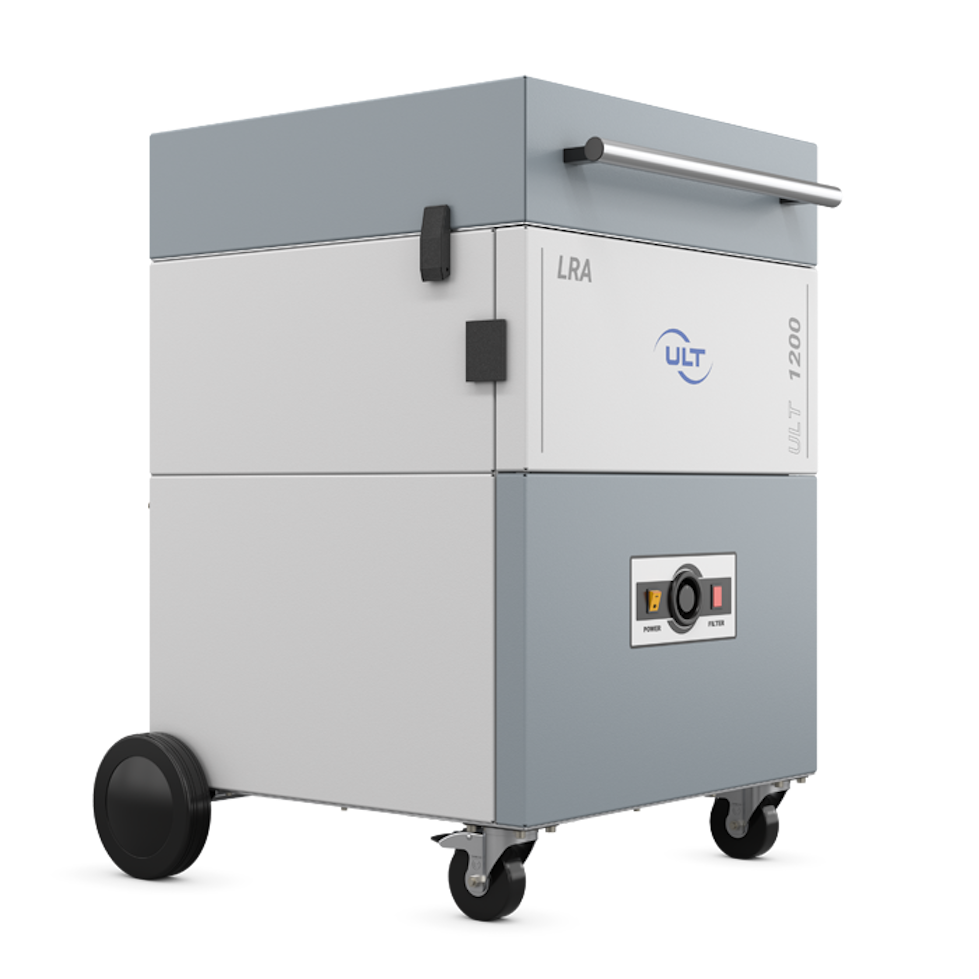

Mobile extraction system with wheels
Removable filter device – individual changeable filter

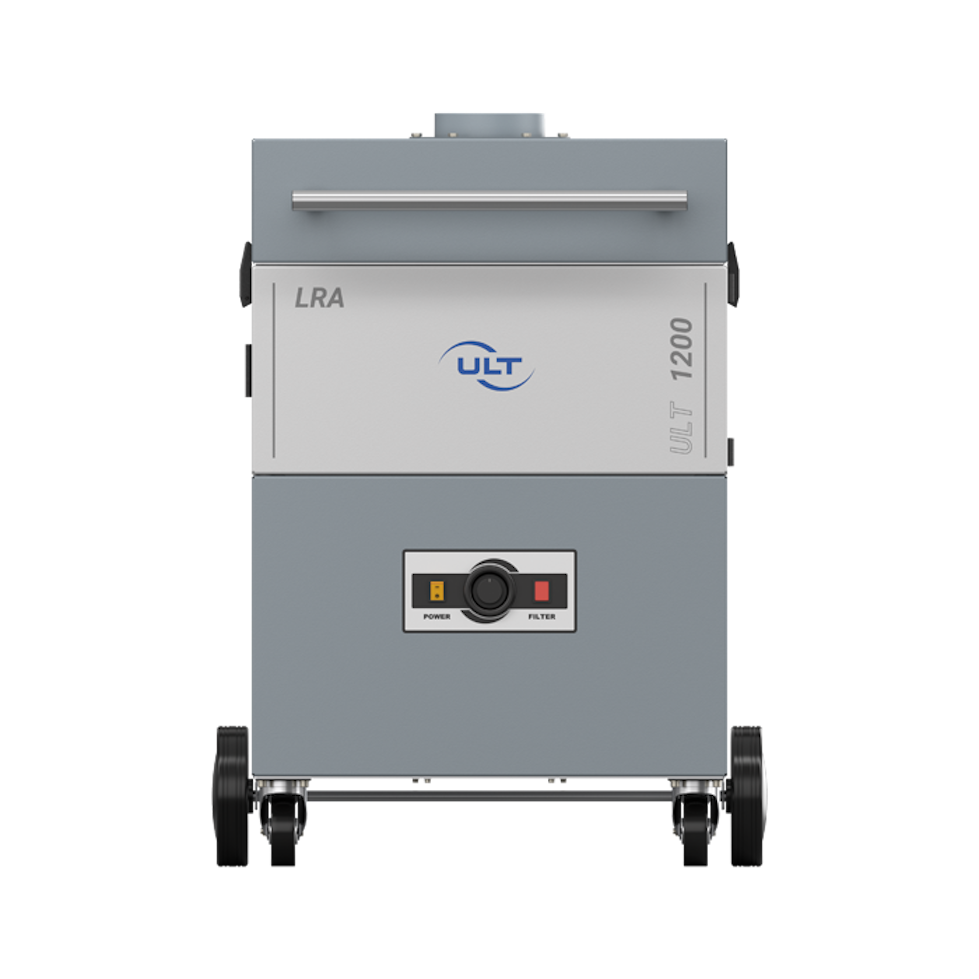

Control elements on the front panel
Powder-coated, robust housing
Particle filter configuration: optic signaling
Volumetric flow control: stepless adjustment of extraction performance
Fittings for extraction arms
Options
SUB D9 interface, operation hours meter, digital device control
Expanded metal prefilter, particulate filter, adsorption filter
Technical specifications
| Device version | LRA 1200 MD.18 |
|---|---|
| Max. flow rate in m³/h | 1500 |
| Max. flow rate in cfm | 883 |
| Max. vacuum in Pa | 3250 |
| Max. vacuum in inch wc | 13.1 |
| Nominal capacity in m³/h@Pa | 1000 @ 1700 |
| Nominal capacity in cfm@inch wc | 589 @ 6.8 |

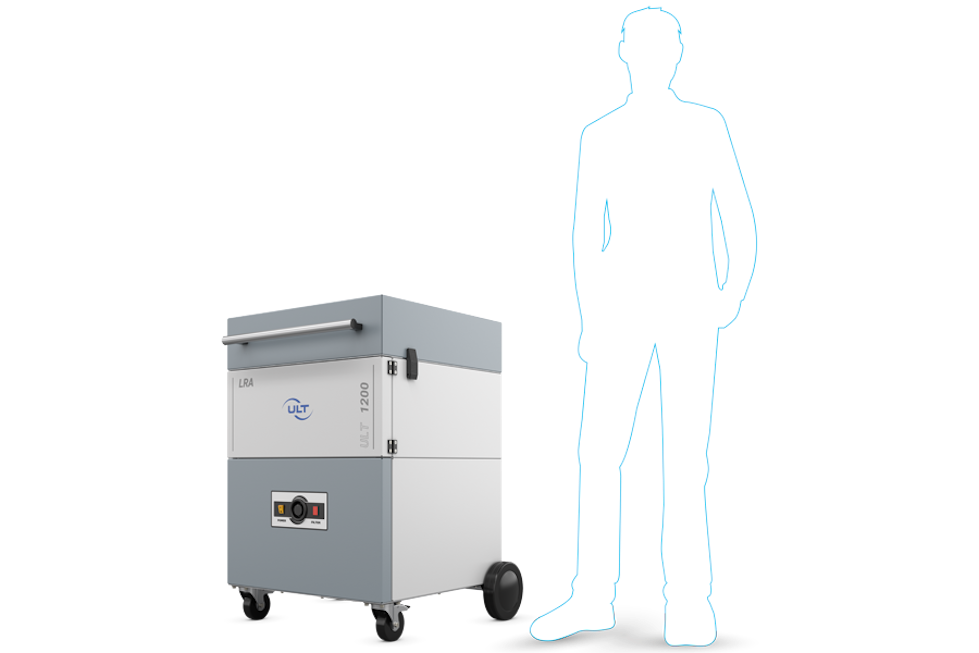

| Dimensions in mm (WxDxH) | 790x820x1040 |
| Dimensions in inch (WxDxH) | 31.1x32.3x41 |
| Weight in kg | 145 |
| Weight in lbs | 320 |
| Noise level in dB | 55 |

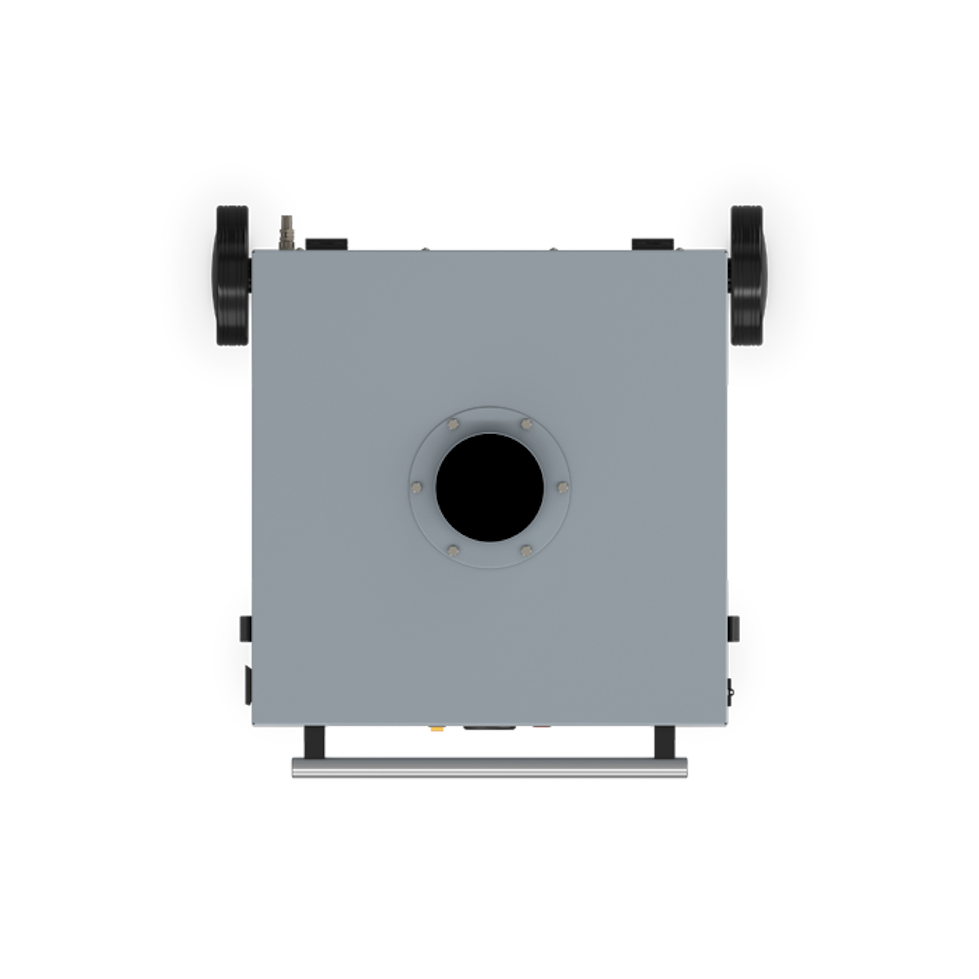

| Connection variants – diameter in mm | 1 X Ø 150 collar / 1 X Ø 160 collar |
| Connection variants – diameter in inch | 1 X 5.9 collar / 1 X 6.3 collar |
System benefits
Modular system structure
Modularity is the basis for the effective use of ULT’s ventilation solutions. This lets you respond flexibly to changing contaminant or work scenarios and therefore always utilize the full potential of your systems.
High flexibility
Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.
Optimal filter technology
Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.
Individual extraction solutions
Your extraction systems are adapted to your needs. Starting from the contaminant situation, via your internal processes, to the best possible collection solution, ULT advises and supports you in the selection and installation of your optimal extraction and filtration solution.
High filter service life
The high priority of filter elements in ULT systems reduces medium and long-term costs for maintenance and materials. In addition, the periods of downtime for necessary filter changes or system cleaning are significantly reduced.
Easy servicing
ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.
