LAS 300.81 – Ex protected laser fume extractor

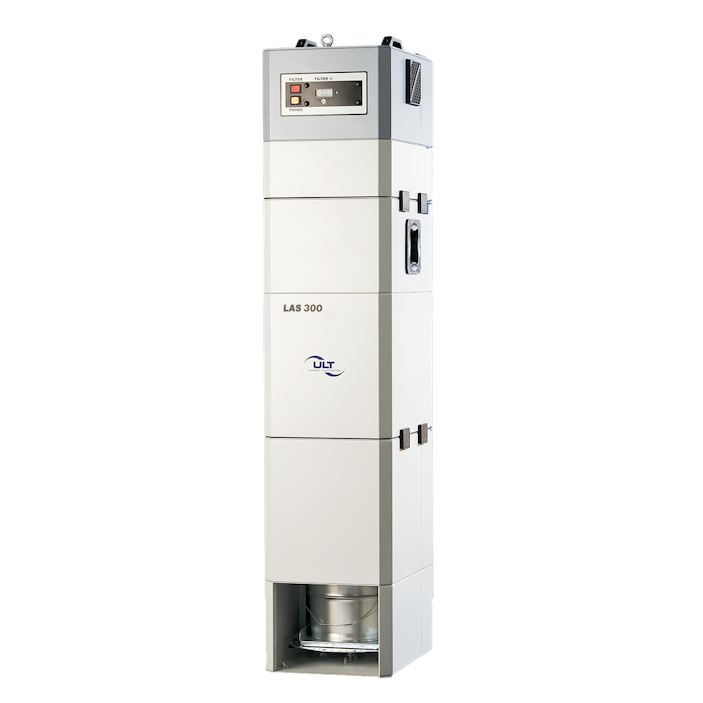

Narrow, tall appliance with discharge container and operating units

Product details

Application fields

  • Laser structuring, laser cladding, laser marking, laser printing

  • Laser welding, laser engraving, laser cutting, laser melting, etc.

Features

  • Stationary extraction system

  • Removable filtration system with cartridge and storage filters

  • Solution for dust class H per DIN EN 60335-2-69 Addendum AA

  • Appliance for explosive environments from Group II Category 1D per ATEX RL 94/9/EG

  • Volumetric flow control: stepless adjustment of extraction performance

  • Particle filter configuration: optic signaling

  • Powder coated, robust steel housing

  • SUB D9 Interface: remote I/O, operations report, filter 100%

  • Automatic differential pressure dependent pulse-jet filter cleaning

Technical specifications

Device versionLAS 300.81 − HFM054 – H-Ex
Max. flow rate in m³/h400
Max. flow rate in cfm235
Max. vacuum in Pa20200
Max. vacuum in inch wc81.2
Nominal capacity in m³/h@Pa270 @ 5000
Nominal capacity in cfm@inch wc159 @ 20.1
Dimensions in mm (WxDxH)390x590x1810
Dimensions in inch (WxDxH)14.6x23.2x71.3
Weight in kg105
Weight in lbs231
Noise level in dB60
Connection variants – diameter in mm1 x 75 / additional optionally
Connection variants – diameter in inch1 x 2.95 / additional Ø optionally

System benefits

  1. High flexibility

    Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.

  2. Modular system structure

    Modularity is the basis for the effective use of ULT’s ventilation solutions. This lets you respond flexibly to changing contaminant or work scenarios and therefore always utilize the full potential of your systems.

  3. High filter service life

    The high priority of filter elements in ULT systems reduces medium and long-term costs for maintenance and materials. In addition, the periods of downtime for necessary filter changes or system cleaning are significantly reduced.

  4. R&D basis

    Research and Development (R&D) has a very high priority at ULT. Several projects with prestigious partners and institutes have produced new approaches to ventilation systems that often become series products or are adapted quickly and easily to customer-specific projects.

  5. Individual extraction solutions

    Your extraction systems are adapted to your needs. Starting from the contaminant situation, via your internal processes, to the best possible collection solution, ULT advises and supports you in the selection and installation of your optimal extraction and filtration solution.

  6. Optimal filter technology

    Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.

Downloads
  1. Technical documentation LAS 300.81 HFM 054 H-Ex
  2. Accessory set for ULT 300

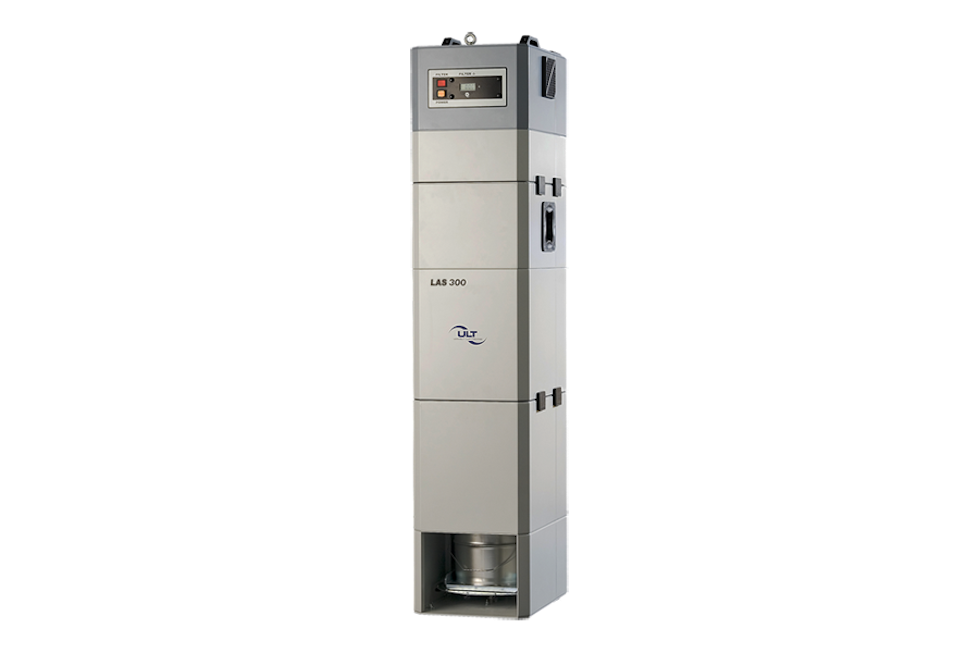

Extraction system with explosion protection for laser dust and explosive atmospheres
LAS 300.81 HFM 054 H-Ex for laser dust extraction
Extraction system with explosion protection for laser dust and explosive atmospheres
LAS 300.81 HFM 054 H-Ex for laser dust extraction
Extraction system with explosion protection for laser dust and explosive atmospheres
LAS 300.81 HFM 054 H-Ex for laser dust extraction
