LAS 1200 – extraction system for laser fume and dust

Product details

Application fields

  • Laser welding, laser engraving, laser cutting

  • Laser structuring, laser melting, laser ablation, laser cladding, etc.

Features

  • Mobile extraction system with wheels

  • Removable filter device – individual changeable filter

  • Operation elements on front side

  • Volumetric flow control: stepless adjustment of extraction performance

  • Particle filter configuration: optic signaling

  • Powder-coated, robust steel housing

  • Expanded metal prefilter, adsorption filter

Options

  • SUB D9 interface

  • Operating hours meter

  • Digital device control

  • Air intake several DN

Technical specifications

Device versionLAS 1200 MD.18
Max. flow rate in m³/h1500
Max. flow rate in cfm883
Max. vacuum in Pa3250
Max. vacuum in inch wc13.1
Nominal capacity in m³/h@Pa1000 @ 1700
Nominal capacity in cfm@inch wc589/6.8
Dimensions in mm (WxDxH)790x820x1.040
Dimensions in inch (WxDxH)31.1x32.3x41
Weight in kg145
Weight in lbs320
Noise level in dB55
Connection variants – diameter in mm1 X Ø 150 collar / 1 X Ø 160 collar
Connection variants – diameter in inch1 X 5.9 collar / 1 X 6.3 collar

System benefits

  1. High flexibility

    Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.

  2. Modular system structure

    Modularity is the basis for the effective use of ULT’s ventilation solutions. This lets you respond flexibly to changing contaminant or work scenarios and therefore always utilize the full potential of your systems.

  3. Optimal filter technology

    Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible..

  4. Individual extraction solutions

    Your extraction systems are adapted to your needs. Starting from the contaminant situation, via your internal processes, to the best possible collection solution, ULT advises and supports you in the selection and installation of your optimal extraction and filtration solution.

  5. High filter service life

    The high priority of filter elements in ULT systems reduces medium and long-term costs for maintenance and materials. In addition, the periods of downtime for necessary filter changes or system cleaning are significantly reduced.

  6. Easy servicing

    ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.

Downloads
  1. Technical documentation LAS 1200 MD K
  2. Technical documentation LAS 1200 MD THA16
  3. Technical documentation LAS 1200 MD.18 FHA16
  4. Accessory set for ULT 1200
Images

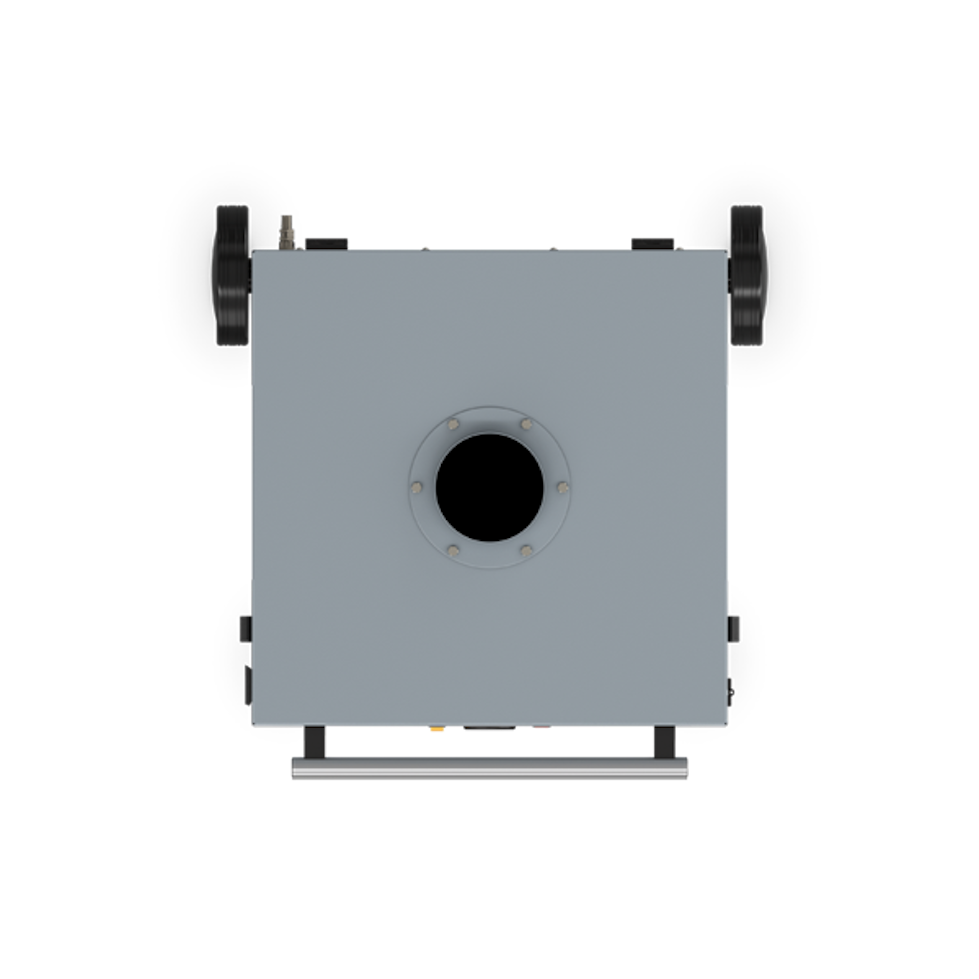

Diameter 150 mm opening
Fittings for extraction arm or hose on the device top

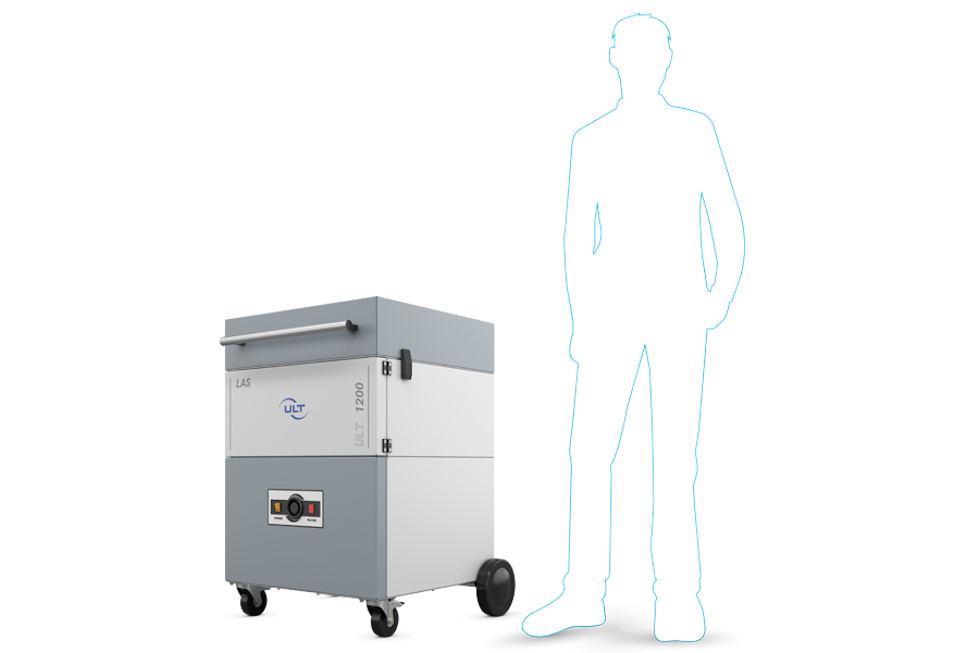

Silhouette of a human next to the system. The system reaches to the hip
Human-system size ratio

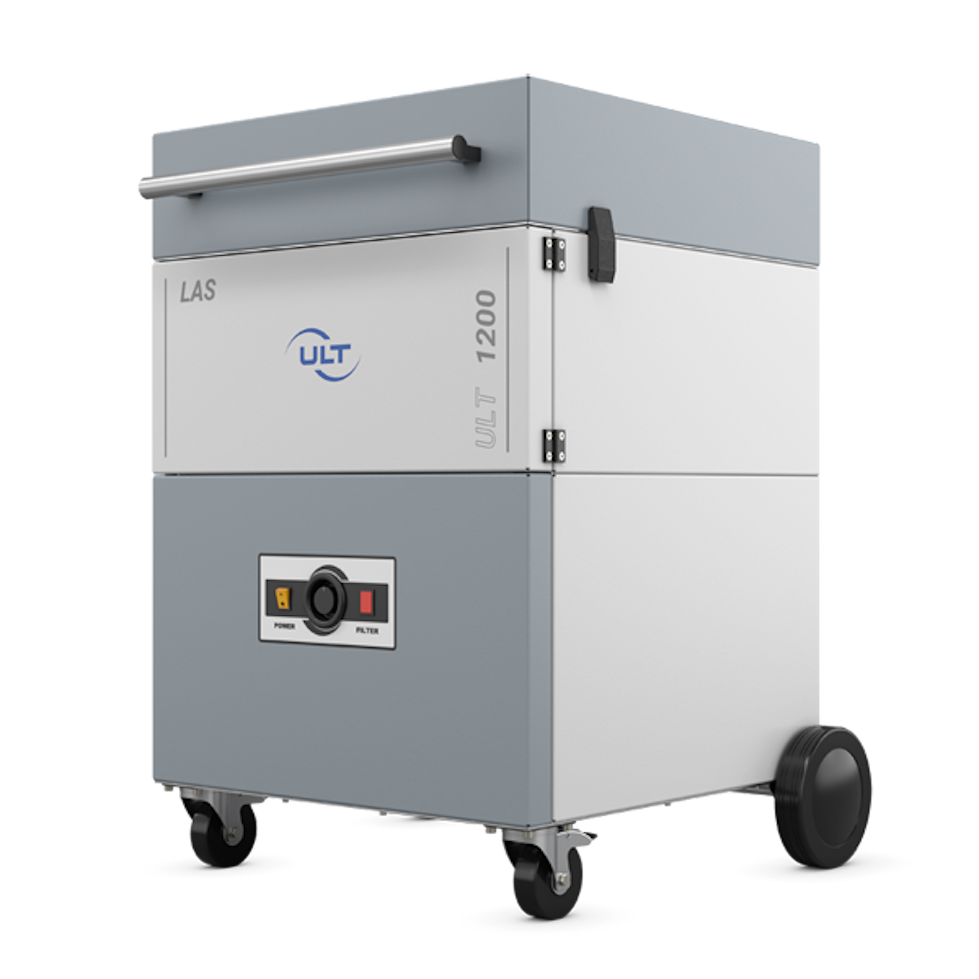

Side view of the suction unit
LAS 1200 laser fume extractor
The unit has different size equipment castors
The unit wheels increase flexibility with regard to changing workplaces

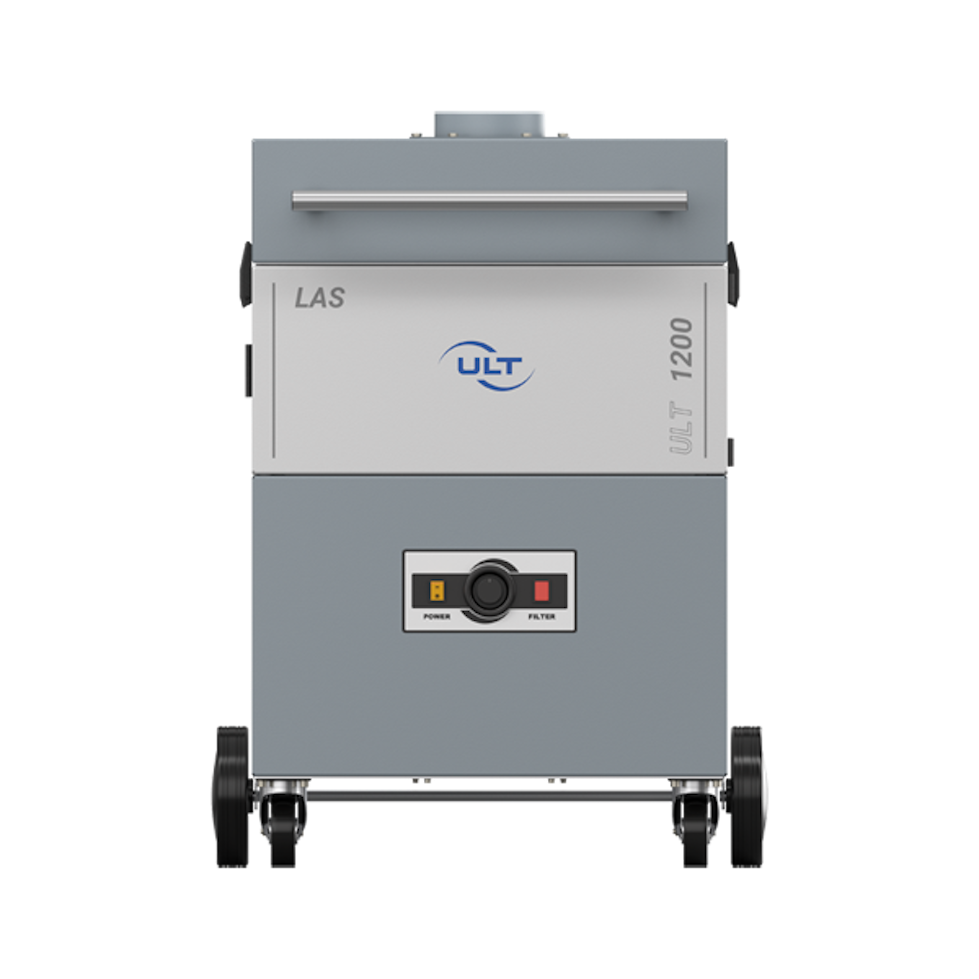

At the front of the gray suction unit there are potentiometers, luminous displays and a handle
Operating elements and status displays easily accessible on the front of the device

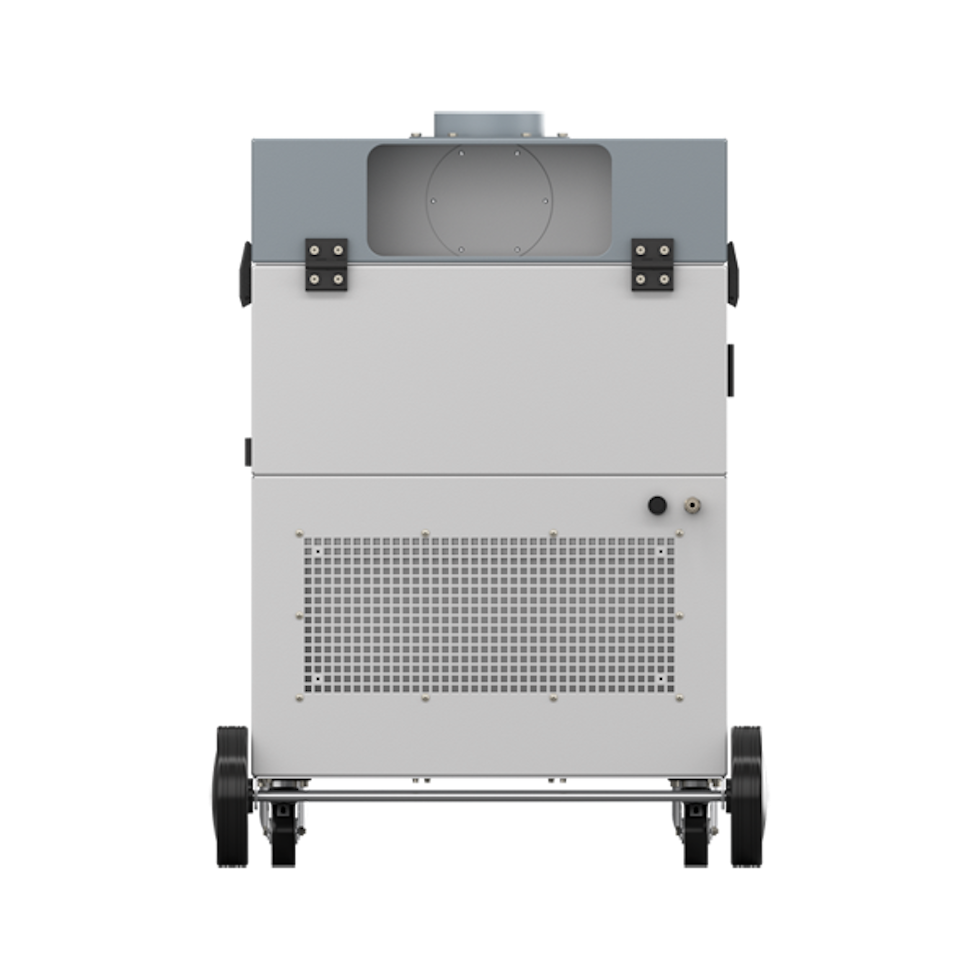

Back of the gray plant with a grid in the lower part
Discharge opening with grille at the rear of the extraction unit

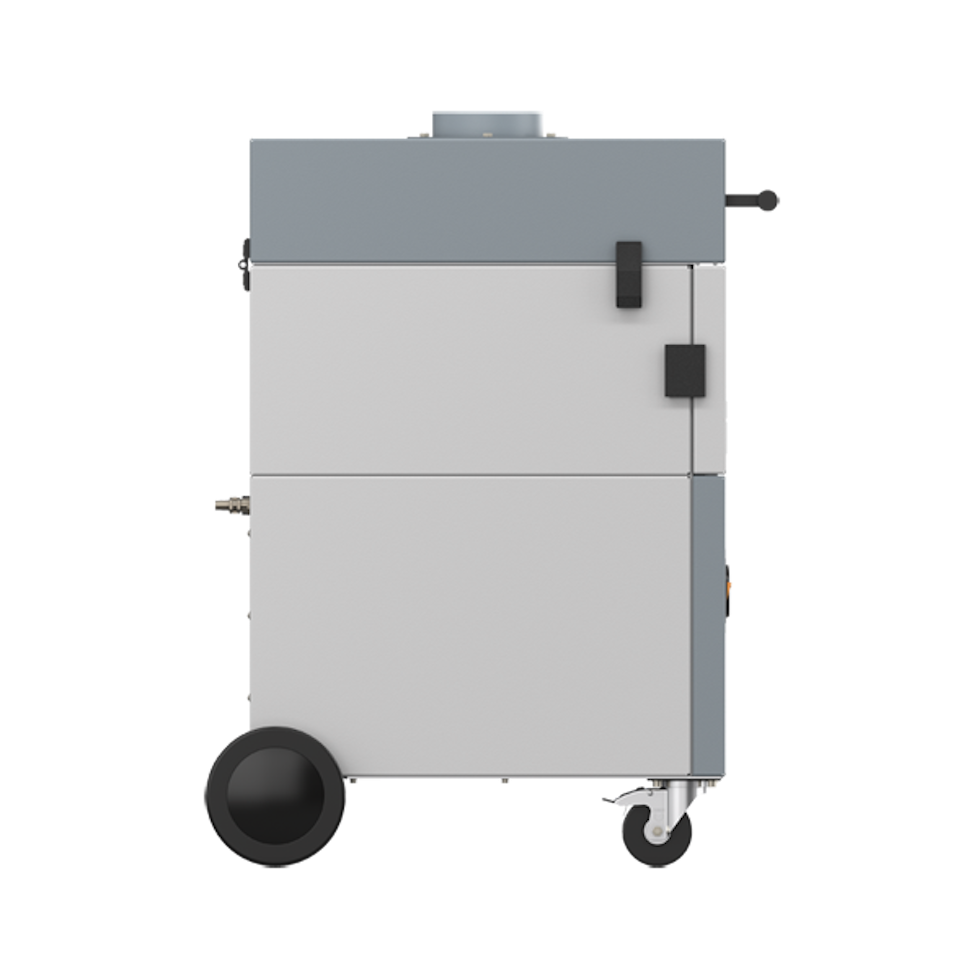

Sideview of the device in grey
Easy filter removal with Quick-Lock fasteners
Diameter 150 mm opening
Fittings for extraction arm or hose on the device top
Silhouette of a human next to the system. The system reaches to the hip
Human-system size ratio
Side view of the suction unit
LAS 1200 laser fume extractor
The unit has different size equipment castors
The unit wheels increase flexibility with regard to changing workplaces
