ASD 400.1 – modular filter system for dust extraction

Side view of the rectangular device from the left

Product details

Application fields

  • Grinding, engraving, burnishing, cleaning

  • Decanting, mixing, grinding, etc.

Features/equipment

  • Replaceable filter system for minimal contamination: Features "Save Change Technology" to minimize mess during filter changes.

  • Front-mounted input and output: Easily accessible intake and exhaust ports.

  • Rear-panel interfaces: Equipped with interfaces (e.g., M12) for connectivity options.

  • Durable steel housing: Built with a rugged steel casing and protective powder coating for long-lasting use.

  • Dual extraction arm capability: Accommodates two DN 80 extraction arms, with the option for additional DN connections.

  • Two-stage filtration: Includes a particle pre-filter and an adsorption filter for efficient dust and contaminant capture.

  • Adjustable suction power: Offers continuous control over suction strength.

  • Filter status indicator: Provides a visual indication of filter saturation.

  • Diffuser for even filter loading: Ensures even distribution of dust across the filter surface for efficient operation.

Particularities

  • Low replacement filter costs thanks to a multi-stage filter system.

  • Versatile: Designed for a wide range of applications.

  • Integrated vacuum stabilization by means of "EcoFlowCS® Technology"

  • Energy-efficient: Low energy consumption (less than 20%) using "Energy Saving Technology".

  • Quiet operation: Achieved through "Silent Technology".

  • Global compatibility: Works worldwide with 110-240V power supply.

  • Safety certified: All electrical components meet UL and EC standards.

  • Wide range of attachments: Offers a variety of additional equipment.

Technical specifications

Device versionASD 400.1 MD.17ASD 400.1 MD.21
Max. flow rate in m³/h1000600
Max. flow rate in cfm588353
Max. vacuum in Pa26009800
Max. vacuum in inch wc10.540
Nominal capacity in m³/h@Pa300 @ 2500450 @ 2500
Nominal capacity in cfm@inch wc177 @ 10265 @ 10
Dimensions in mm (WxDxH)652x600x1140652x600x867
Dimensions in inch (WxDxH)25.7x23.6x4525.7x23.6x34.1
Weight in kg100100
Weight in lbs220220
Connection variants – diameter in mm2 X 80 connector / additional Ø possible2 X 80 connector / additional Ø possible
Connection variants – diameter in inch2 X Ø 3.1 connector / additional Ø possible2 X Ø 3.1 collar / additional Ø possible

User benefits

  1. Easy servicing

    ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.

  2. High filter service life

    The high priority of filter elements in ULT systems reduces medium and long-term costs for maintenance and materials. In addition, the periods of downtime for necessary filter changes or system cleaning are significantly reduced.

  3. High flexibility

    Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.

  4. Quiet operation

    ULT’s extraction and filtration systems are especially quiet. This is appreciated by numerous clients worldwide. This means your employees won’t be bothered by unnecessary noise.

  5. Individual extraction solutions

    Your extraction systems are adapted to your needs. Starting from the contaminant situation, via your internal processes, to the best possible collection solution, ULT advises and supports you in the selection and installation of your optimal extraction and filtration solution.

  6. Individual extraction solution

    Your systems will be adapted to your needs. Starting with the pollutant situation and your internal processes to the best possible collection solution - we advise and support you in the selection and installation of your ideal extraction and filtration solution.

  7. Contamination-low filter replacement

    Our innovative "Save Change Technology" significantly reduces filter contamination during changes, safeguarding both operators and employees.

Downloads

  1. Technical documentation ULT 400.1
Images

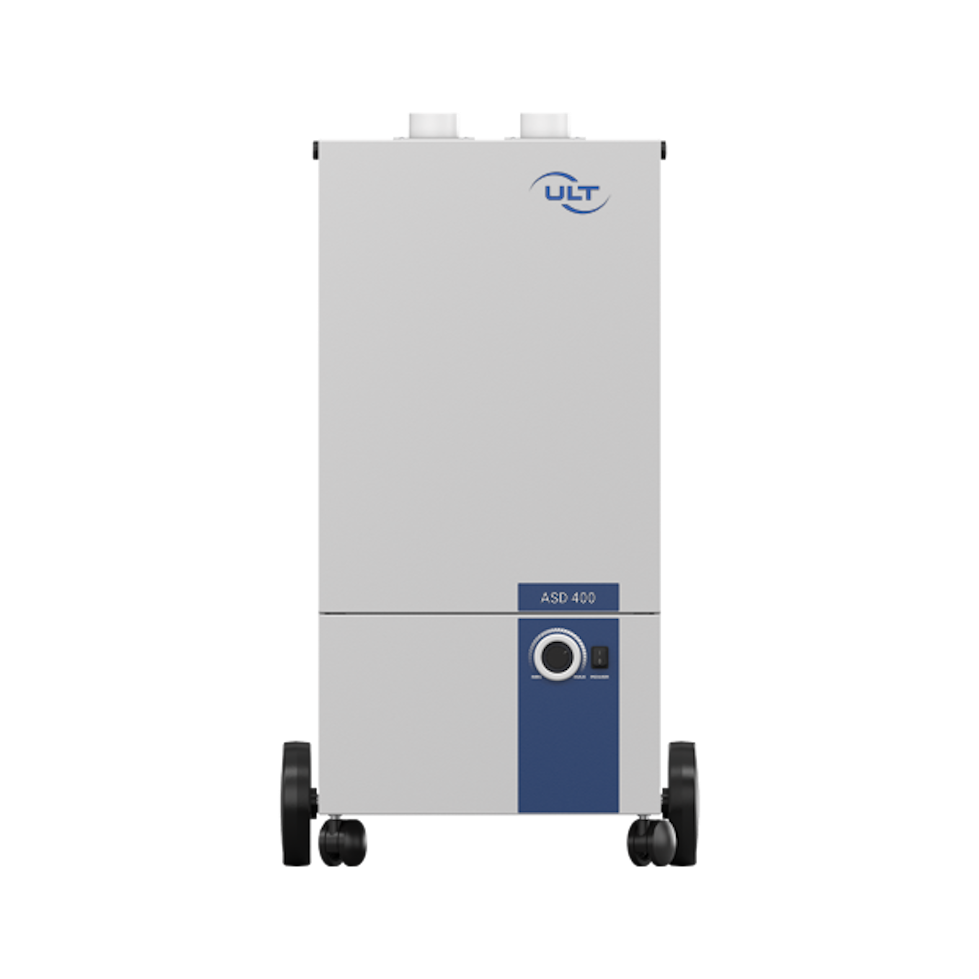

Front view of the gray device with blue sticker and wheels
The device version L is approximately 11.8 inches taller than the basic version.
Back of the system ASD 40.0.1 L for dust collection
The back of device variant L is identical to variant S

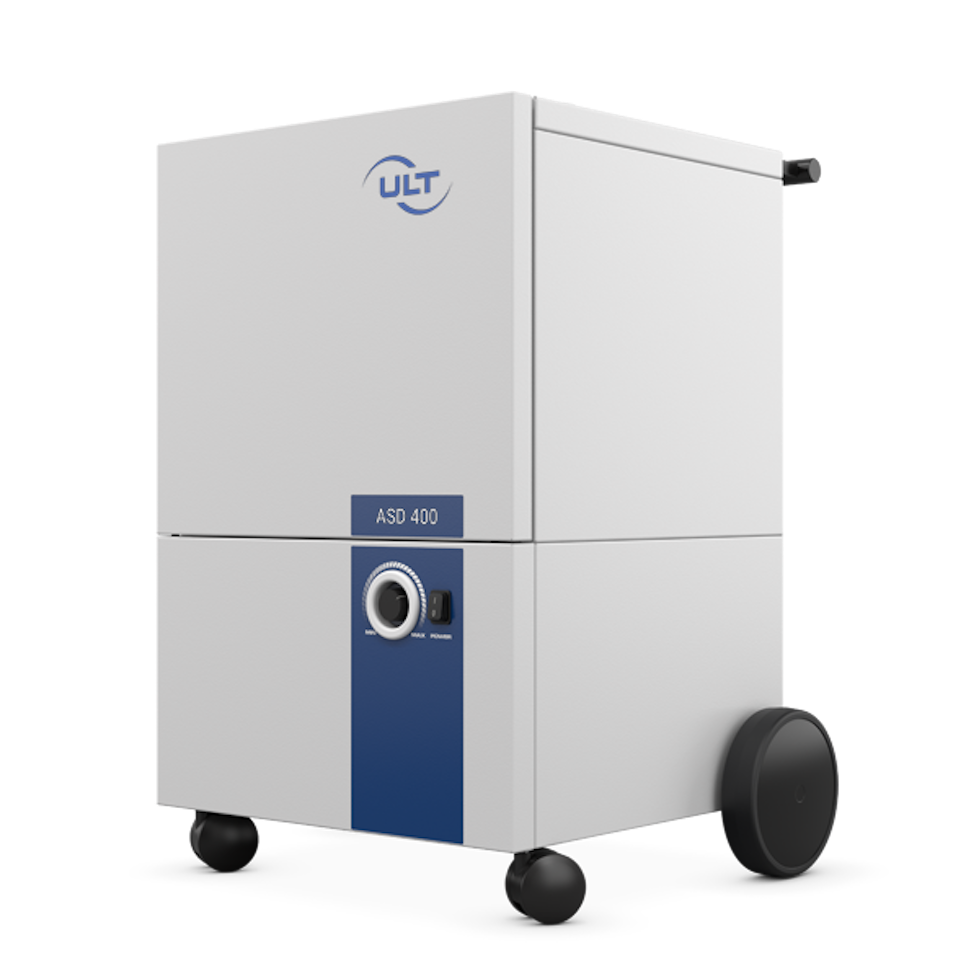

Side view of the rectangular device from the left
ASD 400.1 for dust extraction in many industries

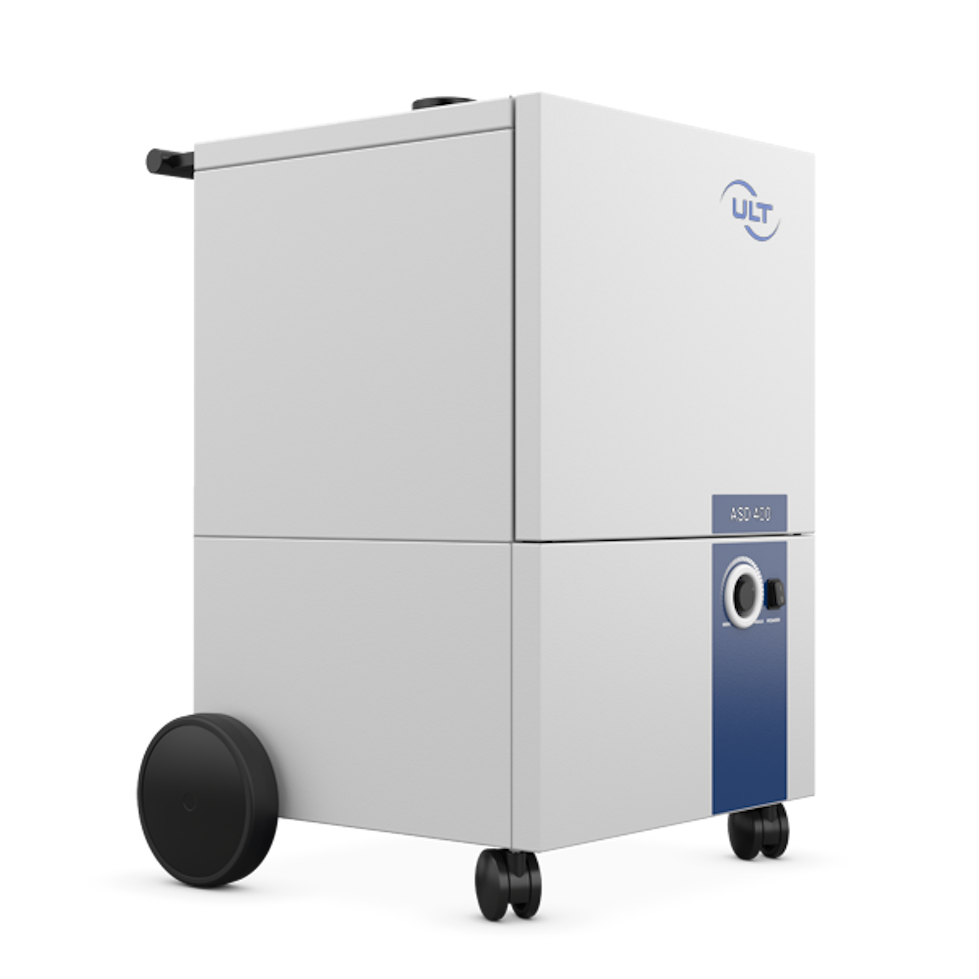

Lateral view of the system with blue label
Device wheels ensure flexible and mobile use

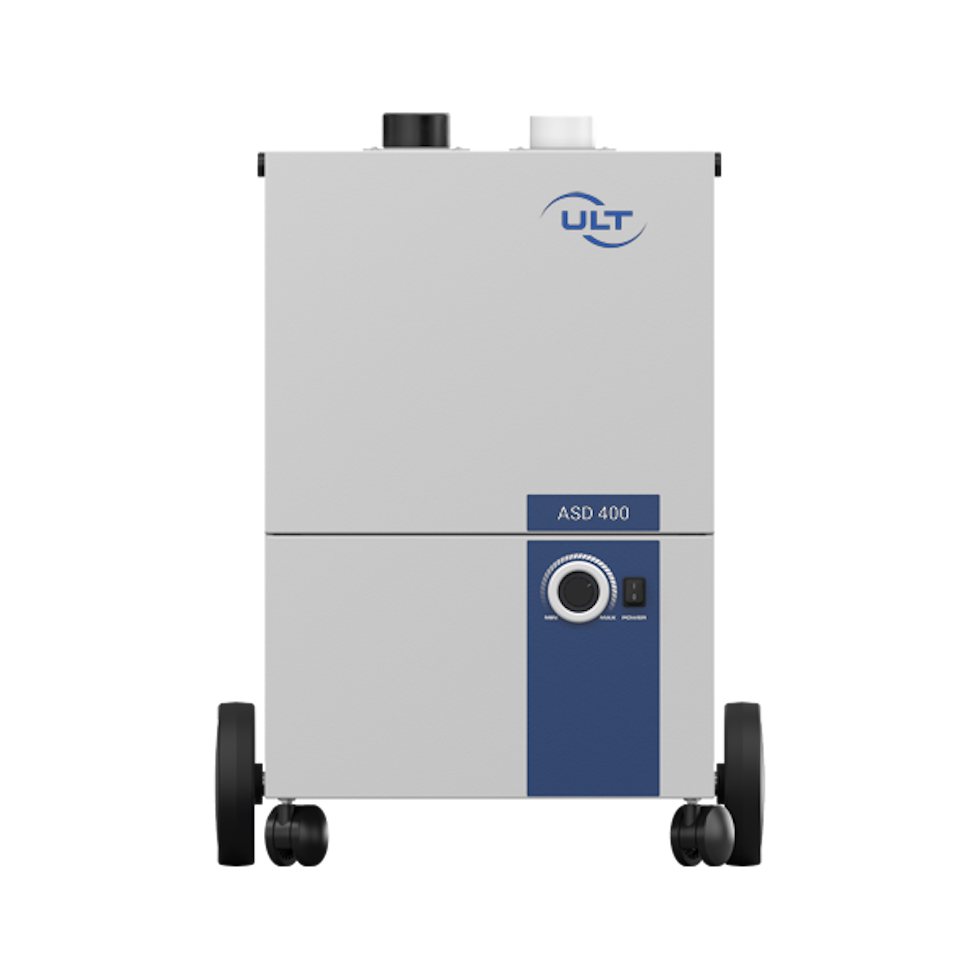

Front view of the dust collection system
Operating and status elements easily accessible at the front

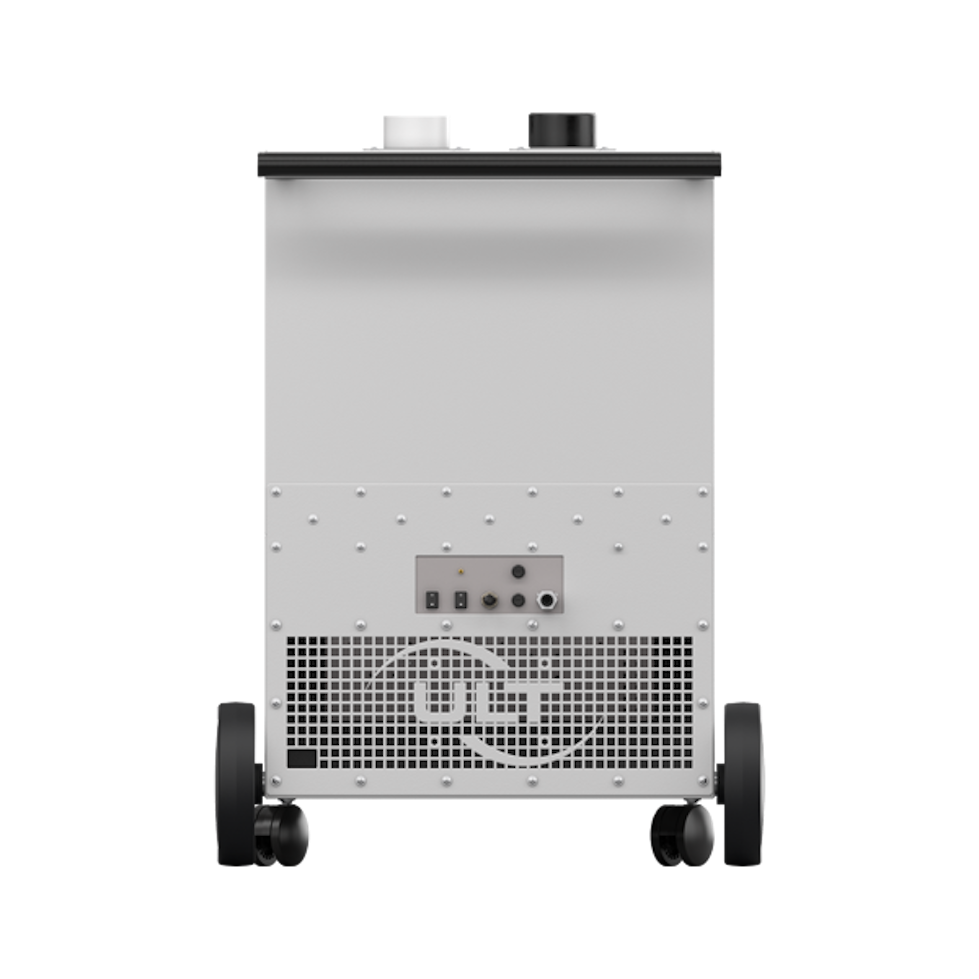

Rear view of the extraction system
System rear with interfaces and discharge grille

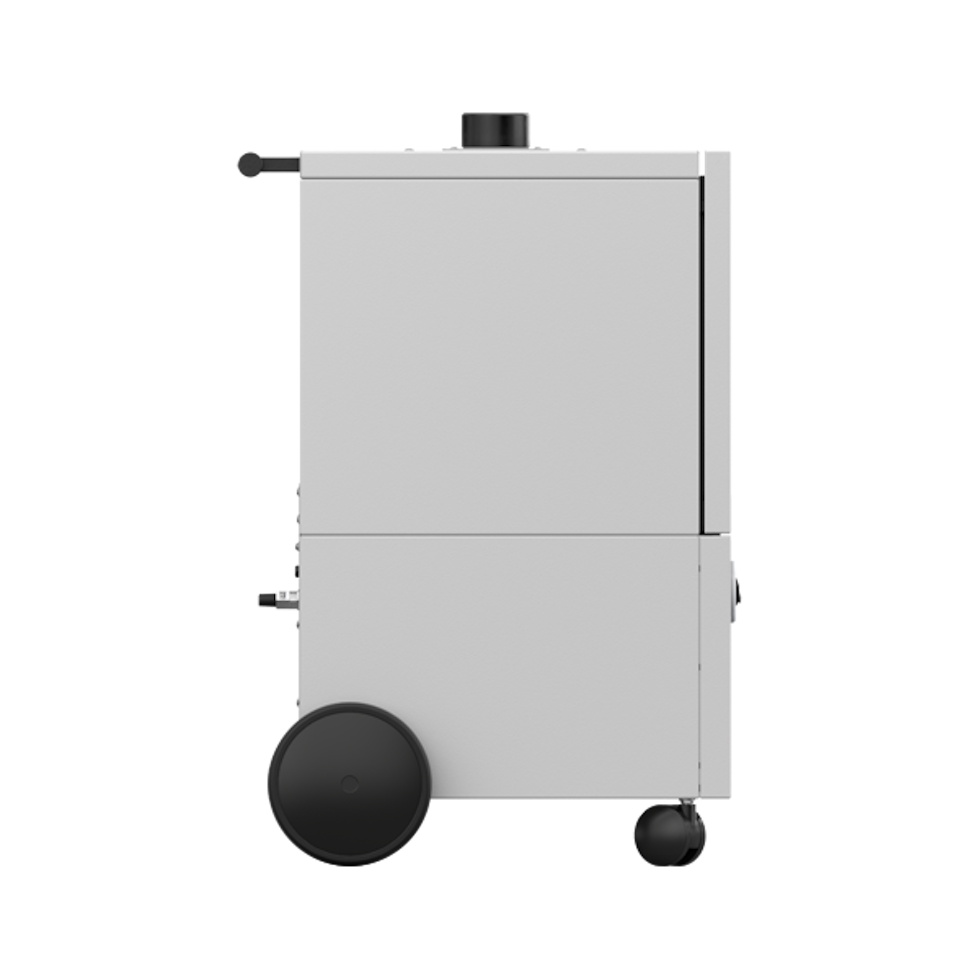

Right side of the system with different sized wheels
Easy filter replacement thanks to barrier-free access to the modules

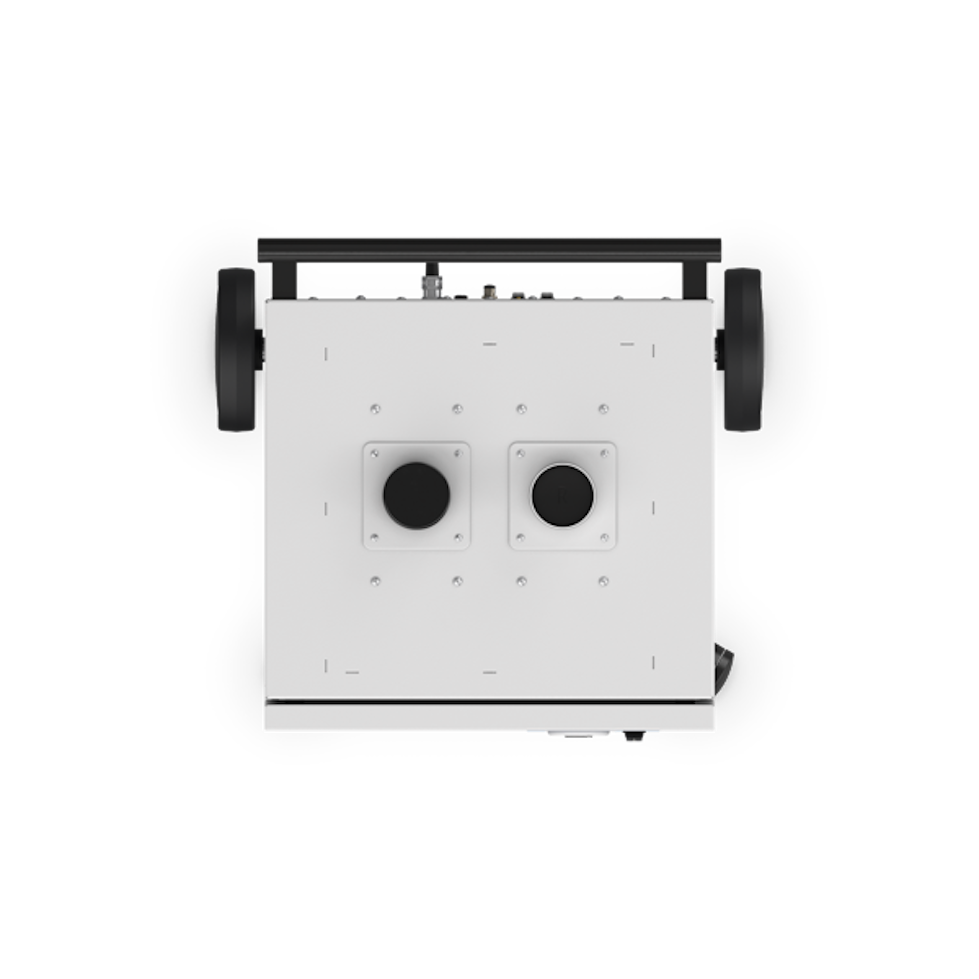

Top view of the dust extraction unit
Two settings for extraction arms, pipes or hoses

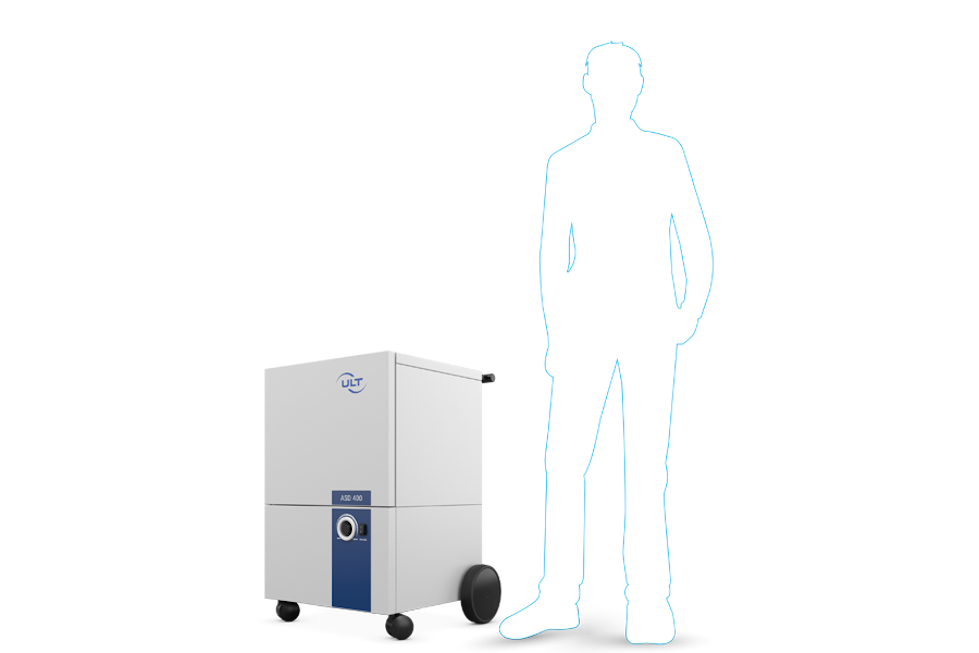

Shadowy display of a person next to the system
Size ratio filter system-human

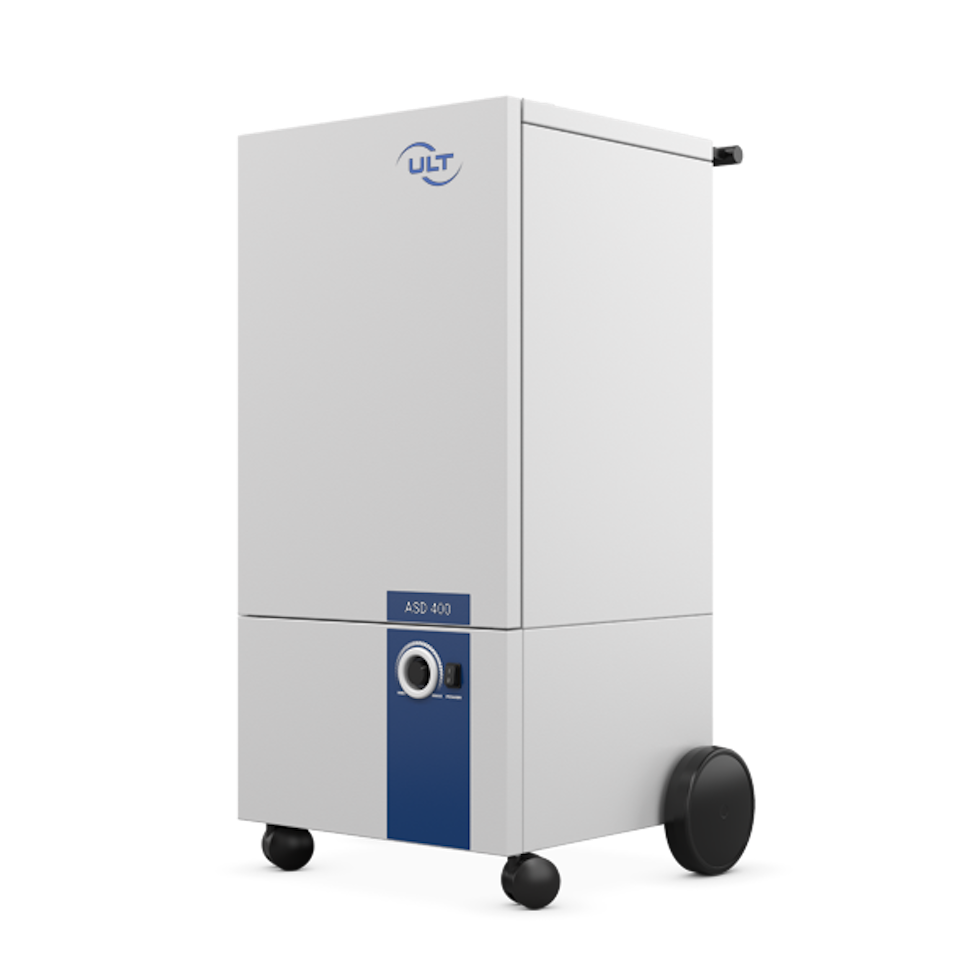

The front of the system features a potentiometer and display elements
ASD 400.1 L for larger quantities of dust with a larger filter area

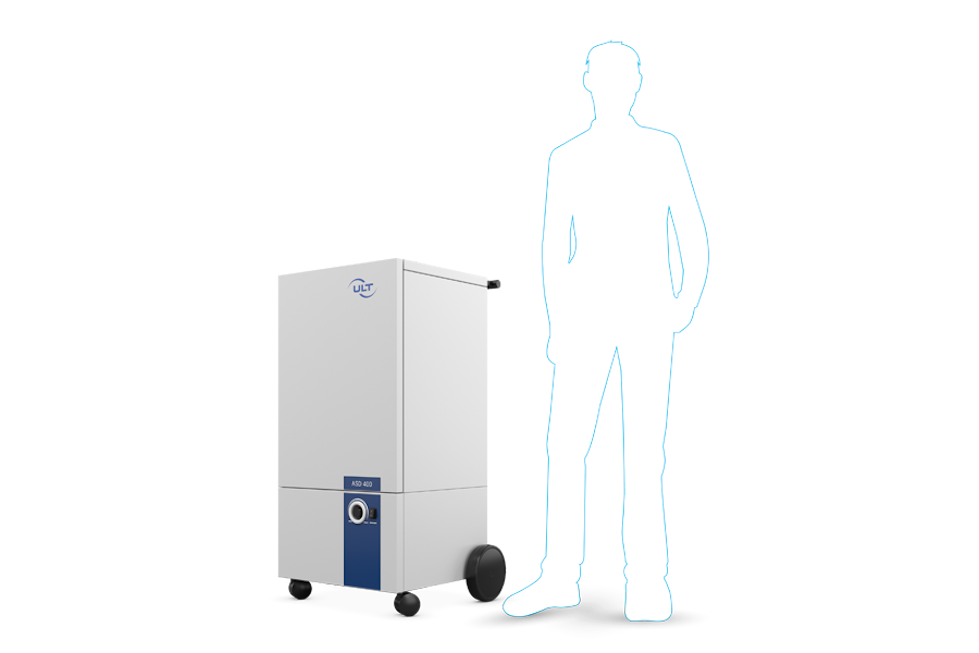

Person shown in silhouette next to the extraction system
Size ratio human-version L
Front view of the gray device with blue sticker and wheels
The device version L is approximately 11.8 inches taller than the basic version.
Back of the system ASD 40.0.1 L for dust collection
The back of device variant L is identical to variant S
Side view of the rectangular device from the left
ASD 400.1 for dust extraction in many industries
Lateral view of the system with blue label
Device wheels ensure flexible and mobile use
