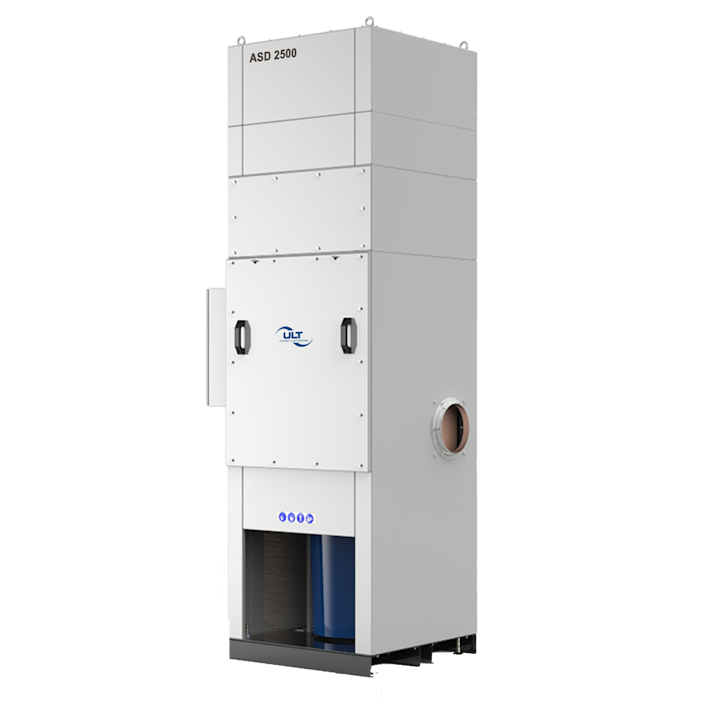

ASD 2500 – dust collection system

Large unit with 60-liter dust collection bin

Product details

Application fields

  • Grinding, engraving, burnishing

  • Cleaning, abrading, decanting, mixing, etc.

  • Combinable to a large-scale system solution

Features

  • Stationary extraction system for very high contaminant yield

  • 70 l dust container

  • Cartridge filtration system with (automatically) cleanable filter elements

  • Easy filter handling through Quick-Lock closure

  • Powder-coated, robust steel housing

Equipment

  • Operation elements in separate control cabinet

  • Particle filter occupancy indicator

  • Differential pressure dependent filtration cartridge cleaning using rotating airjet

  • Optional check valve to prevent pipeline contaminant buildup

Technical specifications

Device versionASD 2500 MD.63
Max. flow rate in m³/h3250
Max. flow rate in cfm1913
Max. vacuum in Pa5000
Max. vacuum in inch wc20.1
Nominal capacity in m³/h@Pa3000 @ 2750
Nominal capacity in cfm@inch wc1766 @ 11.1
Dimensions in mm (WxDxH)900x1000x3120
Dimensions in inch (WxDxH)35.4x39.4x122.9
Weight in kg600
Weight in lbs1323
Connection variants – diameter in mm1 x 250
Connection variants – diameter in inch1 x 9.84

System benefits

  1. High filter service life

    The high priority of filter elements in ULT systems reduces medium and long-term costs for maintenance and materials. In addition, the periods of downtime for necessary filter changes or system cleaning are significantly reduced.

  2. Individual extraction solutions

    Your extraction systems are adapted to your needs. Starting from the contaminant situation, via your internal processes, to the best possible collection solution, ULT advises and supports you in the selection and installation of your optimal extraction and filtration solution.

  3. Optimal filter technology

    Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.

Downloads

  1. Technical documentation ASD 2500 4Pa J45
  2. Accessory set ULT large scale systems

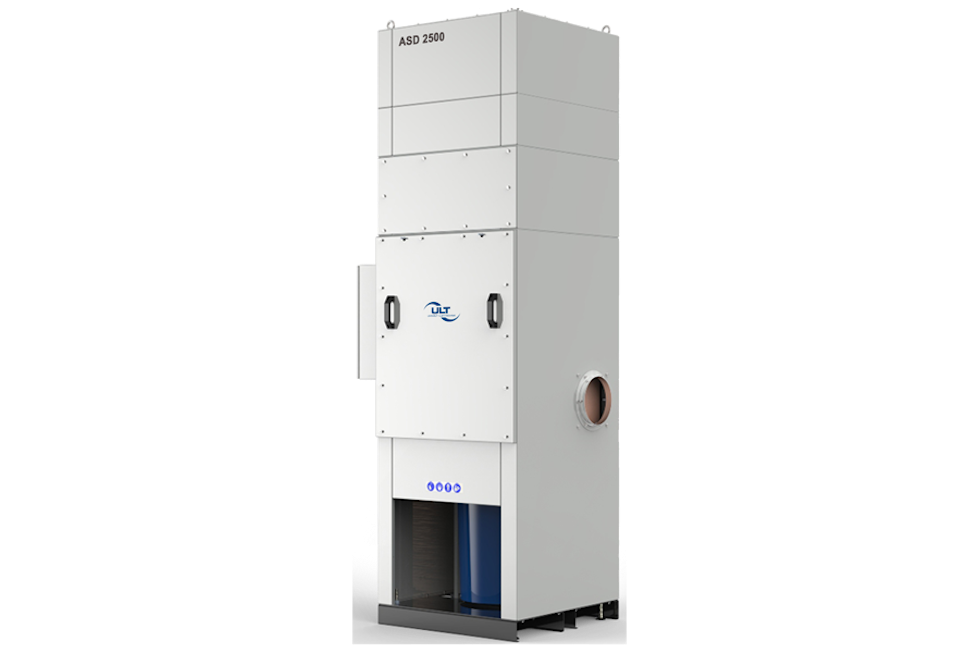

Extraction system for dust and smoke
Dust collector ASD 2500
Extraction system for dust and smoke
Dust collector ASD 2500
Extraction system for dust and smoke
Dust collector ASD 2500
