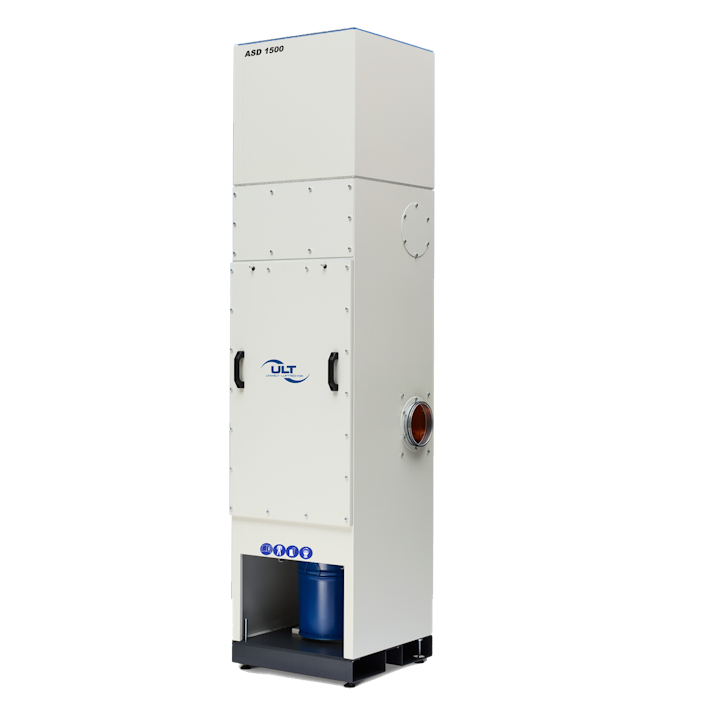

ASD 1500 – stationary dust collector

High gray system for dust extraction

Product details

Application fields

  • Grinding, engraving, burnishing

  • Mixing, cleaning, decanting, etc.

  • Dust removal

Features

  • Stationary extraction system for high pollutant output

  • 30 l dust collection container

  • Cartridge filter system with automatically cleanable filter elements

  • Simple filter handling through quick-lock fasteners

  • Powder-coated, robust steel housing

  • Controls in separate switch cabinet

  • Particle filter occupancy indicator

  • Differential pressure dependent filtration cartridge cleaning using rotating airjet

Options

  • Automatic differential pressure dependent pulse-jet filter cleaning

  • Gate valve output

Technical specifications

Device versionASD 1500 MD.60ASD 1500 MD.61
Max. flow rate in m³/h21603240
Max. flow rate in cfm12711907
Max. vacuum in Pa32003450
Max. vacuum in inch wc12.913.9
Nominal capacity in m³/h@Pa800 @ 25001200 @ 2500
Nominal capacity in cfm@inch wc47 @ 10706 @ 10
Dimensions in mm (WxDxH)680x750x2920680x750x2920
Dimensions in inch (WxDxH)26.8x29.5x11526.8x29.5x115
Weight in kg300300
Weight in lbs661661
Connection variants – diameter in mm1 x 2001 X 200
Connection variants – diameter in inch1 x 7.81 x 7.8

System benefits

  1. High filter service life

    The high priority of filter elements in ULT systems reduces medium and long-term costs for maintenance and materials. In addition, the periods of downtime for necessary filter changes or system cleaning are significantly reduced.

  2. R&D basis

    Research and Development (R&D) has a very high priority at ULT. Several projects with prestigious partners and institutes have produced new approaches to ventilation systems that often become series products or are adapted quickly and easily to customer-specific projects.

  3. Optimal filter technology

    Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.

Downloads

  1. Accessory set ULT large scale systems

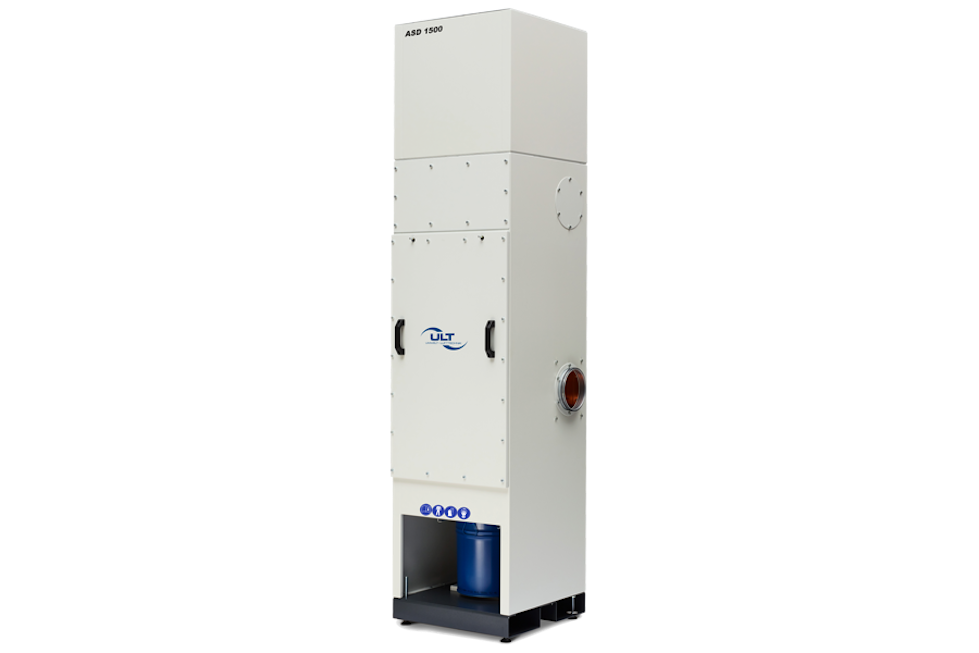

Extraction system for high dust accumulation in industrial processes
Dust collector ASD 1500
Extraction system for high dust accumulation in industrial processes
Dust collector ASD 1500
Extraction system for high dust accumulation in industrial processes
Dust collector ASD 1500

We're happy to help you!

We are happy to offer you further information about our extraction systems and the respective filtration technology. We can also configure your individual solution as requested or required.
