ASD 1200 – mobile dust collection system with storage filters

Gray cuboid system for dedusting

Product details

Application fields

  • Grinding, engraving, burnishing

  • Mixing, cleaning, decanting etc.

  • Dust removal

  • Flexible extraction for shifting workplaces and small to moderate dust discharge, such as from grinding dust

Features

  • Mobile extraction system with wheels

  • Removable filter device

  • Operation elements on front side

  • Powder-coated, robust housing

  • Volumetric flow control: stepless adjustment of extraction performance

  • Particle filter configuration: optic signaling

Options

  • Interface SUB D9, operation hours counter, digital device control

  • H13 particle filter, adsorption filter

Technical specifications

Device versionASD 1200 MD.18
Max. flow rate in m³/h1500
Max. flow rate in cfm883
Max. vacuum in Pa3250
Max. vacuum in inch wc13.1
Nominal capacity in m³/h@Pa1000 @ 1700
Nominal capacity in cfm@inch wc589/6.8
Dimensions in mm (WxDxH)790x820x1040
Dimensions in inch (WxDxH)31.1x32.3x41
Weight in kg145
Weight in lbs320
Noise level in dB55
Connection variants – diameter in mm1 X Ø 150 collar / 1 X Ø 160 collar
Connection variants – diameter in inch1 X 5.9 collar / 1 X 6.3 collar

System benefits

  1. Modular system structure

    Modularity is the basis for the effective use of ULT’s ventilation solutions. This lets you respond flexibly to changing contaminant or work scenarios and therefore always utilize the full potential of your systems.

  2. High flexibility

    Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.

  3. Optimal filter technology

    Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.

  4. Individual extraction solutions

    Your extraction systems are adapted to your needs. Starting from the contaminant situation, via your internal processes, to the best possible collection solution, ULT advises and supports you in the selection and installation of your optimal extraction and filtration solution.

  5. R&D basis

    Research and Development (R&D) has a very high priority at ULT. Several projects with prestigious partners and institutes have produced new approaches to ventilation systems that often become series products or are adapted quickly and easily to customer-specific projects.

  6. High filter service life

    The high priority of filter elements in ULT systems reduces medium and long-term costs for maintenance and materials. In addition, the periods of downtime for necessary filter changes or system cleaning are significantly reduced.

Downloads

  1. Technical documentation ASD 1200 (storage filter)
  2. Accessory set for ULT 1200
Images

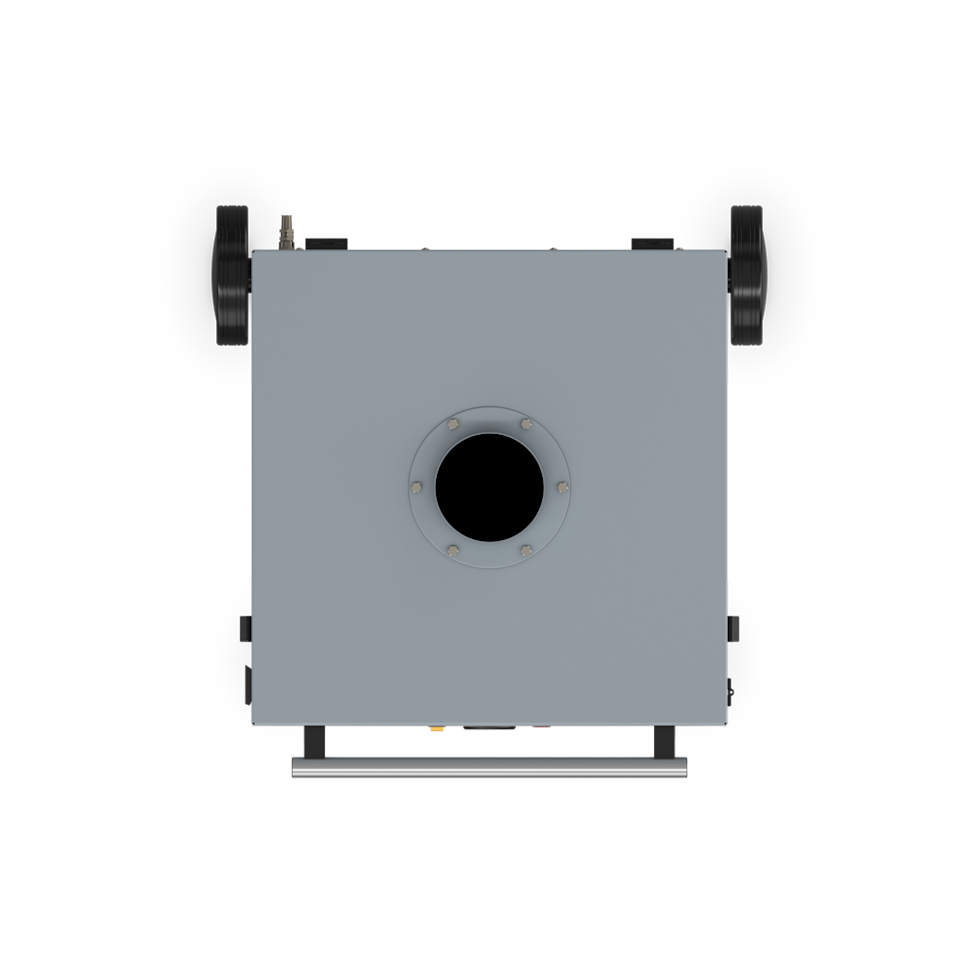

Round connection for detection elements with a diameter of 150 mm
The connection for extraction arms or hoses is located on the device top

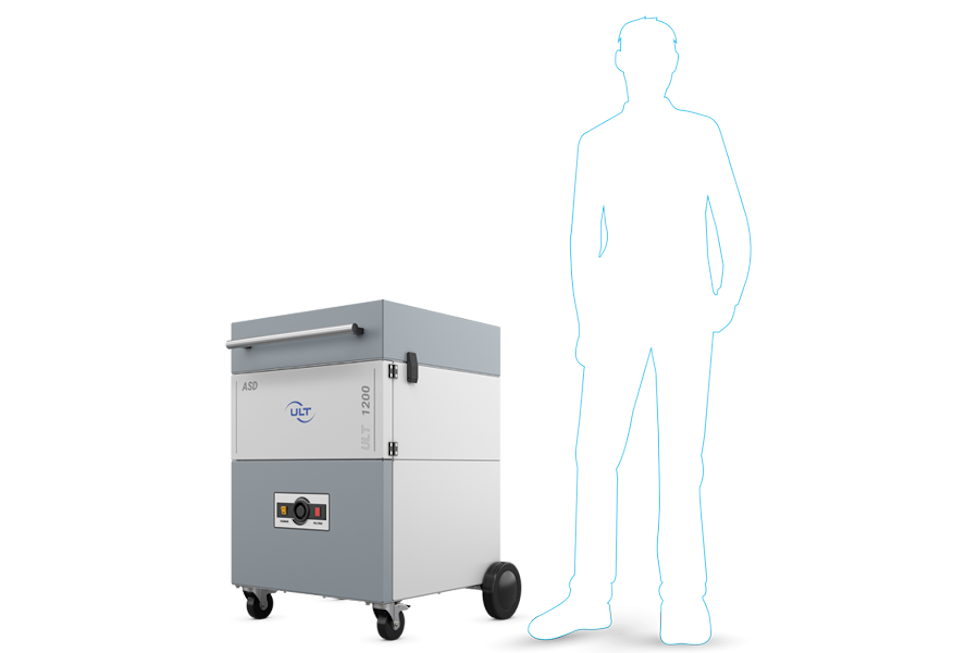

Silhouette of a human positioned next to the device
Human-extraction system size ratio

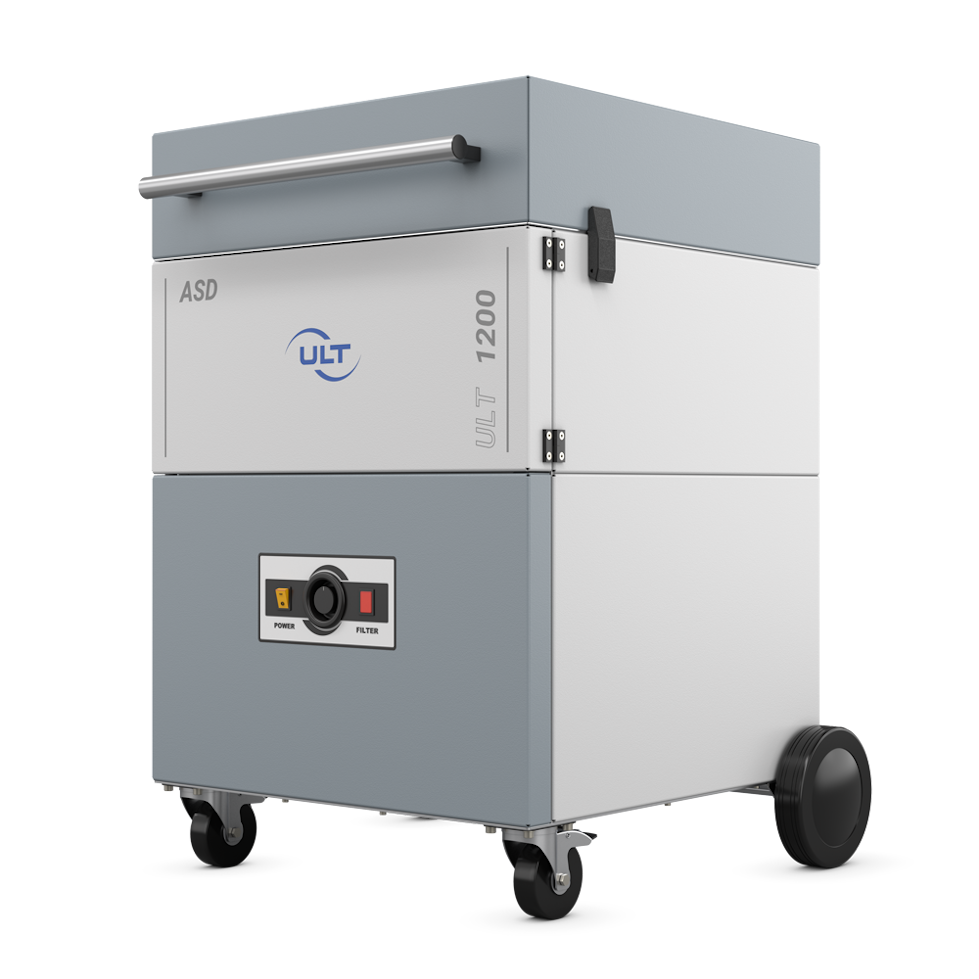

Storage filter system for dust removal in many industries
Dust collector ASD 1200

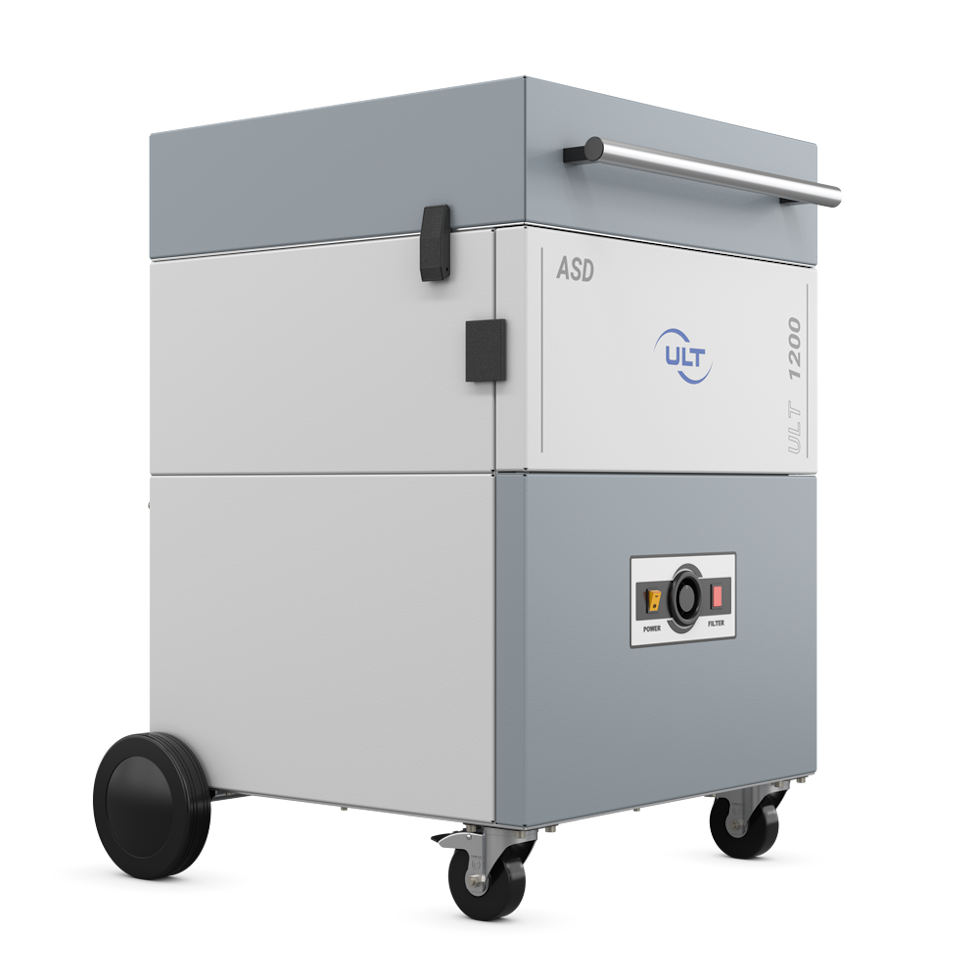

Front right view of the extraction system – the modular structure is shown
Device castors enable mobile use of the dedusting system

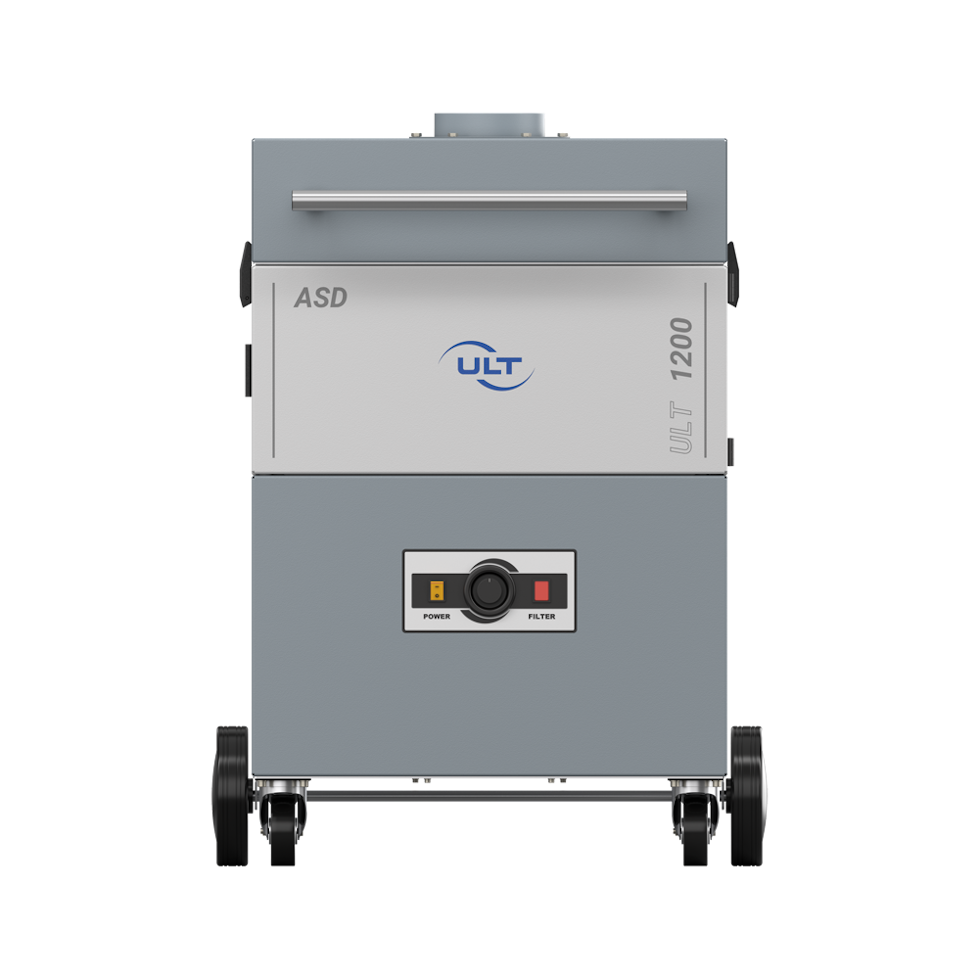

Front view of the ASD 1200 deduster with potentiometer and light elements
Front panel with controls and status indicators

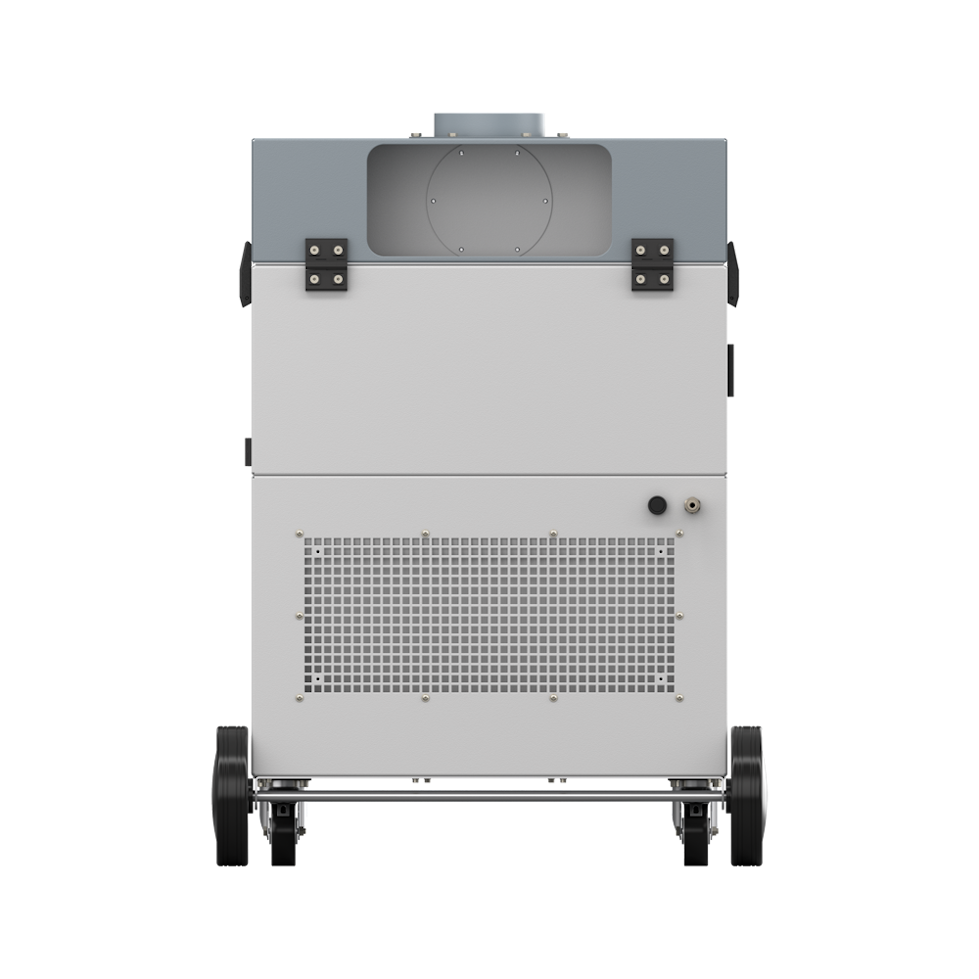

In the lower part of the system there is a discharge grille for cleaned air
Exhaust opening on the back of the device

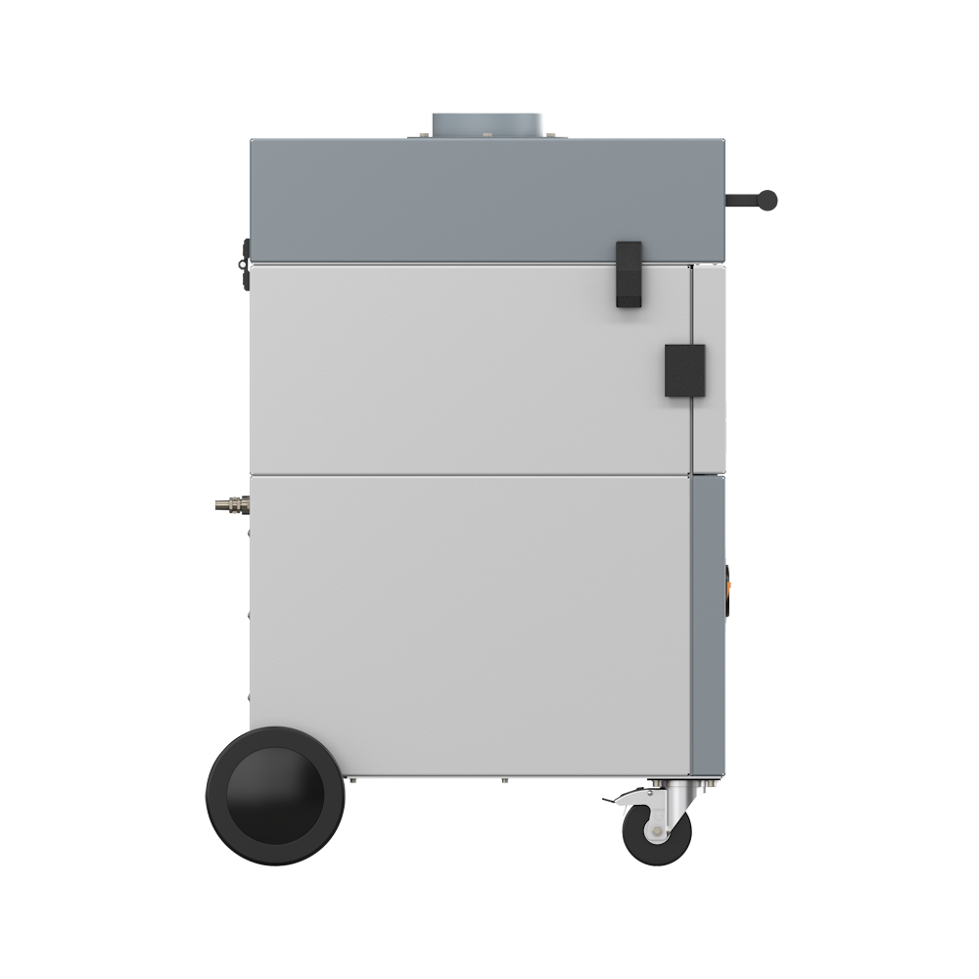

Side view of the extraction system with plastic fasteners to open the device
Quick-lock fasteners on the side of the device for easy filter replacement
Round connection for detection elements with a diameter of 150 mm
The connection for extraction arms or hoses is located on the device top
Silhouette of a human positioned next to the device
Human-extraction system size ratio
Storage filter system for dust removal in many industries
Dust collector ASD 1200
Front right view of the extraction system – the modular structure is shown
Device castors enable mobile use of the dedusting system
