ASD 1200 – dust collection system with cleanable filter elements

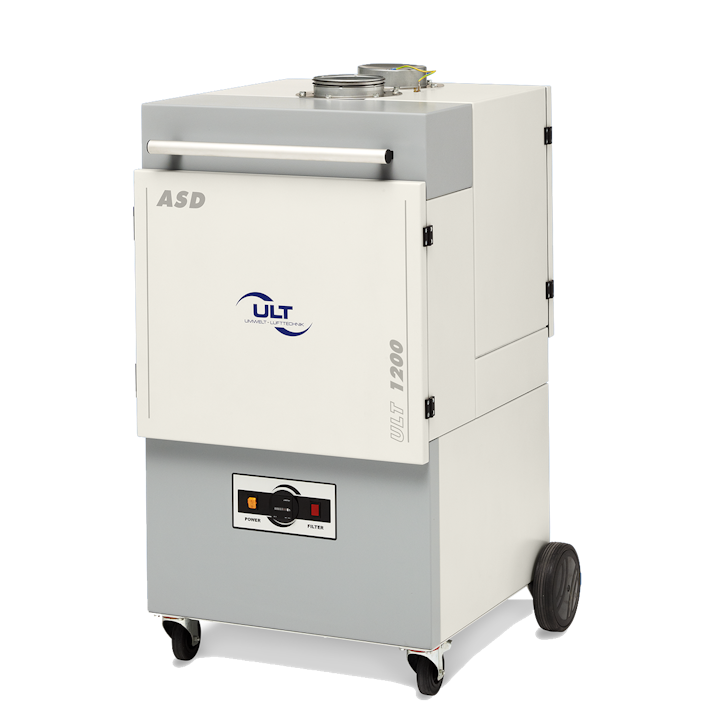

Light gray dust extractor with castors and handle

Product details

Application fields

  • Grinding, engraving, burnishing

  • Mixing, cleaning, decanting etc.

  • Dust removal

  • Flexible extraction for shifting workplaces and small to moderate dust discharge, such as from grinding dust

Features

  • Mobile extraction unit for dry, non-combustible dusts

  • Cartridge filtration system with (automatically) cleanable filter elements

  • Low maintenance

  • Powder-coated, robust housing

  • Volumetric flow control: stepless adjustment of extraction performance

  • Particle filter configuration: optic signaling

  • Optional: Interface SUB D9, operation hours counter, digital device control

  • Can be equipped with extraction arms

Technical specifications

Device versionASD 1200 MD.18
Max. flow rate in m³/h1500
Max. flow rate in cfm883
Max. vacuum in Pa3250
Max. vacuum in inch wc13.1
Nominal capacity in m³/h@Pa1000 @ 1700
Nominal capacity in cfm@inch wc589 @ 6.8
Dimensions in mm (WxDxH)790x820x1040
Dimensions in inch (WxDxH)31.1x32.3x41
Weight in kg145
Weight in lbs320
Noise level in dB55
Connection variants – diameter in mm1 X Ø 150 collar / 1 X Ø 160 collar
Connection variants – diameter in inch1 X 5.9 collar / 1 X 6.3 collar

System benefits

  1. Low energy requirements

    ULT’s extraction systems reduce the operation and maintenance costs based on your optimal filtration plan. In addition, the system is designed so that the required energy consumption is kept very low.

  2. Easy servicing

    ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.

  3. Individual extraction solution

    Your systems will be adapted to your needs. Starting with the pollutant situation and your internal processes to the best possible collection solution - we advise and support you in the selection and installation of your ideal extraction and filtration solution.

  4. High filter service life

    The high priority of filter elements in ULT systems reduces medium and long-term costs for maintenance and materials. In addition, the periods of downtime for necessary filter changes or system cleaning are significantly reduced.

  5. Optimal filter technology

    Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.

  6. High flexibility

    Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.

Downloads

  1. Technical documentation ASD 1200 (cleanable filter)
  2. Accessory set for ULT 1200
Images

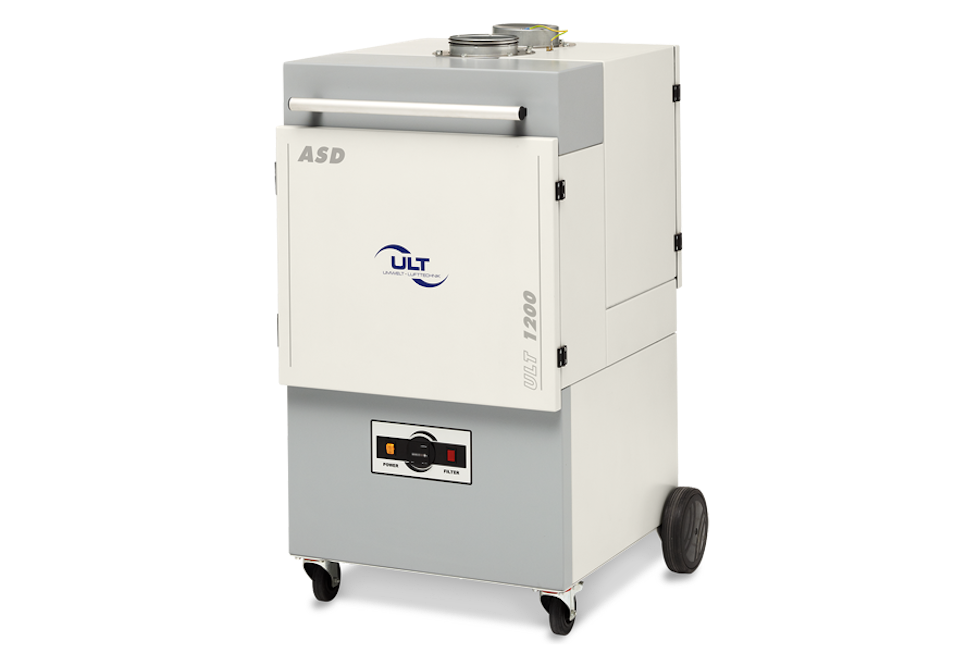

Cartridge filter system with cleanable filter elements for dust collection
ASD 1200 for the extraction of dust and smoke
Cartridge filter system with cleanable filter elements for dust collection
ASD 1200 for the extraction of dust and smoke
Cartridge filter system with cleanable filter elements for dust collection
ASD 1200 for the extraction of dust and smoke
