ACD 220 Ex – extraction system with explosion protection

Ugly gray device with huge ULT logo

Product details

Application fields

  • Bonding, laminating, lacquering

  • Pretreating, cleaning

  • Casting, printing, and more

Features

  • Mobile extraction system with wheels

  • Appliance for explosive environments from Group II Category 1D per ATEX RL 94/9/EG

  • Metal filter cassettes with grounding connectors

  • Operation elements on front side

  • Easy handling, modular design

  • Powder-coated, robust housing

Option

  • Adsorption filter module with optionally 6 kg or 14 kg activated carbon

System benefits

  1. Easy servicing

    ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.

  2. Optimal filter technology

    Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.

  3. Quiet operation

    ULT’s extraction and filtration systems are especially quiet. This is appreciated by numerous clients worldwide. This means your employees won’t be bothered by unnecessary noise.

  4. High filter service life

    The high priority of filter elements in ULT systems reduces medium and long-term costs for maintenance and materials. In addition, the periods of downtime for necessary filter changes or system cleaning are significantly reduced.

  5. Low energy requirements

    ULT’s extraction systems reduce the operation and maintenance costs based on your optimal filtration plan. In addition, the system is designed so that the required energy consumption is kept very low.

  6. Individual extraction solutions

    Your extraction systems are adapted to your needs. Starting from the contaminant situation, via your internal processes, to the best possible collection solution, ULT advises and supports you in the selection and installation of your optimal extraction and filtration solution.

Technical specifications

Device versionACD 220 Ex
Max. flow rate in m³/h420
Max. flow rate in cfm247
Max. vacuum in Pa1100
Max. vacuum in inch wc4.4
Nominal capacity in m³/h@Pa200 @ 900
Nominal capacity in cfm@inch wc118 @ 3.6
Dimensions in mm (WxDxH)390x380x690
Dimensions in inch (WxDxH)15.4x14.9x27.1
Weight in kg30
Weight in lbs66
Noise level in dB50
Connection variants – diameter in mmStandard: 2 X 50 / additional Ø possible
Connection variants – diameter in inchStandard: 2 X 1.97 / additional Ø possible

Download

  1. Technical documentation ACD 220 Ex

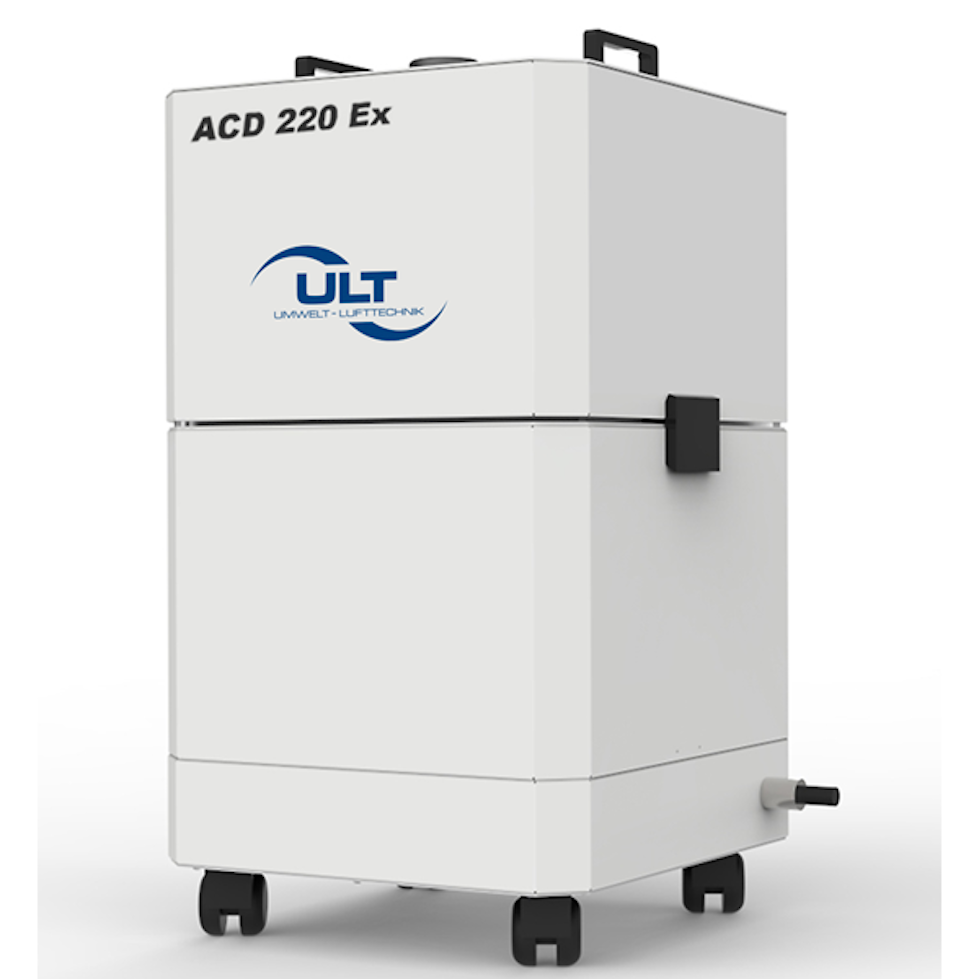

Grey cuboit device with rollers and ULT logo on the front
ACD 220 Ex for explosive air-gas mixtures
Grey cuboit device with rollers and ULT logo on the front
ACD 220 Ex for explosive air-gas mixtures
Grey cuboit device with rollers and ULT logo on the front
ACD 220 Ex for explosive air-gas mixtures

We're happy to help you!

We are happy to offer you further information about our extraction systems and the respective filtration technology. We can also configure your individual solution as requested or required.
