ACD 200.1 – flexible filtration unit for odors, gases, and vapors

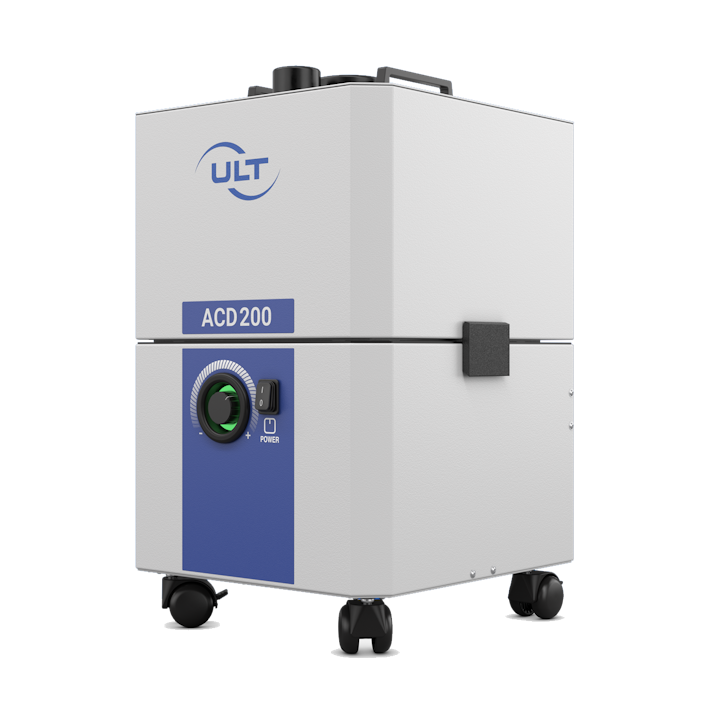

Small device with potentiometer on the front

Product details

Applications fields

  • Bonding, laminating, lacquering

  • Pretreating, cleaning

  • Casting, printing, and more

Features

  • Mobile extraction system with wheels

  • Efficient odor control

  • Extremely quiet operation

  • Easy filter handling

  • Modular design

  • Operation elements on front side

  • Powder-coated, robust housing

Equipment

  • Stepless volumetric flow control

  • Constant negative-pressure maintained even with several suction points

  • Particle filter configuration: optic signaling

  • Interface: M12 as standard furnishing, remote ON/OFF

  • Particle filter configuration: optic signaling at 80% and 100%

  • Fittings for extraction arms (Ø 50, 75, 80) for one to four individual workplaces

  • 6 kg or 14 kg activated carbon for medium pollutant concentration

  • Comprehensive accessory set, including floor switch, hoses, extraction arm console, etc.

Technical specifications

Device versionACD 200.1 A6 MD.20ACD 200.1 A14 MD.20
Max. flow rate in m³/h320320
Max. flow rate in cfm188188
Max. vacuum in Pa90009000
Max. vacuum in inch wc36.236.2
Nominal capacity in m³/h@Pa130 @ 5000 (high pressure application)230 @ 1.000 (medium pressure application)
Nominal capacity in cfm@inch wc76.5 @ 20135 @ 4.1 (medium pressure application)
Dimensions in mm (WxDxH)390x400x620390x400x770
Dimensions in inch (WxDxH)15.4x15.7x24.415.4x15.7x30.3
Weight in kg3648
Weight in lbs79106
Noise level in dB4755
Connection variants – diameter in mmStandard: 2 X 50 or 1 X 80 / option: hose or arm mount with consoleStandard: 2 X 50 or 1 X 80 / option: hose or arm mount with console
Connection variants – diameter in inchStandard: 2 X 1.97 or 1 X 3.15 / option: hose or arm mount with consoleStandard: 2 X 1.97 or 1 X 3.15 / option: hose or arm mount with console

System benefits

  1. Easy servicing

    ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.

  2. Quiet operation

    ULT’s extraction and filtration systems are especially quiet. This is appreciated by numerous clients worldwide. This means your employees won’t be bothered by unnecessary noise.

  3. Modular system structure

    Modularity is the basis for the effective use of ULT’s ventilation solutions. This lets you respond flexibly to changing contaminant or work scenarios and therefore always utilize the full potential of your systems.

  4. R&D basis

    Research and Development (R&D) has a very high priority at ULT. Several projects with prestigious partners and institutes have produced new approaches to ventilation systems that often become series products or are adapted quickly and easily to customer-specific projects.

  5. Low energy requirements

    ULT’s extraction systems reduce the operation and maintenance costs based on your optimal filtration plan. In addition, the system is designed so that the required energy consumption is kept very low.

  6. Optimal filter technology

    Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.

ULT 200.1 benefits and features

Downloads
  1. Technical documentation ULT 200.1
  2. Icon with ULT logo on white ground
    Paper "Fume extraction in laboratories"
Images
Use of a console for ideal hose or extraction arm assembly

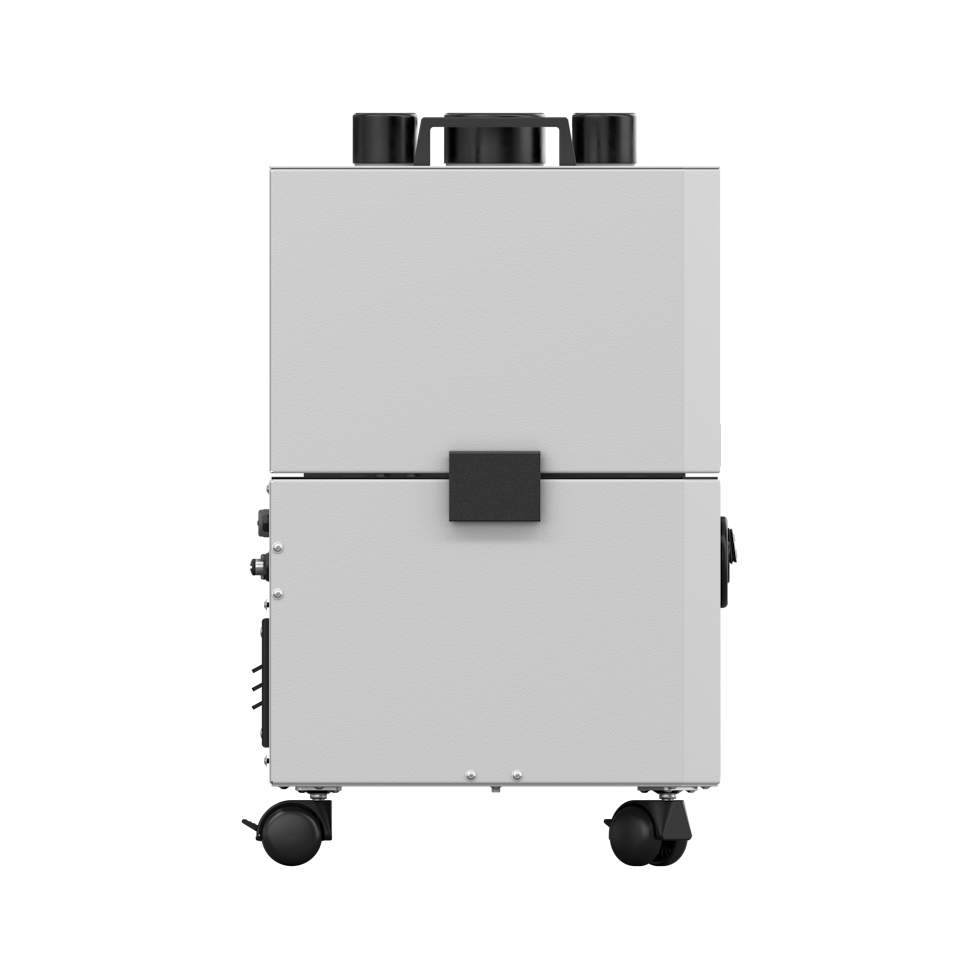

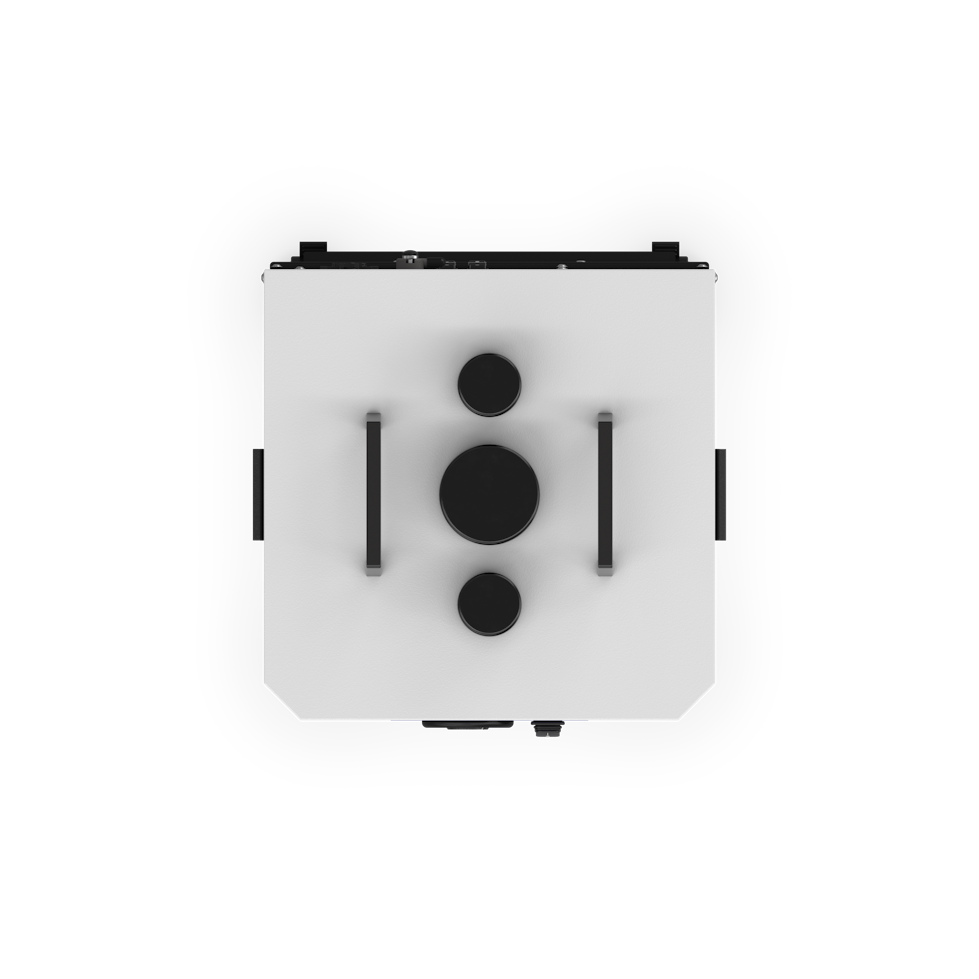

Connections for suction arms and hoses on top of the unit

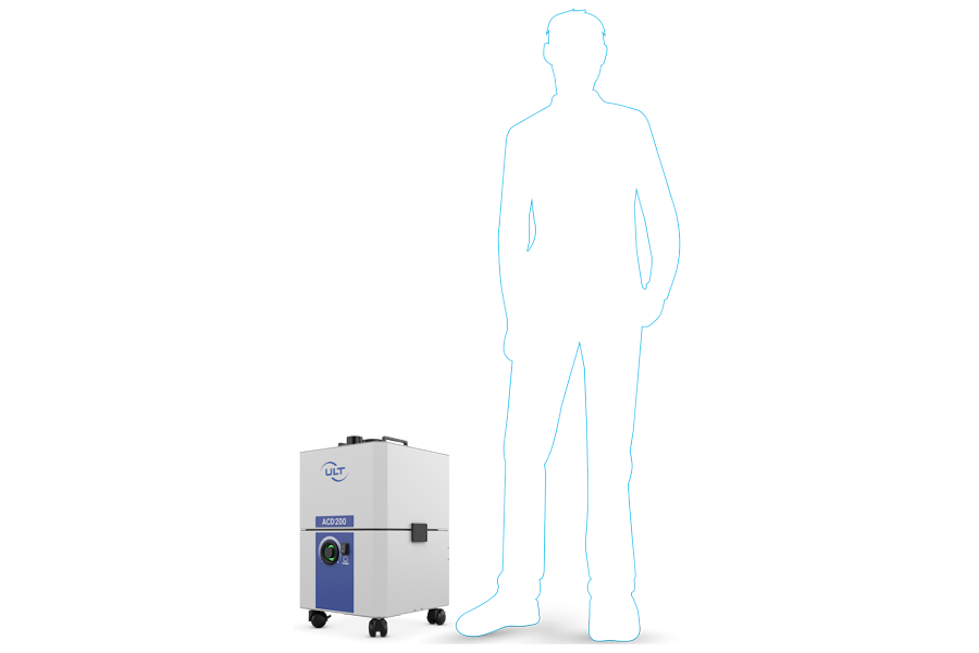

Dimensions of the ACD 160.1 A6 compared to a person
Human-system size ratio
Mobile vapor and odor extraction

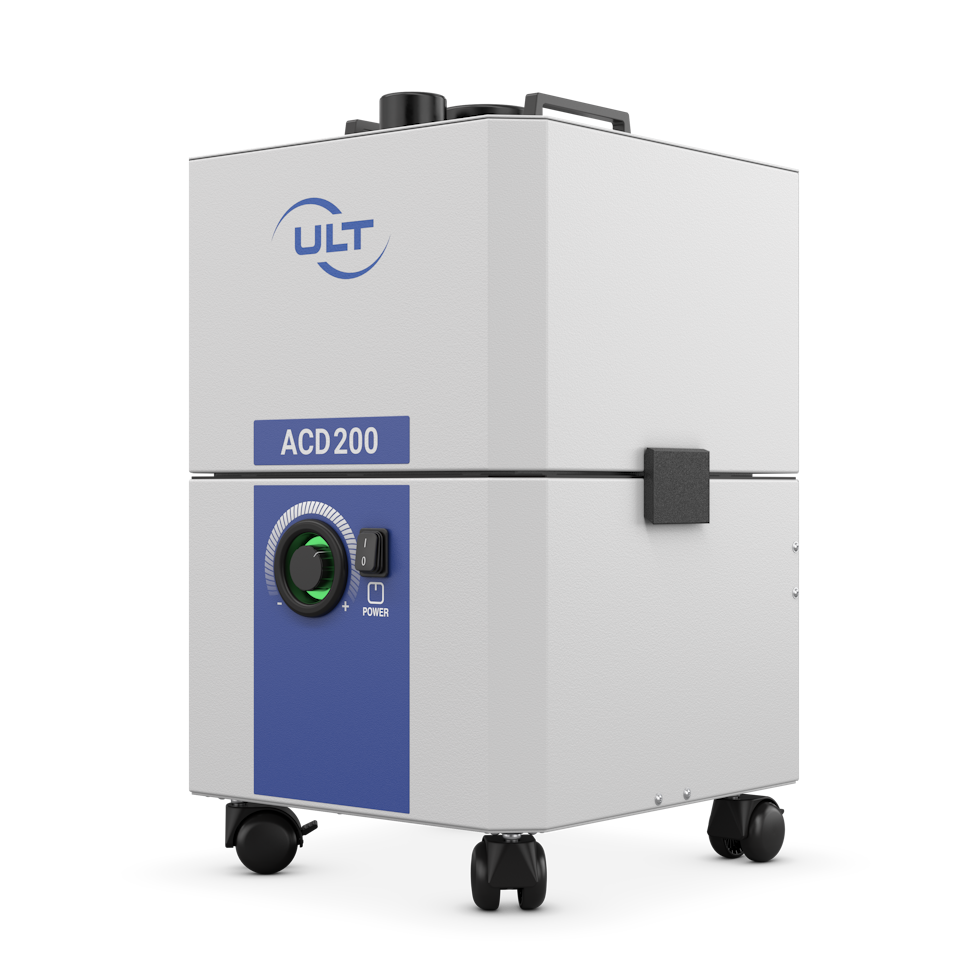

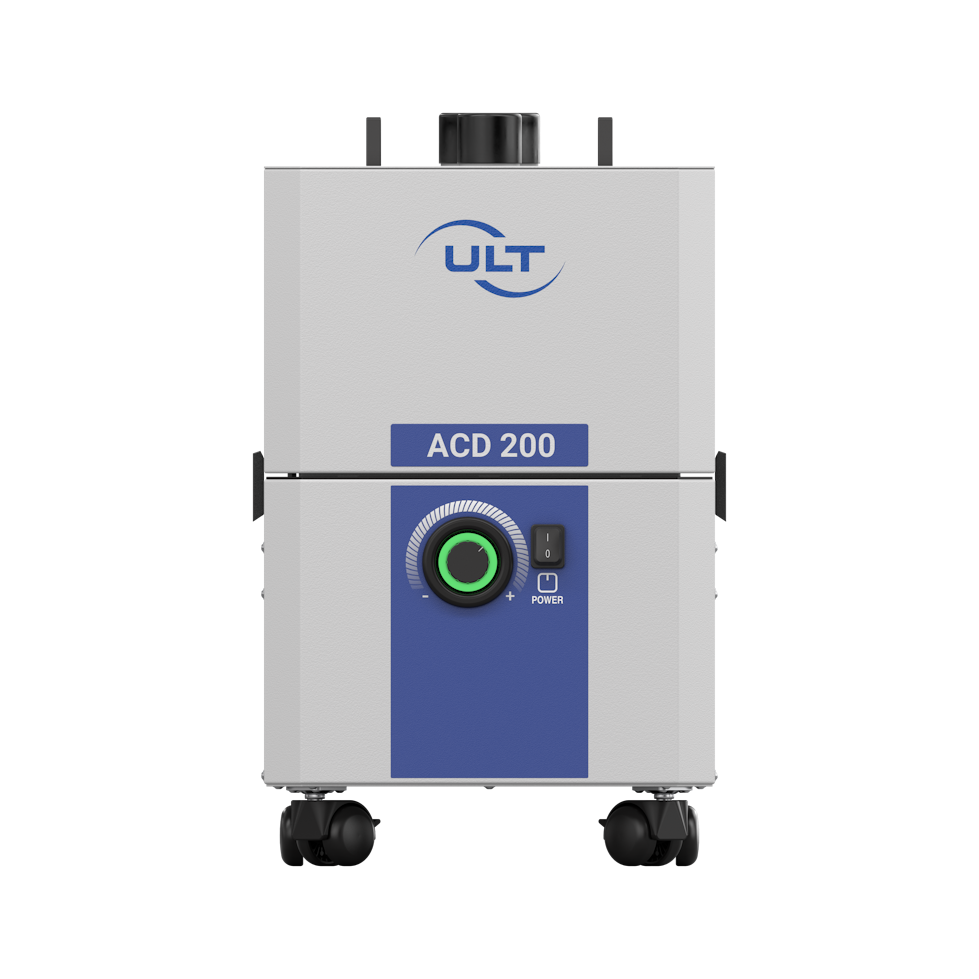

Front view with controls on the ACD 200.1
Flexibility through device castors and easy filter change
ACD 200.1 for mobile filtration of vapors and odors
ACD 200.1 for workplace extraction
Mobile extraction and separation of gases and vapors
Mobile odor and vapor filtration - rear view

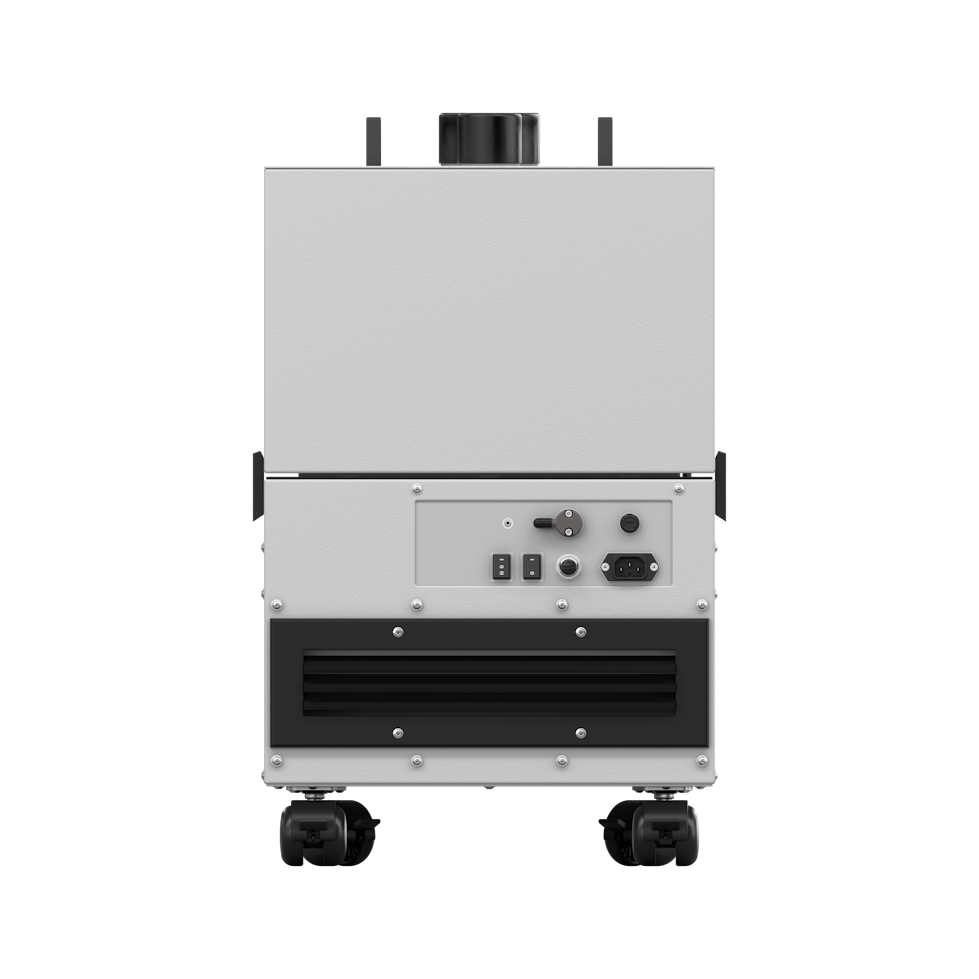

Rear view with communication inferfaces and exhaust air outlet
Simple filter handling and high flexibility
Quick-Lock fasteners allow for an easy filter replacement
Use of a console for ideal hose or extraction arm assembly
Connections for suction arms and hoses on top of the unit
Dimensions of the ACD 160.1 A6 compared to a person
Human-system size ratio

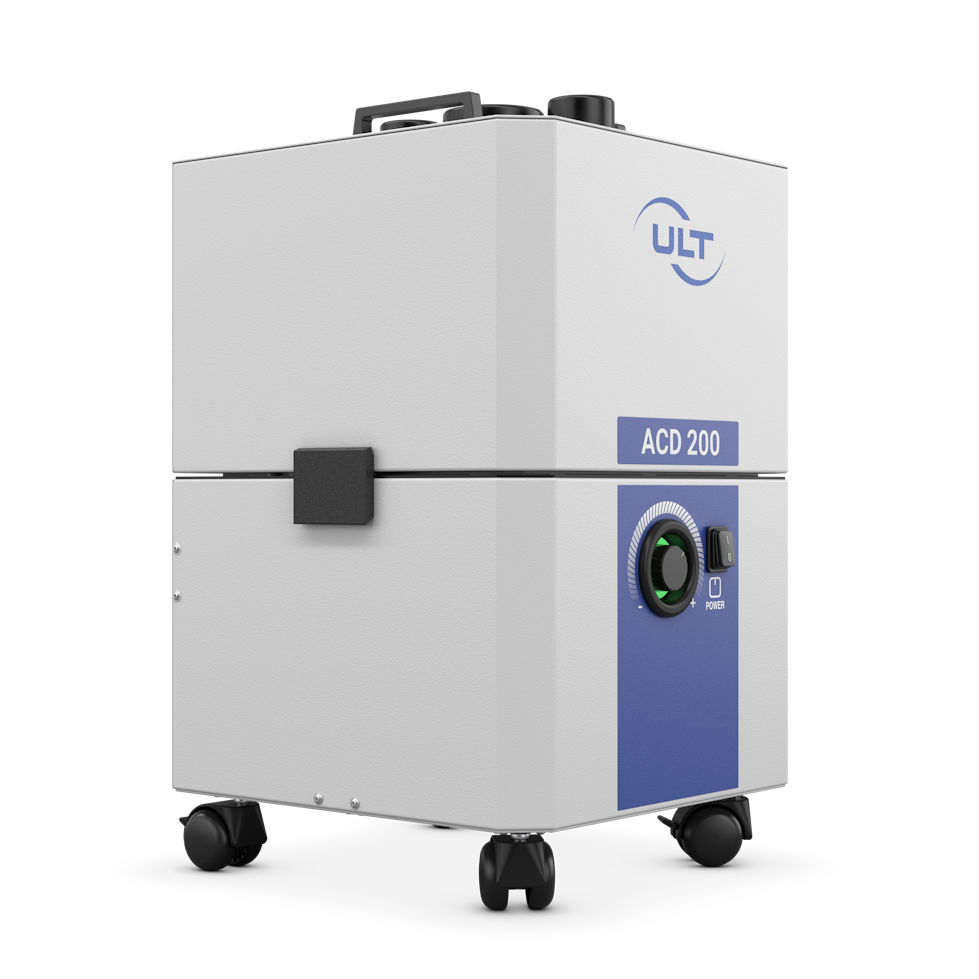

Mobile vapor and odor extraction
