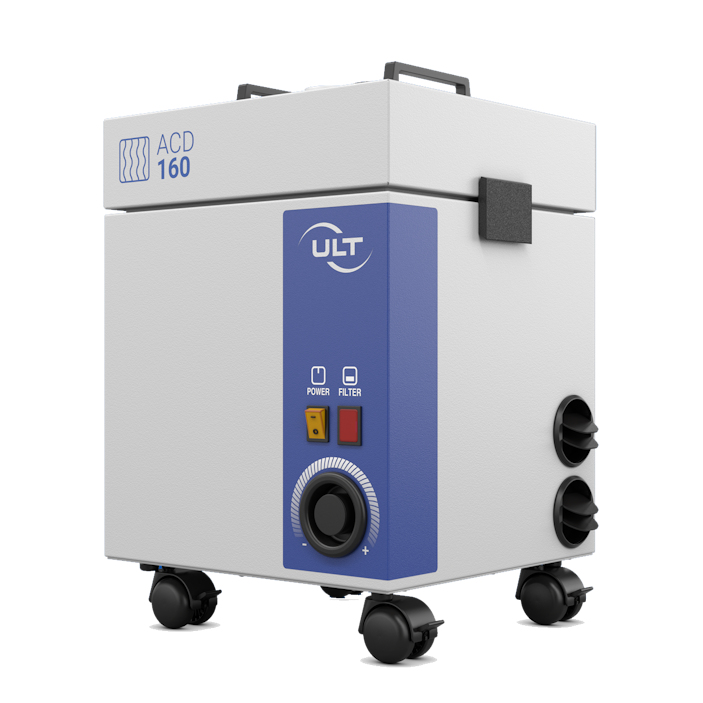

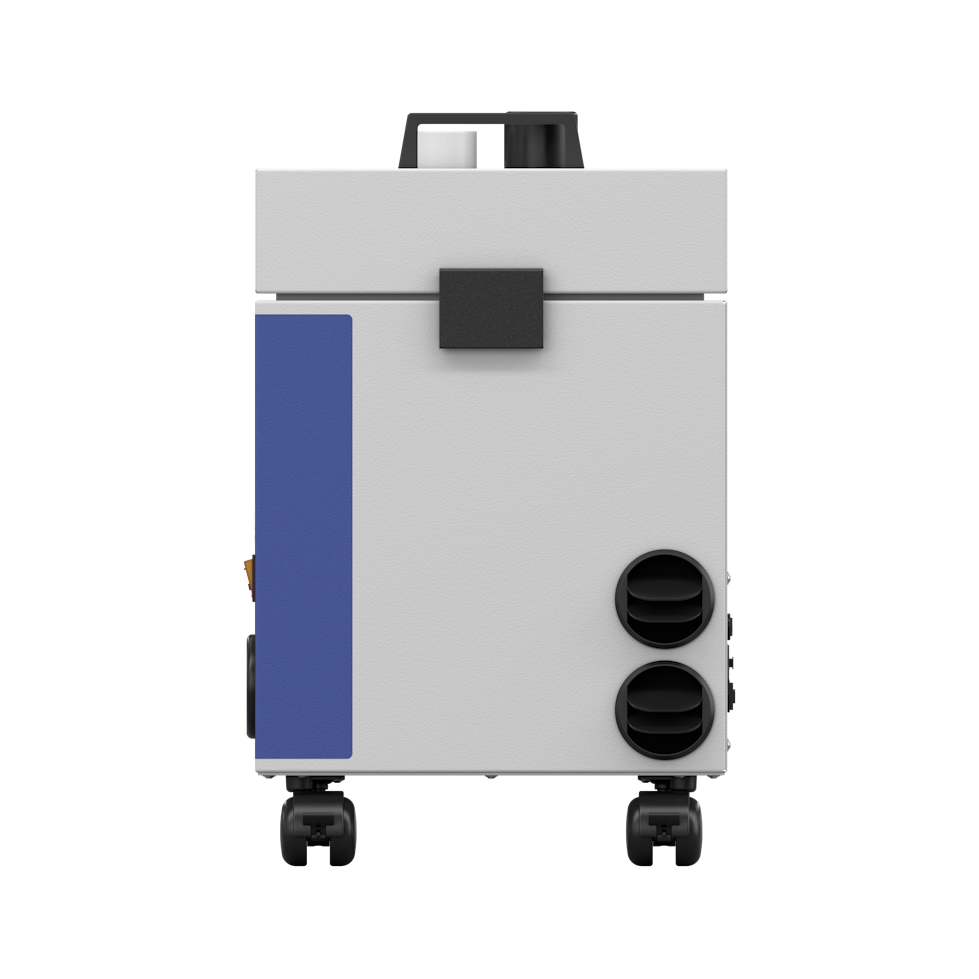

ACD 160.1 – mobile extraction unit for odor, gas and vapor control
Product details
Application fields
Bonding, laminating, lacquering
Pretreating, cleaning
Casting, printing, and more
Features
Available as both mobile and stationary version
Removable filter device – individual changeable filter
Extremely quiet operation
Simple filter handling, accessible from the top
Exhaust air outlet selectable either left or right
Rugged steel housing
One or two fittings for extraction arms
Stepless volumetric flow control
Particle filter configuration: optic signaling
Option
SUB D9 Interface: Remote I/O, operations report, filter 100%
Technical specifications
| Device version | ACD 160.1 MD.11 |
|---|---|
| Max. flow rate in m³/h | 190 |
| Max. flow rate in cfm | 112 |
| Max. vacuum in Pa | 3200 |
| Max. vacuum in inch wc | 12.9 |
| Nominal capacity in m³/h@Pa | 80 @ 1900 |
| Nominal capacity in cfm@inch wc | 47 @ 7.6 |
| Dimensions in mm (WxDxH) | 405x355x545 |
| Dimensions in inch (WxDxH) | 16x14x21.5 |
| Weight in kg | 36 |
| Weight in lbs | 79 |
| Noise level in dB | 49 |
| Connection variants – diameter in mm | Standard: 2 X 50 / Option: 1 X console with Alsident S50 flange |
| Connection variants – diameter in inch | Standard: 2 X 1.97 / option: 1 X console with Alsident S50 flange (1.97'') |
System benefits
Low energy requirements
ULT’s extraction systems reduce the operation and maintenance costs based on your optimal filtration plan. In addition, the system is designed so that the required energy consumption is kept very low.
Quiet operation
ULT’s extraction and filtration systems are especially quiet. This is appreciated by numerous clients worldwide. This means your employees won’t be bothered by unnecessary noise.
Optimal filter technology
Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.
High flexibility
Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.
R&D basis
Research and Development (R&D) has a very high priority at ULT. Several projects with prestigious partners and institutes have produced new approaches to ventilation systems that often become series products or are adapted quickly and easily to customer-specific projects.
Easy servicing
ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.

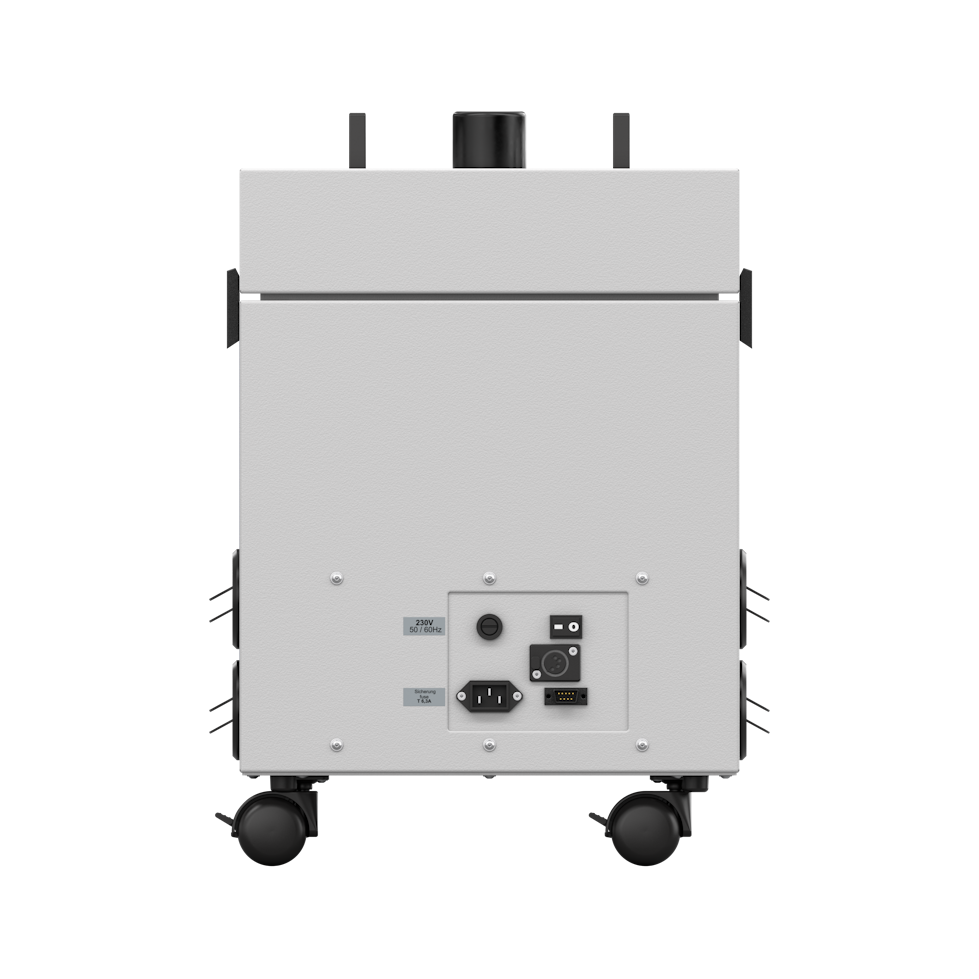

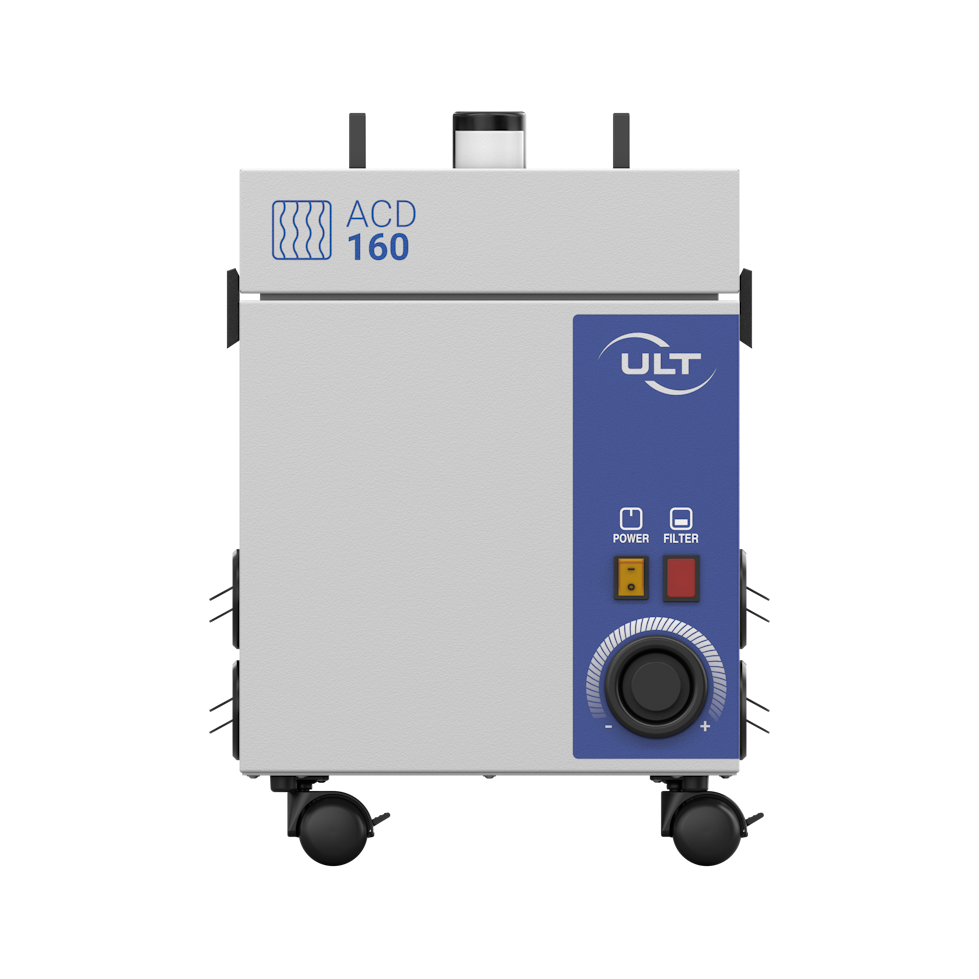

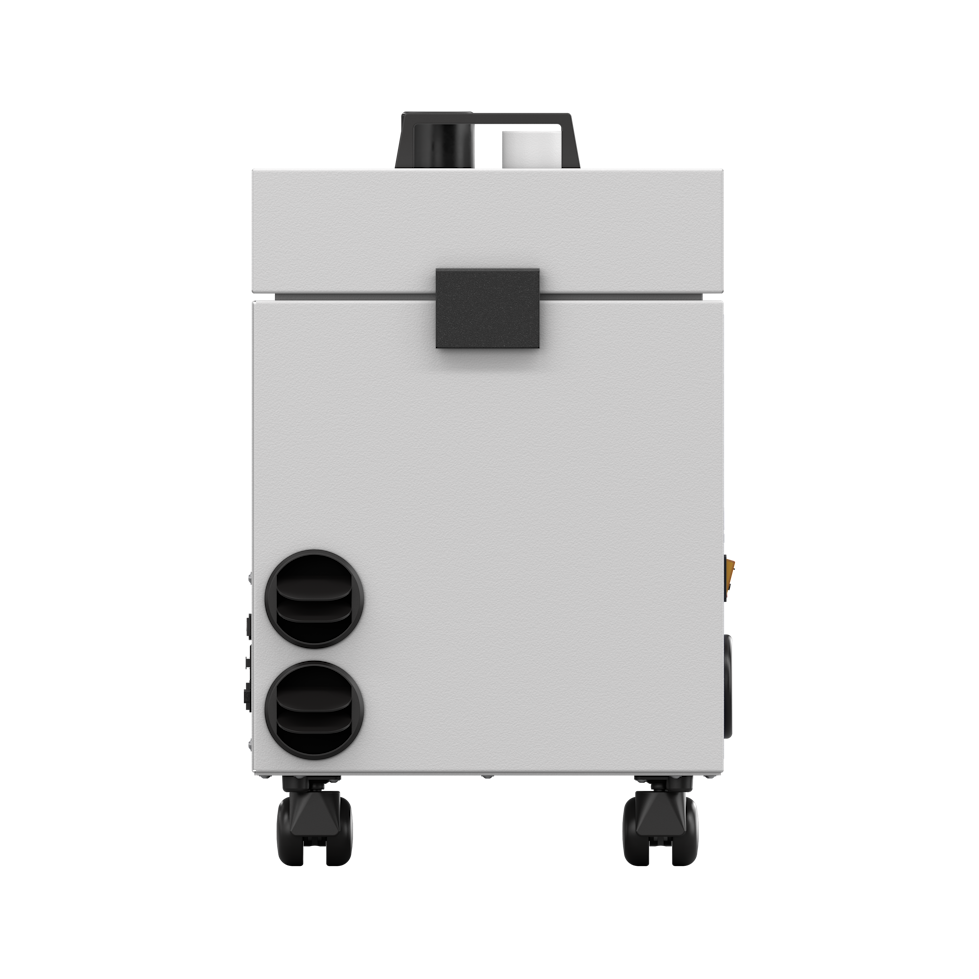

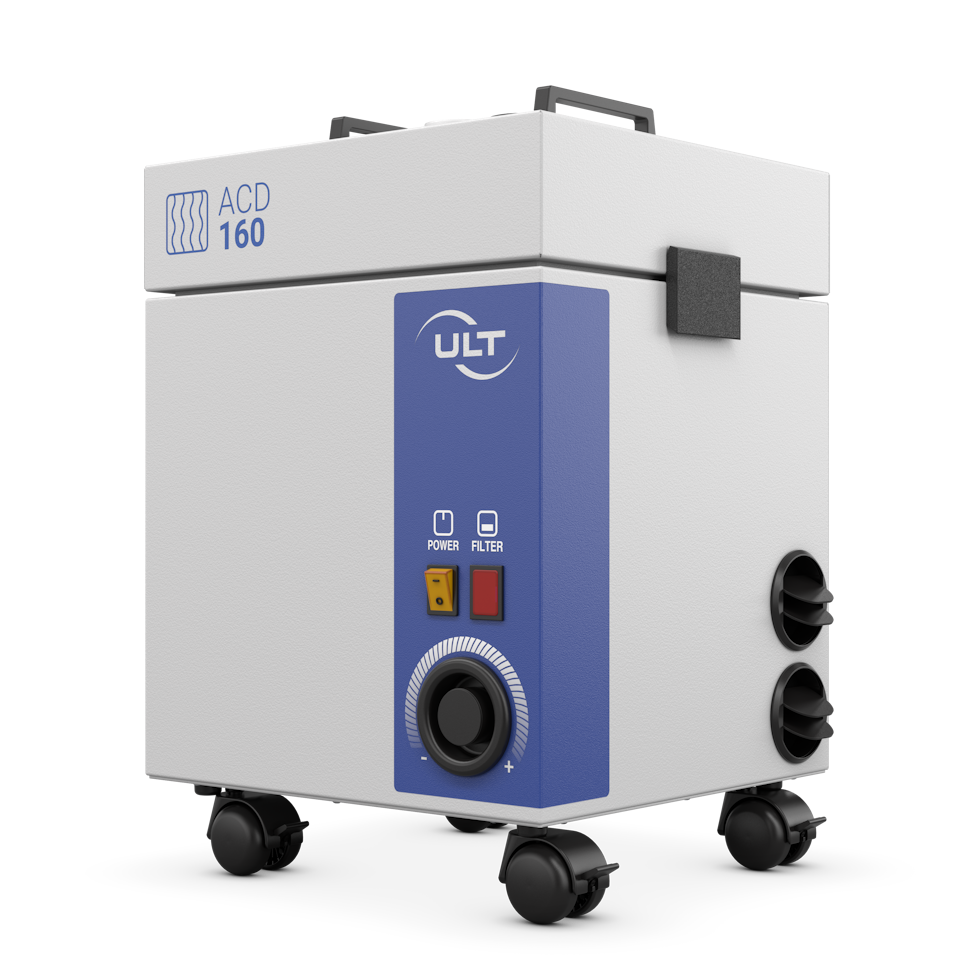

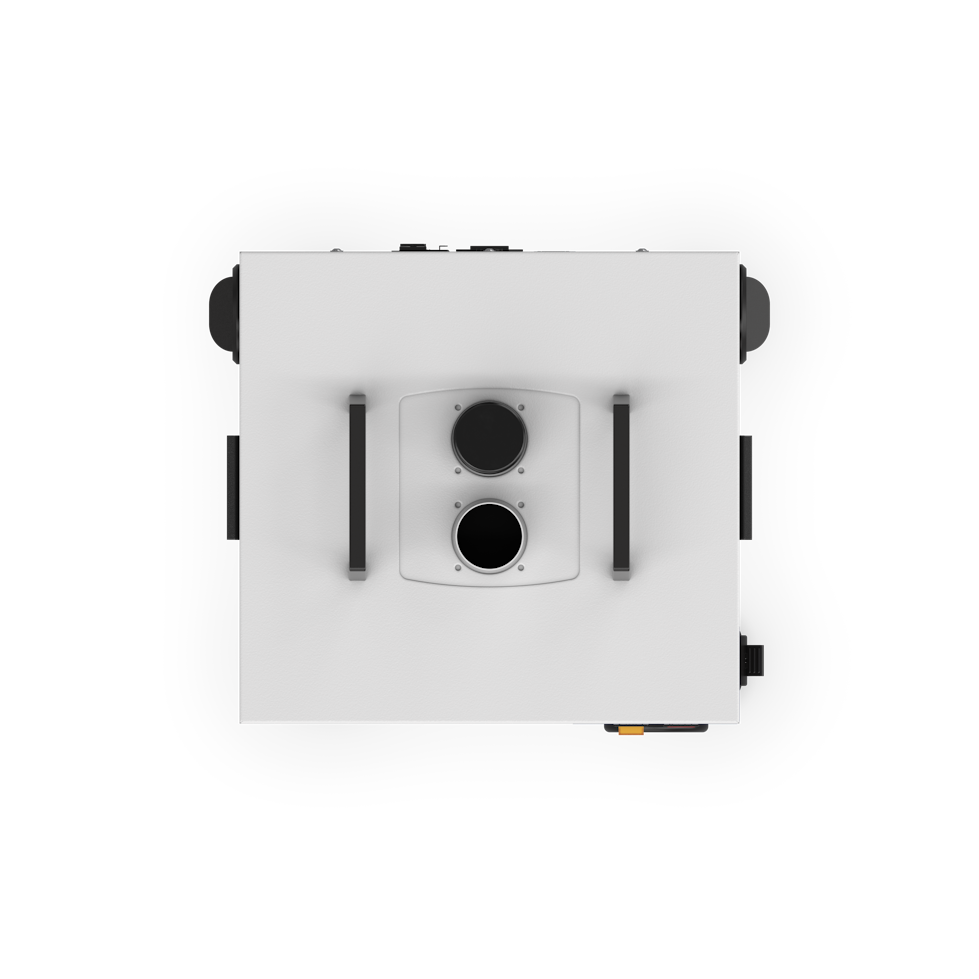

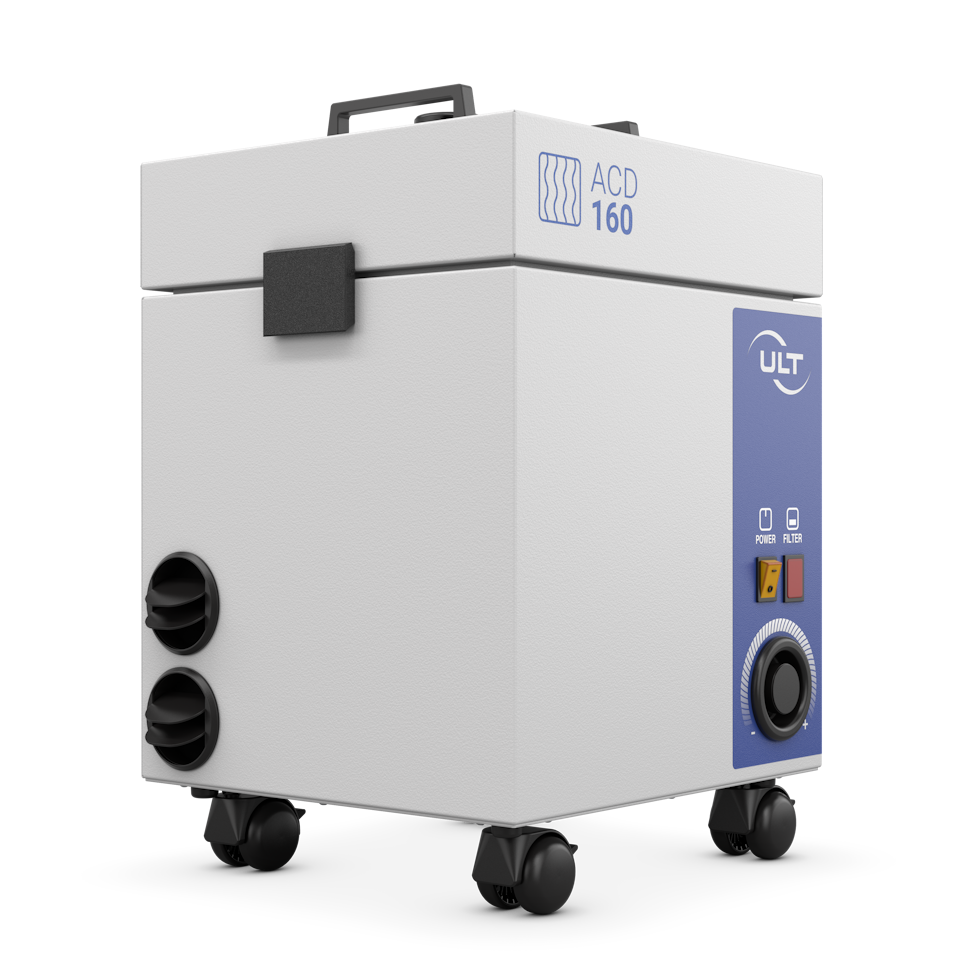

Images
We're happy to help you!
We are happy to offer you further information about our extraction systems and the respective filtration technology. We can also configure your individual solution as requested or required.
