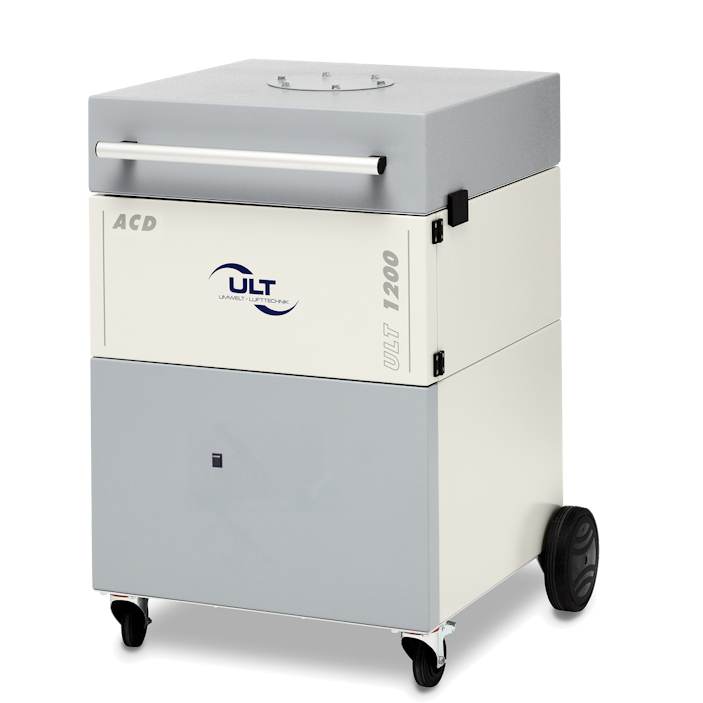

ACD 1200 A32 Ex – sorption filter system with explosion protection
Product details
Application fields
Bonding, laminating, lacquering
Pretreating, cleaning
Casting, printing, and more
Features
Mobile extraction system with wheels
Explosion protected ventilator compliant with ATEX EEx e II 2G
Expanded metal prefilter (metal mesh, condensation filter, spark protection)
All parts with contact to the raw gas stream are integrated into the grounding system
Electrical signals and control elements in remote control unit
Easy handling, modular design
Powder-coated, robust housing
Particle filter configuration: optic signaling
Prefilter, adsorption filter
Fittings for extraction arms
Technical specifications
| Device version | ACD 1200 MD.46 A32 Ex |
|---|---|
| Max. flow rate in m³/h | 1700 |
| Max. flow rate in cfm | 1000 |
| Max. vacuum in Pa | 2600 |
| Max. vacuum in inch wc | 10.5 |
| Nominal capacity in m³/h@Pa | 1000 @ 1800 |
| Nominal capacity in cfm@inch wc | 589 @ 7.2 |
| Dimensions in mm (WxDxH) | 790x820x1040 |
| Dimensions in inch (WxDxH) | 31.1x32.3x41 |
| Weight in kg | 180 |
| Weight in lbs | 397 |
| Noise level in dB | 62 |
| Connection variants – diameter in mm | 1 X 150 collar / 1 X 160 collar |
| Connection variants – diameter in inch | 1 X 5.9 collar / 1 X 6.3 collar |
System benefits
Easy servicing
ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.
High filter service life
The high priority of filter elements in ULT systems reduces medium and long-term costs for maintenance and materials. In addition, the periods of downtime for necessary filter changes or system cleaning are significantly reduced.
Individual extraction solutions
Your extraction systems are adapted to your needs. Starting from the contaminant situation, via your internal processes, to the best possible collection solution, ULT advises and supports you in the selection and installation of your optimal extraction and filtration solution.
High flexibility
Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.
Optimal filter technology
Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.
Quiet operation
ULT’s extraction and filtration systems are especially quiet. This is appreciated by numerous clients worldwide. This means your employees won’t be bothered by unnecessary noise.

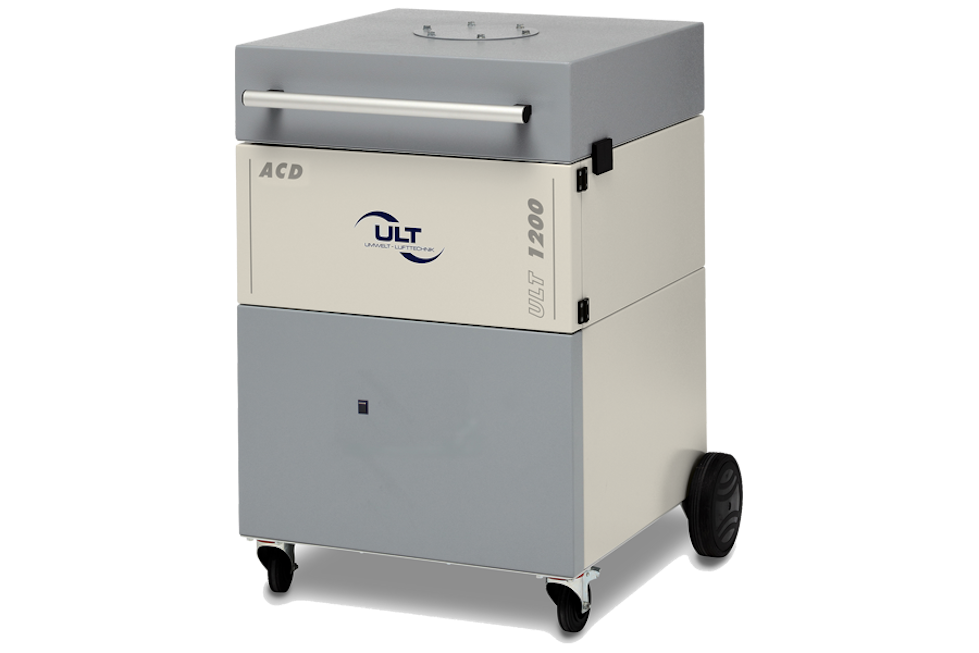

Images
We're happy to help you!
We are happy to offer you further information about our extraction systems and the respective filtration technology. We can also configure your individual solution as requested or required.
