ACD 1200 – extraction system for odors, vapors, gases

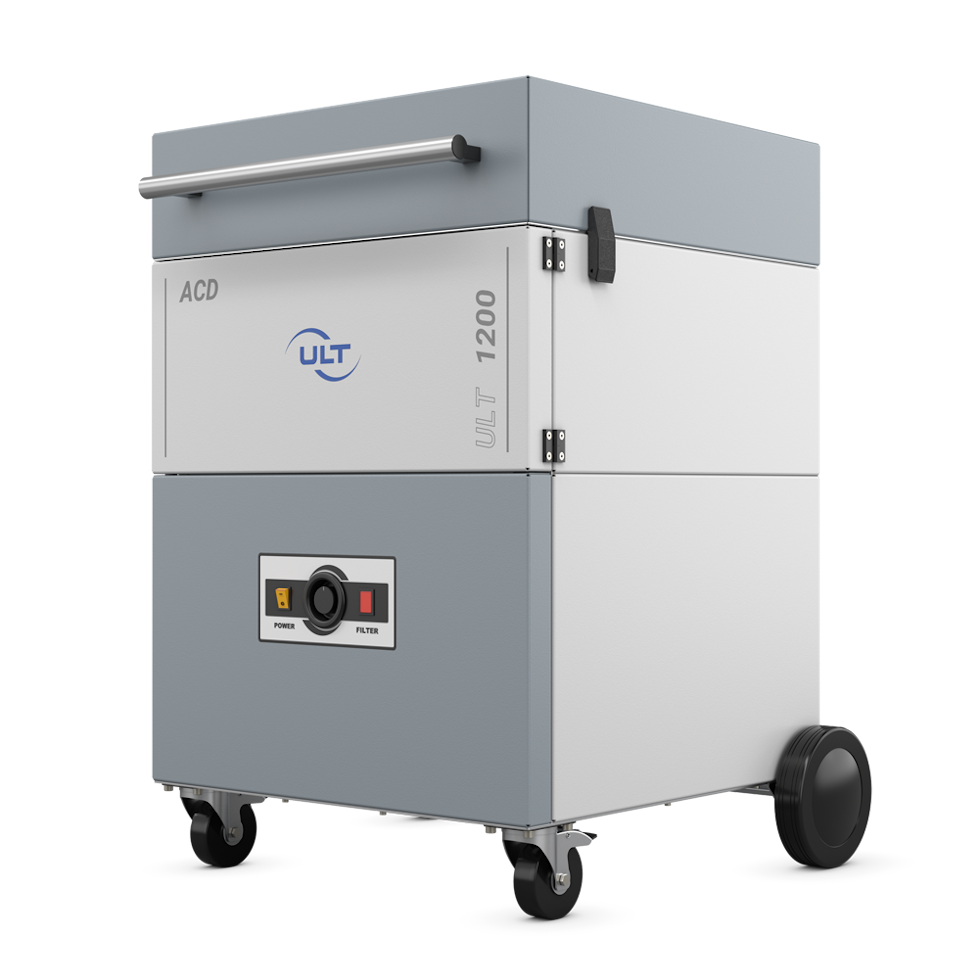

Gray cuboid system with sorption filter

Product details

Application fields

  • Bonding, laminating, lacquering

  • Pretreating, cleaning

  • Casting, printing, and more

Features

  • Mobile extraction system with wheels

  • Removable filter device – individual changeable filter

  • Use of adsorbent agents

  • Operation elements on front side

  • Powder-coated, robust housing

  • One or two fittings for extraction arms

Equipment

  • Stepless volumetric flow control

  • Prefilter (optionally)

  • Particle filter configuration: optic signaling

  • SUB D9 Interface: remote I/O, digital device control

Technical specification

Device versionACD 1200 A28 MD.18 ACD 1200 A28 MD.80 ACD 1200 A60 MD.18
Max. flow rate in m³/h150014901500
Max. flow rate in cfm883877883
Max. vacuum in Pa325018003250
Max. vacuum in inch wc13.17.213.1
Nominal capacity in m³/h@Pa1000 @ 1700800 @ 13001000 @ 1700
Nominal capacity in cfm@inch wc589 @ 6.8471 @ 5.2589 @ 6.8
Dimensions in mm (WxDxH)790x820x1040790x820x1040790x820x1340
Dimensions in inch (WxDxH)31.1x32.3x4131.1x32.3x4131.1x32.3x41
Weight in kg155155215
Weight in lbs342342474
Noise level in dB556065
Connection variants – diameter in mm1 X 150 collar / 1 X 160 collar1 X 150 collar / 1 X 160 collar1 X 150 collar / 1 X 160 collar
Connection variants – diameter in inch1 X 5.9 collar / 1 X 6.3 collar1 X 5.9 collar / 1 X 6.3 collar1 X 5.9 collar / 1 X 6.3 collar

ACD 1200 benefits

  1. High flexibility

    Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.

  2. Optimal filter technology

    Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.

  3. Modular system structure

    Modularity is the basis for the effective use of ULT’s ventilation solutions. This lets you respond flexibly to changing contaminant or work scenarios and therefore always utilize the full potential of your systems.

  4. Individual extraction solutions

    Your extraction systems are adapted to your needs. Starting from the contaminant situation, via your internal processes, to the best possible collection solution, ULT advises and supports you in the selection and installation of your optimal extraction and filtration solution.

  5. High filter service life

    The high priority of filter elements in ULT systems reduces medium and long-term costs for maintenance and materials. In addition, the periods of downtime for necessary filter changes or system cleaning are significantly reduced.

  6. Easy servicing

    ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.

Downloads
  1. Technical documentation ACD 1200 A28
  2. Technical documentation ACD 1200 A60
  3. Accessory set for ULT 1200
Images

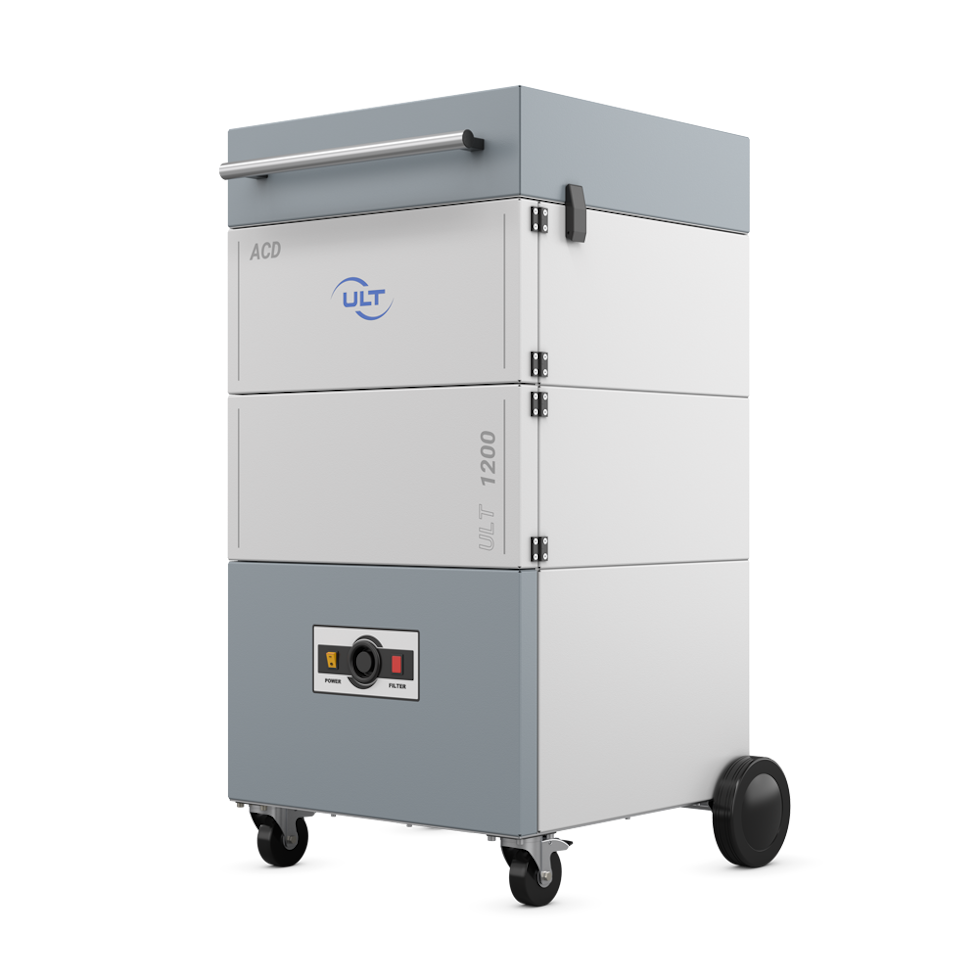

Two-tier device variant of the filter system for odors and vapours. gases
ACD 1200 A60 with two activated carbon filter modules

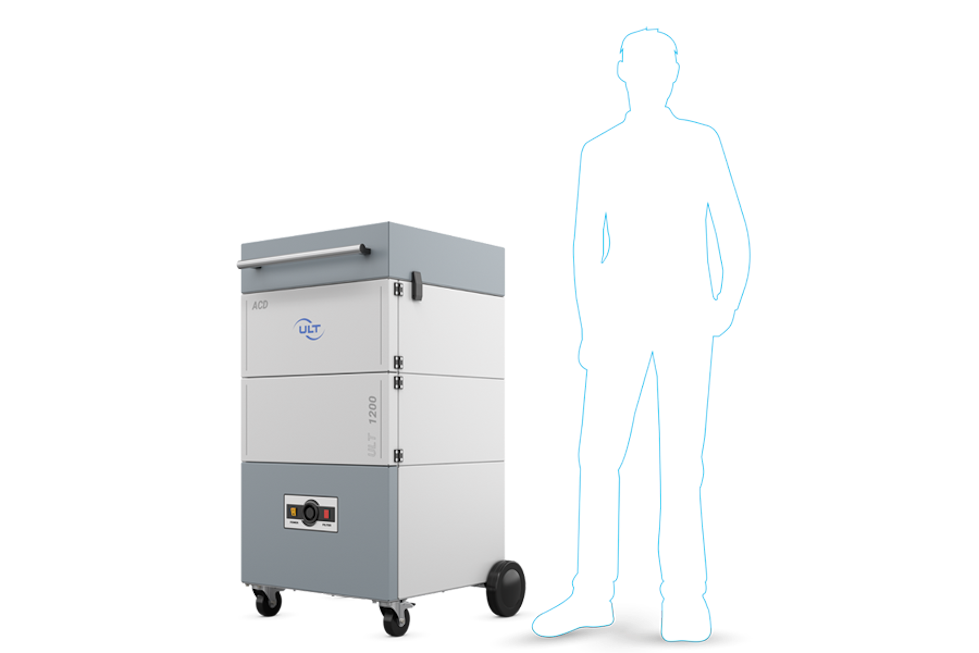

Silhouette of a human next to the device ACD 1200 A60
Human size ratio to the two-story device variant

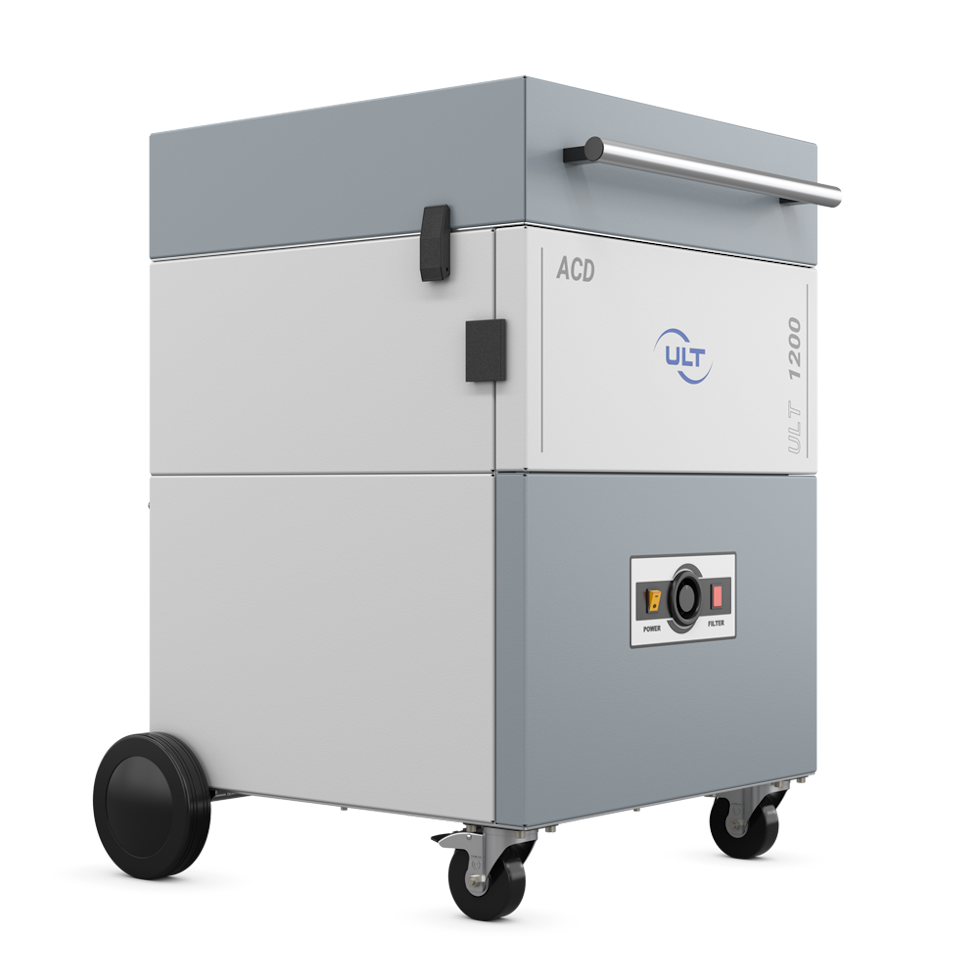

Lateral grey device with wheels view from the left
ACD 1200 for removing vapors, odors and gases

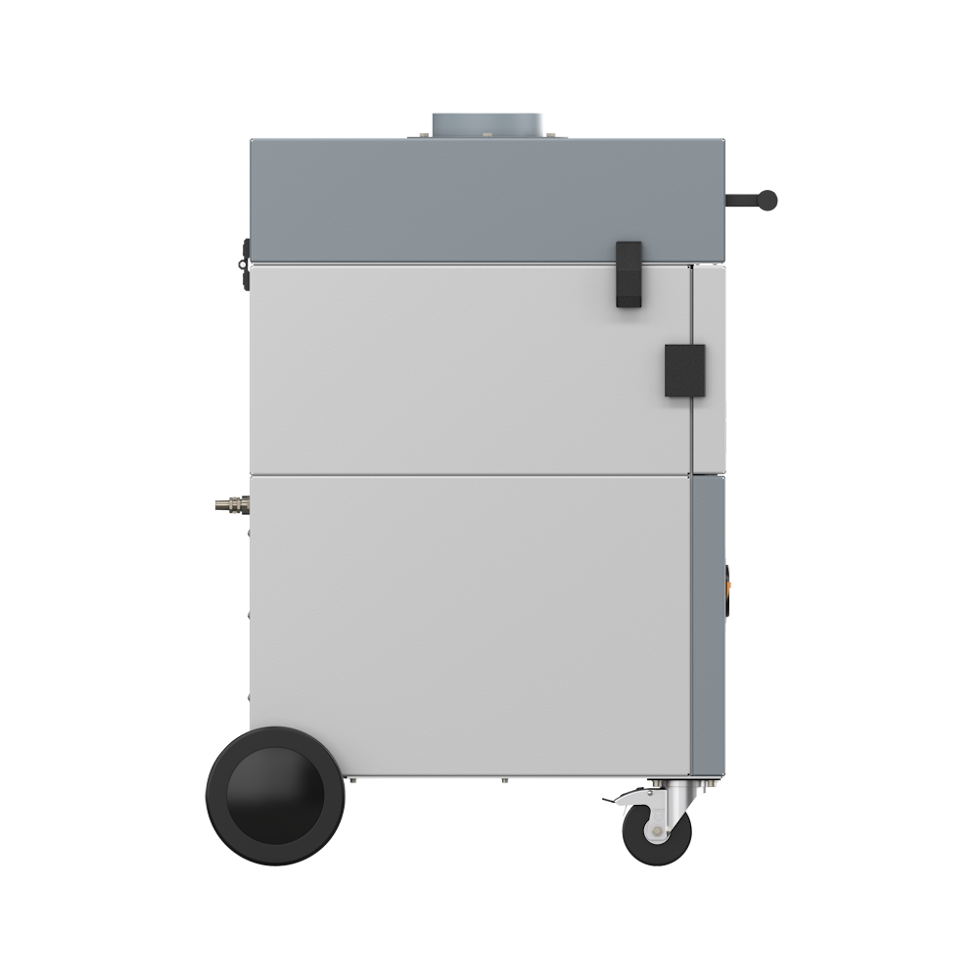

Lateral system view from the right
Wheels for mobile and flexible utilization at different workplaces

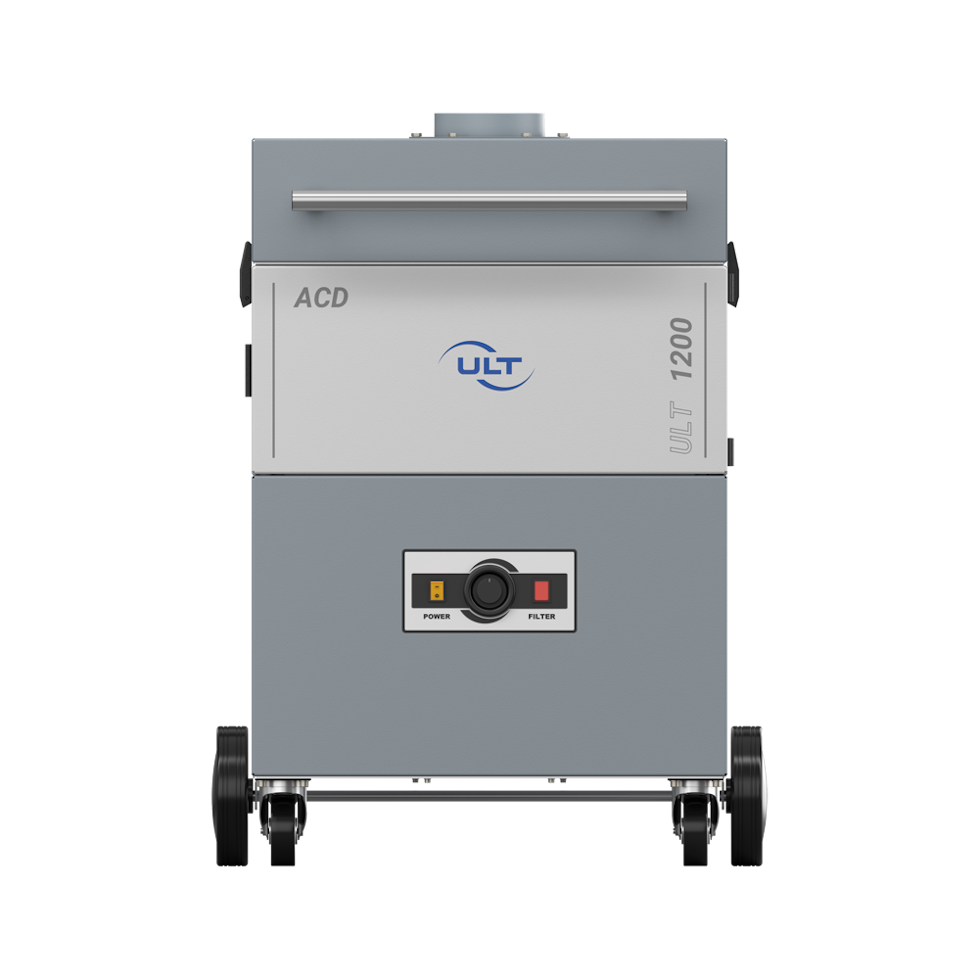

Front view of the filter system ACD 1200
Easily accessible operation elements on the device front

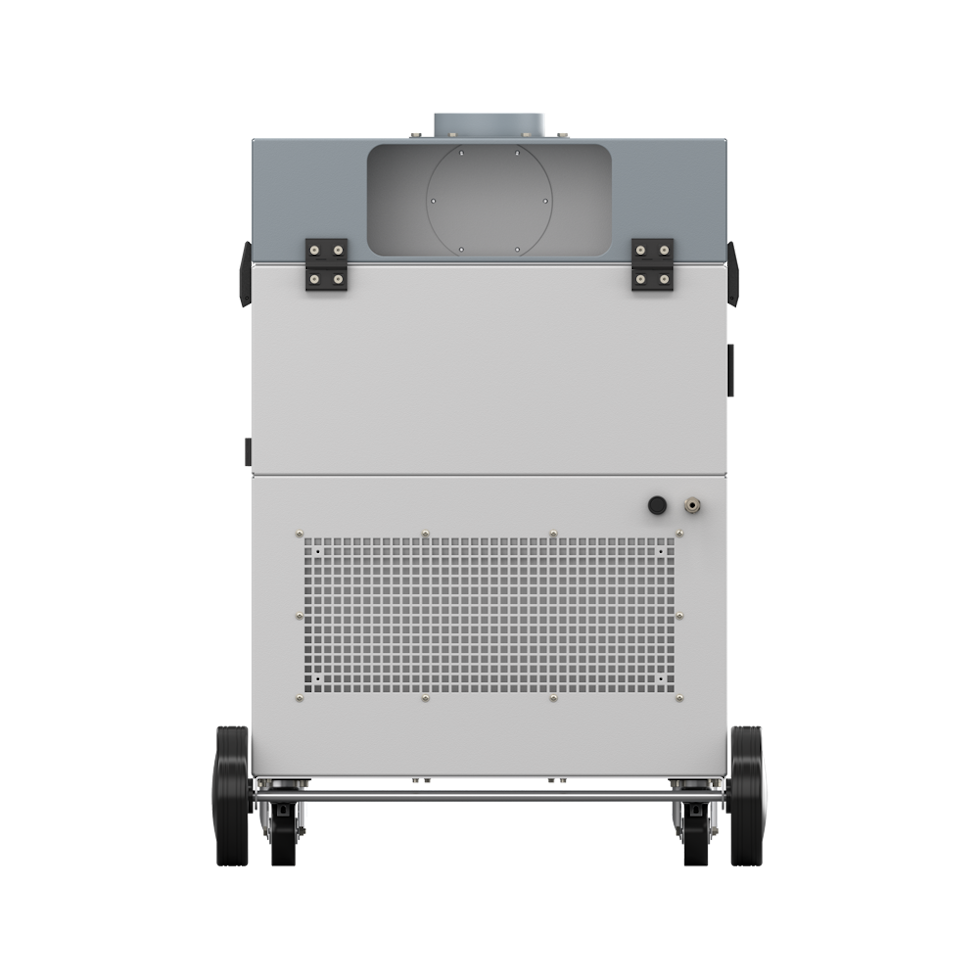

Rear view of the ACD 1200 filtration unit
Discharge grille for cleaned air at the rear of the device
Side view of the ACD 1200  extraction system with fasteners
Quick-lock fasteners for easy filter replacement

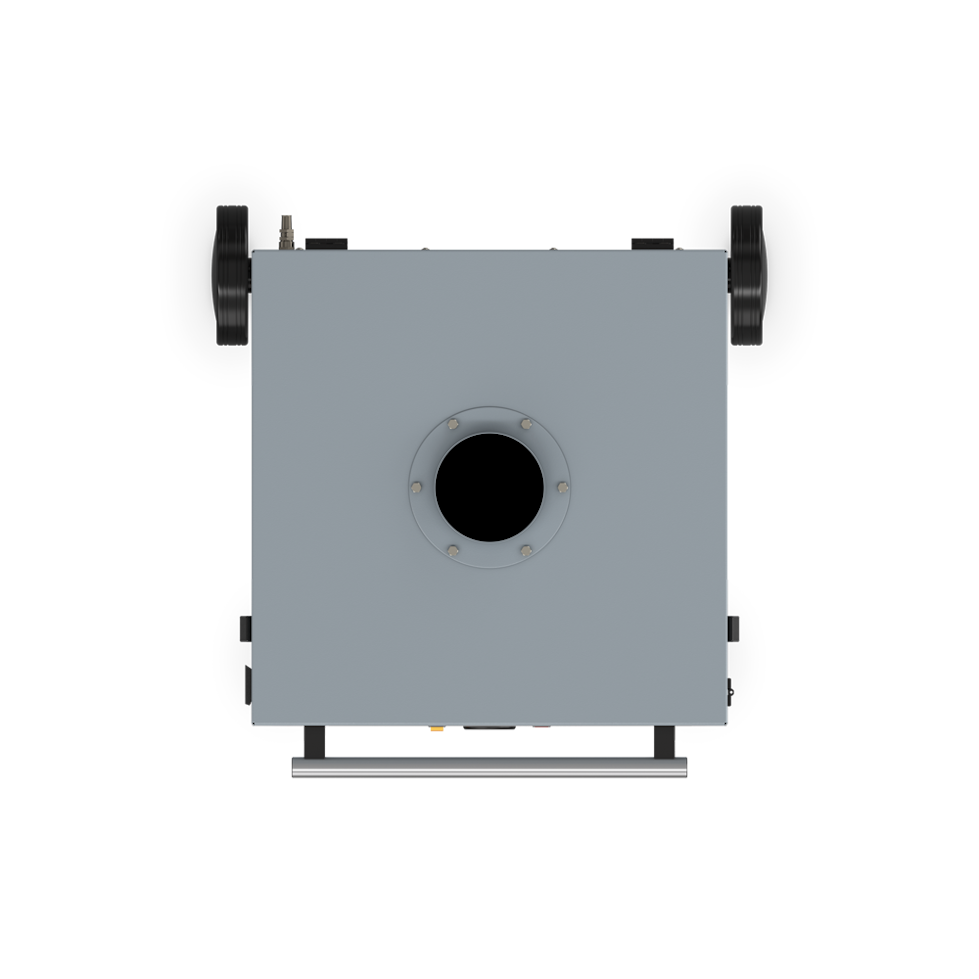

View of the extraction system from above with opening to connect extraction arms
Fitting for an extraction arm or hose on top of the device

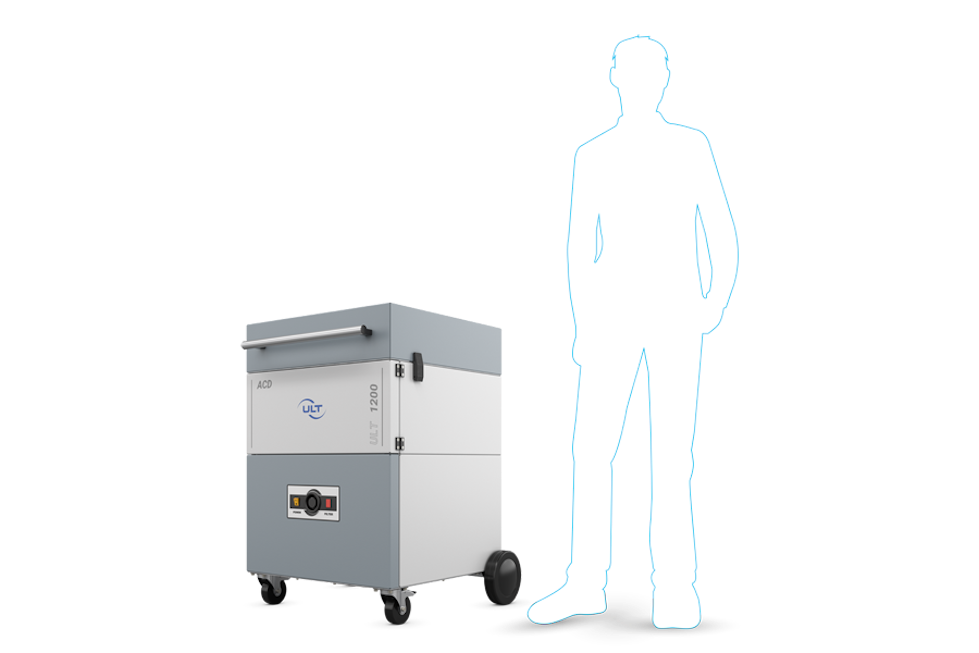

Silhouette of a person next to the ACD 1200 filter system, which shows the size ratio
Human-machine size ratio
Two-tier device variant of the filter system for odors and vapours. gases
ACD 1200 A60 with two activated carbon filter modules
Silhouette of a human next to the device ACD 1200 A60
Human size ratio to the two-story device variant
Lateral grey device with wheels view from the left
ACD 1200 for removing vapors, odors and gases
Lateral system view from the right
Wheels for mobile and flexible utilization at different workplaces
