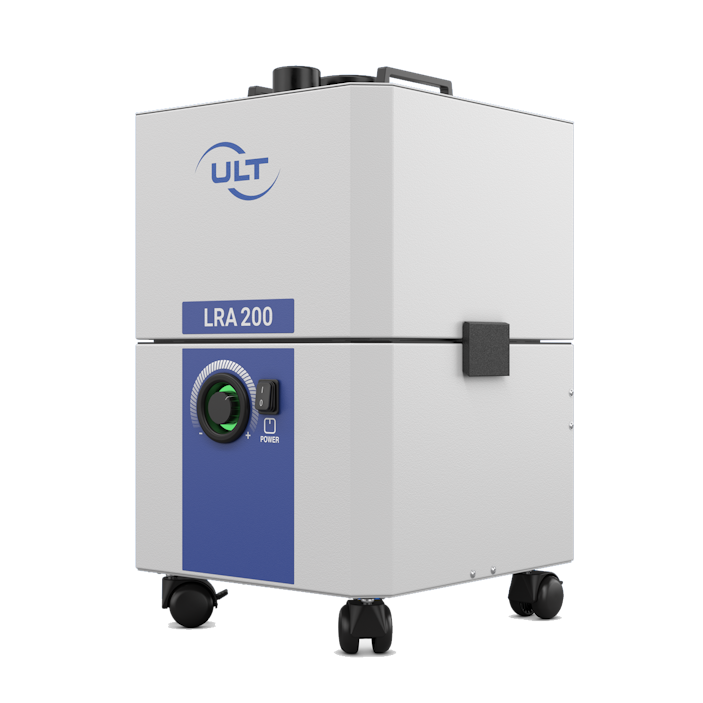

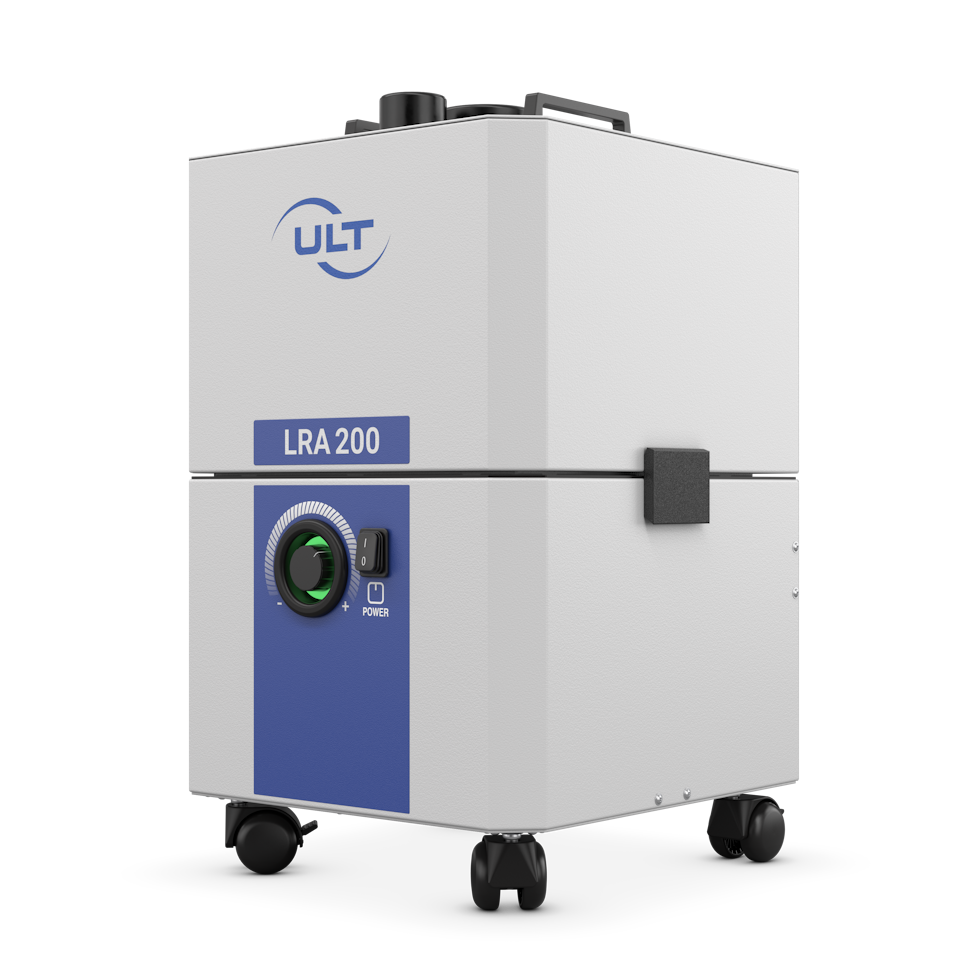

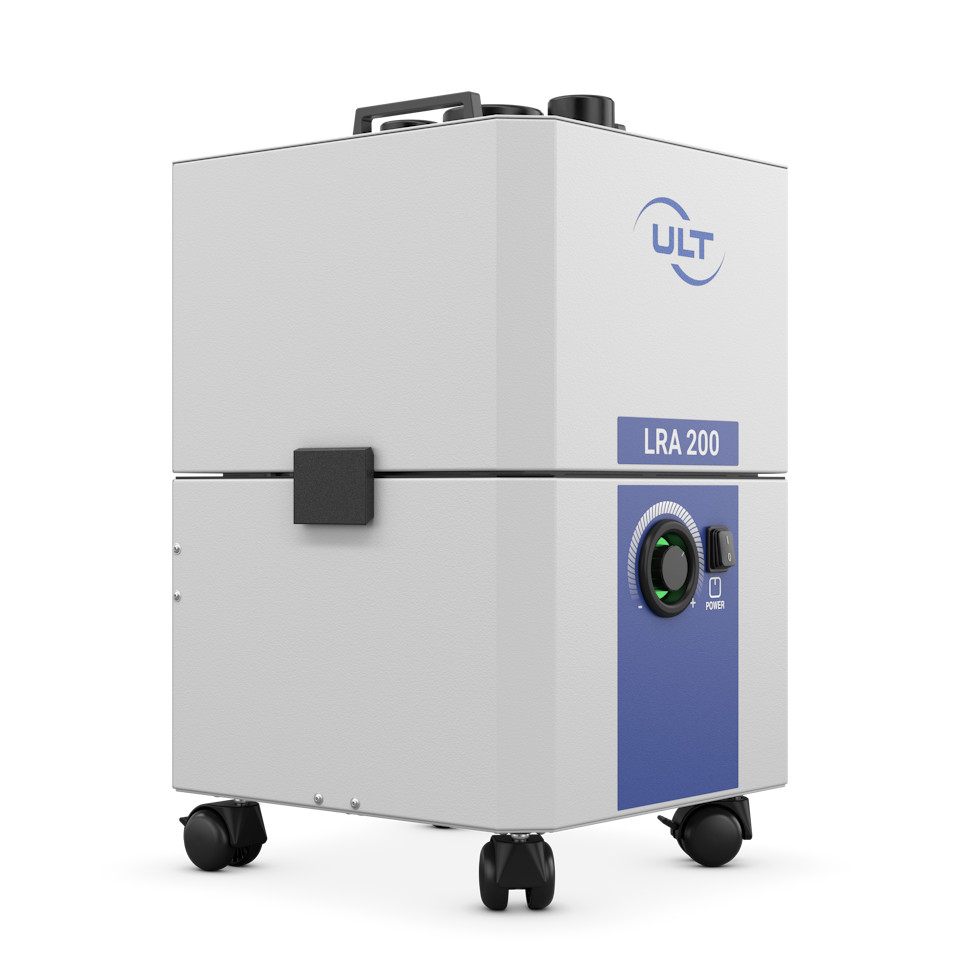

LRA 200.1 – flexible solution for soldering fume extraction
Product details
Application fields
Manual soldering
Robot soldering
Automated soldering
Features

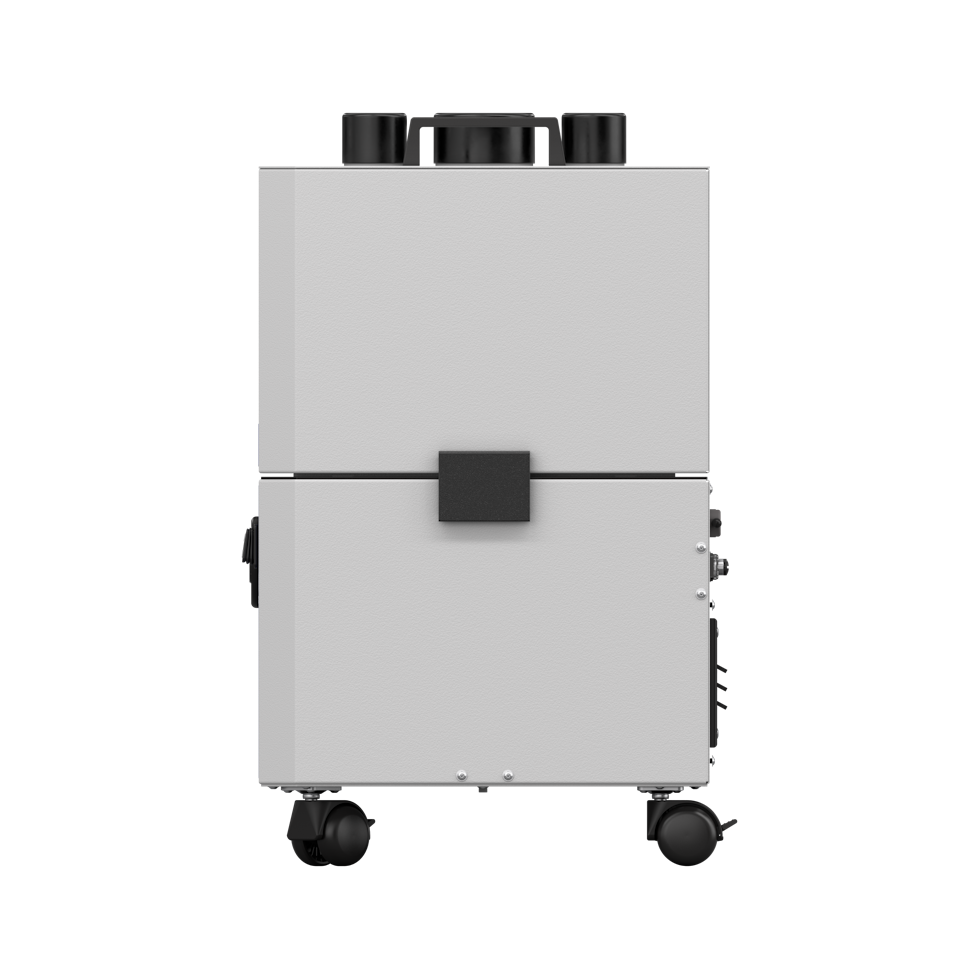

Stationary and mobile unit with either four castors or adjustable feet
Easy filter handling
Modular design

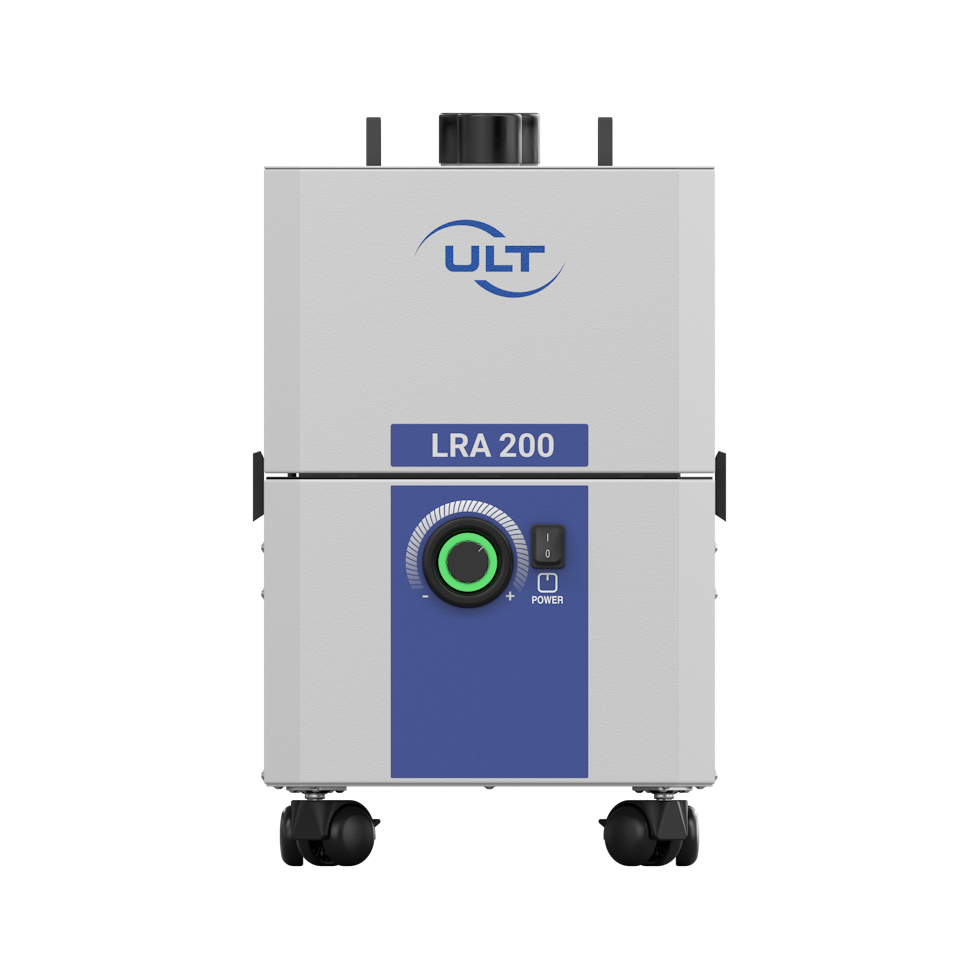

Operation elements on front side
Powder-coated, robust housing
Volumetric flow control: stepless adjustment of extraction performance
Constant negative-pressure maintained even with several suction points
Particle filter configuration: optic signaling at 80% and 100%

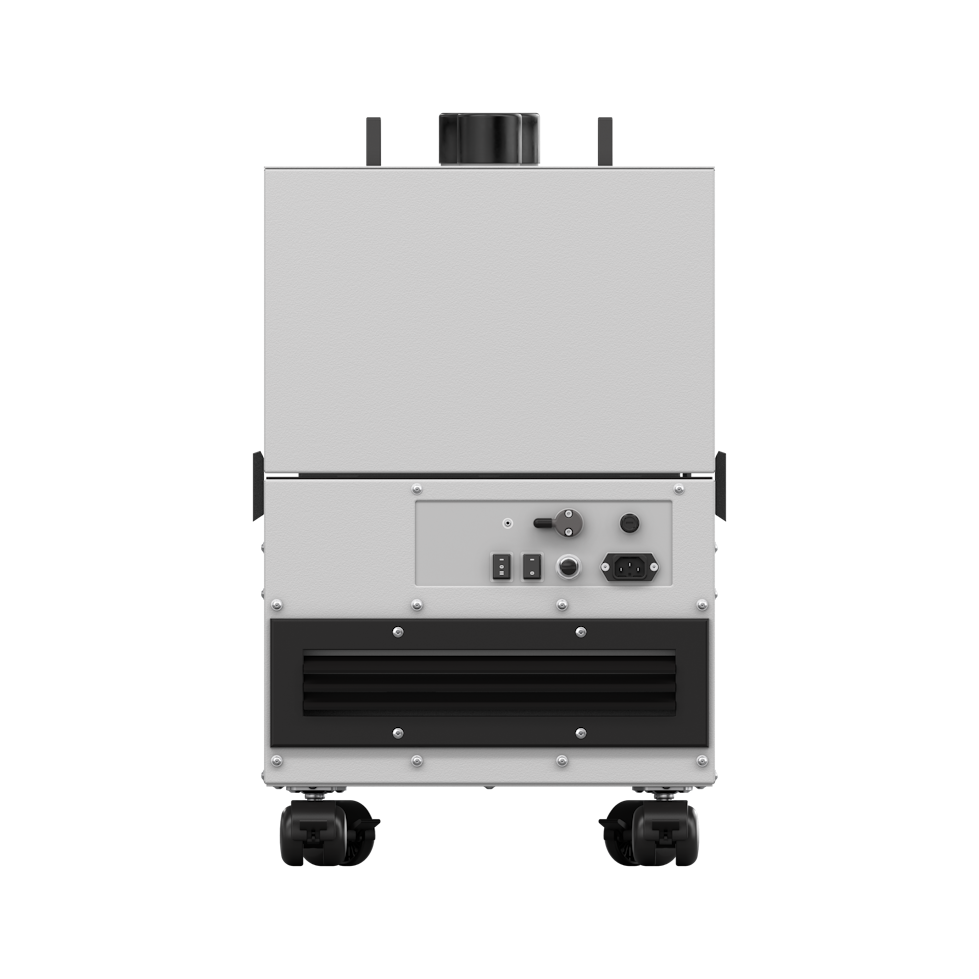

Interface M12: standard configuration, remote ON/OFF

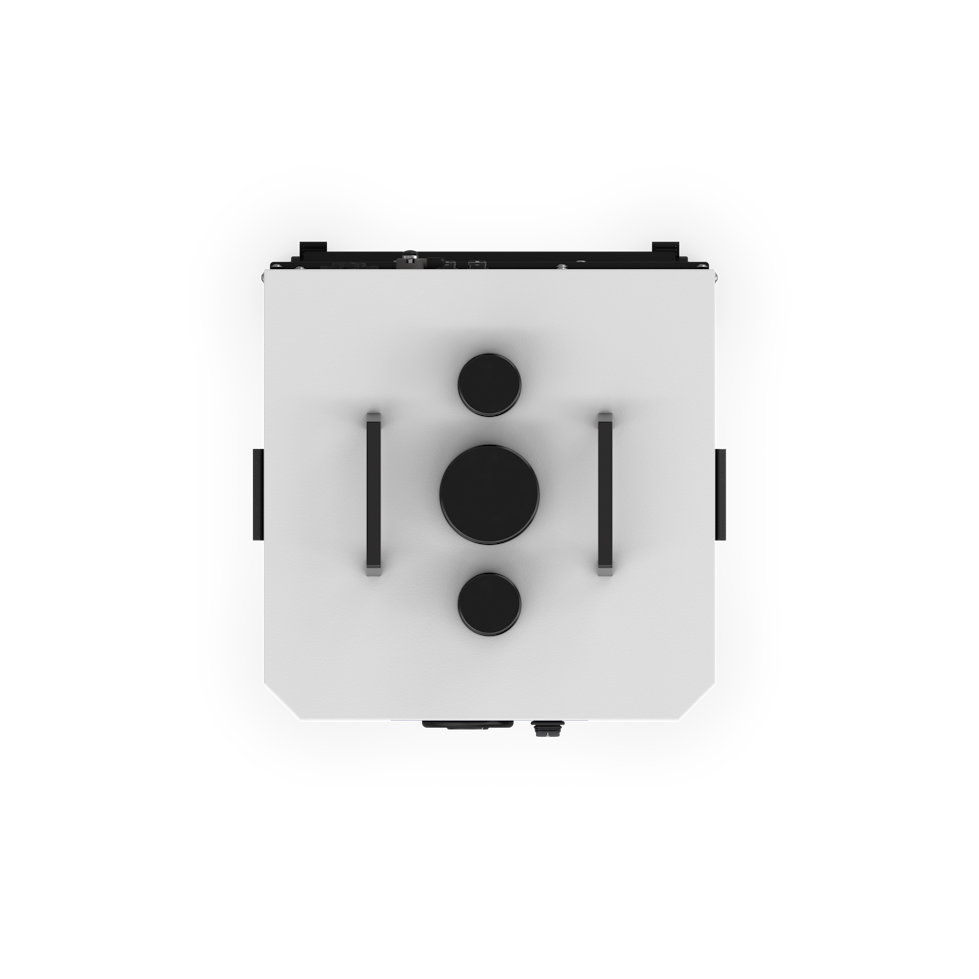

Fittings for extraction arms (Ø 50, 75, 80) for one to four individual workplaces
Comprehensive accessory set (see downloads), including floor switch, hoses, extraction arm console, etc.
Technical specifications
| Device version | LRA 200.1 MD.20 |
|---|---|
| Max. flow rate in m³/h | 320 |
| Max. flow rate in cfm | 188 |
| Max. vacuum in Pa | 9000 |
| Max. vacuum in inch wc | 36.2 |
| Nominal capacity in m³/h@Pa | 130 @ 5.000 (high pressure application) / 230 @ 1.000 (medium pressure application) |
| Nominal capacity in cfm@inch wc | 76.5 @ 20 (high pressure application) / 135 @ 4.1 (medium pressure application) |

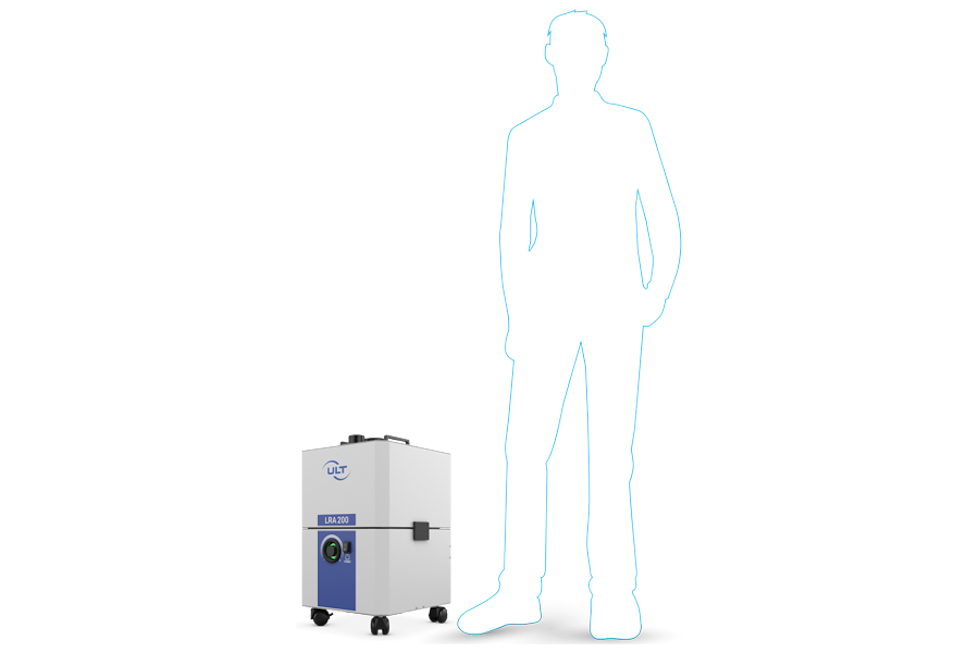

| Dimensions in mm (WxDxH) | 390x400x620 |
| Dimensions in inch (WxDxH) | 15.4x15.7x24.4 |
| Weight in kg | 36 |
| Weight in lbs | 79 |
| Noise level in dB | 47 |
| Connection variants – diameter in mm | Standard: 2 X 50 or 1 X 80 / option: hose or arm mounting with bracket |
| Connection variants – diameter in inch | Standard: 2 X 1.97 or 1 X 3.15 / option: hose or arm mounting with bracket |
System benefits
Quiet operation
ULT’s extraction and filtration systems are especially quiet. This is appreciated by numerous clients worldwide. This means your employees won’t be bothered by unnecessary noise.
Modular system structure
Modularity is the basis for the effective use of ULT’s ventilation solutions. This lets you respond flexibly to changing contaminant or work scenarios and therefore always utilize the full potential of your systems.
High flexibility
Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.
Optimal filter technology
Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.
Low energy requirements
ULT’s extraction systems reduce the operation and maintenance costs based on your optimal filtration plan. In addition, the system is designed so that the required energy consumption is kept very low.
Easy servicing
ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.
Video: user benefits and features of the mobile fume extractor
Images
We're happy to help you!
We are happy to offer you further information about our extraction systems and the respective filtration technology. We can also configure your individual solution as requested or required.
