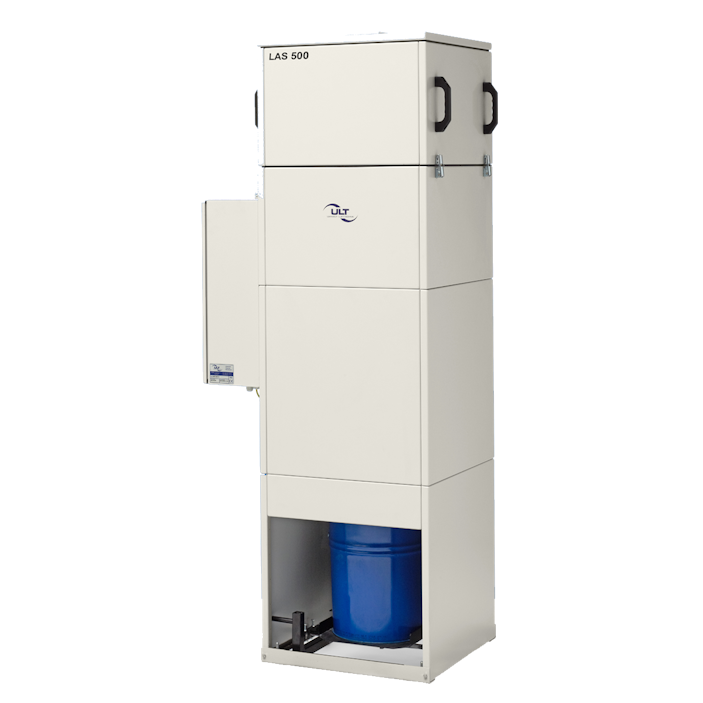

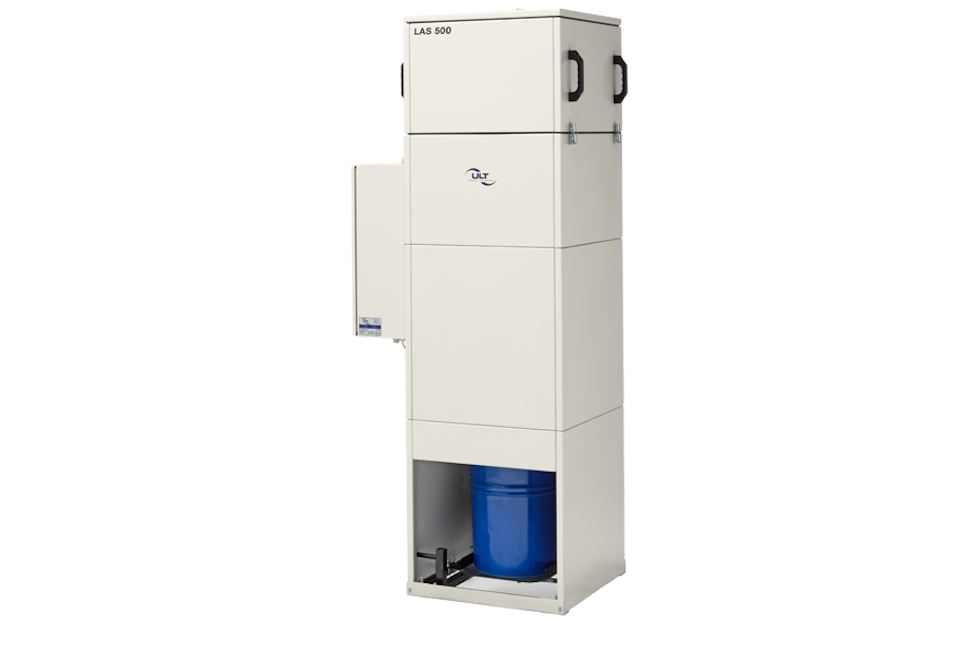

LAS 500 – laser dust extraction system
Product details
Application fields
Laser welding, laser engraving, laser cutting, laser soldering
Laser structuring, laser melting, laser marking, laser cladding, etc.
Features
Stationary extraction system for high contaminant yield
Cartridge filter system with automatically cleanable filter elements
Low maintenance costs
Powder coated, robust steel housing
SUB D9 Interface: Remote I/O, operations report, filter 100%
Options
Customizable cleaning interval encoder for laser machining processes
Manual cleaning by push button possible
Technical specifications
| Device version | LAS 500 HD.14 |
|---|---|
| Max. flow rate in m³/h | 400 |
| Max. flow rate in cfm | 235 |
| Max. vacuum in Pa | 20200 |
| Max. vacuum in inch wc | 82 |
| Nominal capacity in m³/h@Pa | 270 @ 5000 |
| Nominal capacity in cfm@inch wc | 159 @ 20.1 |
| Dimensions in mm (WxDxH) | 670x590x2050 |
| Dimensions in inch (WxDxH) | 26x23.2x80.7 |
| Weight in kg | 150 |
| Weight in lbs | 330 |
| Noise level in dB | 70 |
| Connection variants – diameter in mm | 1 X Ø 125 / option: additional Ø |
| Connection variants – diameter in inch | 1 X Ø 4.92 / option: additional Ø |
System benefits
High filter service life
The high priority of filter elements in ULT systems reduces medium and long-term costs for maintenance and materials. In addition, the periods of downtime for necessary filter changes or system cleaning are significantly reduced.
Optimal filter technology
Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.
Individual extraction solutions
Your extraction systems are adapted to your needs. Starting from the contaminant situation, via your internal processes, to the best possible collection solution, ULT advises and supports you in the selection and installation of your optimal extraction and filtration solution.
We're happy to help you!
We are happy to offer you further information about our extraction systems and the respective filtration technology. We can also configure your individual solution as requested or required.
