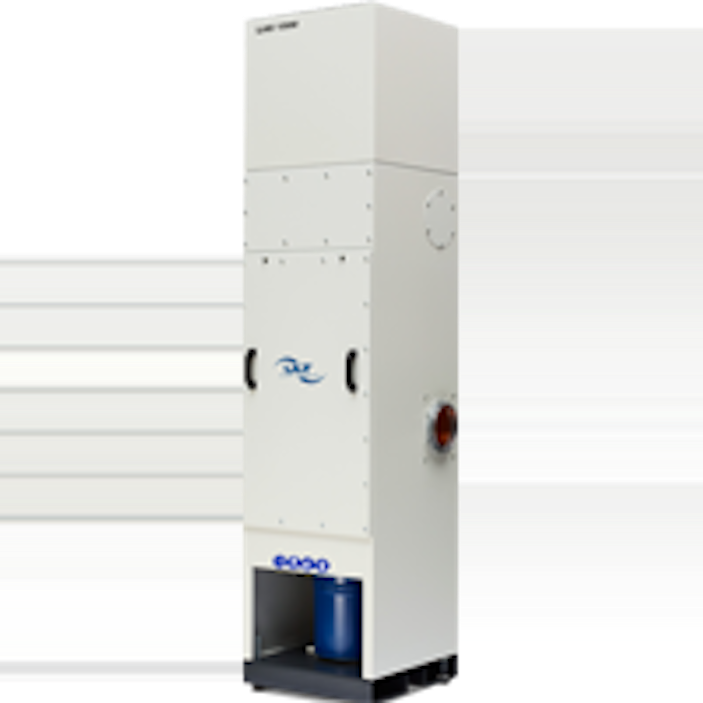

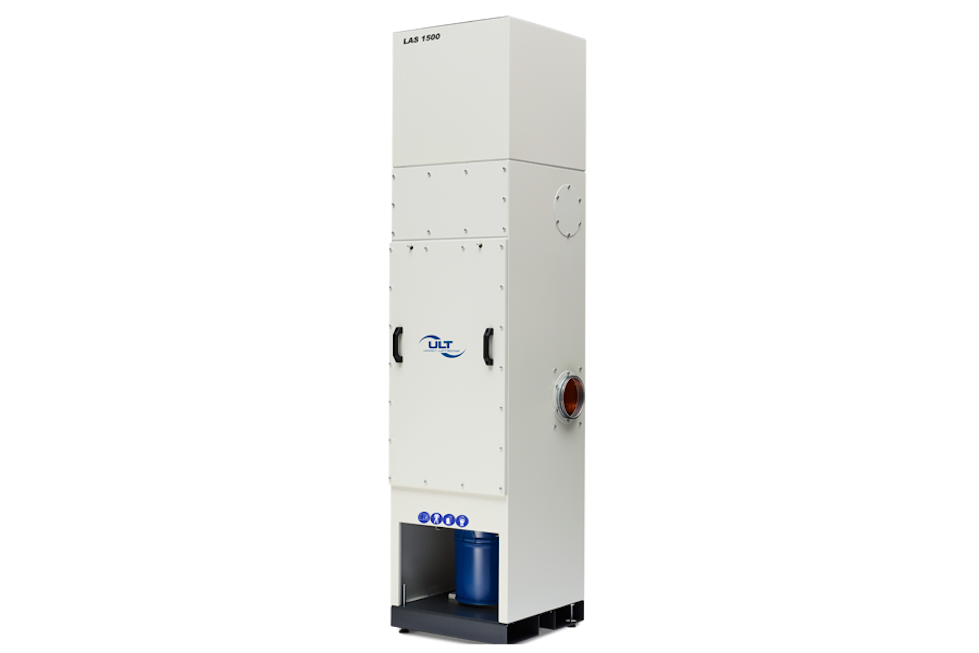

LAS 1500 for laser fume extraction
Product details
Application fields
Laser engraving, laser marking, laser welding, laser cleaning
Laser structuring, laser melting, laser cutting, laser cladding, etc.
Features
Stationary extraction system for high contaminant yield with 30 l dust collection container
Cartridge filtration system with (automatically) cleanable filter elements
Easy filter handling through Quick-Lock closure
Operation elements in separate control cabinet
Particle filter occupancy indicator
Powder coated, rugged steel housing
Space and cost savings in linear production
Options
Differential pressure dependent filtration cartridge cleaning using rotating airjet
Check valve to prevent pipeline contaminant buildup
Technical specifications
| Device version | LAS 1500 MD.60 | LAS 1500 MD.61 |
|---|---|---|
| Max. flow rate in m³/h | 2160 | 3240 |
| Max. flow rate in cfm | 1271 | 1907 |
| Max. vacuum in Pa | 3200 | 3450 |
| Max. vacuum in inch wc | 12.9 | 13.9 |
| Nominal capacity in m³/h@Pa | 800 @ 2500 | 1200 @ 2500 |
| Nominal capacity in cfm@inch wc | 47 @ 10 | 706 @ 10 |
| Dimensions in mm (WxDxH) | 680x750x2920 | 680x750x2920 |
| Dimensions in inch (WxDxH) | 26.8x29.5x115 | 26.8x29.5x115 |
| Weight in kg | 300 | 300 |
| Weight in lbs | 661 | 661 |
| Connection variants – diameter in mm | 1 X 200 | 1 X 200 |
| Connection variants – diameter in inch | 1 x 7.8 | 1 x 7.8 |
System benefits
High filter service life
The high priority of filter elements in ULT systems reduces medium and long-term costs for maintenance and materials. In addition, the periods of downtime for necessary filter changes or system cleaning are significantly reduced.
Individual extraction solution
Your systems will be adapted to your needs. Starting with the pollutant situation and your internal processes to the best possible collection solution - we advise and support you in the selection and installation of your ideal extraction and filtration solution.
Individual extraction solutions
Your extraction systems are adapted to your needs. Starting from the contaminant situation, via your internal processes, to the best possible collection solution, ULT advises and supports you in the selection and installation of your optimal extraction and filtration solution.
R&D basis
Research and Development (R&D) has a very high priority at ULT. Several projects with prestigious partners and institutes have produced new approaches to ventilation systems that often become series products or are adapted quickly and easily to customer-specific projects.
Optimal filter technology
Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.
Easy servicing
ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.
Images
We're happy to help you!
We are happy to offer you further information about our extraction systems and the respective filtration technology. We can also configure your individual solution as requested or required.
